Uni Block 18, Black

Product information "Uni Block 18, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:

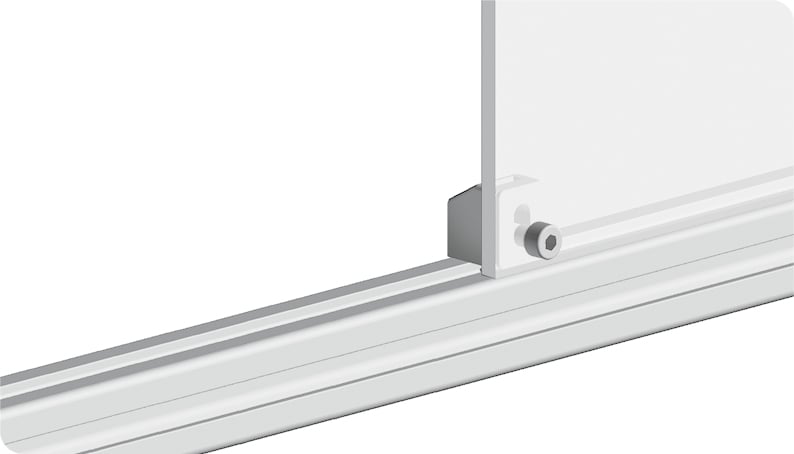

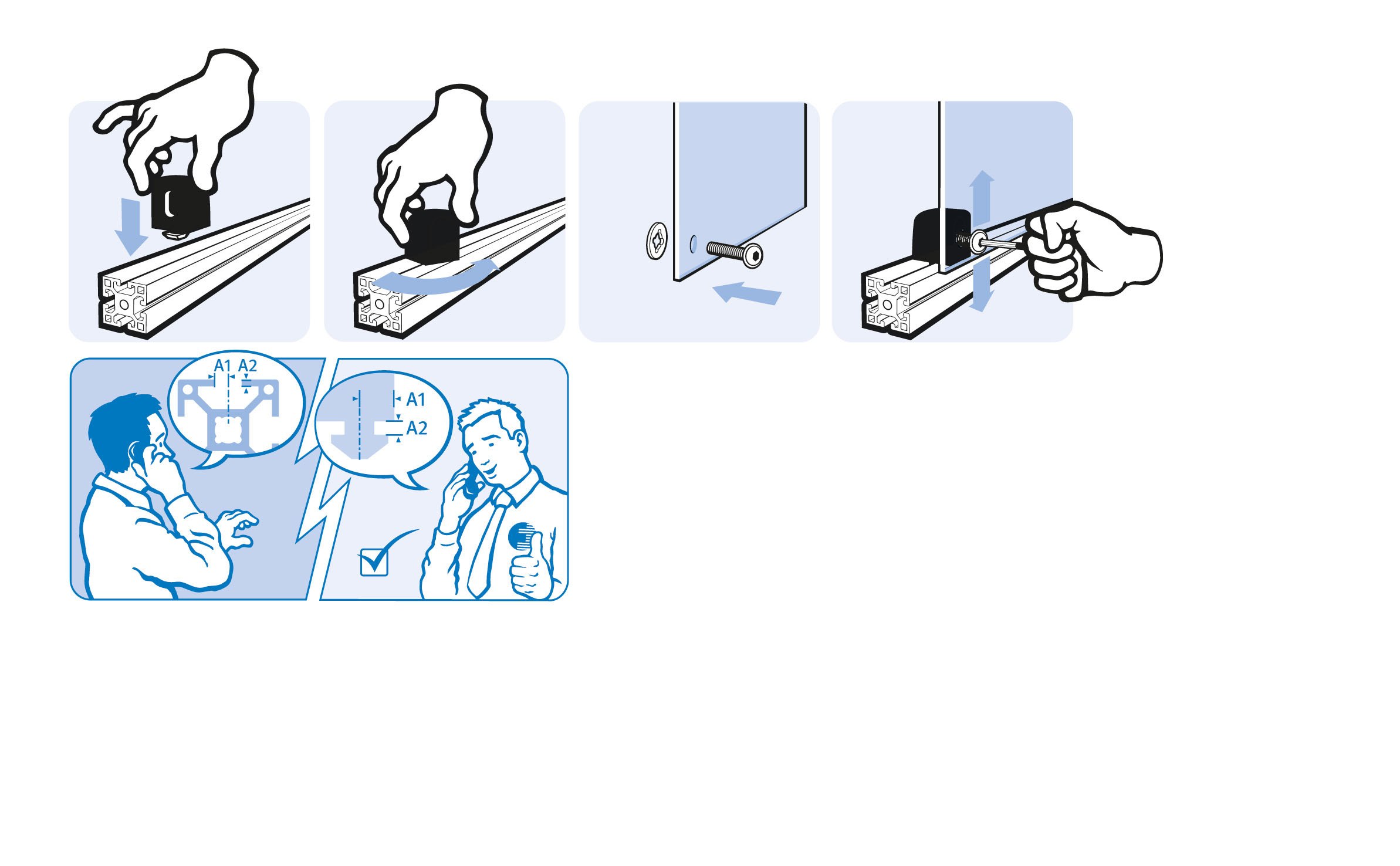

To attach panels easily to aluminum profiles

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Specials:
Customized hammer, other colors on request

Tip:
Compatible Spacer see 094102CS

Zolltarifnummer:
39269097900

(ECLASS 6.0):	23369290
(ECLASS 7.0):	23369290
(ECLASS 8.0):	23369290
(ECLASS 9.0):	23369290
(ECLASS 10.0):	23369290
(ECLASS 11.0):	23360492
(ECLASS 12.0):	23360492
(ECLASS 13.0):	23360492
Model:	Plastic PA, slot 6, 8
Pack Quantity:	100 pieces
Pack Quantity (1):	100
Weight (g):	1.9

Variants

Product ID	Profile	Color	D (mm)	Slot N (mm)	A1 (mm)	A2 (Profile) (mm)	M
094002M4	B			8	7.0	1.9 (2.2)	M4
094002M5	B			8	7.0	1.9 (2.2)	M5
094002M6	B			8	7.0	1.9 (2.2)	M6
094100M4	I			6	7.0	2.7 (3.0)	M4
094100M5	I			6	7.0	2.7 (3.0)	M5
094100M6	I			6	7.0	2.7 (3.0)	M6
094102CS		Black	*2.0
094103CS		Black	3.0
094105CS		Black	5.0
