Uni Block 18 CS, Gray

Product information "Uni Block 18 CS, Gray"

Color:
Gray

Delivery Countries:
Worldwide

Description:

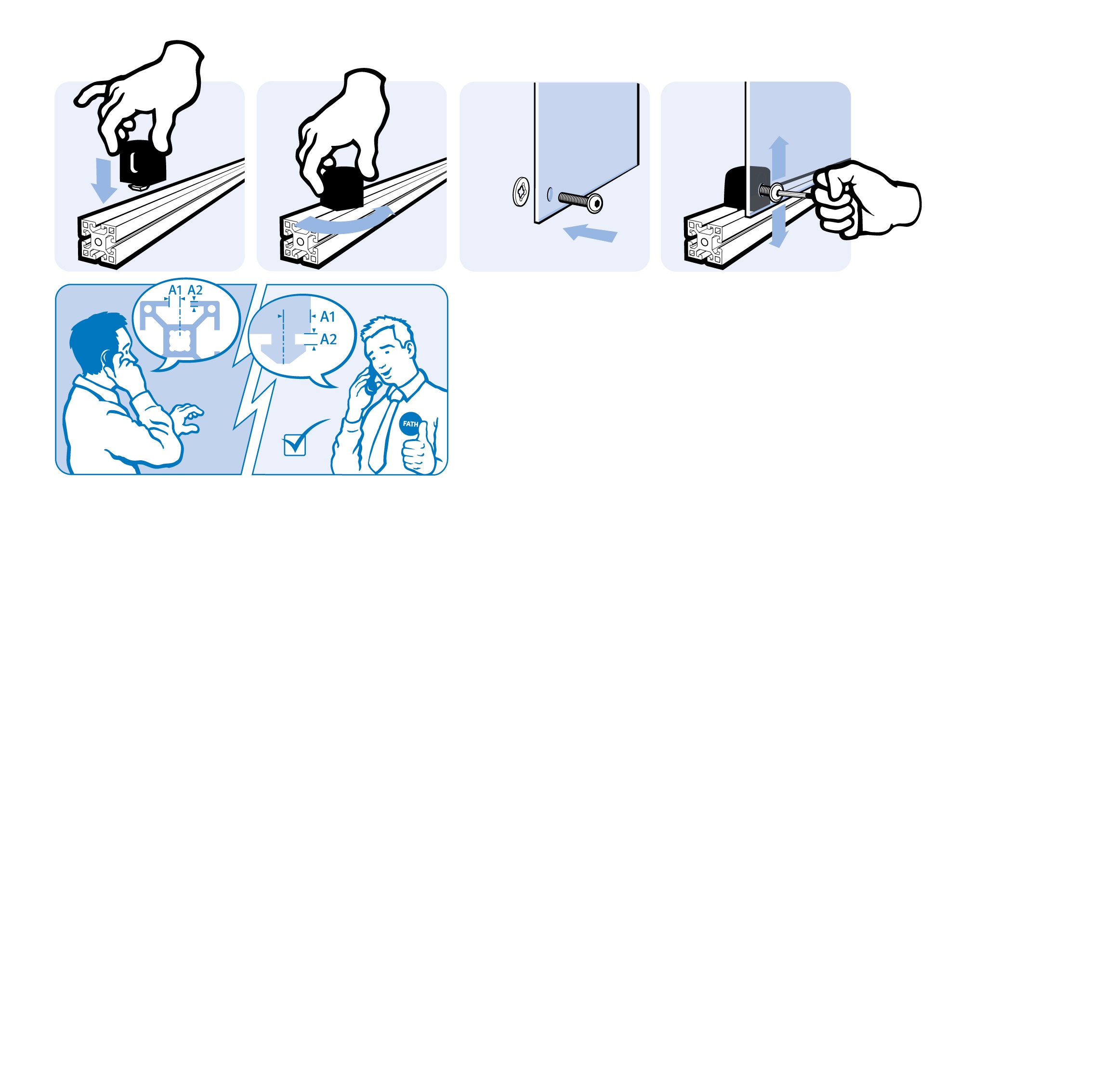

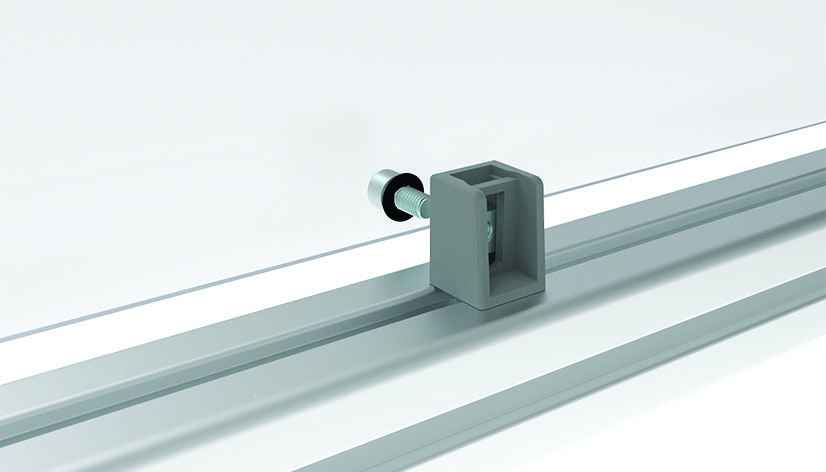

To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Specials:
Customized hammer, other colors on request

Tip:
Compatible Spacer see 094102CSS03
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Customs Tariff Number Export: 39269097
Model: With screw retainer
Pack Quantity: 100 pieces
Pack Quantity (1): 25
Weight (g): 9.0
Zolltarifnummer: 39269097900
pA Number: 141282

Variants

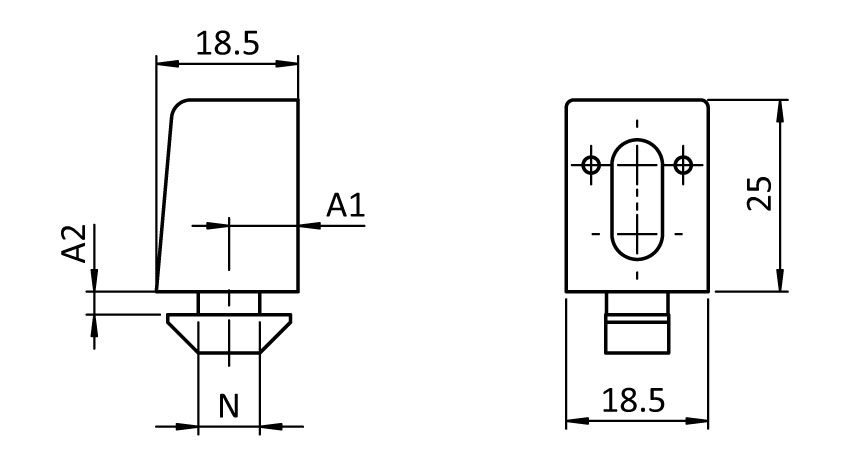

Product ID Color Profile M Fig. D (mm) Slot N (mm) A1 (mm) A2 (Profile) (mm)
094002CSM6S01 Gray ≈ RAL 7004 B M6 8 7.0 1.9 (2.2)
094100CSM6S01 Gray ≈ RAL 7042 I M6 6 7.0 2.7 (3.0)
