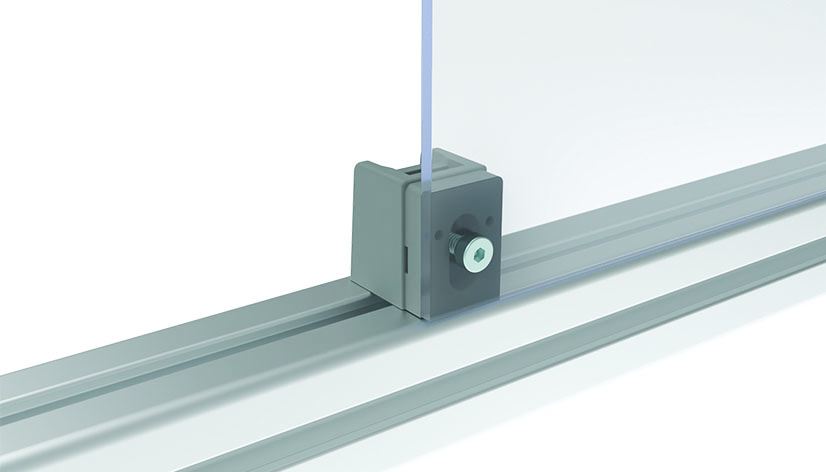

Uni Block 18, Gray

Product information "Uni Block 18, Gray"

Color:
Gray

Delivery Countries:
Worldwide

Description:

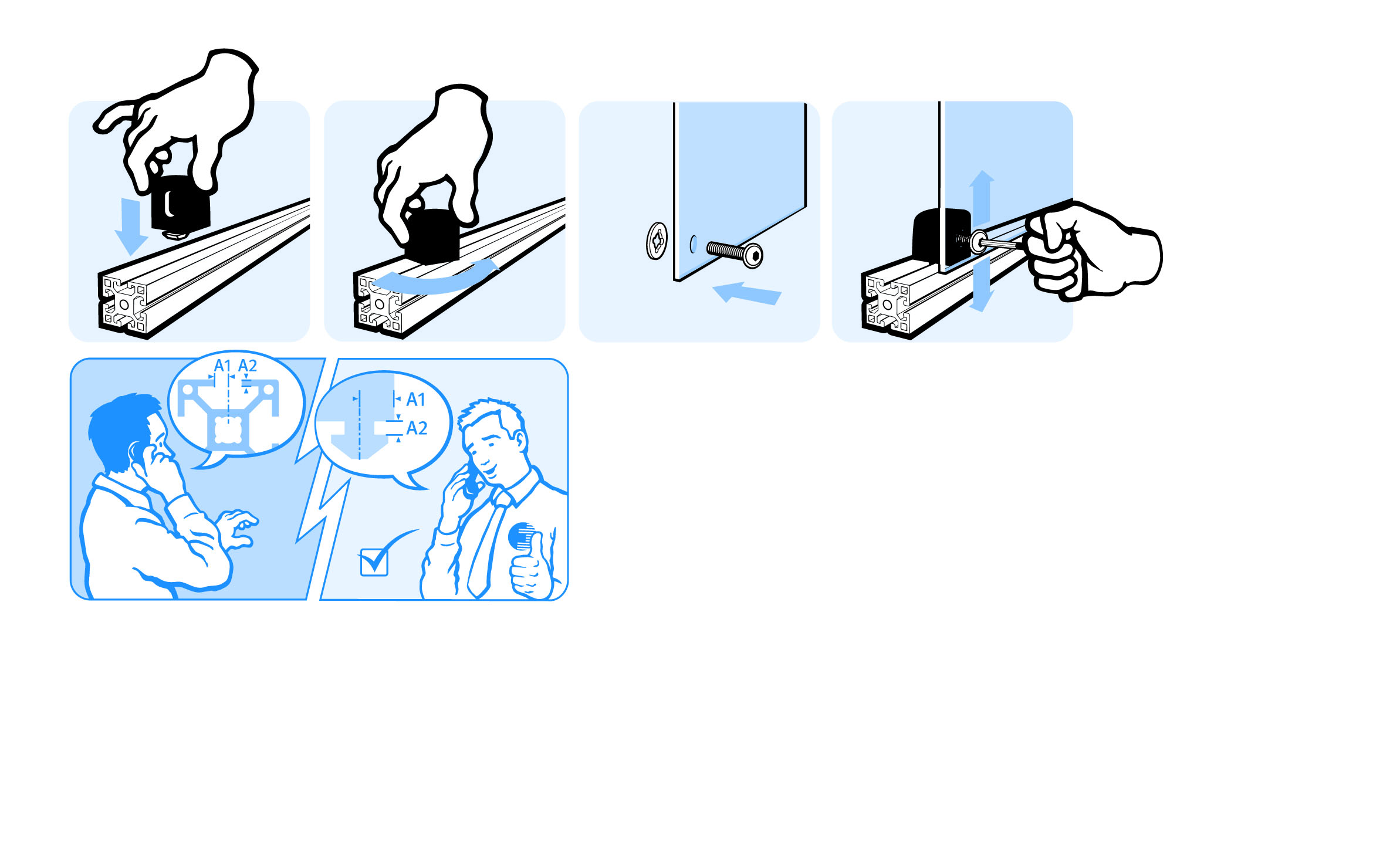

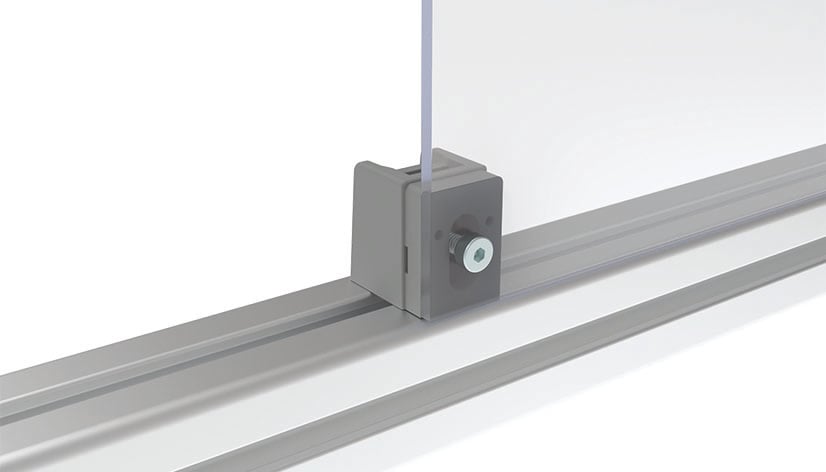

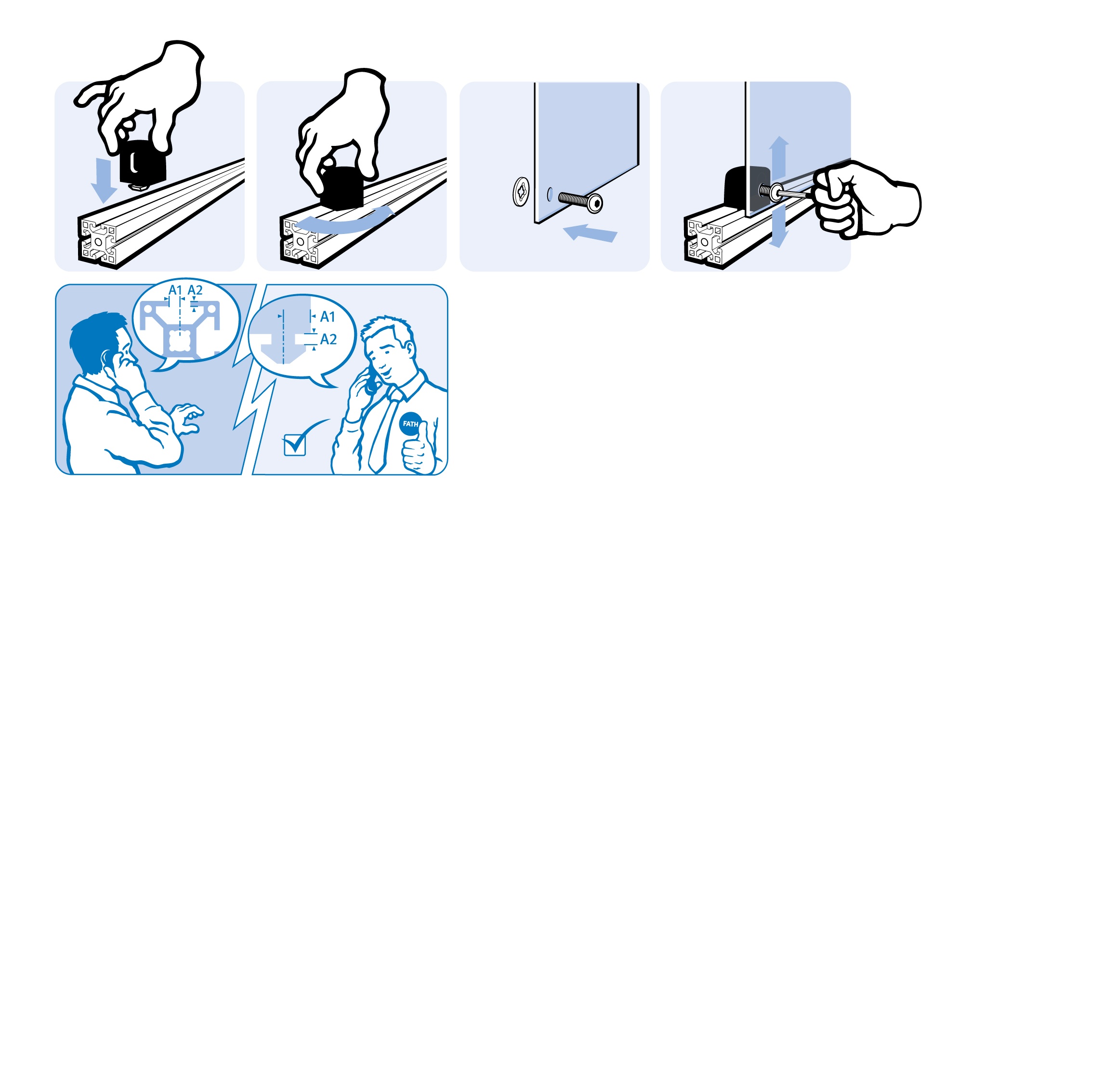

To attach panels easily to aluminum profiles

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Specials:
Customized hammer, other colors on request

Tip:
Compatible Spacer see 094102S10

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Model: Plastic PA, slot 6, 8
Pack Quantity: 100 pieces
Weight (g): 8.1

Variants

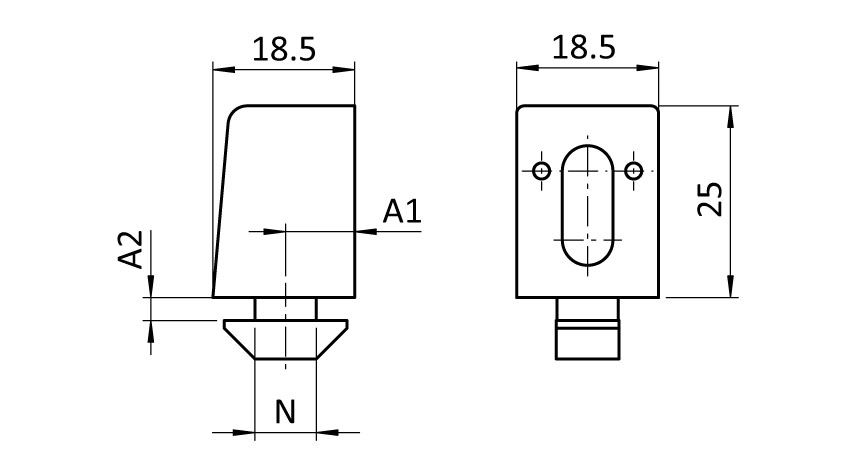

Product ID Fig. D (mm) A1 (mm) Color Profile M Slot N (mm) A2 (Profile) (mm)
094002M4S01 7.0 Gray ≈ RAL 7004 B M4 8 1.9 (2.2)
094002M5S02 7.0 Gray ≈ RAL 7004 B M5 8 1.9 (2.2)
094002M6S06 7.0 Gray ≈ RAL 7004 B M6 8 1.9 (2.2)
094100M4S01 7.0 Gray ≈ RAL 7042 I M4 6 2.7 (3.0)
094100M5S01 7.0 Gray ≈ RAL 7042 I M5 6 2.7 (3.0)
094100M6S02 7.0 Gray ≈ RAL 7042 I M6 6 2.7 (3.0)
094102S10 *2.0 Gray ≈ RAL 7042
094102S11 *2.0 Gray ≈ RAL 7004
094103S11 3.0 Gray ≈ RAL 7042
094103S12 3.0 Gray ≈ RAL 7004
094105S11 5.0 Gray ≈ RAL 7042
094105S12 5.0 Gray ≈ RAL 7004
