Uni Block 25 CS, Black

Product information "Uni Block 25 CS, Black"

Color:
Black

Delivery Countries:
Worldwide

Description:

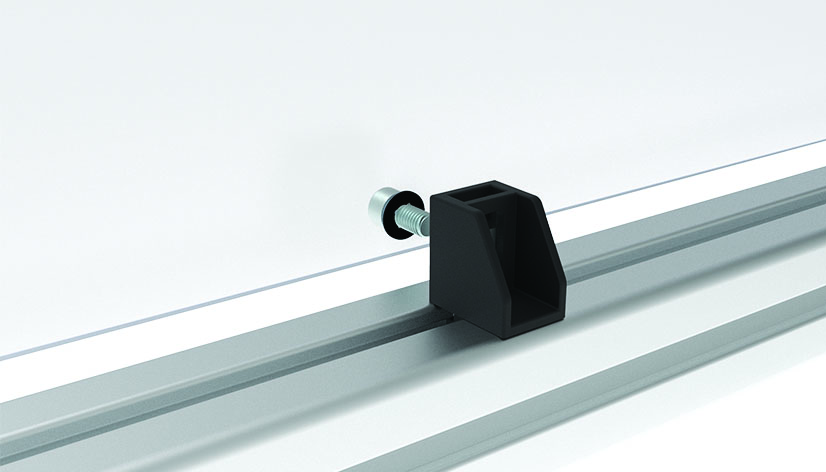

To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Specials:
Customized hammer, other colors on request

Tip:
Compatible Spacer see 094102CS

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Model: With screw retainer
Pack Quantity: 100 pieces
Pack Quantity (1): 100
Weight (g): 1.9

Variants

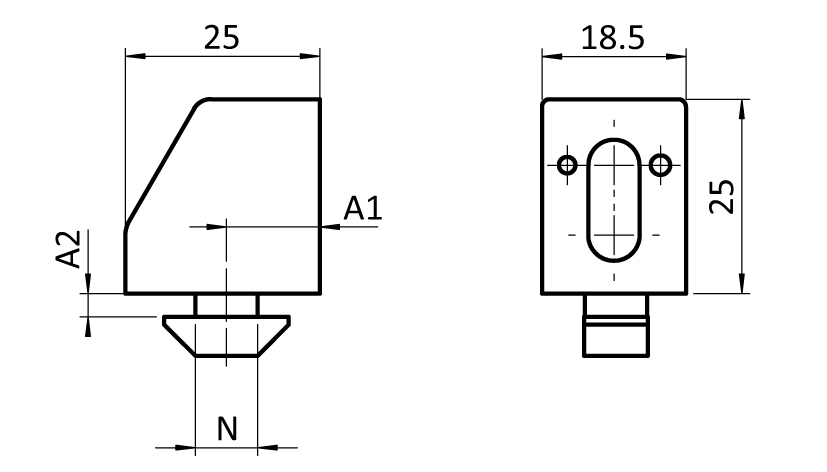

Product ID Color Profile M D (mm) Slot N (mm) A2 (Profile) (mm) A1 (mm)
094003CSM6 I M6 8 4.35 (4.5) 7.9
094004CSM6 B M6 10 5.6 (6.0) 9.5
094005CSM6 B M6 10 6.0 (6.0) 14.0
094008CSM6 B M6 10 5.7 (6.0) 8.5
094020CSM6 I M6 8 4.4 (4.5) 12.0
094080CSM6 I M6 8 4.6 (4.5) 14.0
094102CS - 3 Black *2.0
094103CS - 3 Black 3.0
094105CS - 3 Black 5.0

CAD Downloads

Certificates
