Uni Block 25 CS, Gray

Product information "Uni Block 25 CS, Gray"

Color:
Gray

Delivery Countries:
Worldwide

Description:

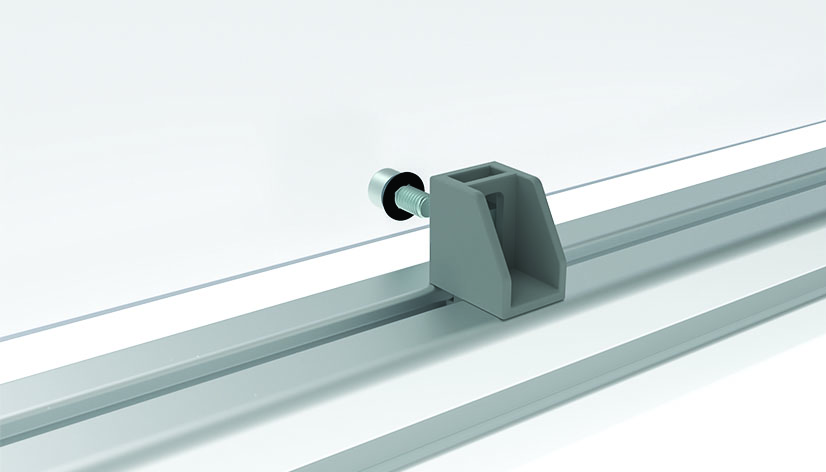

To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Specials:
Customized hammer, other colors on request

Tip:
Compatible Spacer see 094102CSS03

Zolltarifnummer:
39269097900

(ECLASS 6.0):	23369290
(ECLASS 7.0):	23369290
(ECLASS 8.0):	23369290
(ECLASS 9.0):	23369290
(ECLASS 10.0):	23369290
(ECLASS 11.0):	23360492
(ECLASS 12.0):	23360492
(ECLASS 13.0):	23360492
Model:	With screw retainer
Pack Quantity:	100 pieces
Pack Quantity (1):	25
Weight (g):	11.0

Variants

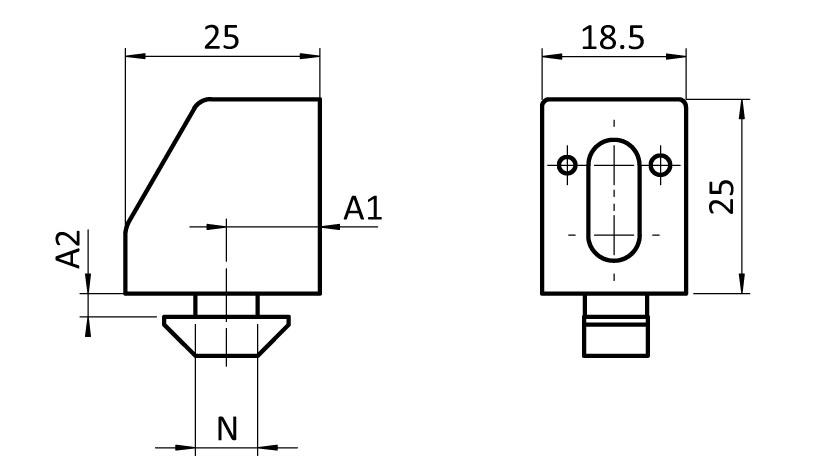

Product ID	Color	Profile	M	Fig.	D (mm)	Slot N (mm)	A2 (Profile) (mm)	A1 (mm)
094003CSM6S01	Gray ≈ RAL 7042	I	M6			8	4.4 (4.5)	8.0
094004CSM6S01	Gray ≈ RAL 7004	B	M6			10	5.6 (6.0)	9.5
094005CSM6S02	Gray ≈ RAL 7004	B	M6			10	6.0 (6.0)	14.0
094008CSM6S01	Gray ≈ RAL 7004	B	M6			10	5.7 (6.0)	8.5
094020CSM6S02	Gray ≈ RAL 7042	I	M6			8	4.4 (4.5)	12.0
094080CSM6S01	Gray ≈ RAL 7042	I	M6			8	4.6 (4.5)	14.0
094102CSS03 - 1	Gray ≈ RAL 7042			①	*2.0
094102CSS10 - 1	Gray ≈ RAL 7004			②	*2.0
094103CSS04 - 1	Gray ≈ RAL 7042			①	3.0
094103CSS12 - 1	Gray ≈ RAL 7004			②	3.0
094105CSS03 - 1	Gray ≈ RAL 7042			①	5.0
094105CSS12 - 1	Gray ≈ RAL 7004			②	5.0
