Uni Block ZN 40 CS

Product information "Uni Block ZN 40 CS"

Color:
Black

Delivery Countries:
Worldwide

Description:

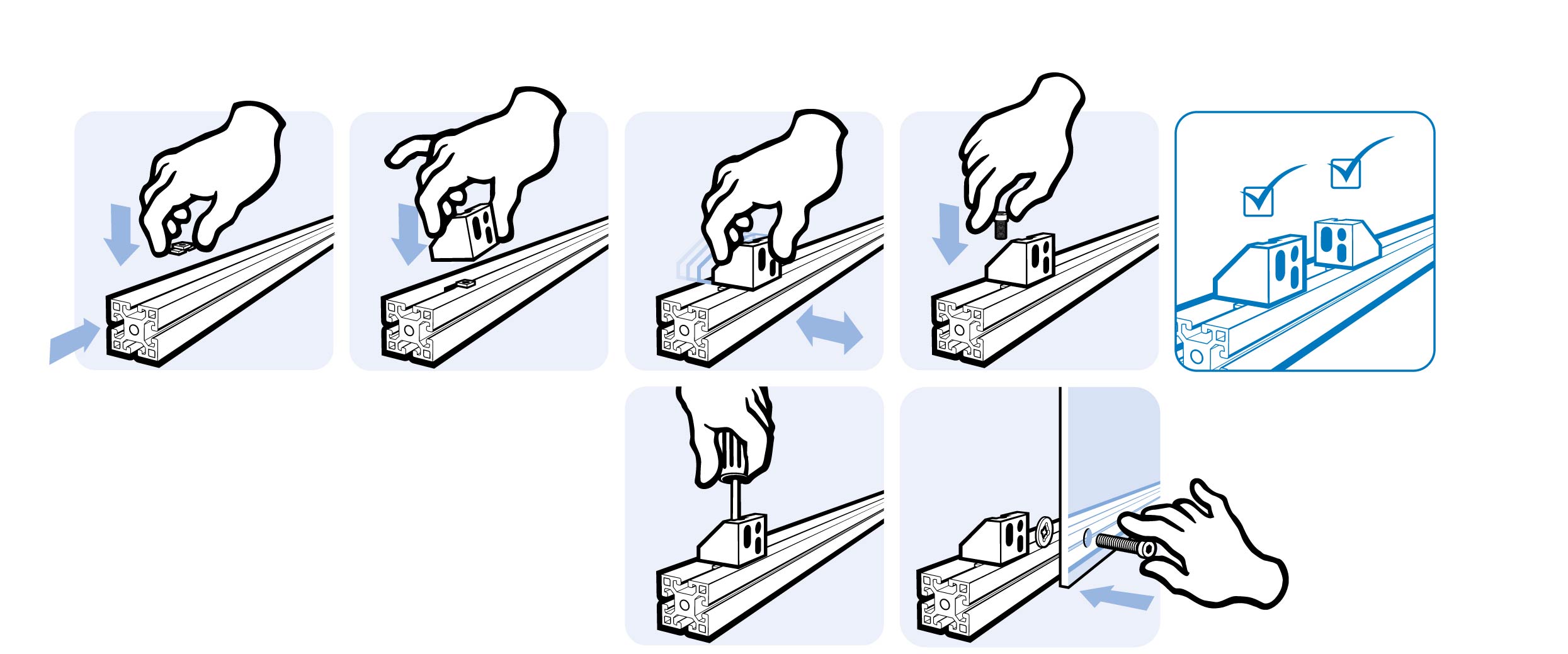

To attach panels to aluminum profiles; especially for high load bearing (up to 2000 N) on the panels; with screw retainer to comply with Machinery Directive 2006/42/EC

Material:
Zinc die-cast

Surface:
Zinc plated (RoHS compliant)

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Model: Zinc die-cast, slot 8, 10
Pack Quantity: 10 pieces
Weight (g): 72.0

Variants

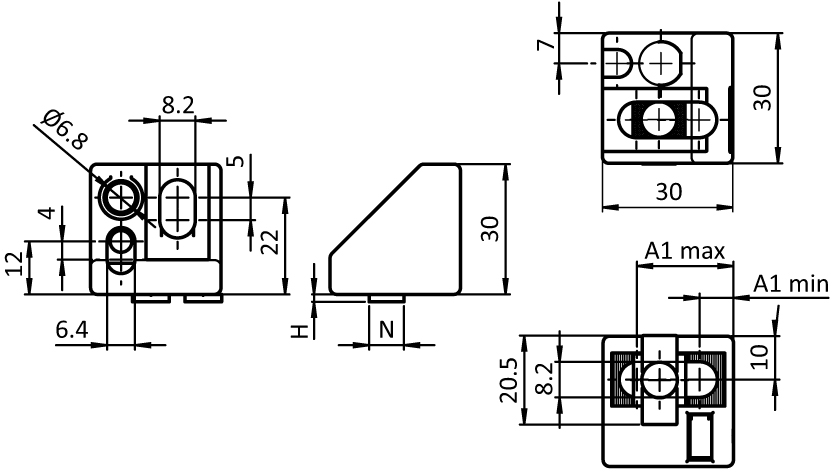

Product ID A1 max. (mm) A1 min. (mm) M H (mm) Slot N (mm)
094Z40S0817CS 22.0 7.9 M6 1.7 8
094Z40S0840CS 22.0 7.9 M6 4.0 8
094Z40S1040CS 22.0 7.9 M6 4.0 10
094Z40SCS 22.0 7.9 M6
