Universal Butt Connector I

Product information "Universal Butt Connector I"

Delivery Countries:
Worldwide

Description:

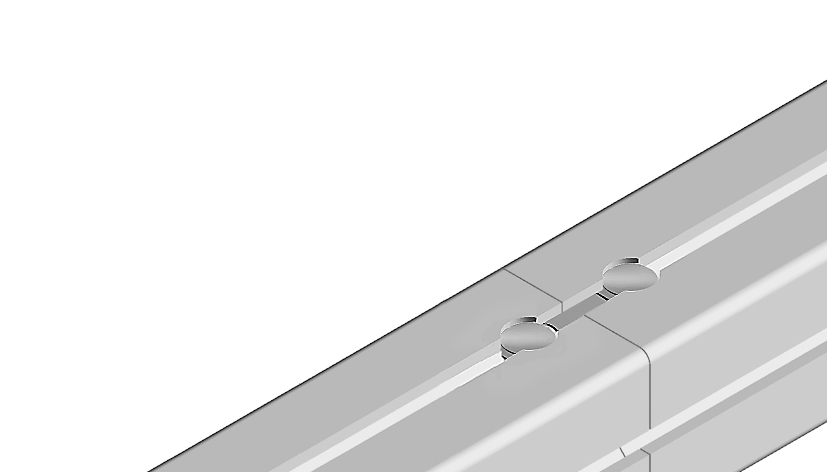

End-to-end connection of two aluminum profiles

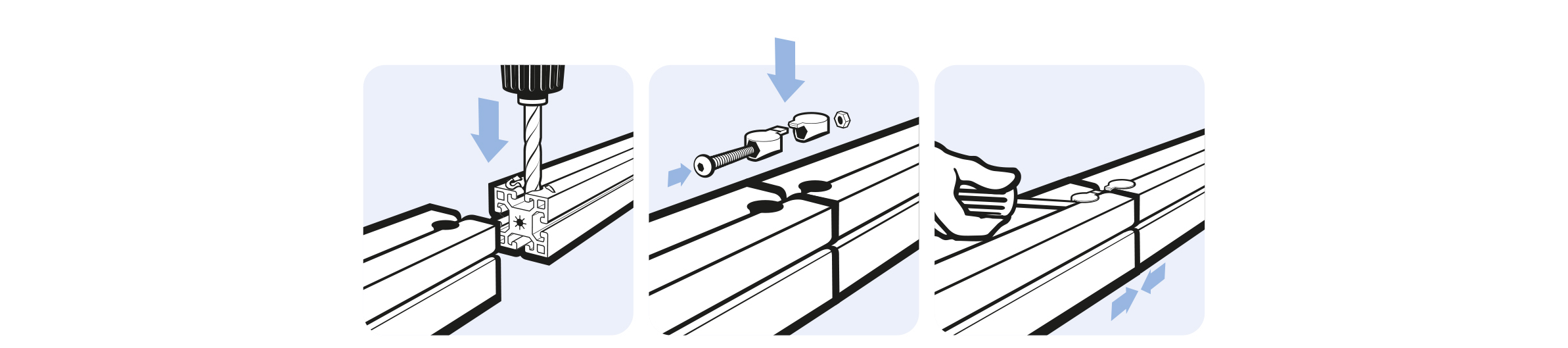

Of the same type; assembly set included

Material:
Zinc die-cast

Surface:
Zinc plated

Tip:
* Without nut, thread integrated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Zinc die-cast
Pack Quantity: 10 pieces
Weight (g): 9.8

Variants

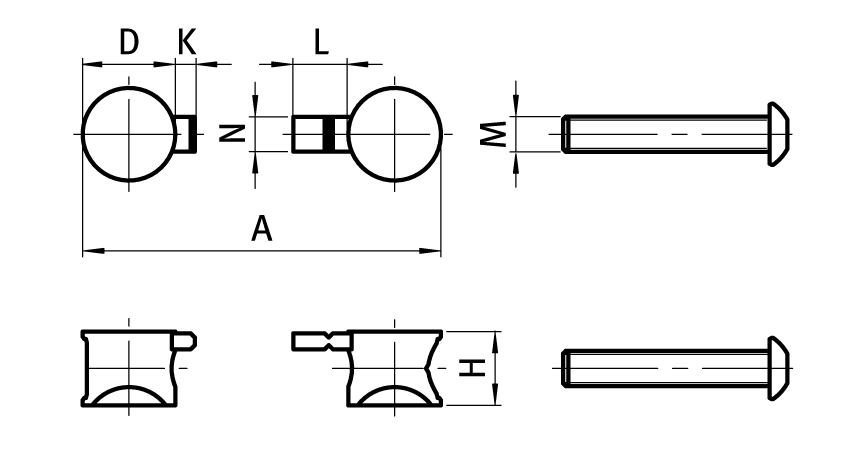

Product ID H (mm) K (mm) Screw D (mm) Slot N (mm) L (mm) A (mm)
099A0520S02 8.5 M4 11.8 5 5.4 32.0
099A0630S03 12.5 3.3 M6 15.7 6 9.3 46.0
099A0840S02 16.0 M8 19.7 8 9.0 60.0
