Variable Holding Bracket XST D28
Regular price:
€0.00
Part #:
062MYMD28M
Pack Quantity:
10 pieces
Product information "Variable Holding Bracket XST D28"
Delivery Countries:
Worldwide
Description:

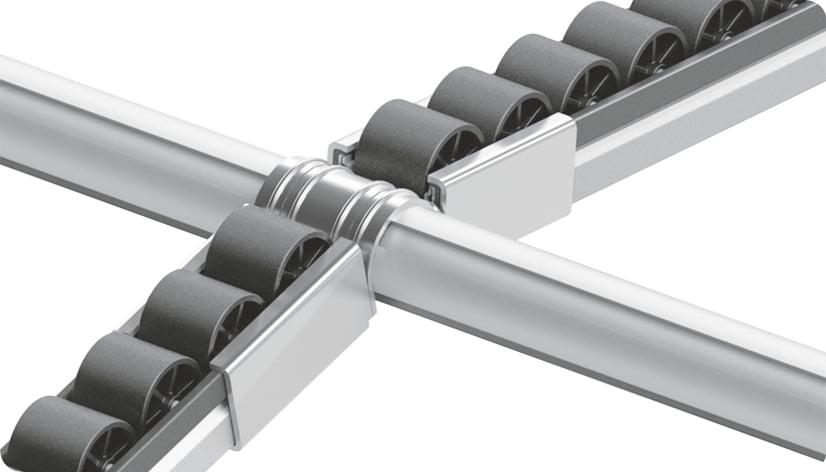

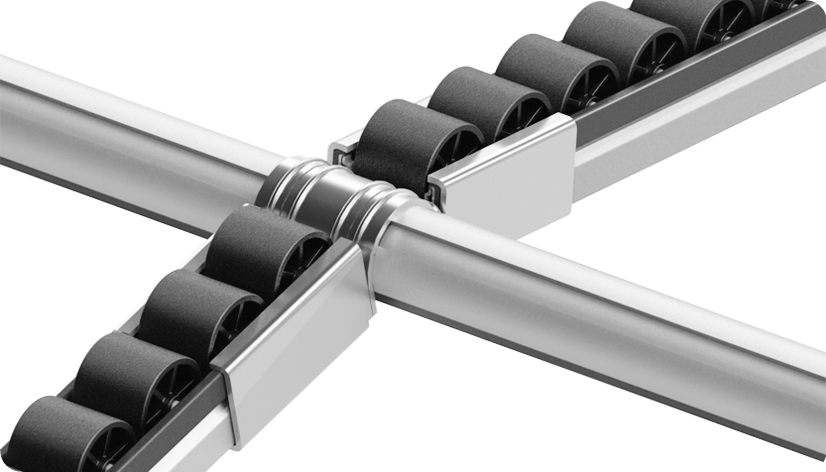

Transition between roller tracks with varying inclination, to mount roller tracks XST and guiding rails XST central, at different angles, to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping out
Fastening:
With 3 or 4 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
Material:
Steel
Specials:
Other surfaces, other colors on request
Surface:
Zinc plated
Worldwide
Description:
Transition between roller tracks with varying inclination, to mount roller tracks XST and guiding rails XST central, at different angles, to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping out
Fastening:
With 3 or 4 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
Material:
Steel
Specials:
Other surfaces, other colors on request
Surface:
Zinc plated
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | For roller tracks XST |
| Weight (g): | 106.0 |
| ERP Number: | 132928 |
Product Portraits
Classifications
- ECLASS 6.0
- 36120490
- ECLASS 7.0
- 36120490
- ECLASS 8.0
- 36120490
- ECLASS 9.0
- 36120490
- ECLASS 10.0
- 36120490
- ECLASS 11.0
- 36120492
- ECLASS 12.0
- 36120492
- ECLASS 13.0
- 36120492
- Zolltarifnummer
- 73269098900
- Customs Tariff Number Export
- 73269098
Certificates
