Vario Block 18 CS

Product information "Vario Block 18 CS"

Color:
Block: Black

Delivery Countries:
Worldwide

Description:

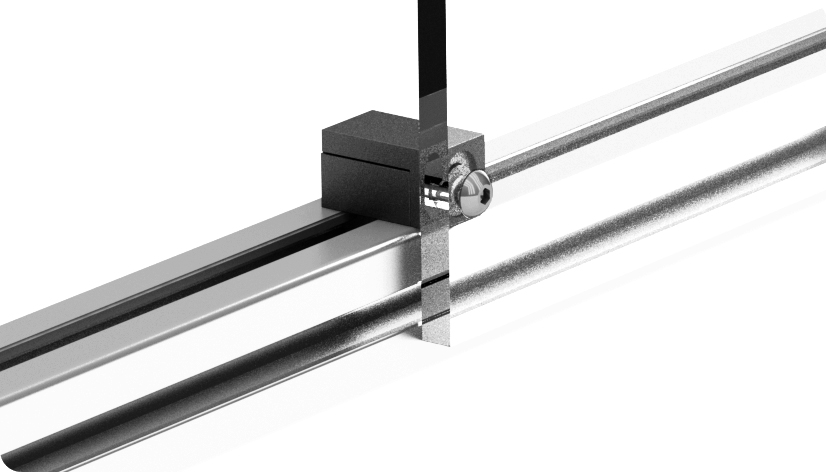

To attach panels simply to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC

Material:

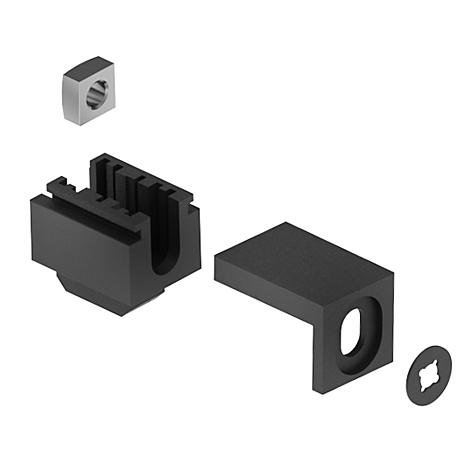

Block: Plastic PA, glass fiber reinforced
Nut: Steel

Specials:
Other colors on request

Surface:
Nut: Zinc plated

Tip:
* A1 size with spacer!
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Customs Tariff Number Export: 39269097
Model: Plastic PA, slot 8
Pack Quantity: 100 pieces
Weight (g): 8.8
Zolltarifnummer: 39269097900
pA Number: 128119

Variants

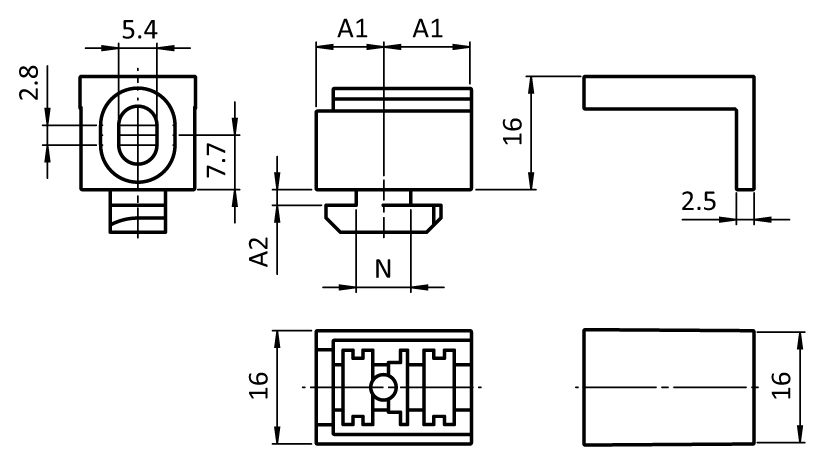

Product ID Profile A1 (mm) M Slot N (mm) A2 (Profile) (mm)
094511M5CS B 9.5 / 12* / 12.5 / 15* M5 8 2.2 (2.2)
