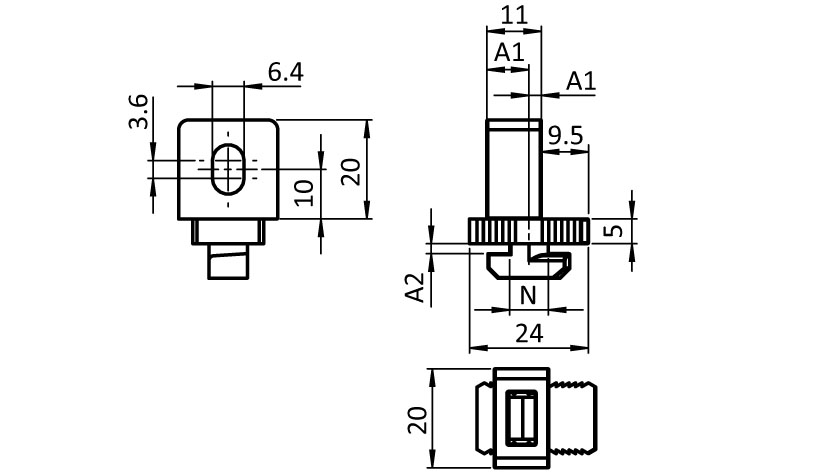

Vario Clamping Block 18

€0.00

Profile

B

M

M6

Slot N (mm)

8

A2 (Profile) (mm)

2.2 (2.2)

A1 (mm)

2.5 / 8.5

Part #: 094523M6

Pack Quantity: 10 pieces

Description:

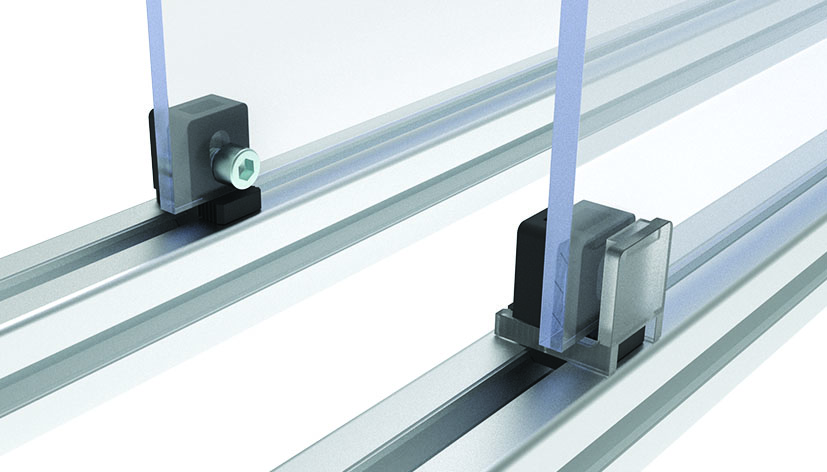

To attach panels safely to aluminum profiles; optional screwless mounting with clip clamp

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Steel

Surface:
Nut: Zinc plated

Color:
Block: Black

Tip:
Compatible Clip clamp see 09452RA20

Specials:
Other colors on request

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces
Model:	Plastic PA, slot 8
Weight (g):	7.8
Fixation Span:	With clip clamp from 0 to 13 mm
ERP Number:	129098

Variants

Part #	Profile	M	Slot N (mm)	A2 (Profile) (mm)	A1 (mm)	CAD
094523M6	B	M6	8	2.2 (2.2)	2.5 / 8.5

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360492
ECLASS 12.0: 23360492
ECLASS 13.0: 23360492
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097

Certificates

Tags

Profile Type	Profile Type B
Slot Size	Slot size 8
Profile Form	T-slot Profiles
