Vario Clamping Block 25 CS

€0.00

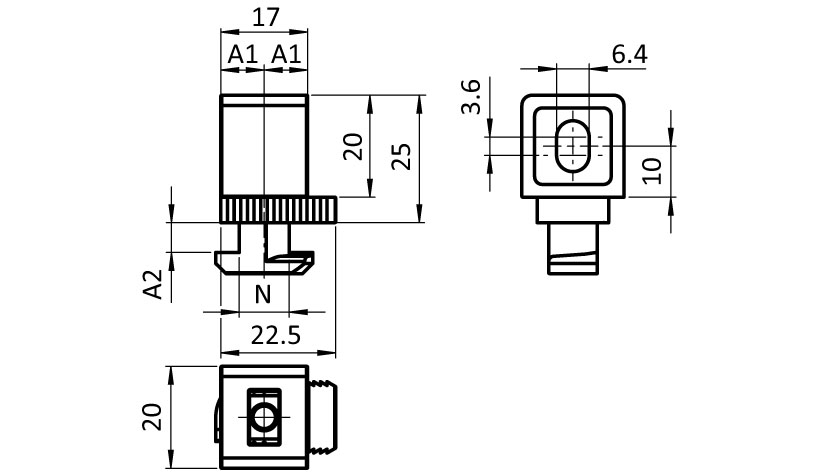

Profile

B

M

M6

Slot N (mm)

10

A2 (Profile) (mm)

5.8 (6.0)

A1 (mm)

8.5

Part #: 094522M6CS

Pack Quantity: 10 pieces

Description:

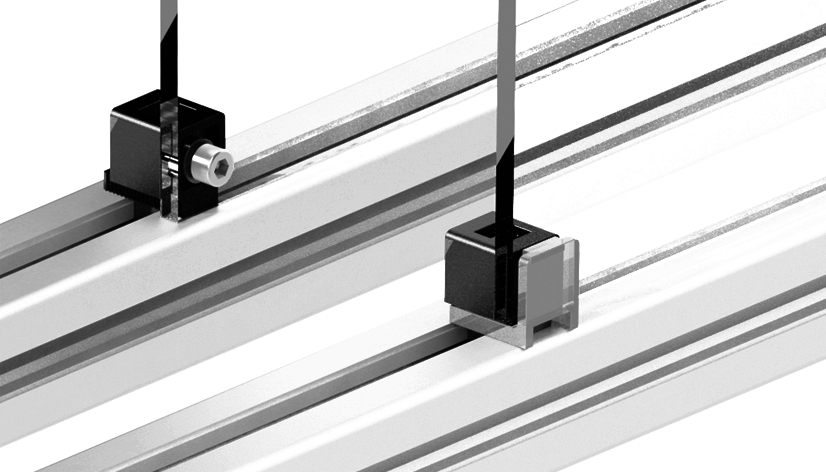

To attach panels safely to aluminum profiles; with screw reatiner to comply with Machinery Directive 2006/42/EC; optional screwless mounting with clip clamp

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Steel

Surface:
Nut: Zinc plated

Color:
Block: Black

Tip:
Compatible Clip clamp see 09452RA20

Specials:
Other colors on request

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces
Model:	Plastic PA, Slot 10
Weight (g):	8.8
Fixation Span:	With clip clamp from 0 to 13 mm
ERP Number:	129317

Variants

Part #	Profile	M	Slot N (mm)	A2 (Profile) (mm)	A1 (mm)	CAD
094522M6CS	B	M6	10	5.8 (6.0)	8.5

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360492
ECLASS 12.0: 23360492
ECLASS 13.0: 23360492
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097

Certificates

Tags

Profile Type	Profile Type B
Slot Size	Slot size 10
Profile Form	T-slot Profiles

Matching accessories

Clip clamp , for Vario Clamping Blocks

Description:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PCColor:Transparent (colorless)Tip:Compatible Vario Clamping Blocks see 094523M6, 094522M6CS and 094524M6Delivery Countries:Worldwide
