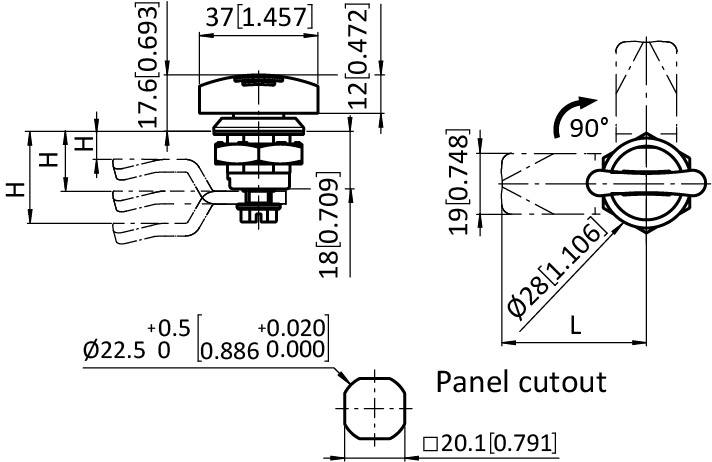

Wing Knob 37 Quarter Turn Lock 22.5 / 18

Product information "Wing Knob 37 Quarter Turn Lock 22.5 / 18"

Color:
Insert: Black / chrome
Housing: Black / chrome
Seal: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

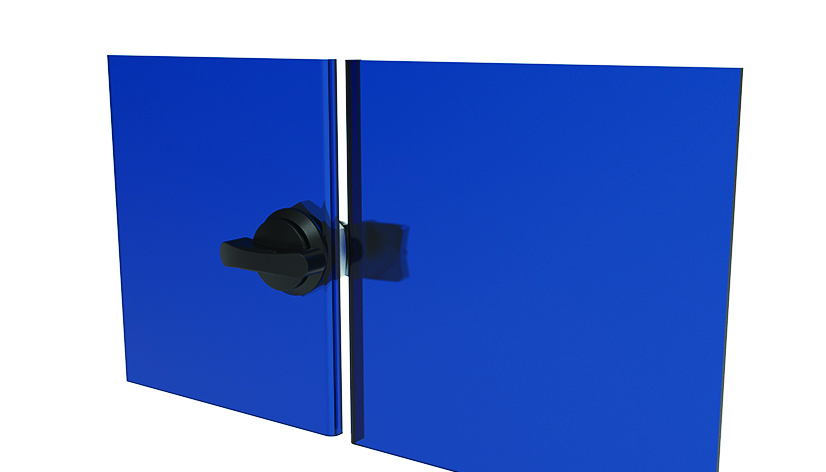

For easy and secure latching and locking of doors and flaps;
Wide range of cams and accessories

Material:
Insert: Zinc die-cast
Housing: Zinc die-cast
Cam: Steel
Seal: Rubber NBR
Nut: Zinc die-cast
Screw: Steel

Surface:
Insert: Powder coated / chrome plated
Housing: Powder coated / chrome plated
Cam: Zinc plated
Nut: Zinc plated
Screw: Zinc plated

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Door Version: Right, left
IP Rating: IP65 / NEMA 4
Pack Quantity: 10 pieces
Weight (g): 115.0

Variants

Product ID Material Insert type Color Surface
0810725 Zinc die-cast Small wing Black Powder coated
0810726 Zinc die-cast Small wing Chrome Chrome plated
