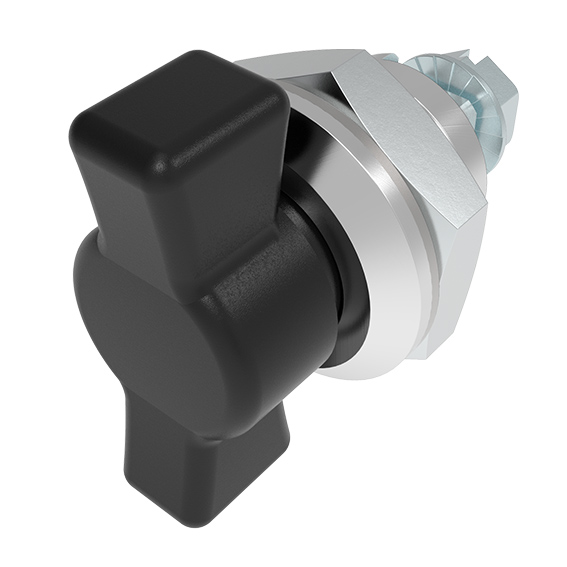

Wing Knob 40 Quarter Turn Lock 22.5 / 18
Regular price:
€0.00
Part #:
0810156
Pack Quantity:
10 pieces
Product information "Wing Knob 40 Quarter Turn Lock 22.5 / 18"
Color:
Wing knob insert: Black / chrome
Housing: Black / chrome
Seal: Black
Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Description:

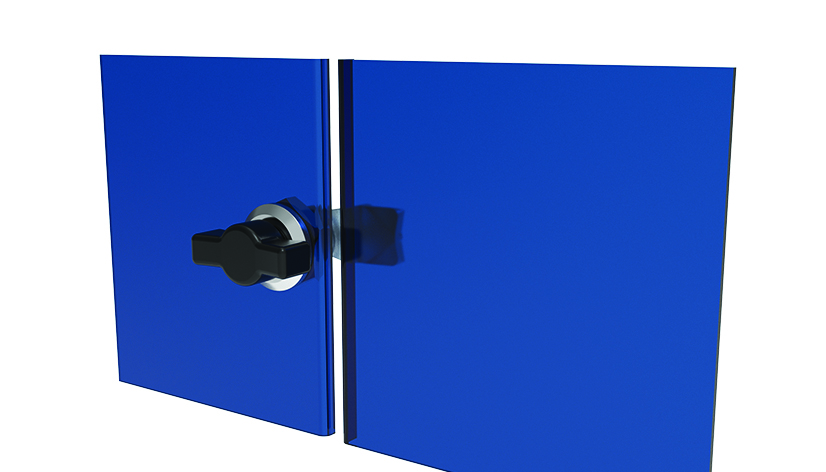

For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories
Material:
Wing knob insert: Zinc die-cast
Housing: Zinc die-cast
Seal: Rubber NBR
Nut: Zinc die-cast
Screw: Steel
Specials:
Keyed different, FH751 key code on request
Surface:
Wing knob insert: Powder coated / chrome plated
Housing: Powder coated / chrome plated Nut: Zinc plated
Screw: Zinc plated
Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
Wing knob insert: Black / chrome
Housing: Black / chrome
Seal: Black
Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Description:
For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories
Material:
Wing knob insert: Zinc die-cast
Housing: Zinc die-cast
Seal: Rubber NBR
Nut: Zinc die-cast
Screw: Steel
Specials:
Keyed different, FH751 key code on request
Surface:
Wing knob insert: Powder coated / chrome plated
Housing: Powder coated / chrome plated Nut: Zinc plated
Screw: Zinc plated
Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
| Pack Quantity: | 10 pieces |
|---|---|
| Weight (g): | 99.5 |
| IP Rating: | IP65 / NEMA 4 |
| Door Version: | Right, left |
| ECLASS 6.0: | 23199090 |
| ECLASS 7.0: | 23199090 |
| ECLASS 8.0: | 23199090 |
| ECLASS 9.0: | 23199090 |
| ECLASS 10.0: | 23199090 |
| ECLASS 11.0: | 23199090 |
| ECLASS 12.0: | 23199090 |
| ECLASS 13.0: | 23199090 |
| Zolltarifnummer: | 83014090000 |
| Customs Tariff Number Export: | 83014090 |
| ERP Number: | 121714 |
