Wire Mesh Clamp

Product information "Wire Mesh Clamp"

Delivery Countries:
Worldwide

Description:

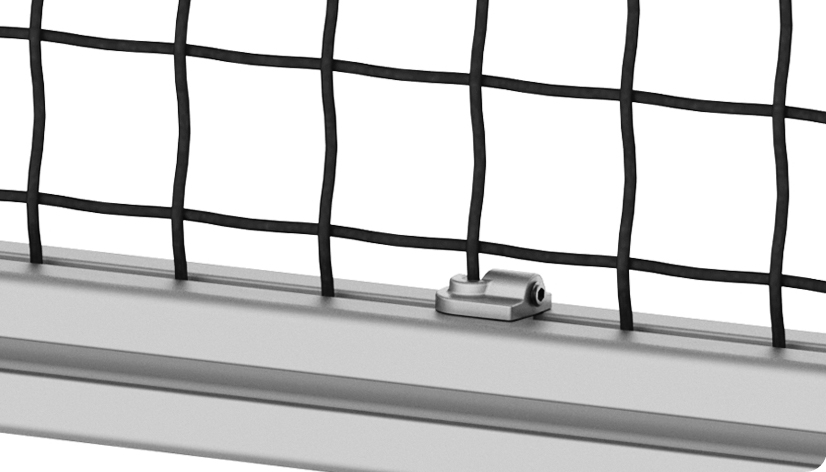

To fix protective wire mesh panels, clamping range 3 up to 5 mm (straight grate up to 5 mm, wave grate up to 4 mm), can be assembled on profiles with slot 8 and slot 10

Material:
Zinc die-cast

Specials:
Other surfaces, other colors on request

Surface:
Zinc plated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Model: Zinc die-cast, slot 8, 10
Pack Quantity: 10 pieces
Weight (g): 20.0

Variants

Product ID
093CWM35N0810
