Componentes de marco tubular

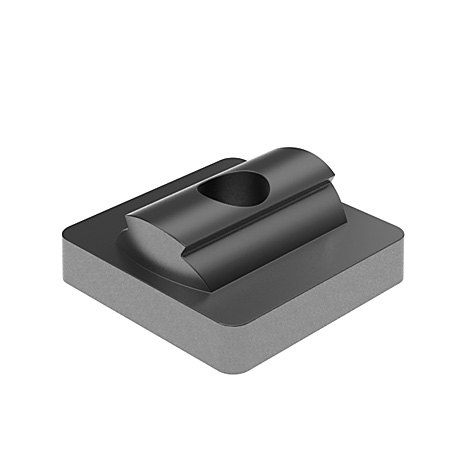

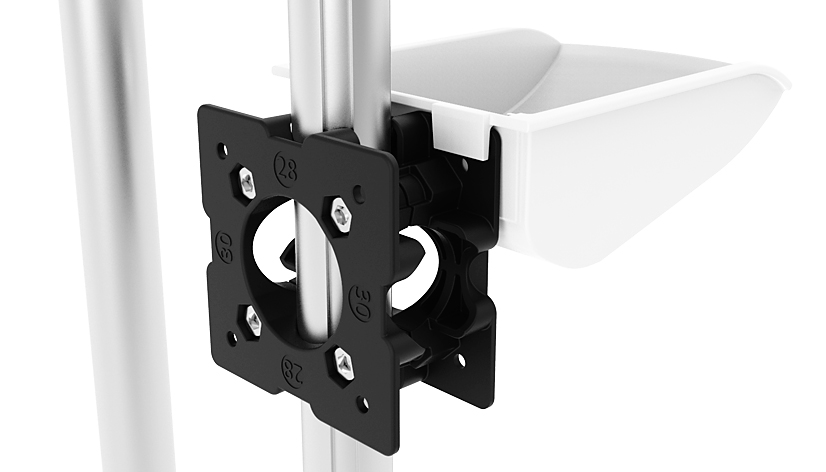

Adapter Plate D28 (Set)
0,00 €*
A (mm):
45.0
|
ESD:
Descarga electrostática ESD
|
R (mm):
3.0
|
Ranura N (mm):
8 / 10
Países de Entrega:En todo el mundoDescription:To connect tubular frame profiles with slot 8 or 10 aluminum profilesMaterial:Adapter plates: Aluminum die-cast Centering piece: Zinc die-castSet:1 adapter plate, 2 locating pins for slot 8 and 10Superficie:LisoTip:Compatible Connector see 099RV2890LS01, 099RV28KS01, 099RV2845S01 - 099RV2890QS01 * Compatible Cutting Bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

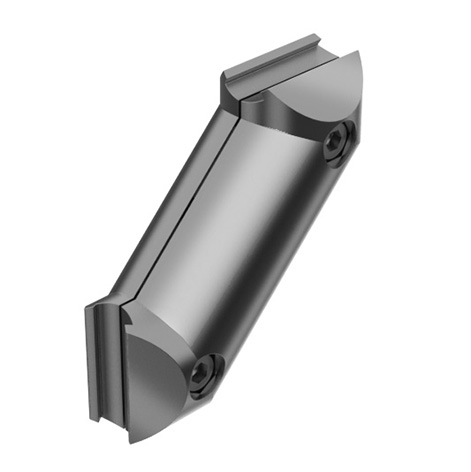

Angle Connector 2D28 (Set)
0,00 €*
ESD:
Descarga electrostática ESD
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector 2D28, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts ISO 10511 - M6Surface:Connector: Plain Assembly set: Zinc plated

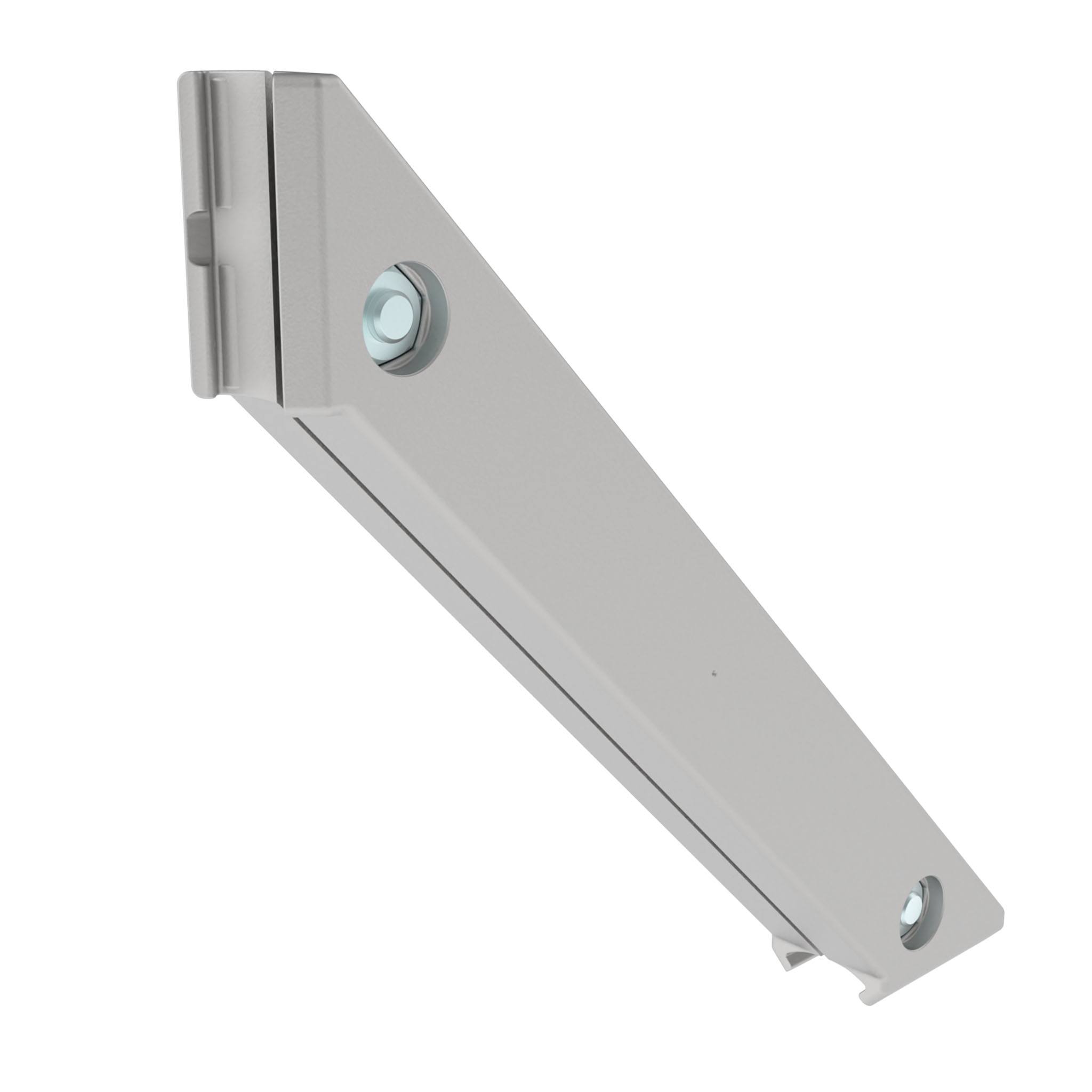

Angle Connector 2D30 (Set)
0,00 €*
ESD:
Descarga electrostática ESD
|
Profile:
I
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angle; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector 2D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 14, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07

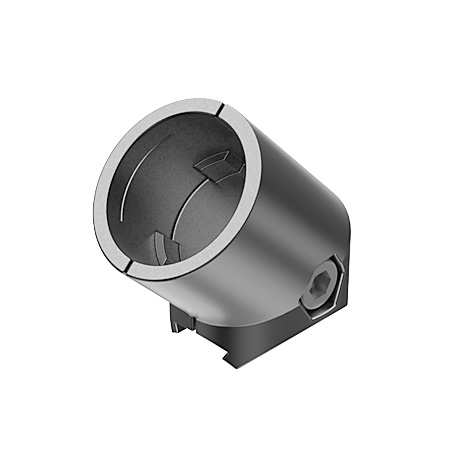

Angle Connector D28, 45° (Set)
0,00 €*
ESD:
Descarga electrostática ESD
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profileswith Ø 28 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector D28 ,45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut ISO 10511 - M6Surface:Connector: Plain Assembly set: Zinc plated

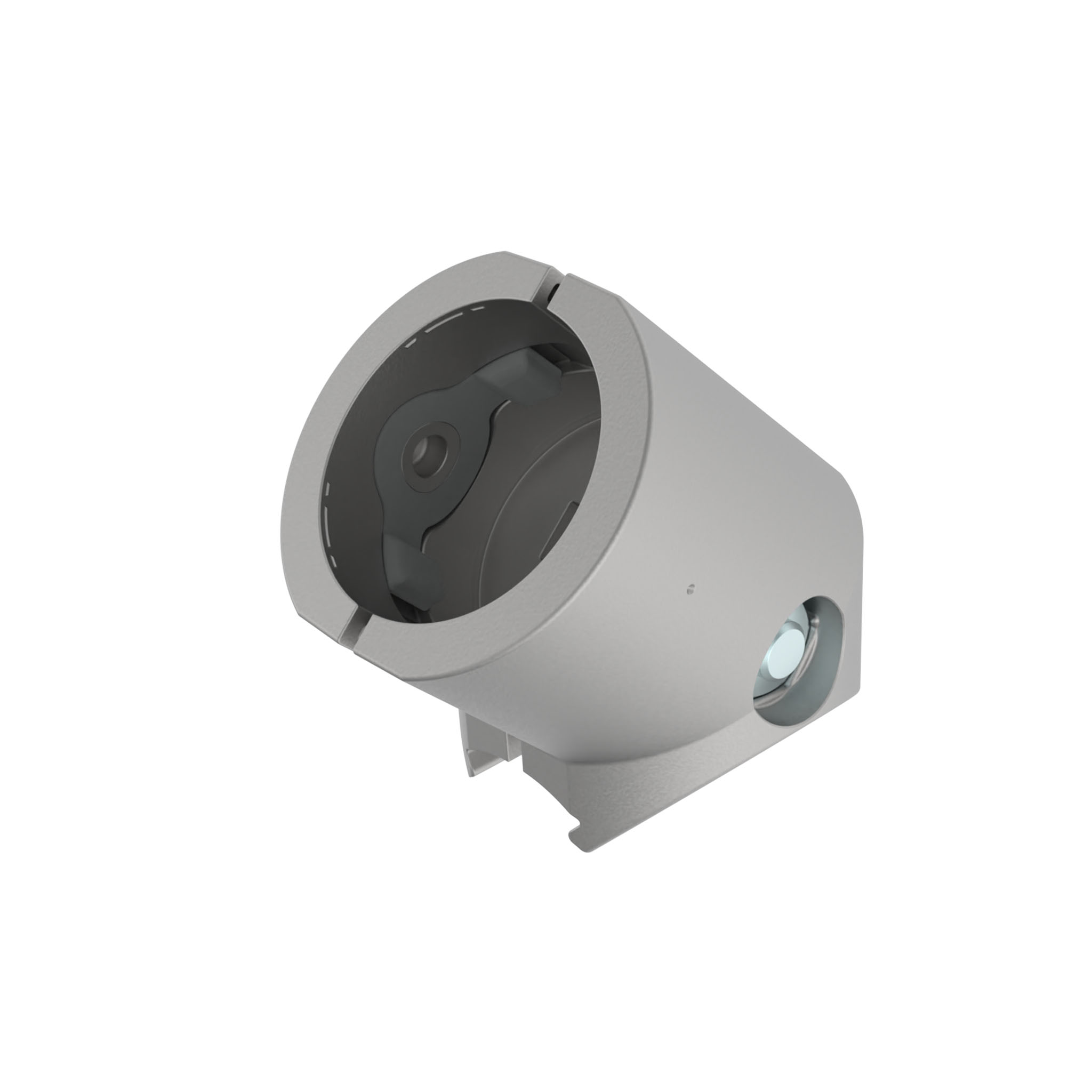

Angle Connector D30, 45° (Set)
0,00 €*
ESD:
Descarga electrostática ESD
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profileswith Ø 30 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for angle connector D30, 45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

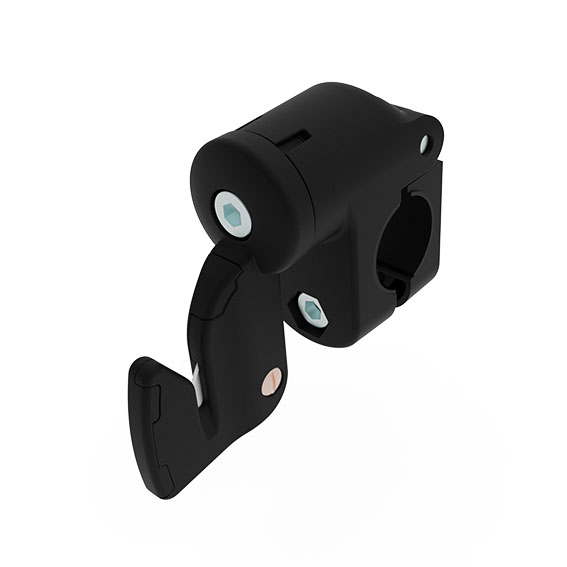

Bag Cutter FX for Tubes D28 / D30
0,00 €*
Color:
Negro
|
ESD:
Descarga electrostática ESD
Color:Bag cutter: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use bag cutter, changeable blade, 360° turnable, for tubes or tubular frame profiles and perforated metal To organize work stationsMaterial:Bag cutter ESD electrostatical discharging version: Plastic PA, glass ball reinforced with carbon Trapezoidal blade: Carbon steel Spring: Spring steel SS313 Countersunk screw: Brass Sleeve nut: Brass Screw: Steel Nut: SteelEspeciales:Otros colores bajo pedidoSurface:Counter sunk screw: Nickel plated Sleeve nut: Nickel plated Screw: Zinc plated Nut: Zinc platedTip:Compatible Trapezoidal Blade for Bag Cutter FX see 061TF91S01

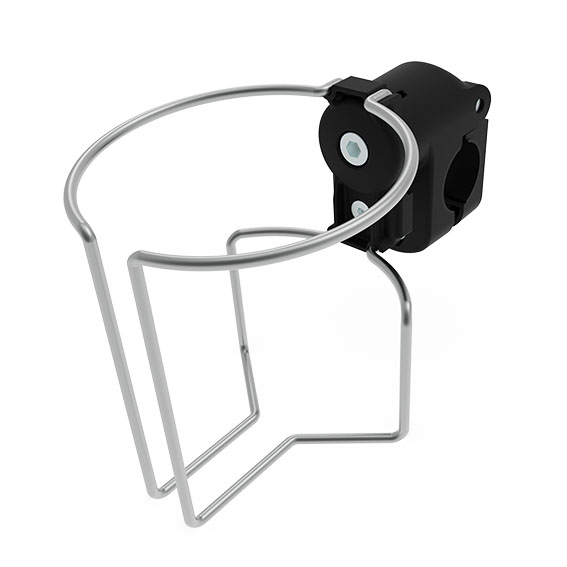

Bottle Holder FX for Tubes D28 / D30
0,00 €*
Color:
Negro
Color:Holder: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use bottle holder, 360° turnable, for tubes or tubular frame profiles; To organize workstationsMaterial:Holder: Plastic PA, glass ball reinforced Wire: Stainless steel SS304 Spring: Spring steel SS313 Screw: Steel Nut: SteelEspeciales:Otros colores bajo pedidoSurface:Screw: Zinc plated Nut: Zinc plated

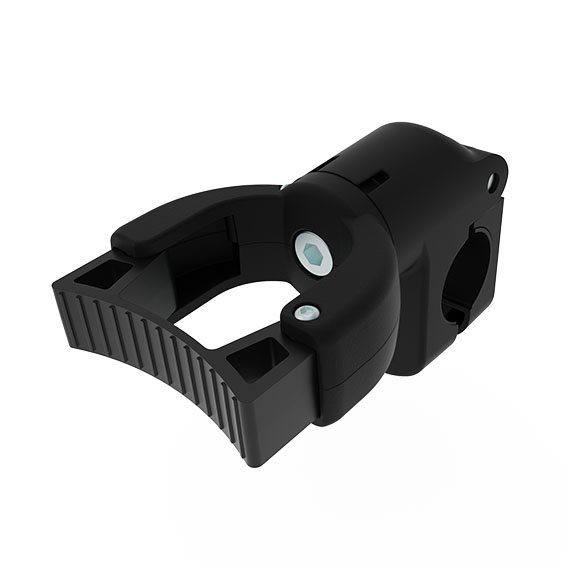

Broom Holder FLEX FX 20 - 30 for Tubes D28 / D30
0,00 €*
Color:
Negro
Color:Holder: Black Retaining strap: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use broom holder to hang up tools with Ø 20 up to 30 mm diameter, 360° turnable, for tubes or tubular frame profiles; To organize workstationsMaterial:Broom holder: Plastic PA, glass ball reinforced Retaining strap FLEX: Plastic TPE Bushings: Steel Screws for retaining strap: Steel Spring: Spring steel SS313 Screw: Steel Nut: SteelEspeciales:Otros colores bajo pedidoSurface:Screw: Zinc plated Nut: Zinc plated

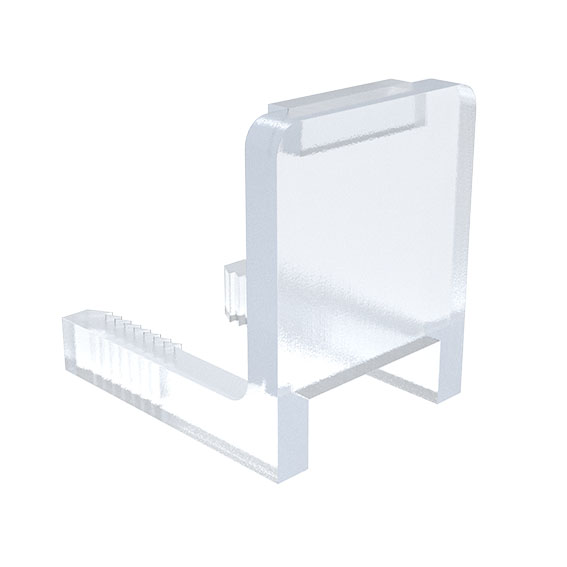

Clip clamp , for Vario Clamping Blocks
0,00 €*
Color:Transparente incoloroPaíses de Entrega:En todo el mundoDescription:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plástico PCTip:Compatible Vario Clamping Blocks see 094523M6, 094522M6CS and 094524M6

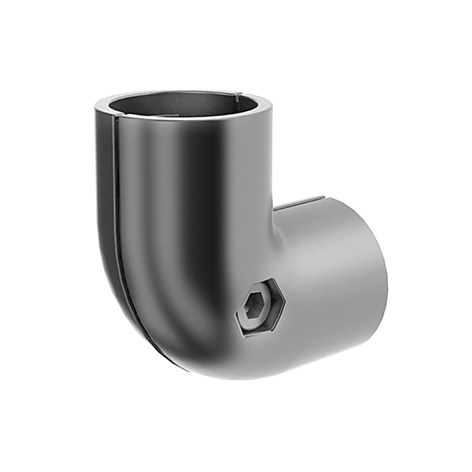

Corner Connector 2D28 (Set)
0,00 €*
ESD:
Descarga electrostática ESD
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for corner connector 2D28, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 1 self-locking nut ISO 10511 - M6Surface:Connector: Plain Assembly set: Zinc plated

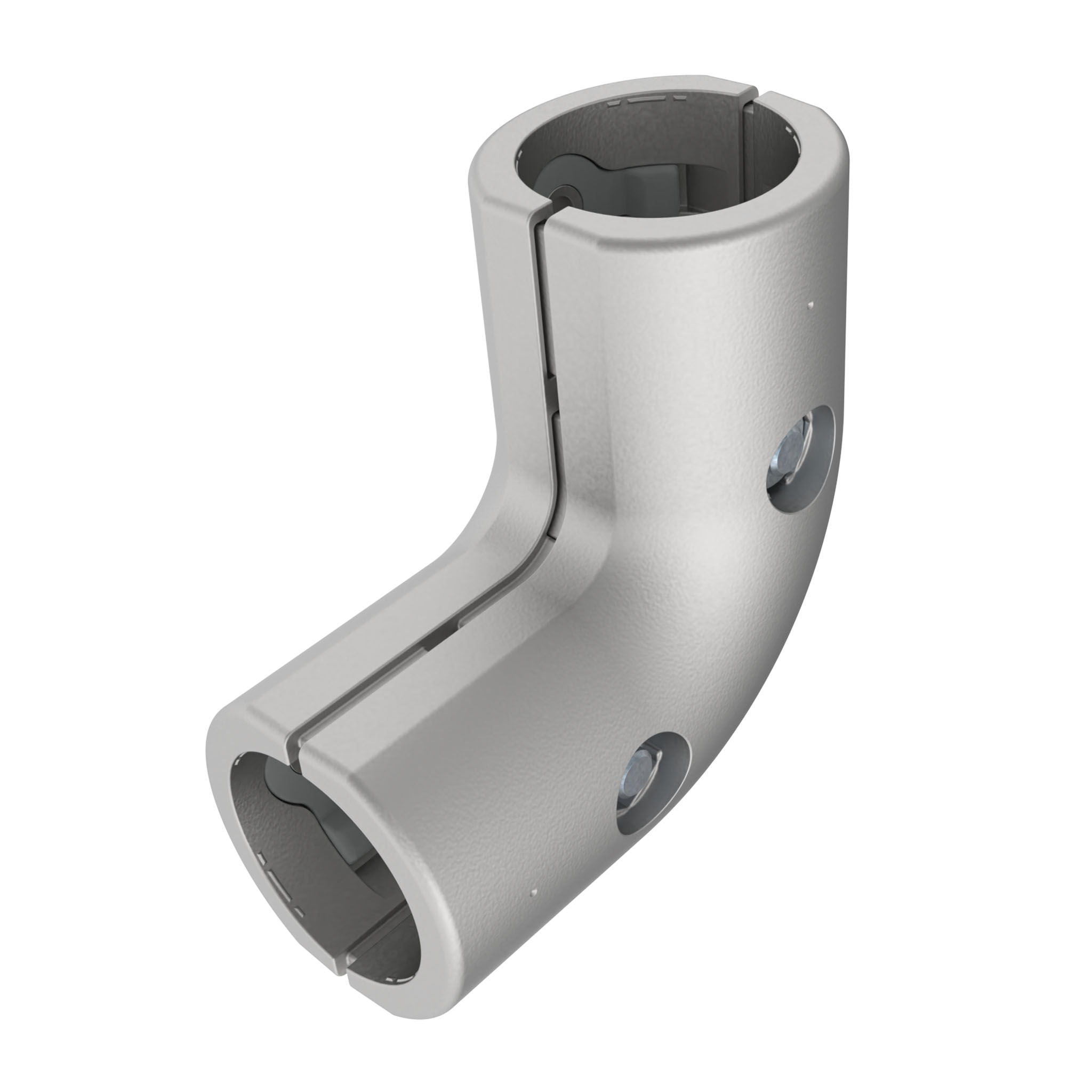

Corner Connector 2D30 (Set)
0,00 €*
ESD:
Descarga electrostática ESD
Países de Entrega:En todo el mundoDescription:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angles; with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for corner connector 2D30, 2 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Profile Connector D30 see 099RV30CC06

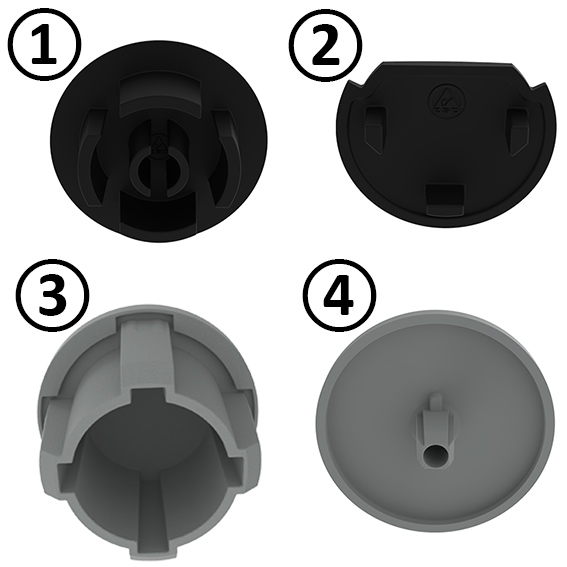

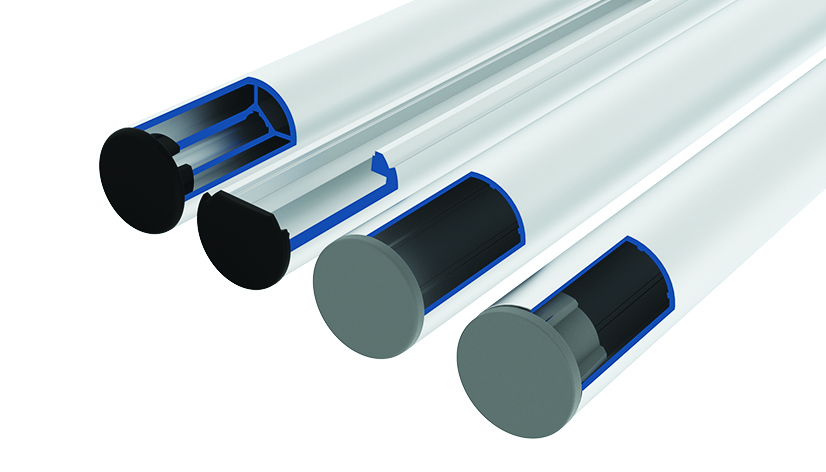

Cover Cap D28 / D30
0,00 €*
Color:
Negro
|
ESD:
Descarga electrostática ESD
|
Fig.:
②
|
Profile:
B
|
Ranura N (mm):
10
|
ØD (mm):
28
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the end of a tubular frame profile with Ø 28 mm or Ø 30 mm outer diameterMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros tamaños, otros colores bajo pedido

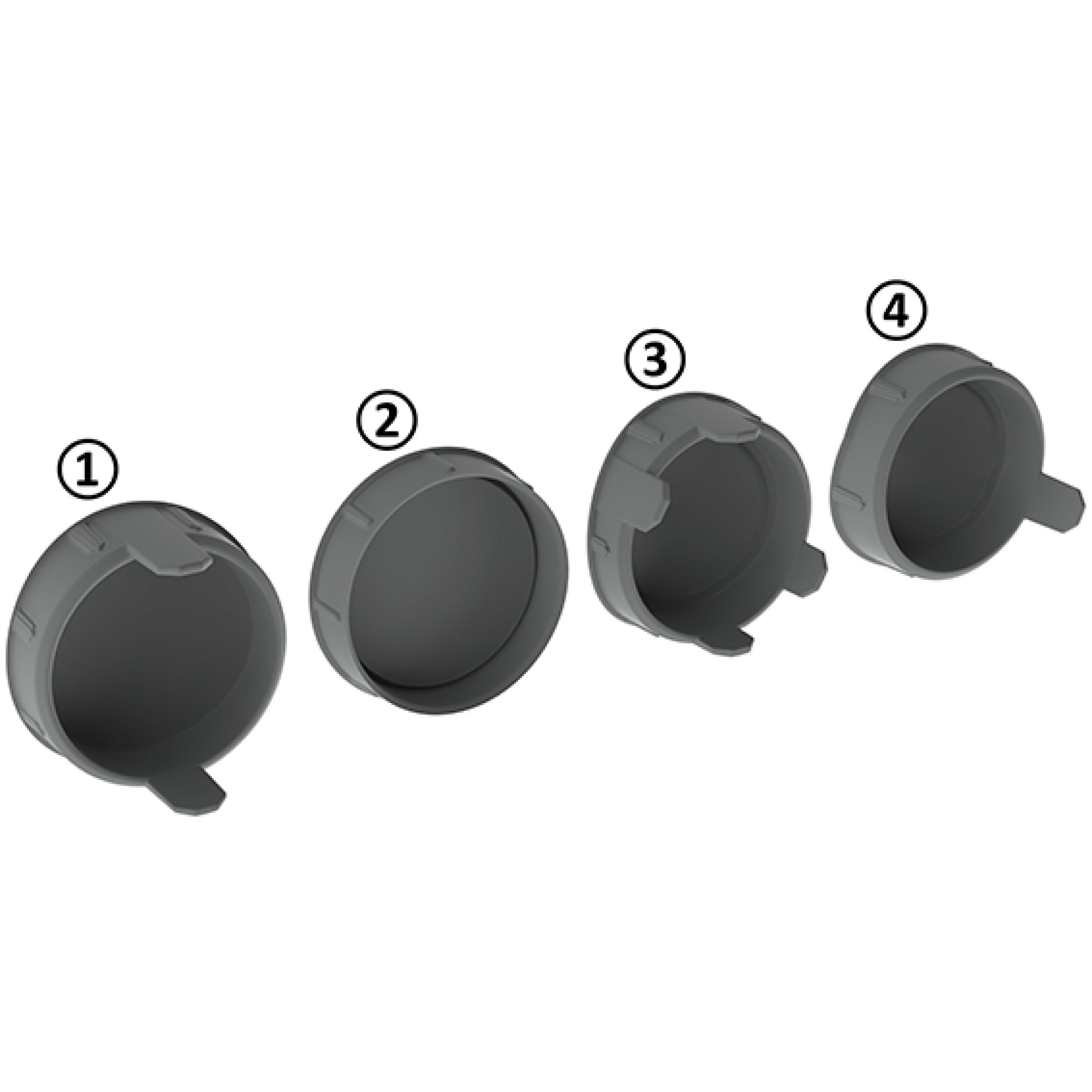

Cover Cap for Tubular Frame Connectors D30
0,00 €*
Fig.:
②
|
Profile:
I
Color:Gris ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To cover the screw hole of connectors for tubular frame profiles with Ø 30 mm outer diameterMaterial:Plástico PA, reforzado con fibra de vidrio

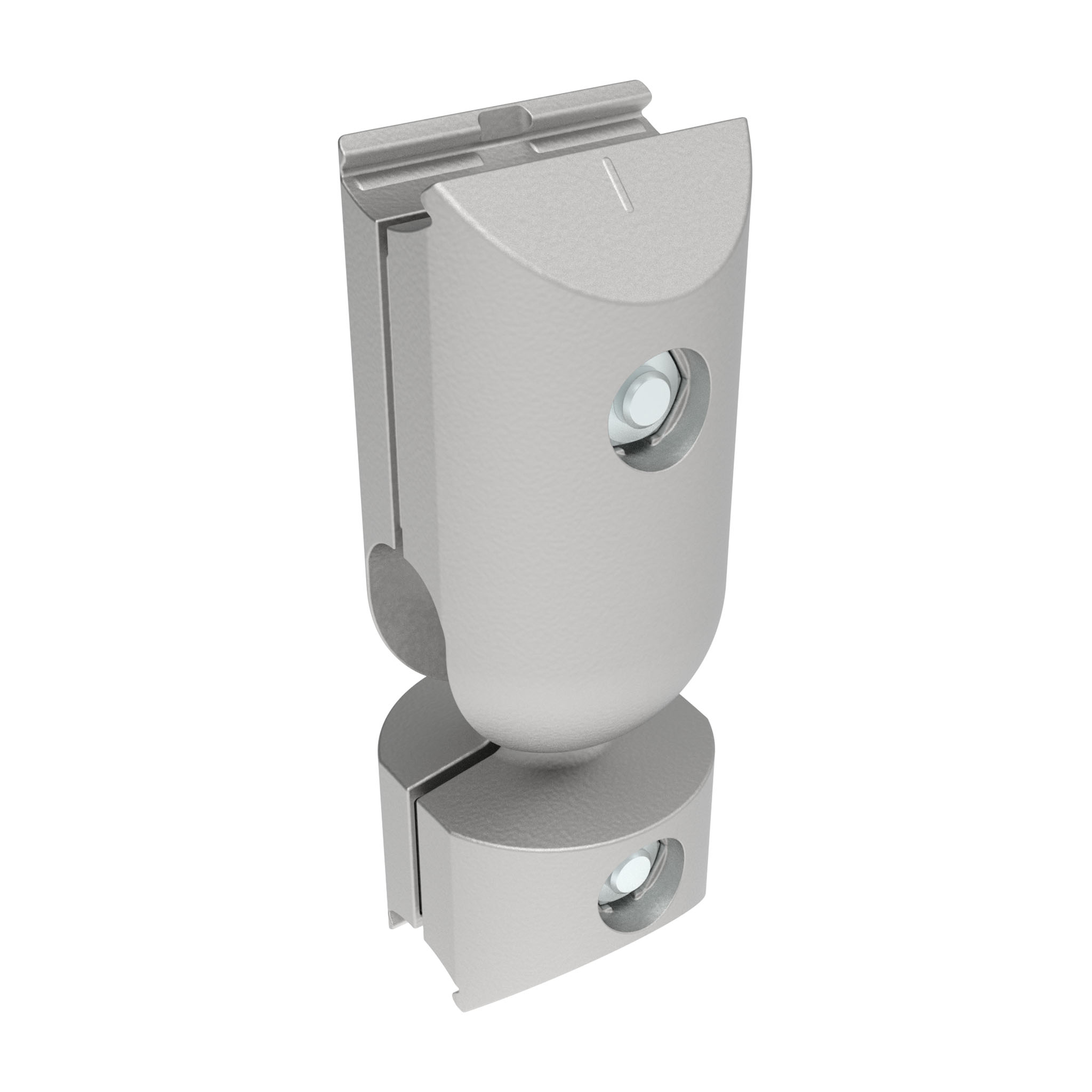

Cross Ball Connector D30 (Set)
0,00 €*
ESD:
Descarga electrostática ESD
Países de Entrega:En todo el mundoDescription:To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:4 cross ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

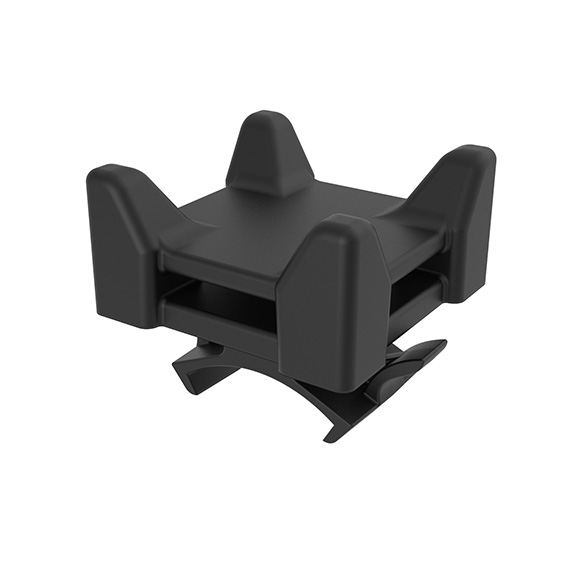

Cross Cable Binder Block D28
0,00 €*
Color:NegroPaíses de Entrega:En todo el mundoDescription:To fasten cables and tubes parallel to the slot, simple click-in assemblyMaterial:Plástico PA, reforzado con fibra de vidrioTip:Compatible Velcro® strap for Cross Cable Binder Block D28 see 340ME8200KL

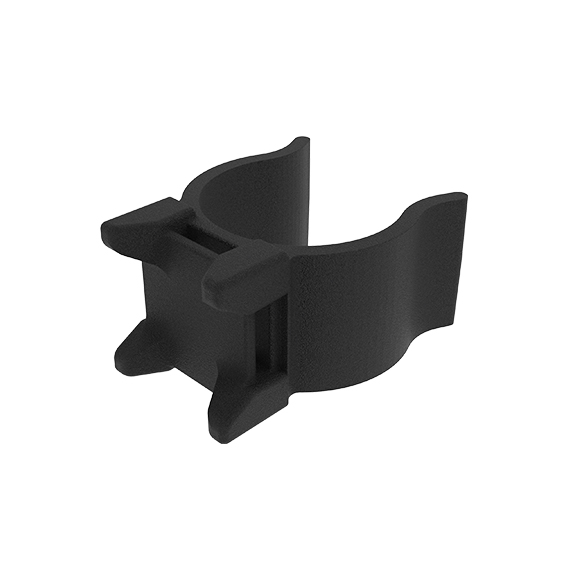

Cross Cable Binder Block D28 Universal
0,00 €*
Color:NegroPaíses de Entrega:En todo el mundoDescription:To fix cables along and across aluminum profiles; can be clipped on the tubular frame profileMaterial:Plastic PA, carbon fiber reinforced

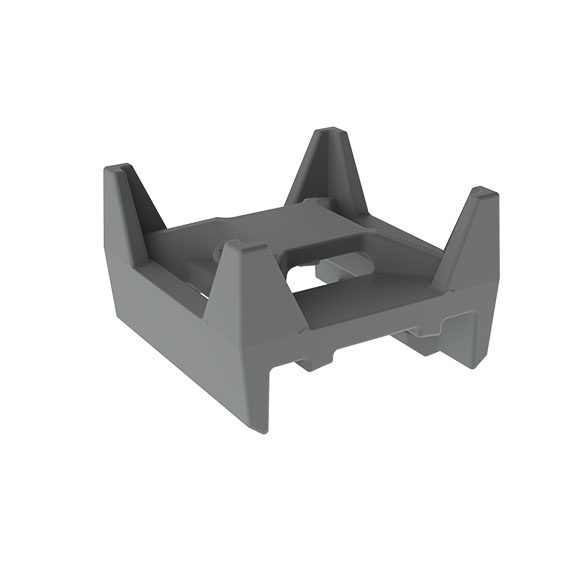

Cross Cable Binder Block D30
0,00 €*
Profile:
I
Color:Gris ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To fix cables along and across aluminum profiles; can be clipped on the tubular frame profileMaterial:Plástico PP

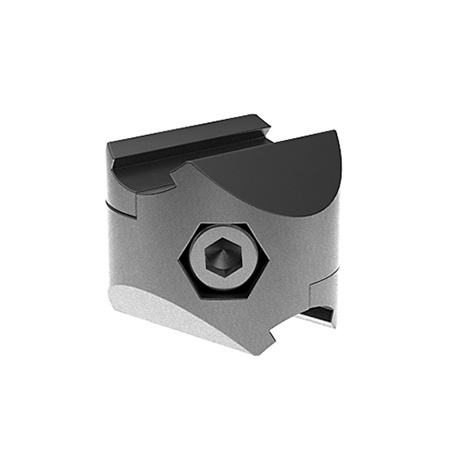

Cross Connector D28 (Set)
0,00 €*
ESD:
Descarga electrostática ESD
Países de Entrega:En todo el mundoDescription:To cross connect two tubular frame profileswith Ø 28 mm outer diameter; completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for cross connector D28, 1 screw ISO 4762 - M6 x 30, 1 self-locking nut ISO 10511 - M6Surface:Connector: Plain Assembly set: Zinc plated

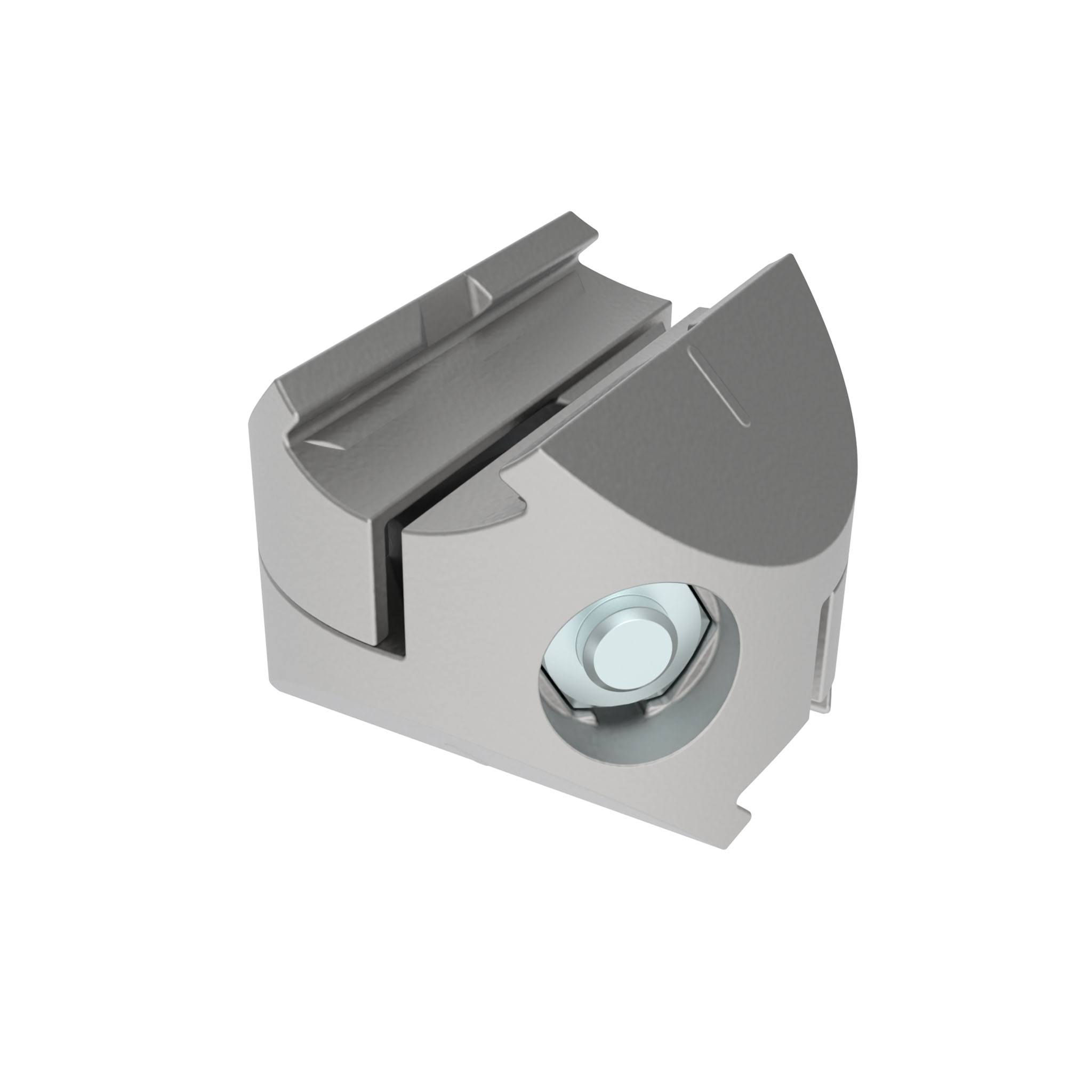

Cross Connector D30 (Set)
0,00 €*
ESD:
Descarga electrostática ESD
Países de Entrega:En todo el mundoDescription:To cross connect two tubular frame profiles with Ø 30 mm outer diameter; Completely pre-assembled setMaterial:Connector: Aluminum die-cast Assembly set: SteelSet:2 components for cross connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Superficie:Conjunto de montaje: GalvanizadoTip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

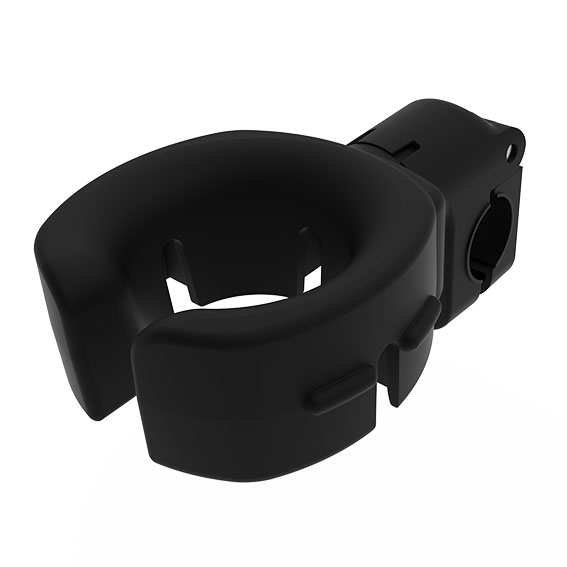

Drill / Driver Holder FX D50 for Tubes D28 / D30
0,00 €*
Color:
Negro
Color:Holder: Black, grayPaíses de Entrega:En todo el mundoDescription:Ready to use tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelEspeciales:Otros colores bajo pedidoSurface:Screw: Zinc plated Nut: Zinc plated

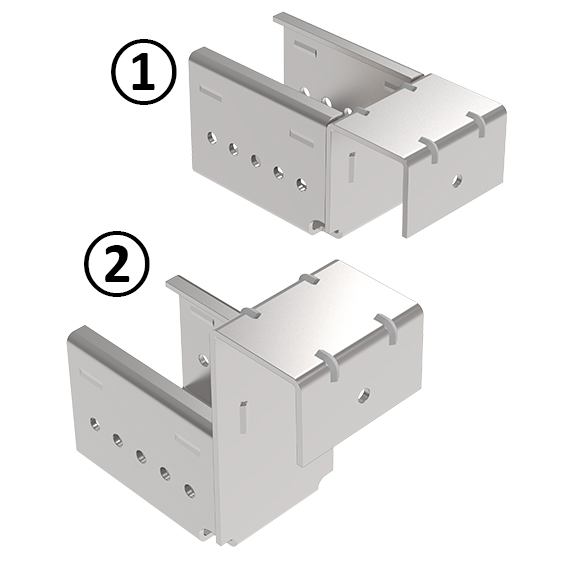

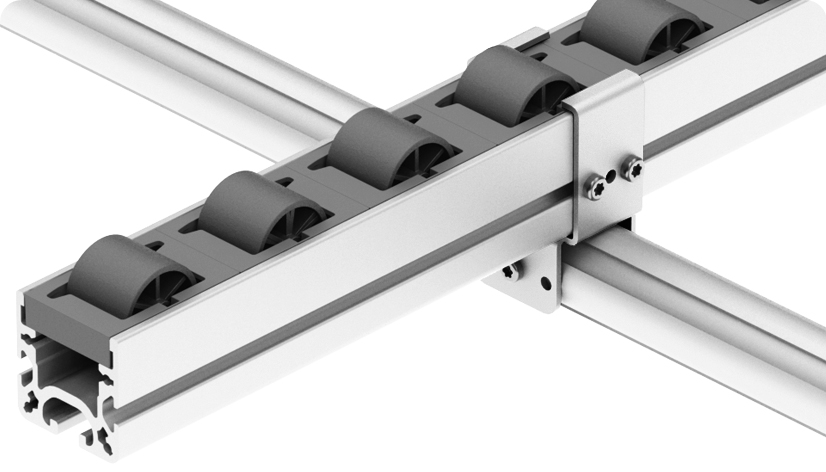

Holding Bracket AL D28
0,00 €*
Fig.:
①
|
Version:
Sin tope final
Assembly Set:5 self-drilling screws DIN 7504 Form N - 3.9 x 16Países de Entrega:En todo el mundoDescription:To mount AL roller track profiles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado

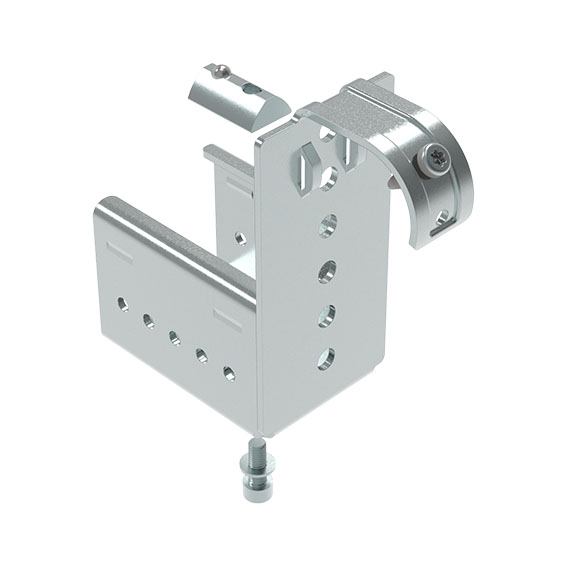

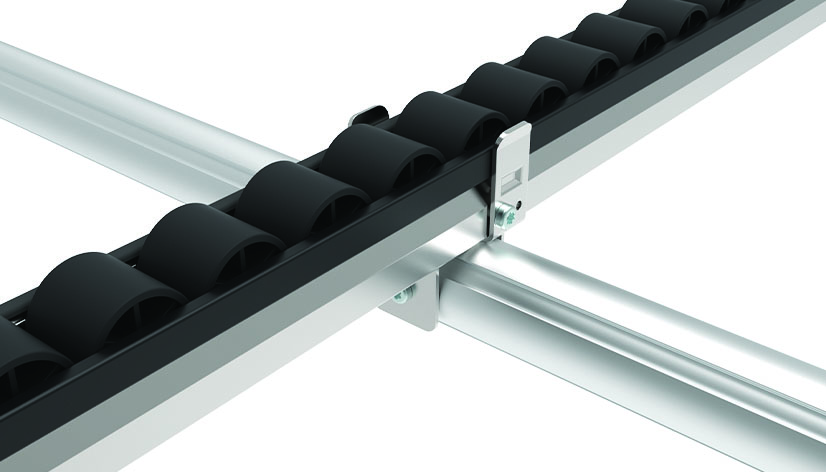

Holding Bracket AL D30
0,00 €*
Fig.:
①
|
Version:
With end stop
Assembly Set:1 self-drilling screw DIN 7504 Form N - 3.9 x 16 1 washer DIN EN ISO 7089 (DIN 125) 1 T-slot nut slot 8 - M5 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14Países de Entrega:En todo el mundoDescription:To mount AL roller track profiles to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroSuperficie:Galvanizado
Holding Bracket XST D28
0,00 €*
Fig.:
②
|
Version:
With end stop
Países de Entrega:En todo el mundoDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado
Holding Bracket XST D30
0,00 €*
Fig.:
①
|
H (mm):
30.8
|
Version:
Sin tope final
Assembly Set:6 self-drilling screws DIN 7504 Form N - 3.9 x 16Países de Entrega:En todo el mundoDescription:To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping outMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado
