Deslizadores y Rodillos

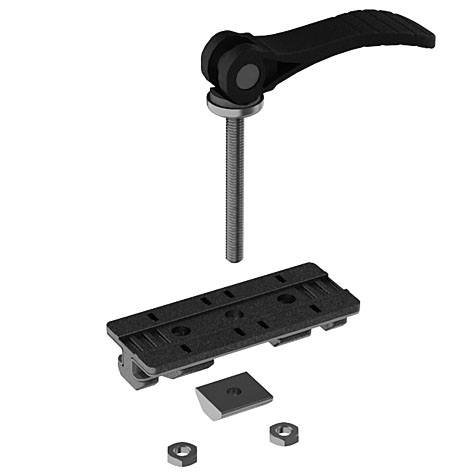

Profile Slider ZN 40 x 80 with Cam Lever (Set)
Color:Slide shoe: Natural Cam lever handle: BlackPaíses de Entrega:En todo el mundoDescription:To guide slidingly profiles with slot 8, the additional clamping feature for the slide carriage extends the range of applications, e.g as quickly adjustable end stop; including hexagon nuts M6 for the attachment of additional componentsMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel Cam lever handle: Plastic, glass fiber reinforced Cam lever mechanics: SteelSet:1 sliding carriage, 2 slide shoes, 1 cam lever with external thread M6 x 55*, 1 special T-slot nut - slot 8 - M6, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6Surface:Sliding carriage: Zinc plated Slide shoe: Zinc plated Cam lever mechanics: Zinc platedTip:*Use of the M6 cam lever: 40 mm profile + 40 mm profile, thread length: 55 mm Cut to length of the M6 cam lever, e.g.: 40 mm profile + 20 mm profile, cut thread lenghth to: 35 mm 40 mm profile + 10 mm panel, cut thread lenghth to: 25 mm

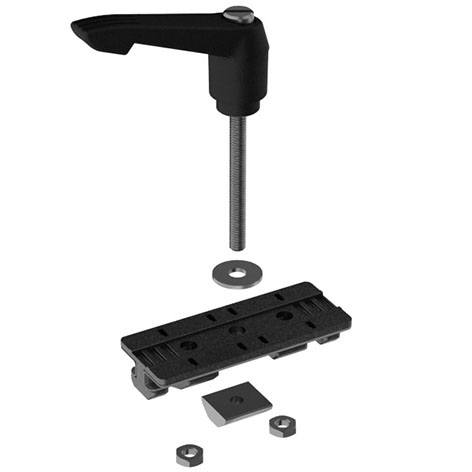

Profile Slider ZN 40 x 80 with Locking Lever (Set)
Color:Slide shoe: Natural Clamp lever handle: BlackPaíses de Entrega:En todo el mundoDescription:To guide slidingly profiles with slot 8; the additional clamping feature for the slide carriage extends the range of applications, e.g as adjustable end stop; Retention force at maximum tightening torque(15 Nm) 600 N; including hexagon nuts M6 for the attachment of additional componentsMaterial:Sliding carriage: Zinc die-cast Slide shoe: Plastic POM Fixation: Steel Clamp lever handle: Plastic, glass fiber reinforced Clamp lever mechanics: SteelSet:1 sliding carriage, 2 slide shoes, 1 clamp lever with external thread M6 x 55*, 1 special T-slot nut - slot 8 - M6, 1 shim DIN EN ISO 7093 (DIN 9021) 6.4 mm, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6Surface:Sliding carriage: Zinc plated Slide shoe: Zinc plated Clamp lever mechanics: Oxide finishTip:*Use of the M6 clamp lever: 40 mm profile + 40 mm profile, thread length: 55 mm Cut to length of the M6 clamp lever, e.g.: 40 mm profile + 20 mm profile, cut thread lenghth to: 35 mm 40 mm profile + 10 mm panel, cut thread lenghth to: 25 mm

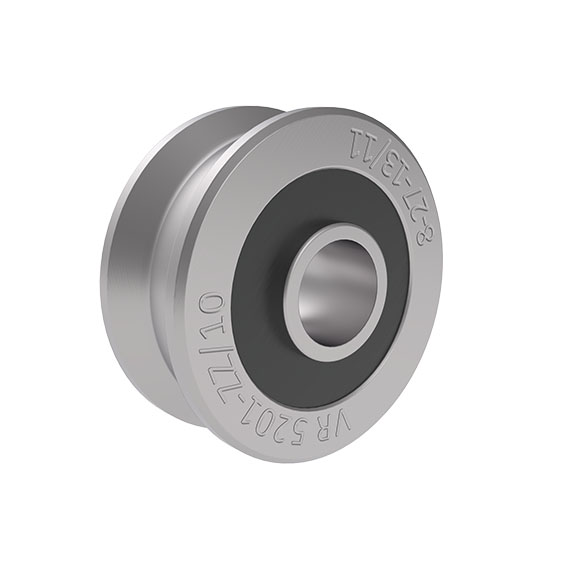

Roller for Shafts Ø 10
Países de Entrega:En todo el mundoDescription:To guide moving parts on a sanded shaft Ø 10 With ball bearing To build individual bearing unitsMaterial:AceroSurface:Sanded

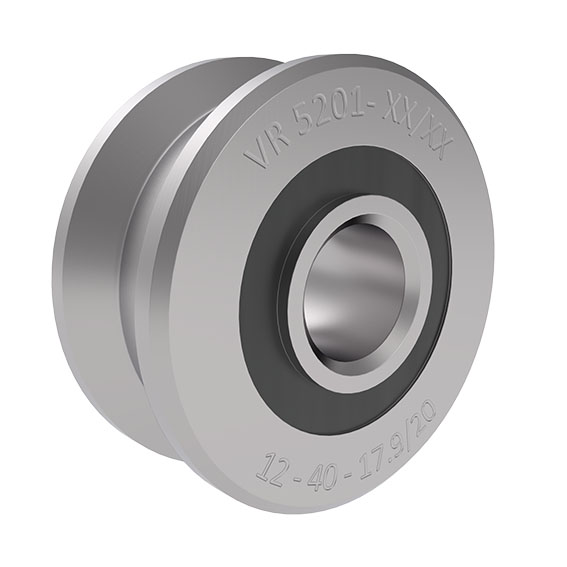

Roller for Shafts Ø 14
Países de Entrega:En todo el mundoDescription:To guide moving parts on a sanded shaft Ø 14 With ball bearing To build individual bearing unitsMaterial:Acero / acero inoxidableSurface:Sanded

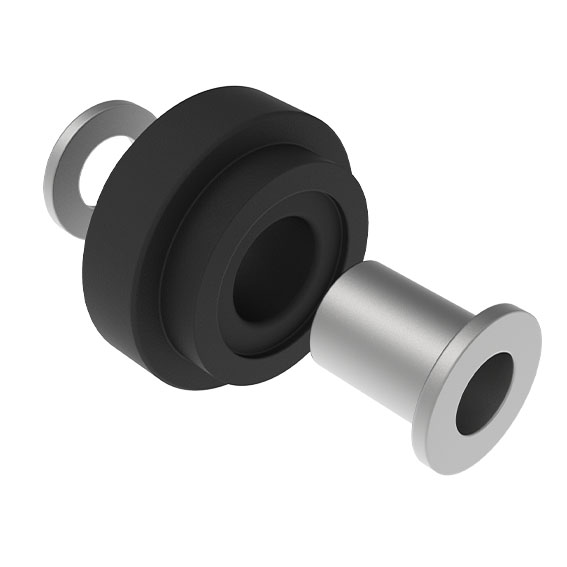

Roller Ø 19 for T-slotted Profiles
Color:NegroPaíses de Entrega:En todo el mundoDescription:To guide moving parts in the slot of the aluminum profileMaterial:Roller: Plastic PA, glass ball reinforced Bush: Steel Washer: SteelEspeciales:Descarga electrostática ESD, otros colores bajo pedidoSurface:Bush: Zinc plated Washer: Zinc plated

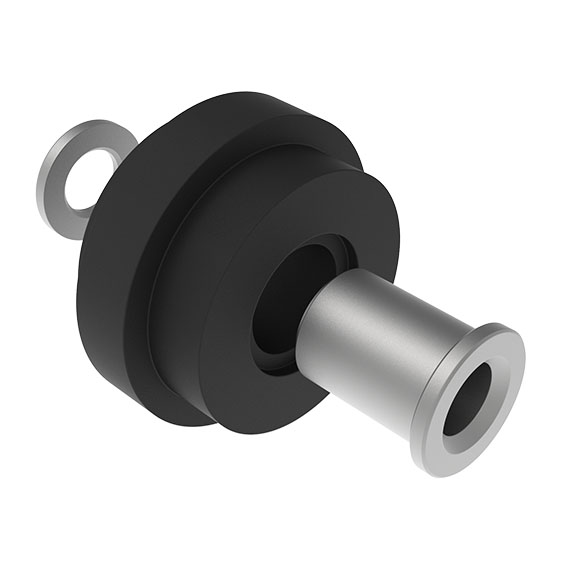

Roller Ø 29 for T-slotted Profiles
Color:NegroPaíses de Entrega:En todo el mundoDescription:To guide moving parts in the slot of the aluminum profileMaterial:Roller: Plastic PA, glass ball reinforced Bush: Steel Washer: SteelEspeciales:Descarga electrostática ESD, otros colores bajo pedidoSurface:Bush: Zinc plated Washer: Zinc plated

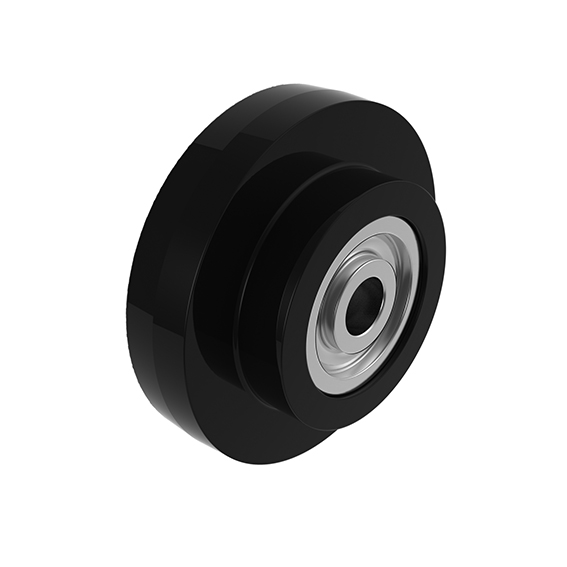

Roller Ø 39 for T-slotted Profiles
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To guide moving parts in the slot of the aluminum profile, with ball bearingMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Descarga electrostática ESD, otros colores bajo pedido
Roller Ø 47 for T-slotted Profiles
Color:NegroPaíses de Entrega:En todo el mundoDescription:To guide moving parts in the slot of the aluminum profile, with ball bearingMaterial:Plastic PA, glass ball reinforced Pins: Zinc plated steelEspeciales:Descarga electrostática ESD, otros colores bajo pedido
Roller Ø 58 for T-slotted Profiles (Set)
Color:NegroPaíses de Entrega:En todo el mundoDescription:To guide moving parts in the slot of the aluminum profile, with ball bearingMaterial:Plástico PA, bola de vidrio reforzadoSet:1 roller, 1 hammer nut, slot 10 M8, zinc-plated steel, 1 cylinder head screw DIN 7984 M8 x 40, zinc-plated steel, 1 washer DIN 7349Especiales:Descarga electrostática ESD, otros colores bajo pedido

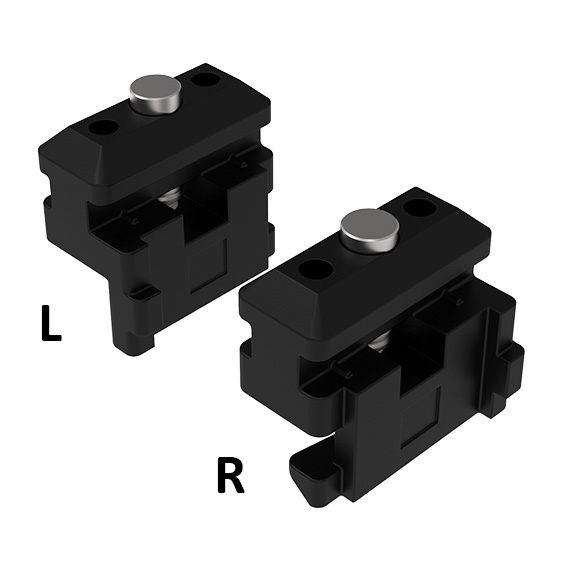

Sliding Door Guide for Clamp Profile
Países de Entrega:En todo el mundoDescription:To assemble sliding doorsMaterial:Sliding door guide: Plastic POM Mechanism: SteelSet:2 Sliding door guides left 2 Sliding door guides rightSuperficie:Mecanismo: Zincado Tip:Compatible Clamping Spring see 092090

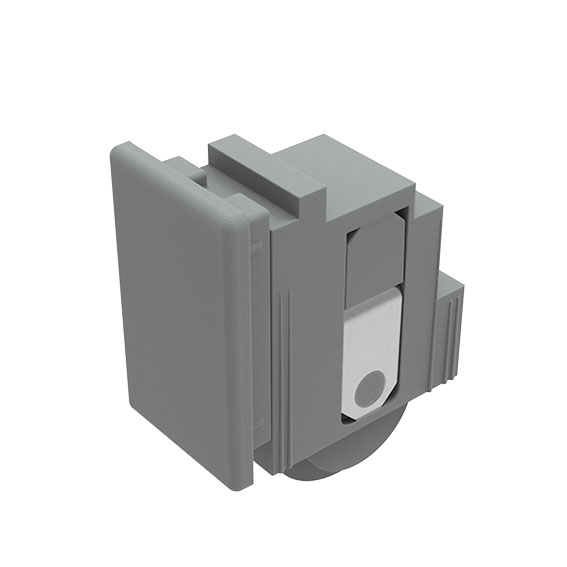

Sliding Door Guide Insert for Frame Corner Connector 18 x 32 (Set)
Color:Guide insert: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To guide lift or sliding doors in the slot of an aluminum profile, to insert in the frame corner connector 18 x 32 for clamp profileMaterial:Guide insert: Plastic PA, glass fiber reinforcedSet:1 guide insert, 1 cover cap, 1 stopperTip:Compatible Frame Corner Connector 18 x 32 for Clamp Profile (Set) see 093WWC18321N08S01

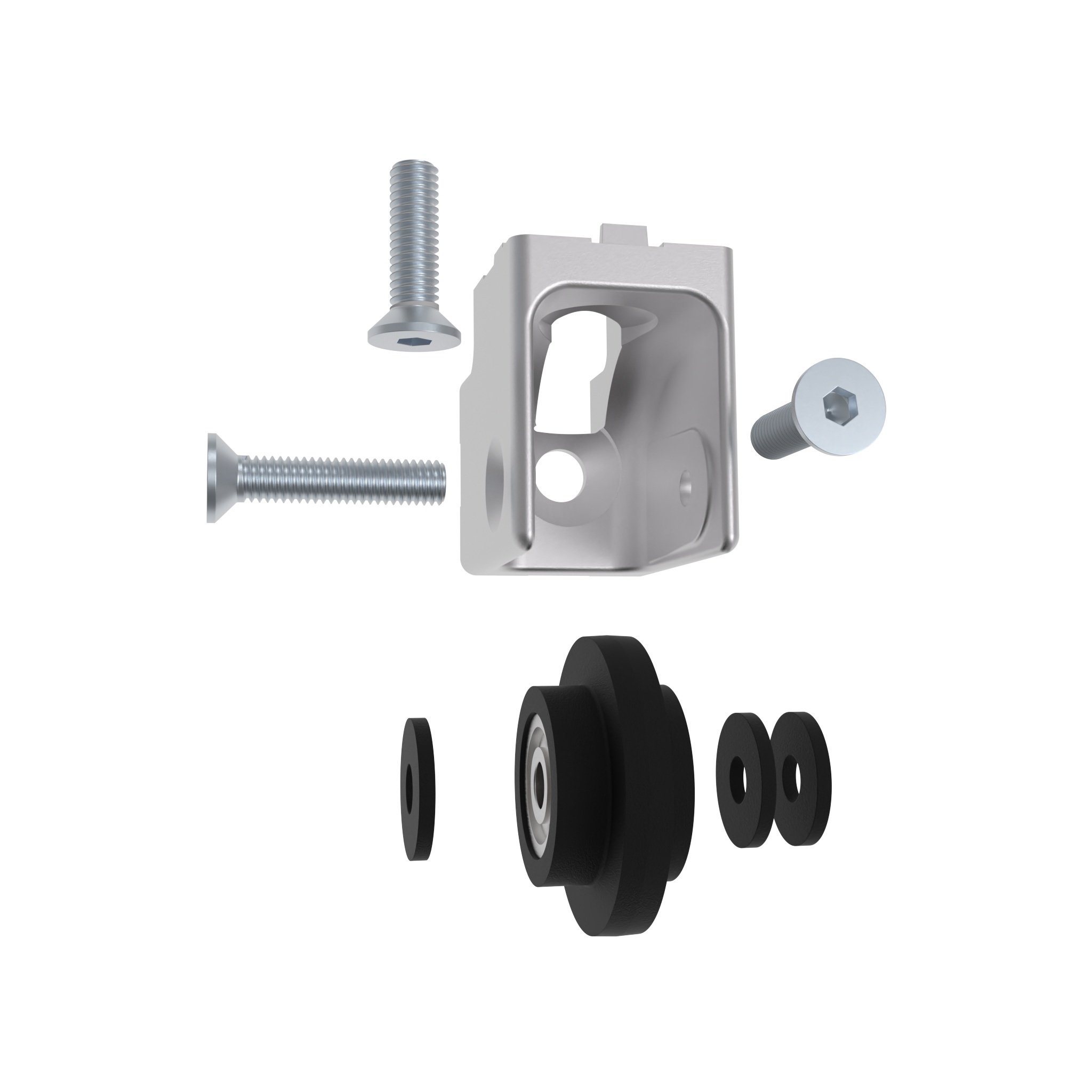

Sliding Door Guide Set 30
Color:Roller: Black Spacer: NaturalPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles and to guide lift or sliding doors in the slot of an aluminum profile, with ball bearing; spacers can be changed: for a 2 mm distance between door and fixed profile or a 2 or 4 mm distance between two doorsMaterial:Casing: Aluminum die-cast Roller: Plastic PA, glass ball reinforced Spacer: Plastic PASet 1:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 22 (for profile) 3 spacersSet 2:1 casing, 1 roller slot 8, 1 screw as axle, 2 screws DIN EN ISO 10642 (DIN 7991) - M8 x 20 (for profile) 3 spacersSurface:Casing: Plain

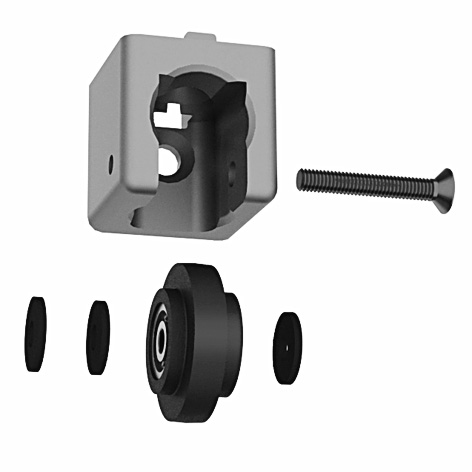

Sliding Door Guide Set 40 / 45
Color:Roller: Black Spacer: NaturalPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles and to guide lift or sliding doors in the slot of an aluminum profile, with ball bearing; spacers can be changed: for a 2 mm distance between door and fixed profile or a 2 or 4 mm distance between two doorsMaterial:Casing: Aluminum die-cast Roller: Plastic PA, glass ball reinforced Spacer: Plastic PASet 1:1 casing, 1 roller, 1 screw as axle, 3 spacersSet 2:1 casing, 1 roller, 1 screw as axle, 4 spacersSet 3:1 casing, 1 roller, 1 screw as axle, 4 spacers 2 self-forming screws S12 x 30 - hexalobular socket T50Surface:Casing: Plain

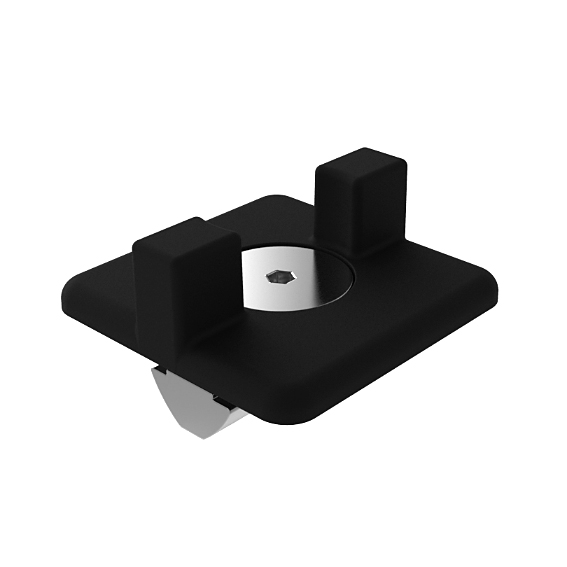

T-slot Slider (Set)
Color:T-slot slider: blackPaíses de Entrega:En todo el mundoDescription:For the assembly of folding doors with simultaneous rotating and sliding movement; without a T-slot also suitable for side to end mounting into the core hole for e.g. keyboard pull outsMaterial:T-slot slider: Plastic POM Special screw: Steel Washer: Stainless steel T-slot nut: SteelSet:1 T-slot slider, 1 special screw - M8 x 13, 1 washer DIN 988, 1 T-slot nut - slot 8 - M8Especiales:Otros colores bajo pedidoSurface:Special screw: Zinc plated Washer: Plain T-slot nut: Zinc platedTip:For gap distance 5 mm

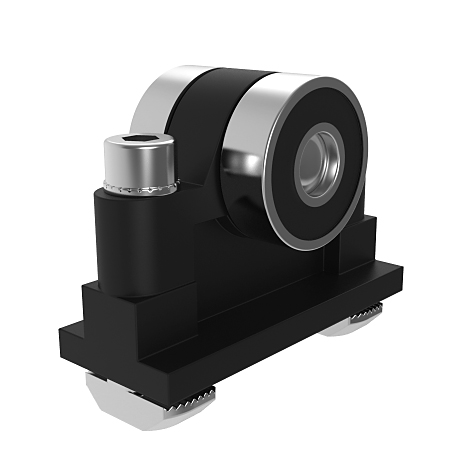

Trolley (Set)
Color:Trolley: BlackPaíses de Entrega:En todo el mundoDescription:For moving suspended sliding doors built of slot 8 profiles in slot 10 rail profileMaterial:Trolley: Plastic PA Bearing: Steel Straight pin: Stainless steel Mounting material: SteelSet:1 Trolley with 2 mounted bearings 1 Cylinder pin DIN EN ISO 2338 (DIN 7) - Ø 8 x 20, 2 Screws DIN EN ISO 4762 (DIN 912) - M5 x 30, 2 Washers 5-FSt, 2 Hammer head nuts - slot 8 - M5Surface:Bearing: Chrome plated (RoHS-konform) Cylinder pin: Plain Mounting material: Zinc plated

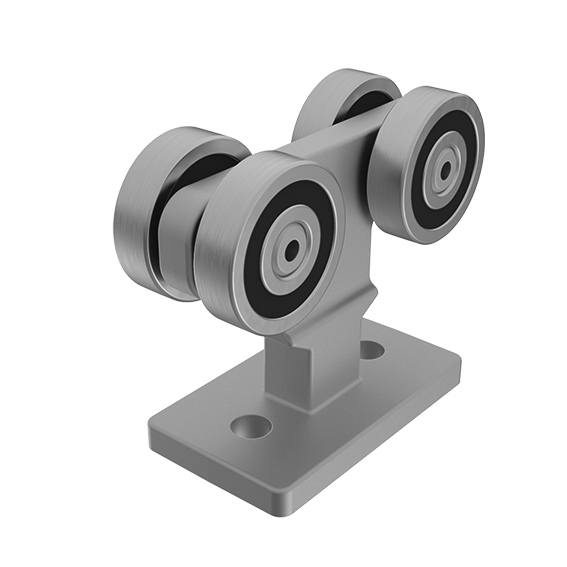

Trolley 40 for Overhead C-Rail, with Mounting Plate
Países de Entrega:En todo el mundoDescription:To build towing trolleys with aluminum profile 40, for hanging cables or lines optional tool hangers can be inserted into the slot of the aluminum profile; Ball bearing guide of the trolley in the overhead C-monorailMaterial:Trolley: Aluminum die-cast Ball bearings: SteelSurface:Trolley: PlainTip:Compatible Tool Hangers see 093007

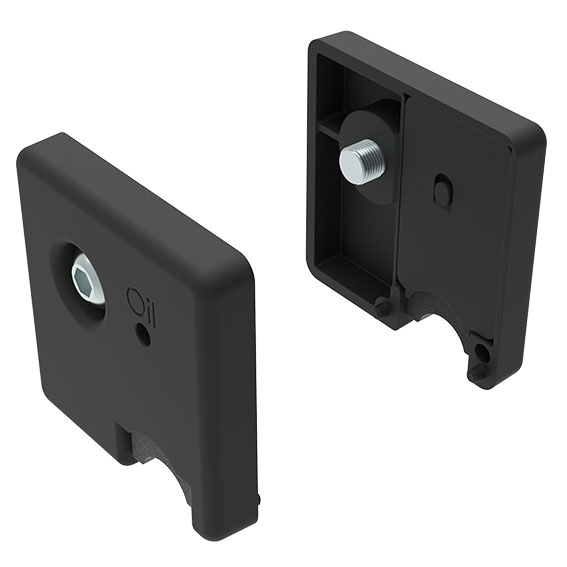

Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set)
Color:Housing: BlackPaíses de Entrega:En todo el mundoDescription:Lubrication system for roller profile I to simplify maintenance of bearing units; Lubrication and wiping of particles while in use; Lubricating felt is delivered oil soakedMaterial:Housing: Plastic PA, glas fibre reinforced Lubricating felt: Felt Spring: Steel Screw: SteelSurface:Spring: Zinc plated Screw: Zinc platedTip:Semi-annual oil refill recommended
