Elementos para el suelo
Casquillo roscado para tubo redondo 60.3
Color:NegroPaíses de Entrega:En todo el mundoDescription:To fit leveling feet to round, non-threaded tubesMaterial:Bush: Plastic PA, glass fiber reinforced Threaded insert: Nickel plated brassEspeciales:Descarga electrostática ESD, otros tamaños, otros colores bajo pedido
Consola de pata 45 / 60 - 120
Países de Entrega:En todo el mundoDescription:To mount aluminum profiles as postsMaterial:Aluminio fundido a presiónSuperficie:LisoTip:Compatible Hammer Screw see 096HK1045M0830 Compatible Flange Nut see 340ME154
Consola de pata 45 / 90 - 150
Países de Entrega:En todo el mundoDescription:To mount aluminum profiles as postsMaterial:Aluminio fundido a presiónSuperficie:LisoTip:Compatible Hammer Screw see 096HK1045M0830; Compatible Flange Nut see 340ME154
Consola de pata acier 40 / 45 - 110
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount aluminum profiles as postsMaterial:AceroSuperficie:Polvo cubiertoTip:Compatible Hammer Screw Slot 8 see 096HK0830M0820 Compatible Hammer Screw Slot 10 see 096HK1030M0820 Compatible Flange Nut M8 see 340ME154

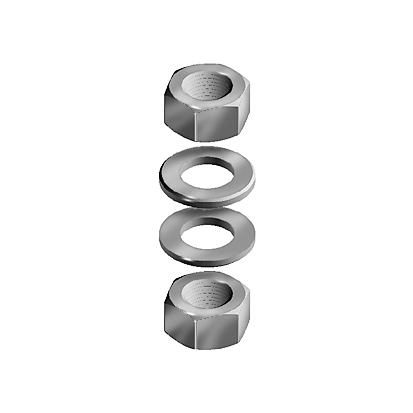

Juego de ensamble para patas de pato (Juego)
Países de Entrega:En todo el mundoDescription:Assembling Set for Duck FeetMaterial:Acero / acero inoxidable A2Set:2x hexagon nut DIN EN ISO 4032 (DIN 934) 2x washer DIN EN ISO 7089 (DIN 125)Superficie:Galvanizado / liso

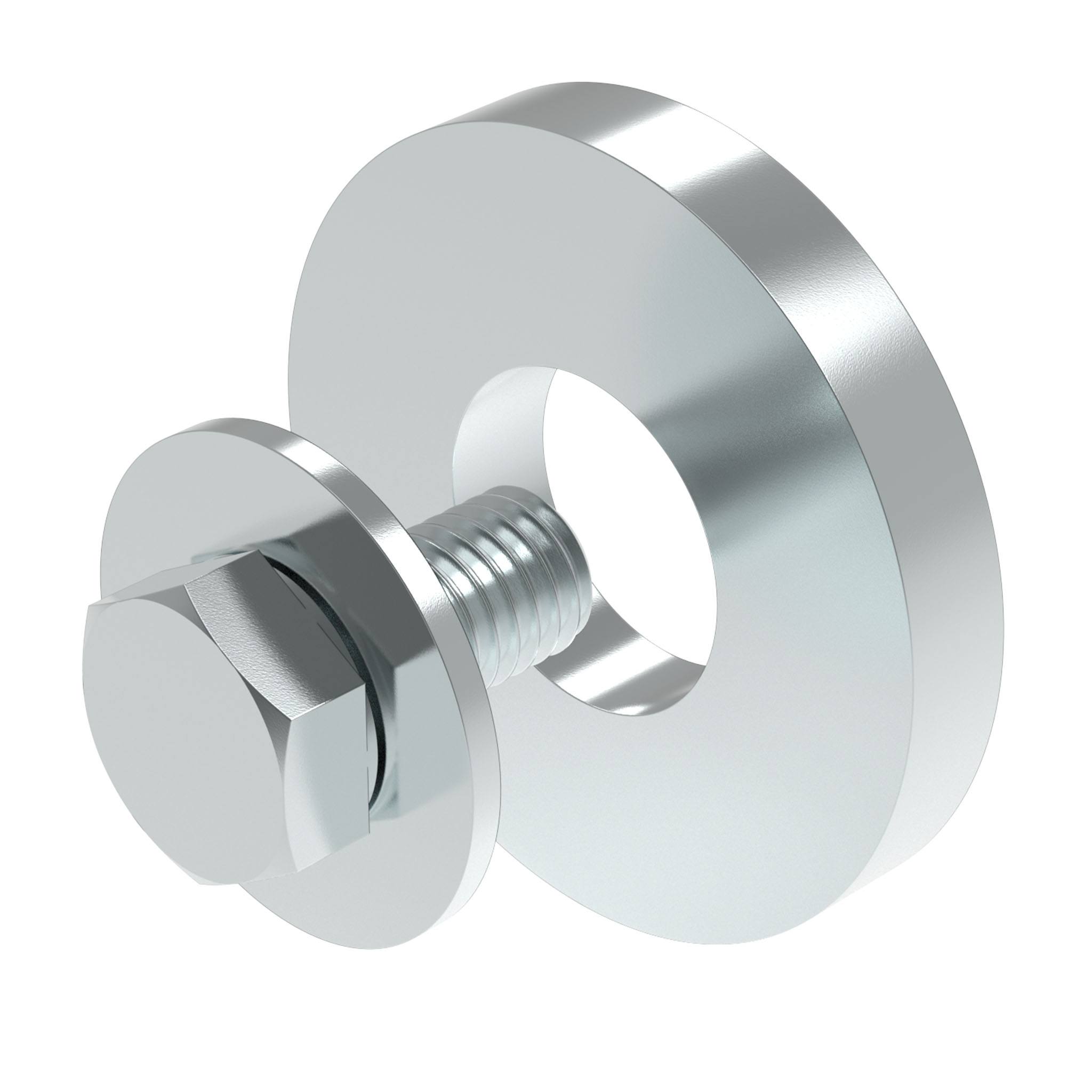

Juego de ensamble para patas fijas de uso rudo
Assembly Set 1:1 screw DIN EN ISO 4017 (DIN 933) – M8 x 16 steel, zinc plated, 1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 - steel, zinc plated, 1 washer DIN 7349 – 17 - steel, zinc platedAssembly Set 2:1 screw DIN EN ISO 4017 (DIN 933) – M8 x 16 stainless steel, 1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 - stainless steel, 1 washer DIN 7349 – 17 - stainless steelPaíses de Entrega:En todo el mundoDescription:To assemble heavy-duty fixed feetMaterial:Acero / acero inoxidableSuperficie:Galvanizado / lisoTip:Compatible threaded rod ST for heavy-duty fixed feet see 098KM16100M, Compatible threaded rod SS for heavy-duty fixed feet see 098KM16100E

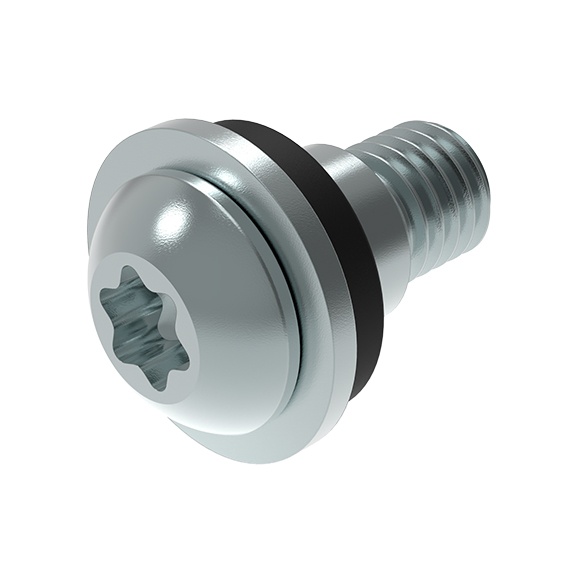

Juego de ensamble para patas pivotantes
Assembly Set 1:1 collar screw with shank - M8 x 18 - steel, zinc plated, 1 washer DIN EN ISO 7092 (DIN 433) - 10.5 - steel, zinc plated, 1 bumper washer - rubber EPDMAssembly Set 2:1 collar screw with shank - M8 x 18 - stainless steel, 1 washer DIN EN ISO 7092 (DIN 433) - 10.5 - stainless steel, 1 bumper washer - rubber EPDMPaíses de Entrega:En todo el mundoDescription:To assemble pivot feetMaterial:Acero / acero inoxidable, caucho EPMSuperficie:Galvanizado / lisoTip:Compatible threaded rod ST metric for pivot feet see 098AM12066M, Compatible threaded rod SS metric for pivot feet see 098AM12066E, Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M, Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3E

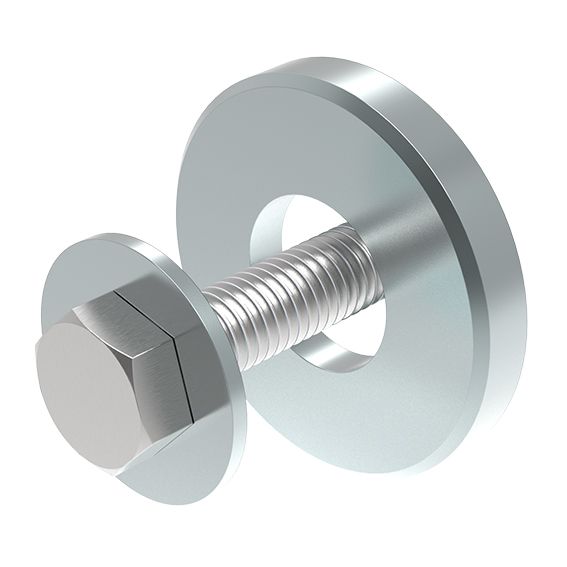

Juego de ensamble para patas pivotantes de uso rudo
Assembly Set 1:1 screw DIN EN ISO 4017 (DIN 933) – M8 x 30 stainless steel, with polyamide thread locking dot, 1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 mm steel, zinc plated, 1 shaped washer – steel, zinc platedAssembly Set 2:1 screw DIN EN ISO 4017 (DIN 933) – M8 x 30 stainless steel, with polyamide thread locking dot, 1 washer DIN EN ISO 7093 (DIN 9021) – 8.4 stainless steel, 1 shaped washer – stainless steelPaíses de Entrega:En todo el mundoDescription:To assemble heavy-duty pivot feetMaterial:Acero / acero inoxidableSuperficie:Galvanizado / lisoTip:Compatible threaded rod ST metric for pivot feet see 098AM12066M, Compatible threaded rod SS metric for pivot feet see 098AM12066E, Compatible threaded rod ST UNC for pivot feet see 098AU1/2-3M, Compatible threaded rod SS UNC for pivot feet see 098AU1/2-3E
Manga roscada
Países de Entrega:En todo el mundoDescription:To fit levelling feet to profiles at right angles; a hole must be drilled with Ø 17 mm through the profile to allow applicationMaterial:AceroEspeciales:Otros tamaños, otras superficies bajo pedidoSuperficie:Galvanizado
Montaje al piso para base de pata trapezoidal
Color:NegroPaíses de Entrega:En todo el mundoDescription:To securely fix the trapezoid leveling foot to the floor - can be mounted afterwardMaterial:Zinc fundido a presiónSuperficie:Polvo cubiertoTip:Compatible Trapezoid Base see 098DI060ZS and 098AI060ZS

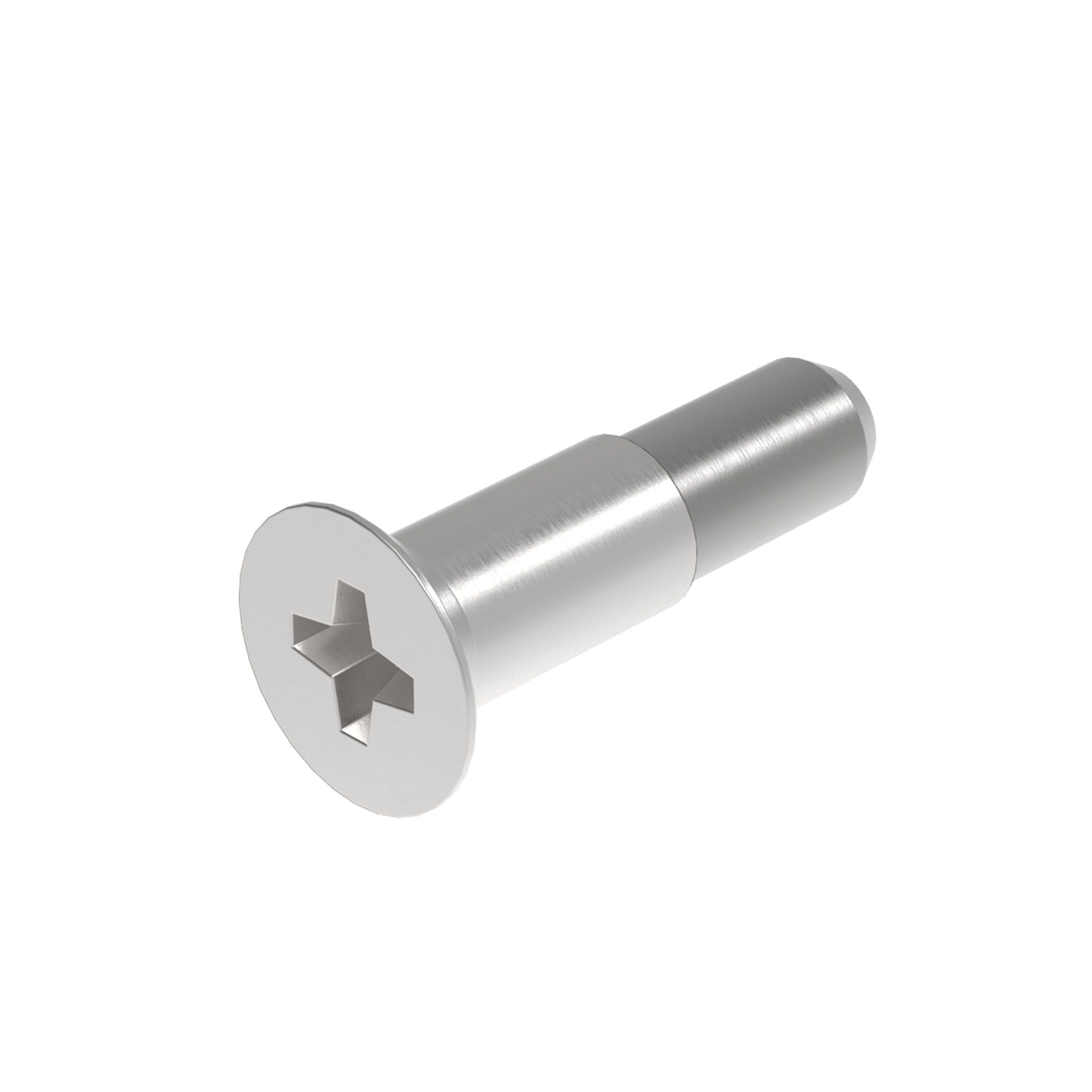

Pasador de ensamble para patas ECO
Países de Entrega:En todo el mundoDescription:To assemble ECO feetMaterial:Acero inoxidable SS304Superficie:LisoTip:Compatible threaded rod ST for ECO-Feet see 098EM08025M, Compatible threaded rod SS for ECO-Feet see 098EM08025E

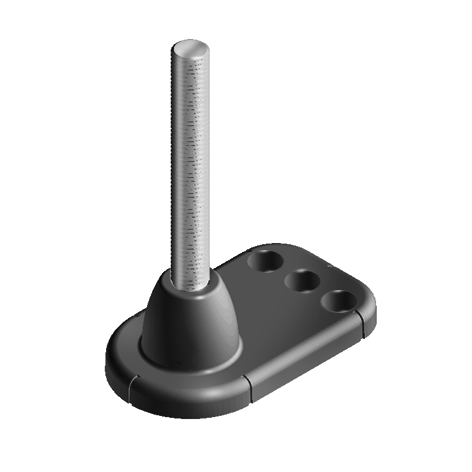

Pata de pato con varilla roscada acier
Países de Entrega:En todo el mundoDescription:A strong and low cost leveling foot commonly used for conveyor systems; the threaded rod is fixedMaterial:Base: Aluminum die-cast Threaded rod: SteelSurface:Base: Plain Threaded rod: Zinc platedTip:Compatible Nut see 098F16MTip 2:Compatible Cover Caps see 098F01, please use 1 piece out of this set

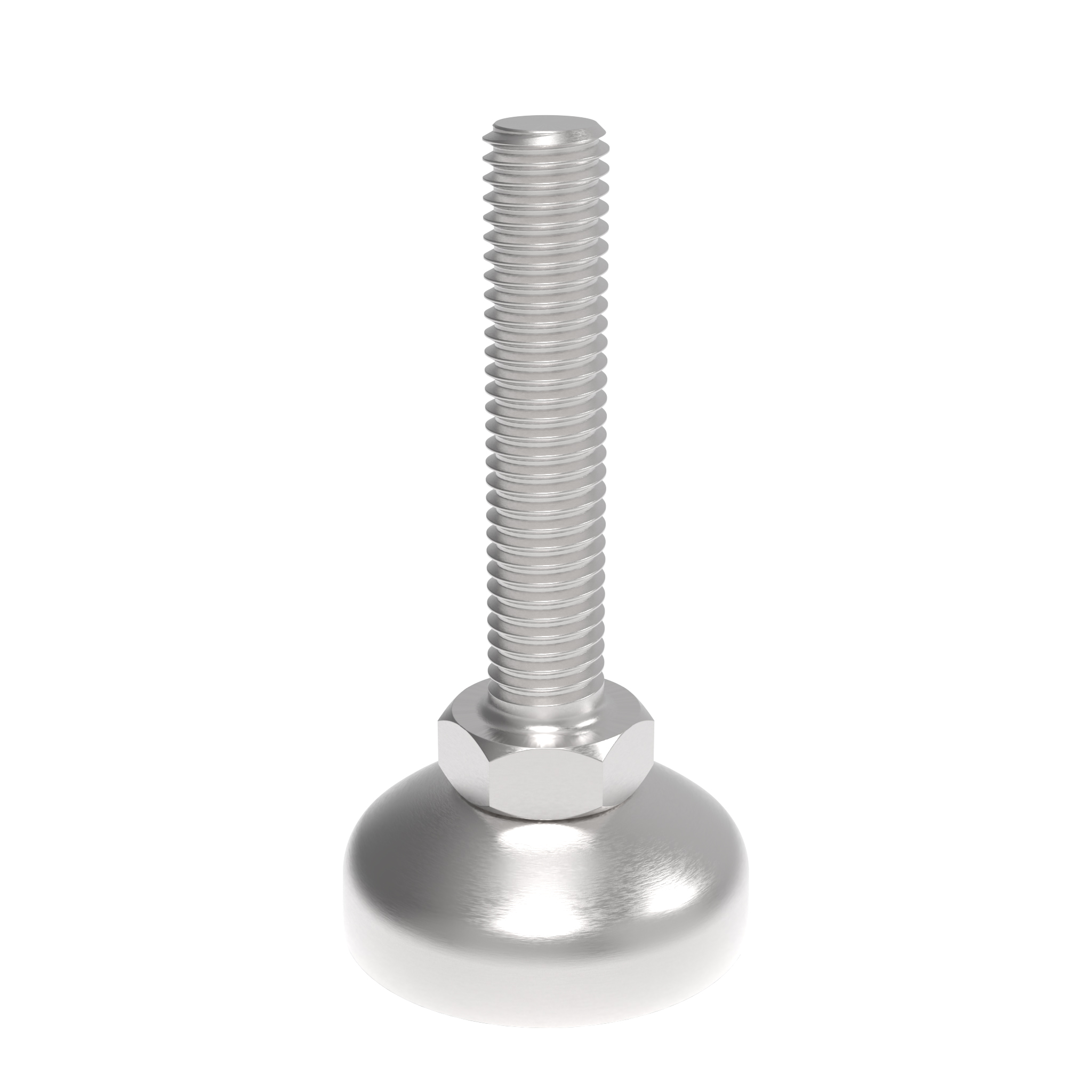

Pata ECO, acier inox / acier inox
Países de Entrega:En todo el mundoDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Stainless steel Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Base: Plain Threaded rod: Plain Tip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.

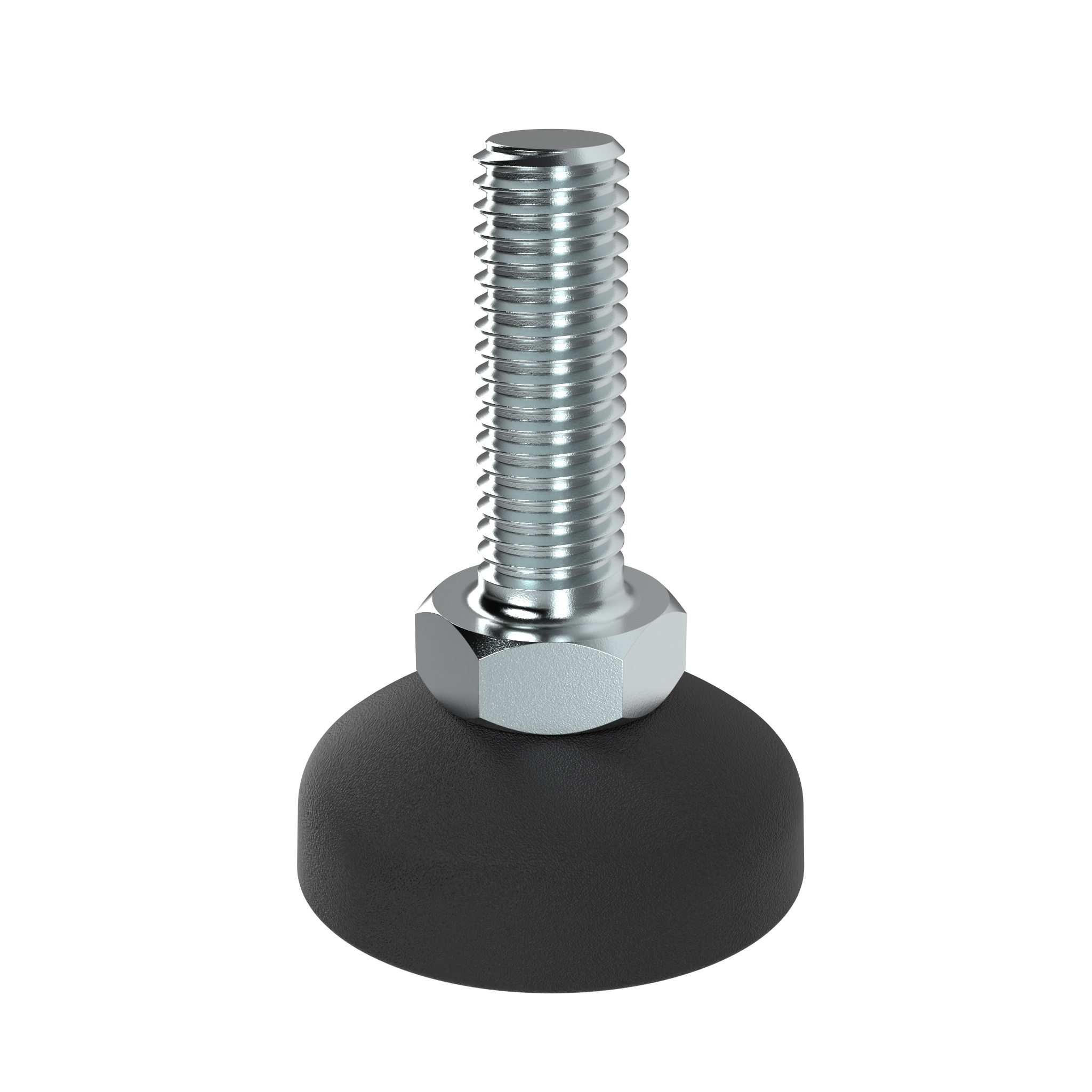

Pata ECO, PA / acier
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.

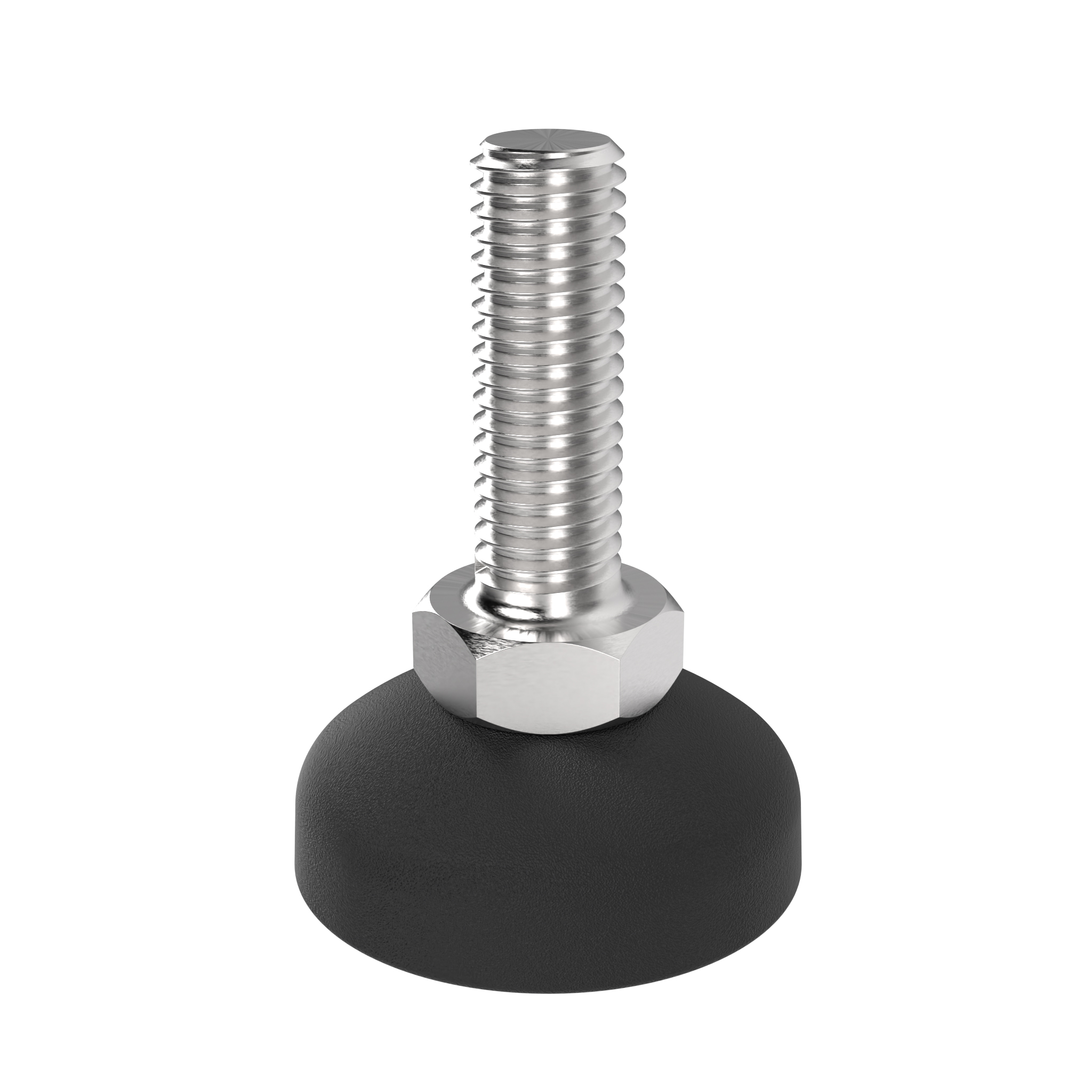

Pata ECO, PA / acier inox
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: PlainTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.

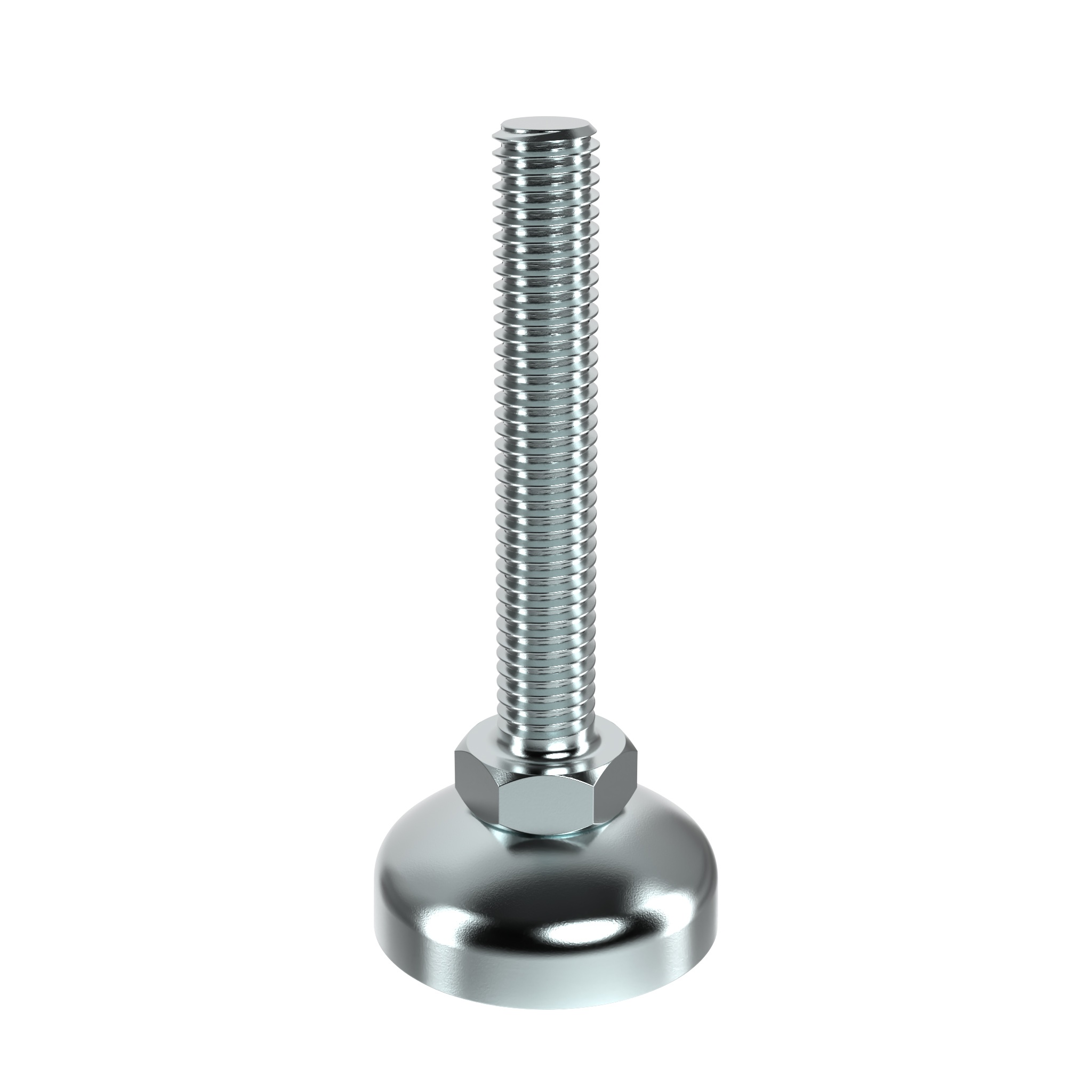

Pata ECO, ZN / acier
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Zinc die-cast Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Base: Powder coated / zinc plated Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.

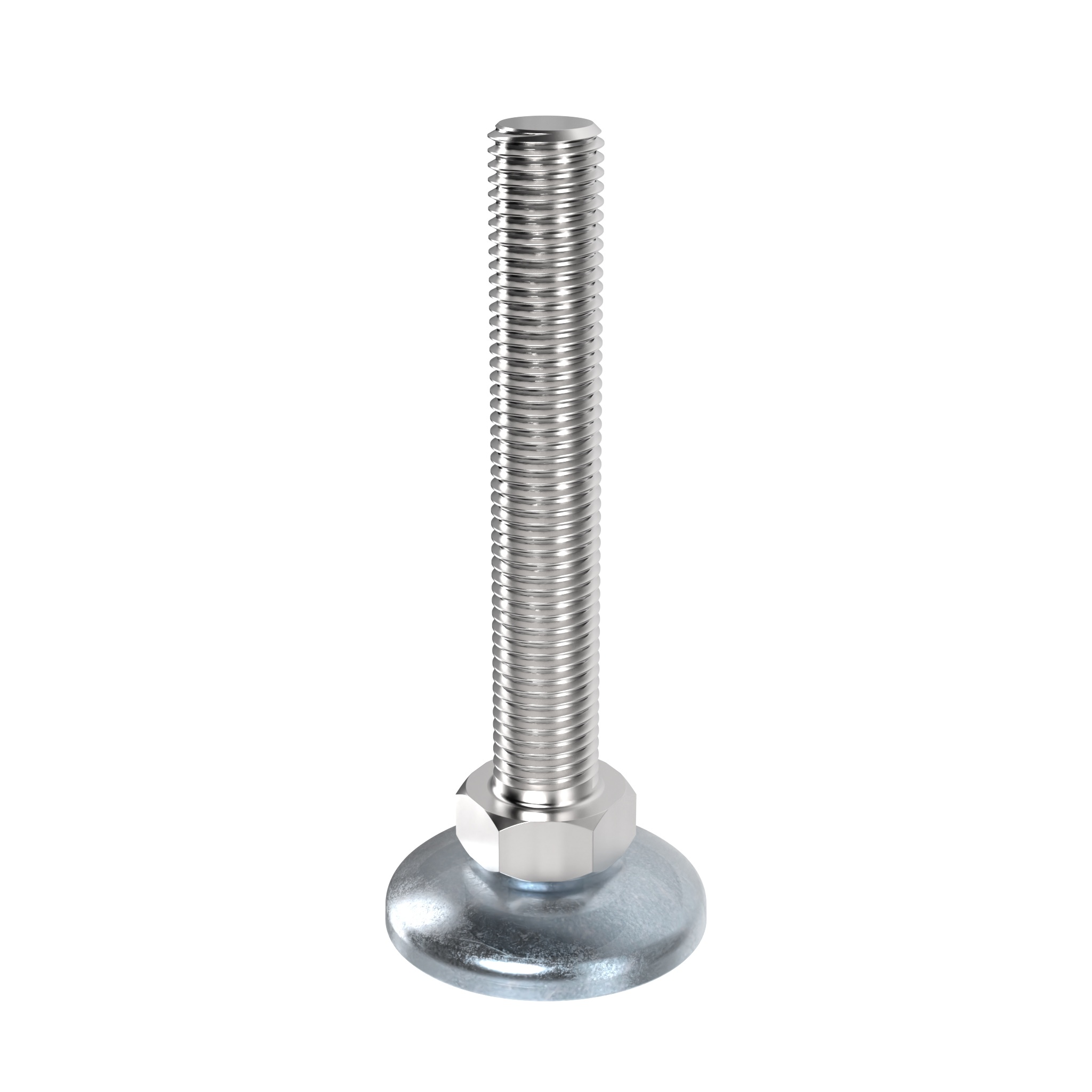

Pata ECO, ZN / acier inox
Países de Entrega:En todo el mundoDescription:Economical leveling foot for strong positioning on slightly uneven floorsMaterial:Base: Zinc die-cast Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Base: Zinc plated Threaded rod: PlainTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098EG030 et sq.
Pata giratoria PA / acier - BDH - rótula 22
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.Tip 2:*Bolt-down holes closed
Pata giratoria trapezoidal, ZN / acier - rótula 15
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Base: Zinc die-cast Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Base: Powder coated Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.
Pata giratoria, acier inox / acier inox - rótula 15
Países de Entrega:En todo el mundoDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Base: Stainless steel Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Base: Plain Threaded rod: Plain Tip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.
Pata giratoria, PA / acier - BDH - rótula 15
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq., *Bolt-down holes closed
Pata giratoria, PA / acier - rótula 10
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Stainless steel, other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098MG020 et sq.
Pata giratoria, PA / acier - rótula 15
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot for strong positioning on uneven floorsMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: SteelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: Zinc platedTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq.
Pata giratoria, PA / acier inox - BDH - rótula 15
Color:Base: BlackPaíses de Entrega:En todo el mundoDescription:A swiveling leveling foot which can be fixed to the floorMaterial:Base: Plastic PA, glass ball reinforced Threaded rod: Stainless steelSpecials:ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request Other lengths and other sizes on requestSurface:Threaded rod: PlainTip:Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq., Compatible Anti-Slip Plate see 098DG030 et sq., *Bolt-down holes closed
