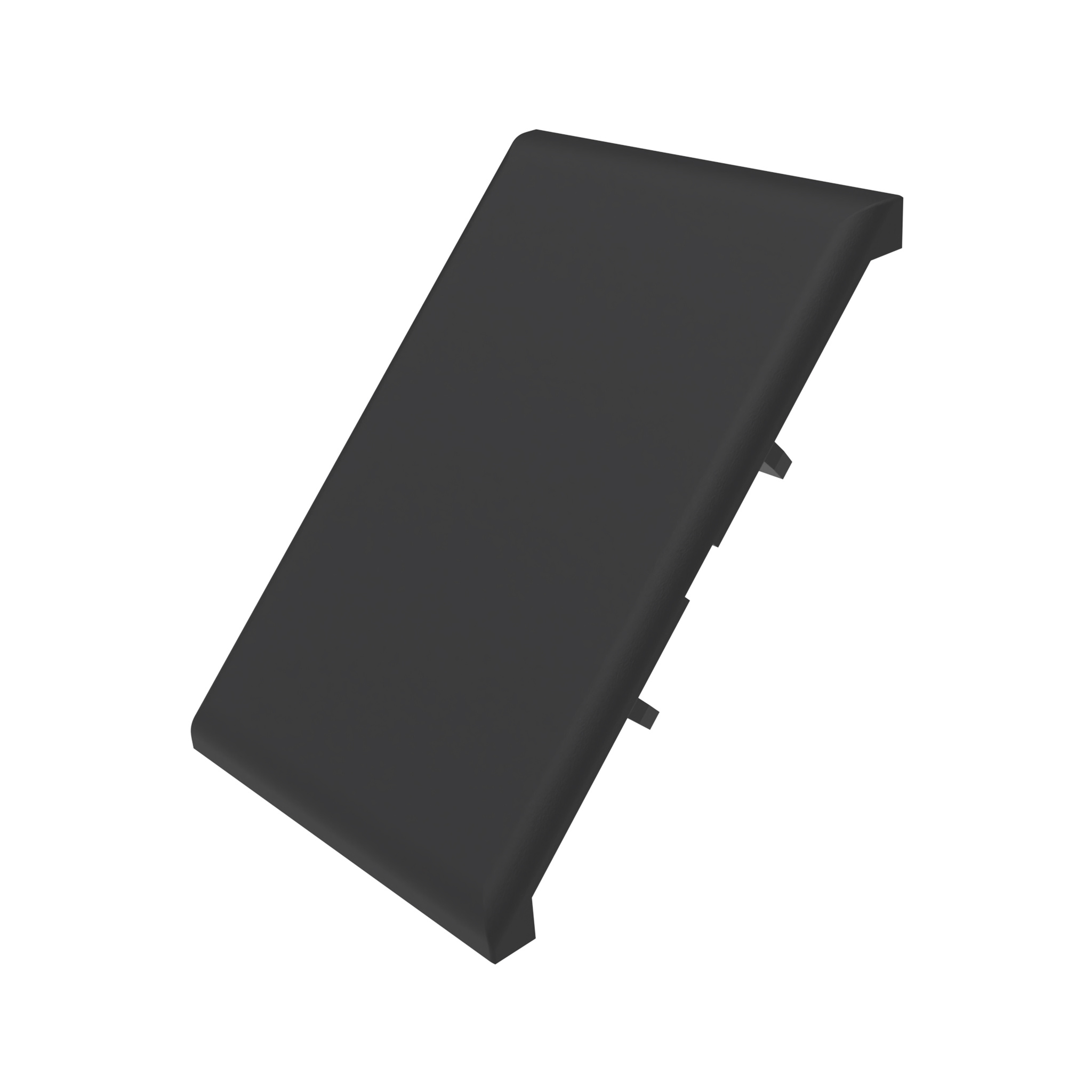

Cover Cap for Zinc Connection Angle 60

Color:NegroPaíses de Entrega:En todo el mundoDescription:To cover the open side of the connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedidoTip:Compatible Zinc Connection Angle see 093W601R

0,00 €

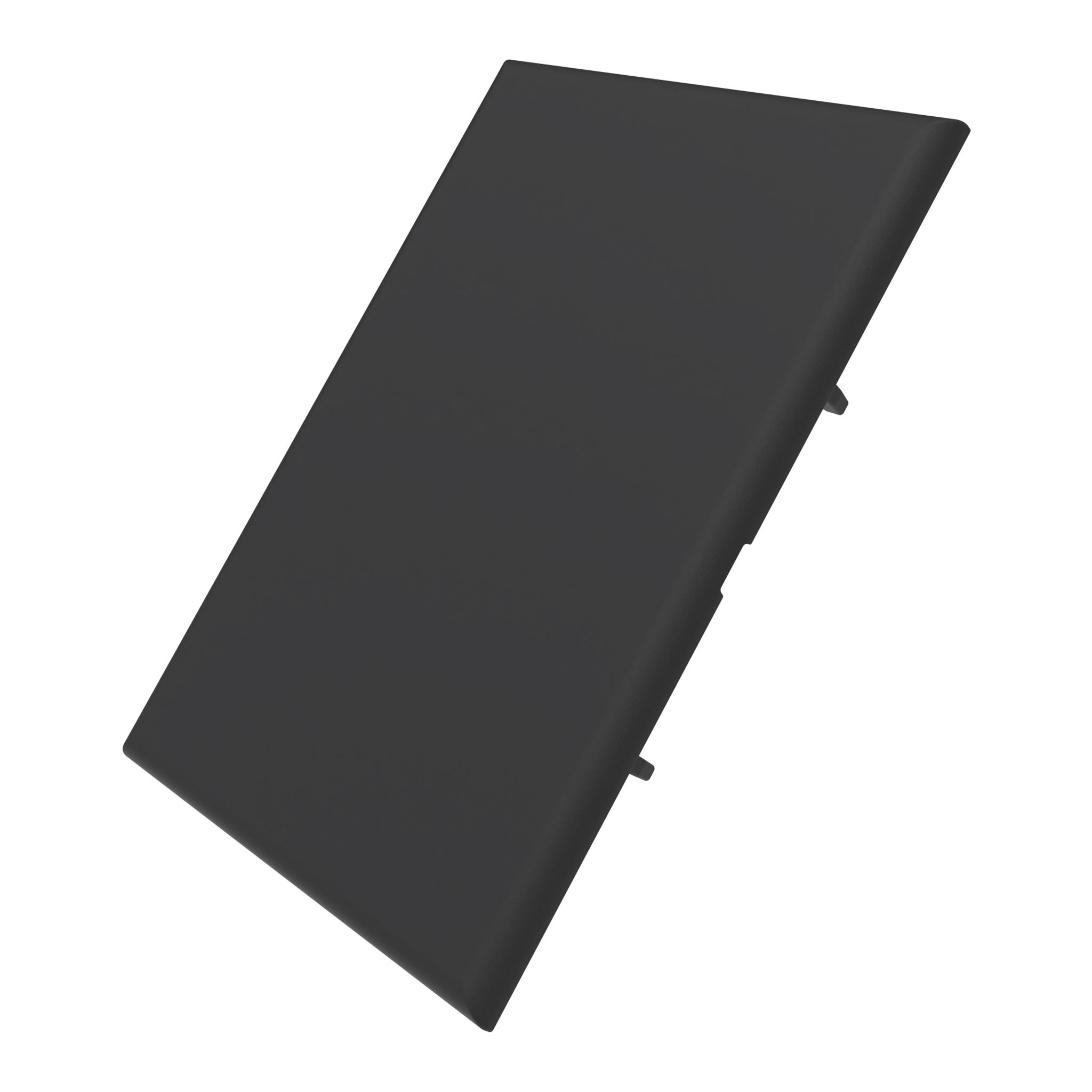

Cover Cap for Zinc Connection Angle 80 flat

0,00 €

Cover Cap for Zinc Connection Angle I 40

Color: Gris ≈ RAL 7042 Fig.: ②

Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the open side of the connection angleMaterial:Plástico PA, reforzado con fibra de vidrioTip:Compatible Zinc Connection Angle I 40 see 093W407N08R

0,00 €

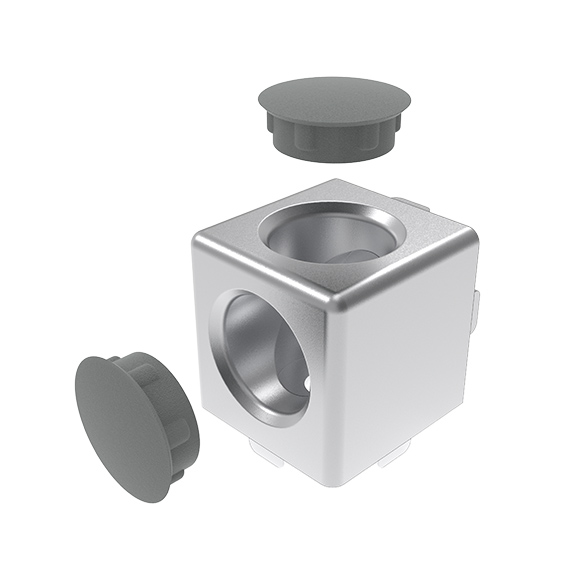

Cube Connector 20, 2D

Color: Color alu D1 (mm): 12.0 D2 (mm): 5.2 L (mm): 20.0 Profile: I R (mm): 1.5 Ranura N (mm): 5 Superficie: Polvo cubierto Version: Cover cap: alu color

PFA_AssemblySet1:2 tornillos ISO 7380 - M5 x 14Assembly Set 2:2 self-forming screws S6 x 16 - AF 4Color:Cube connector: Alu color Cover caps: Black / alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminium profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Zinc die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Plain / powder coated Cover caps: Laquered Assembly set: Zinc plated

0,00 €

Cube Connector 20, 3D

Color: - D1 (mm): 12.0 D2 (mm): 6.3 L (mm): 20.0 Profile: B R (mm): 1.5 Ranura N (mm): 6 Superficie: Liso Version: Cover cap: Black

Assembly Set 1:3 screws DIN EN ISO 7380 (DIN 34805) - M5 x 14Assembly Set 2:3 self-forming screws S6 x 16 - AF 4Color:Cube connector: Alu color Cover caps: Black / alu colorPaíses de Entrega:En todo el mundoDescription:To connect three aluminum profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Zinc die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Plain / powder coated Cover caps: Laquered Assembly set: Zinc plated

0,00 €

Cube Connector 25 - 1", 2D

D1 (mm): 12.0 D2 (mm): 7.2 L (mm): 25.4 (1") R (mm): 2.0 Ranura N (mm): 6 Version: Cover cap: alu color

PFA_AssemblySet1:2 tornillos ISO 7380 - UNC 1/4-20x1"Color:Cube connector: Alu color Cover caps: Alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminium profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Powder coated Cover caps: Laquered Assembly set: Zinc plated

0,00 €

Cube Connector 25 - 1", 3D

D1 (mm): 12.0 D2 (mm): 7.2 L (mm): 25.4 (1") R (mm): 2.0 Ranura N (mm): 6 Version: Cover cap: alu color

Assembly Set:3 screws DIN EN ISO 7380 (DIN 34805) - UNC 1/4-20x1"Color:Cube connector: Alu color Cover caps: Alu colorPaíses de Entrega:En todo el mundoDescription:To connect three aluminum profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Powder coated Cover caps: Laquered Assembly set: Zinc plated

0,00 €

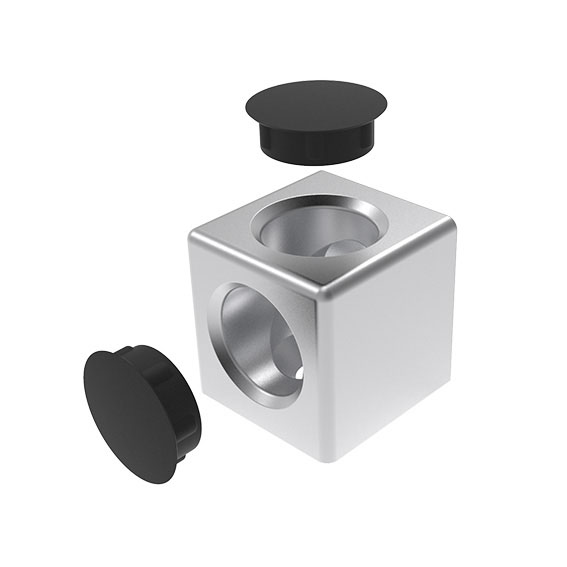

Cube Connector 30, 2D

Color: - D1 (mm): 18.0 D2 (mm): 9.0 L (mm): 30.0 Profile: B R (mm): 2.0 Ranura N (mm): 8 Superficie: Liso Version: Cover cap: Black

Assembly Set:2 self-forming screws S8 x 25 - AF 5Color:Cube connector: Alu color Cover caps: Black / alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminium profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Plain / powder coated Cover caps: Laquered Assembly set: Zinc plated

0,00 €

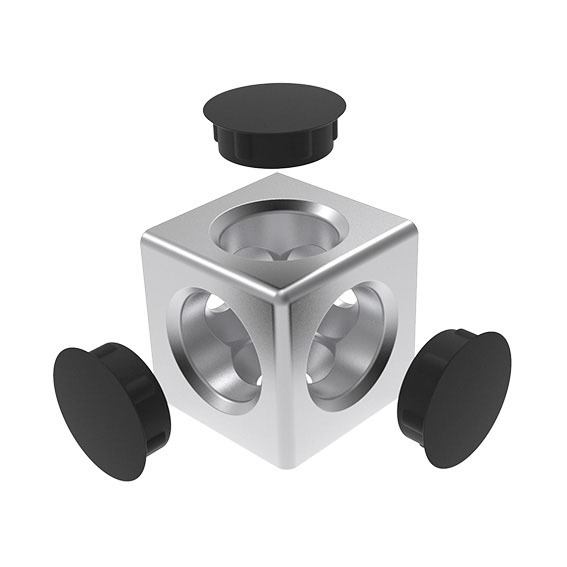

Cube Connector 30, 3D

Color: Color alu D1 (mm): 18.0 D2 (mm): 9.0 L (mm): 30.0 Profile: B R (mm): 2.0 Ranura N (mm): 8 Superficie: Polvo cubierto Version: Cover cap: alu color

Assembly Set:3 self-forming screws S8 x 25 - hexagon socket AF 5Color:Cube connector: Alu color Cover caps: Black / alu colorPaíses de Entrega:En todo el mundoDescription:To connect three aluminum profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Plain / powder coated Cover caps: Laquered Assembly set: Zinc plated

0,00 €

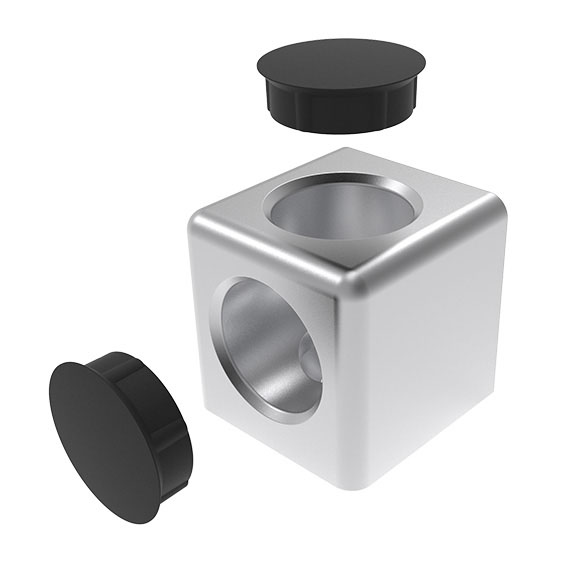

Cube Connector 40, 2D

Color: - D1 (mm): 24.0 D2 (mm): 12.5 L (mm): 40.0 Profile: B R (mm): 3.0 Ranura N (mm): 10 Superficie: Liso Version: Cover cap: Black

Assembly Set:2 self-forming screws S12 x 30 - hexalobular socket T50Color:Cube connector: Alu color Cover caps: Black / alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminium profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Plain / powder coated Cover caps: Laquered Assembly set: Zinc plated

0,00 €

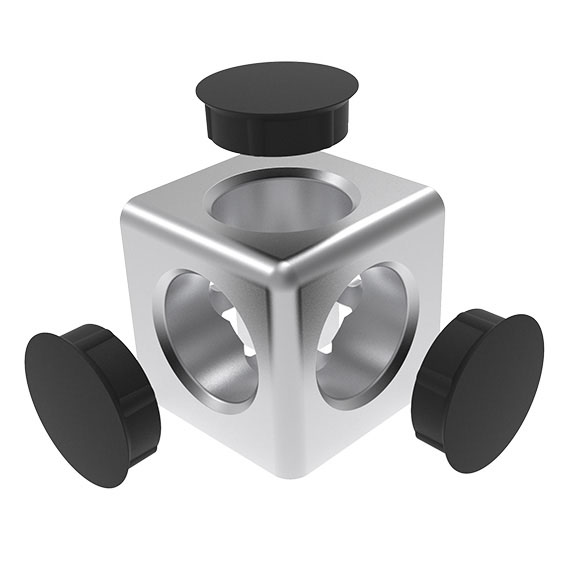

Cube Connector 40, 3D

Color: Color alu D1 (mm): 24.0 D2 (mm): 8.5 L (mm): 40.0 Profile: I R (mm): 4.0 Ranura N (mm): 8 Superficie: Polvo cubierto Version: Cover cap: alu color

Assembly Set:3 self-forming screws S12 x 30 - hexalobular socket T50Color:Cube connector: Alu color Cover caps: Black / alu colorPaíses de Entrega:En todo el mundoDescription:To connect three aluminum profiles at right angles; with cover caps to cover the boresMaterial:Cube connector: Aluminum die-cast Cover caps: Plastic PA Assembly set: SteelSurface:Cube connector: Plain / powder coated Cover caps: Laquered Assembly set: Zinc plated

0,00 €

Cube Connector 45, 2D

Color: - D1 (mm): 24.0 D2 (mm): 13.0 L (mm): 45.0 Profile: B R (mm): 3.0 Ranura N (mm): 10 Superficie: Liso Version: Cover cap: Black

0,00 €

Cube Connector 45, 3D

Color: Color alu D1 (mm): 24.0 D2 (mm): 13.0 L (mm): 45.0 Profile: B R (mm): 3.0 Ranura N (mm): 10 Superficie: Polvo cubierto Version: Cover cap: alu color

0,00 €

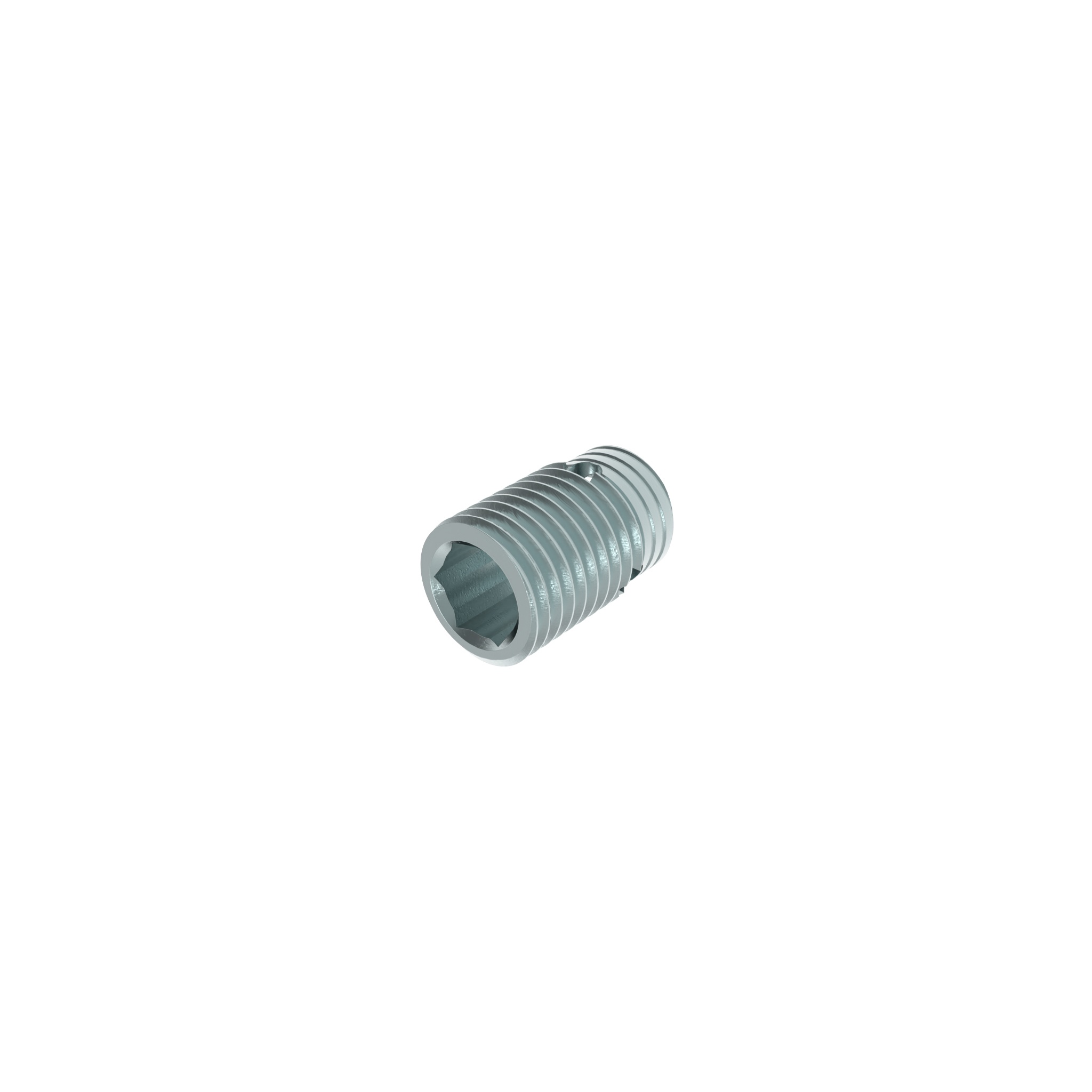

Cutting Bush with Shank

Material: Acero Profile: I / B Superficie: Galvanizado

Países de Entrega:En todo el mundoDescription:For reduction from core hole 10.2 mm to M8 threadMaterial:AceroSuperficie:GalvanizadoTip:Compatible Screw-in Tool for Cutting Bush with Shank see 09308802

0,00 €

Direct Connector I / B, Slot 8 / 10

Profile: B Ranura N (mm): 10

Países de Entrega:En todo el mundoDescription:To cross or parallely connect two aluminum profiles slot 8 with slot 10; assembly without machiningMaterial:AceroSuperficie:Galvanizado

0,00 €

Direct Connector I 90°, Slot 8

Profile: I Ranura N (mm): 8

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles, before the application one core hole must be M8 threaded (min. 18 mm deep)Material:Acero inoxidable

0,00 €

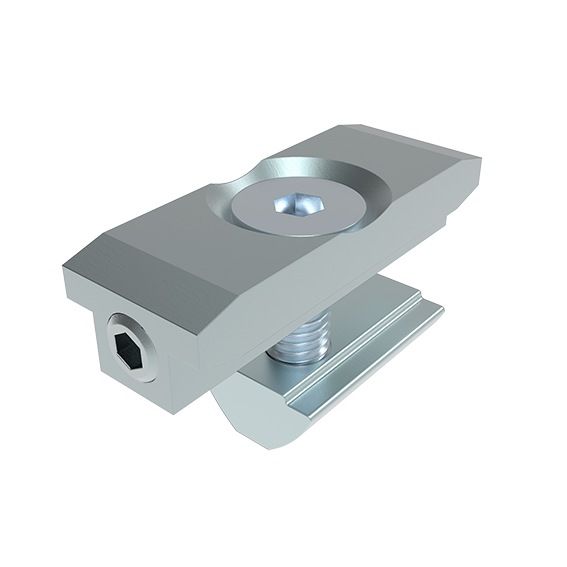

Direct Connector I, Slot 8

Profile: I Ranura N (mm): 8

Países de Entrega:En todo el mundoDescription:To cross or parallely connect two aluminum profiles; assembly without machiningMaterial:AceroSuperficie:Galvanizado

0,00 €

ECO Connection Plate AL 15° 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 76.2 (3") H (mm): 6.35 (0.25") K (mm): 23.98 (0.94") K (mm): 74.9 (2.94") L (mm): 88.9 (3.5") Version: 76.2 / 88.9 - 3" / 3.5" ØD (mm): 9.0 (0.35")
