Sistemas de conexión
Connection Plate I120 M (Set)
Color:Connection plate: Alu color Cover Caps: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles quickly at right angle, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and counter sunk nuts; the open screwing holes of the connection plate can be closed with the cover capsMaterial:Connection plate: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Magnet rhombus screws: Steel Countersunk nuts: SteelSet:1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts 4 cover capsEspeciales:Otras superficies, otros colores bajo pedidoSurface:Connection plate: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc plated
Connection Plate I40 M Length/Cross, Rectangular 2 Hole, 1 Slot (Set)
Color:Connection plate: Alu color Cover Caps: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles quickly at right angle or parallel, direct inserting into the profile slot thanks to lengthwise or crosswise positioning of the pre-assembled magnet rhombus screws and counter sunk nuts with the 90° turnable inserts; the open screwing holes of the connection plate can be closed with the cover capsMaterial:Connection plate: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Magnet rhombus screws: Steel Countersunk nuts: SteelSet:1 connection plate with pre-assembled magnet rhombus screws and counter sunk nuts in 90° turnable inserts 2 cover capsEspeciales:Otras superficies, otros colores bajo pedidoSurface:Connection plate: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc plated

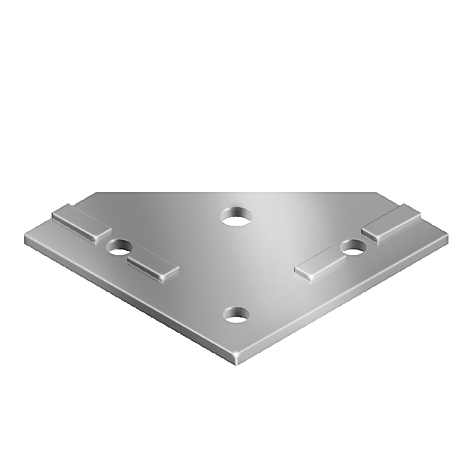

Connection Plate ST 100
Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado

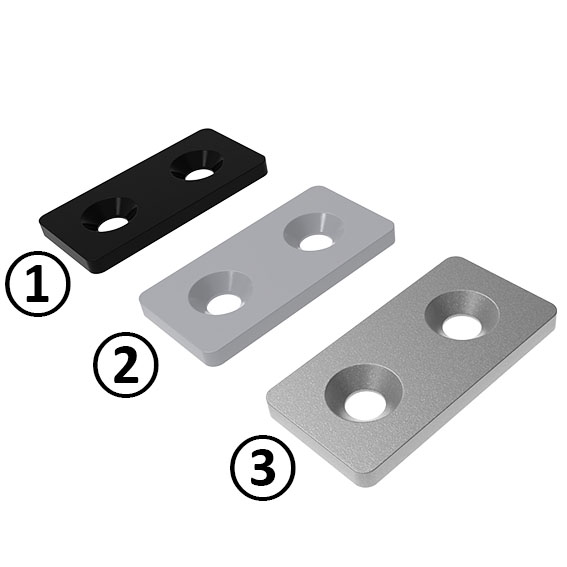

Connection Plate ST Rectangular 2 Hole, 1 Slot Version
Color:Negro, color alu, -Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesPFA_Fastening:Tornillos avellanadosMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto / zincado azul

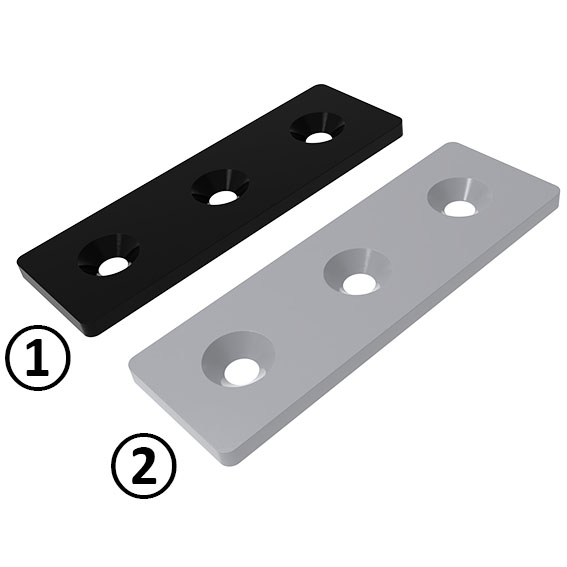

Connection Plate ST Rectangular 3 Hole, 1 Slot Version
Color:Negro, color aluPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto
Connection Plate ST Rectangular 4 Hole, 1 Slot Version
Color:Negro, color aluPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto

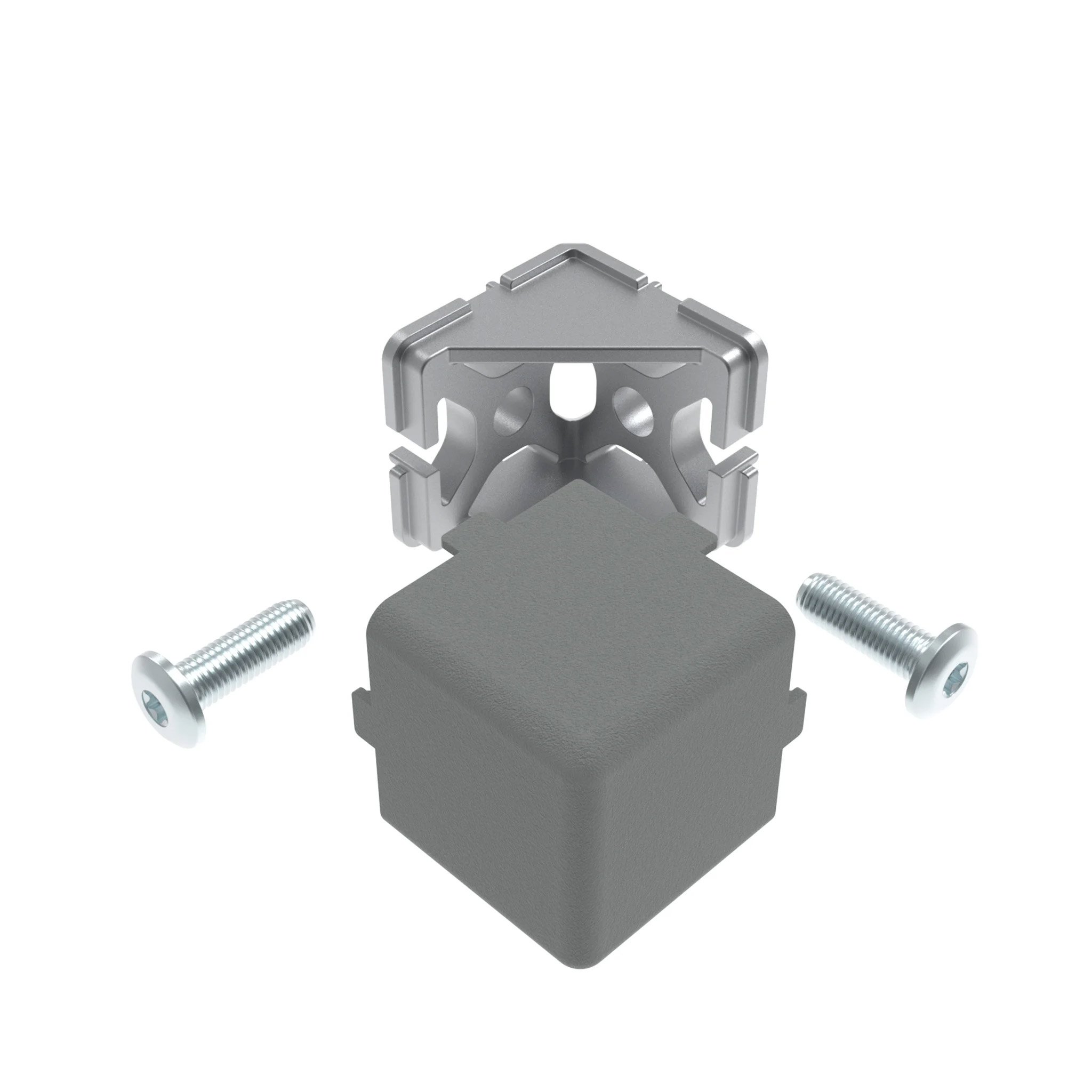

Corner Connector 40, 2D with Cable Passage (Set)
Color:Cover cap: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 40, 2D with cable passage 1 cover cap 2 self forming screws - S7 x 22Especiales:Otros materiales, otras superficies, otros colores bajo pedidoSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mm

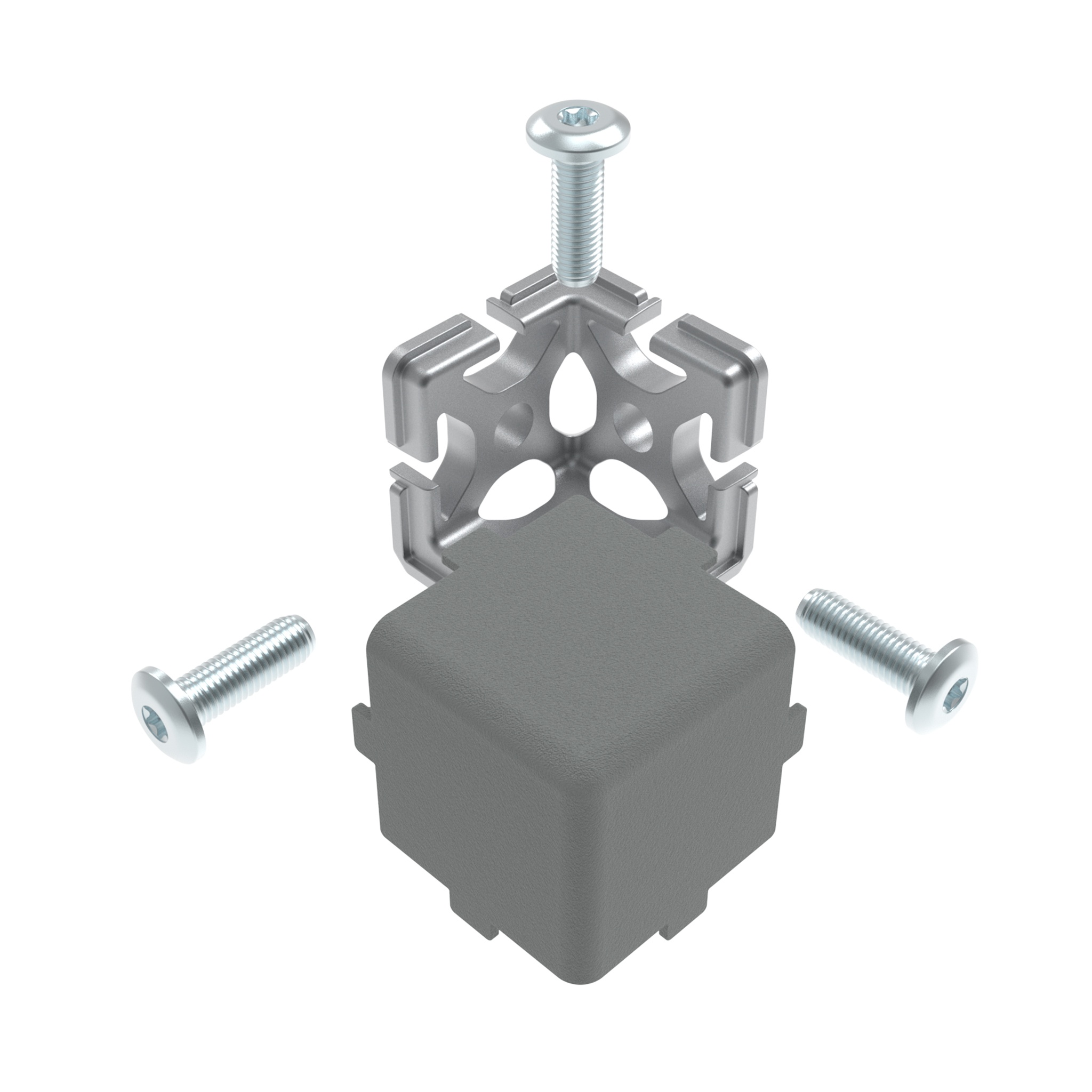

Corner Connector 40, 3D with Cable Passage (Set)
Color:Cover cap: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To connect three aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 40, 3D with cable passage 1 cover cap 3 self forming screws - S7 x 22Especiales:Otros materiales, otras superficies, otros colores bajo pedidoSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mm

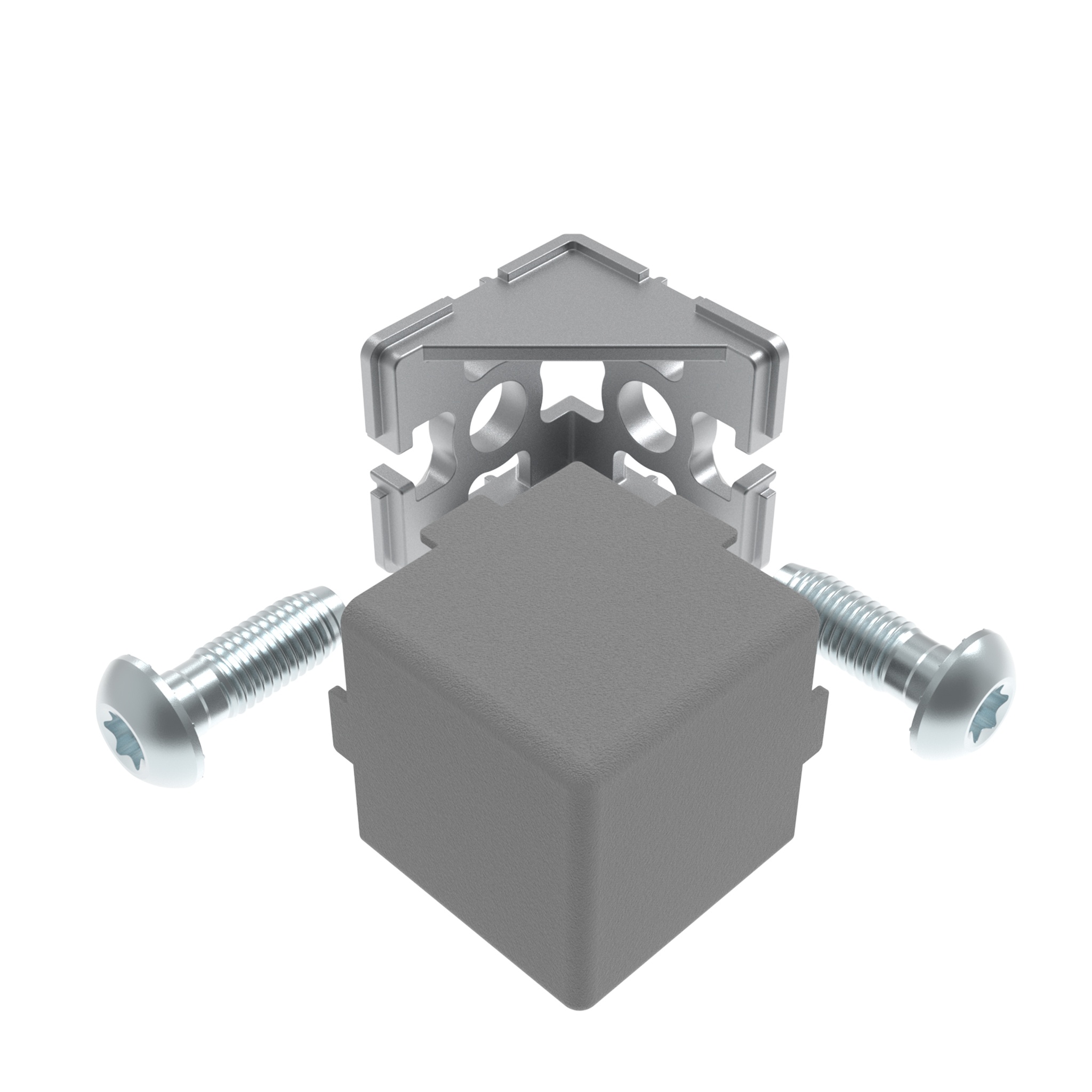

Corner Connector 45, 2D with Cable Passage (Set)
Color:Cover cap: gray ≈ RAL 7004Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 45, 2D with cable passage 1 cover cap 2 self forming screws - S12 x 30Especiales:Otros materiales, otras superficies, otros colores bajo pedidoSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mm
Corner Connector 45, 3D with Cable Passage (Set)
Color:Cover cap: gray ≈ RAL 7004Países de Entrega:En todo el mundoDescription:To connect three aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 45, 3D with cable passage 1 cover cap 3 self forming screws - S12 x 30Especiales:Otros materiales, otras superficies, otros colores bajo pedidoSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mm

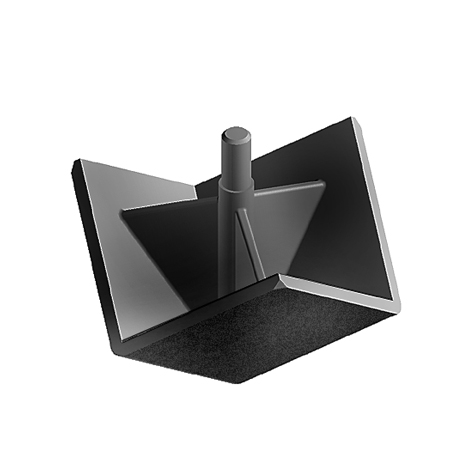

Cover Cap A 3-way Connection Angle B 30
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido

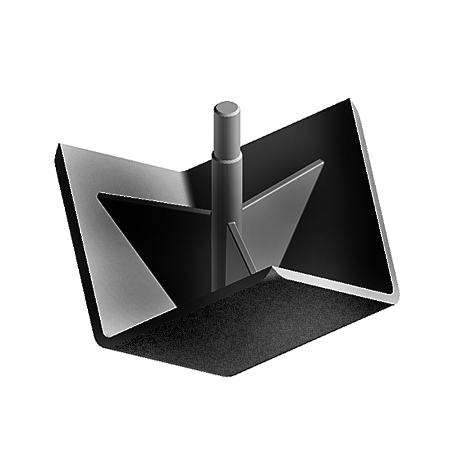

Cover Cap A 3-way Connection Angle B 40
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido
Cover Cap A 3-way Connection Angle B 45
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido

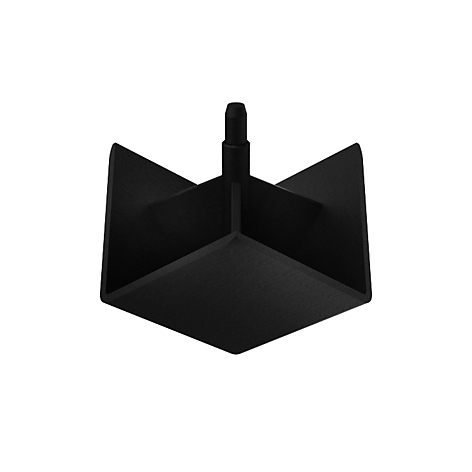

Cover Cap A 3-way Connection Angle I 20
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido
Cover Cap A 3-way Connection Angle I 30
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido
Cover Cap A 3-way Connection Angle I 40
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido

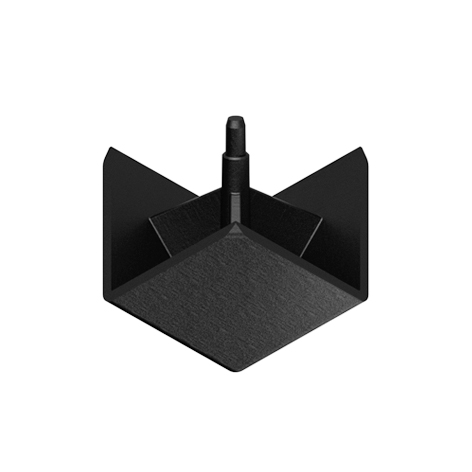

Cover Cap A for 3-way Connection Angle B 20
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido

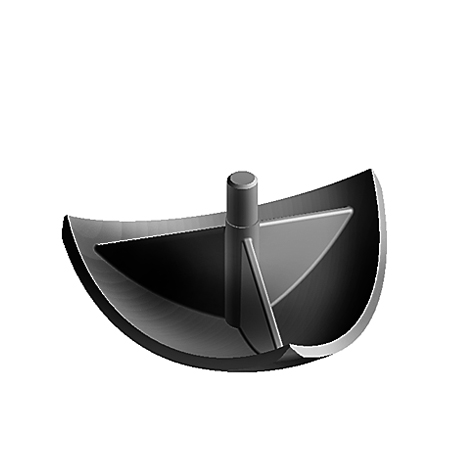

Cover Cap B 3-way Connection Angle 38 - 1.5"
Color:NegroPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido

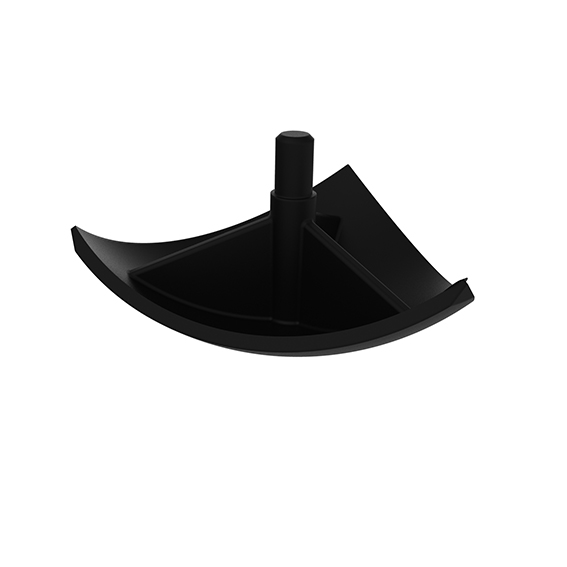

Cover Cap B 3-way Connection Angle B 30
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido

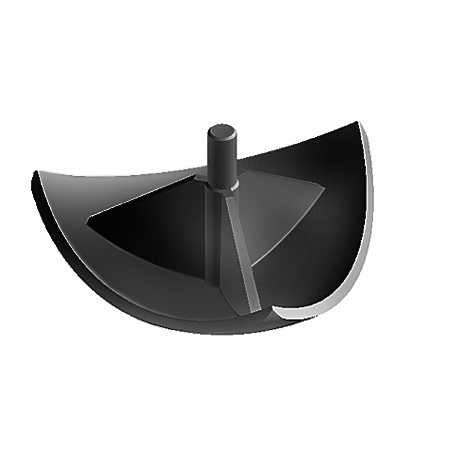

Cover Cap B 3-way Connection Angle B 40
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido
Cover Cap B 3-way Connection Angle B 45
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido

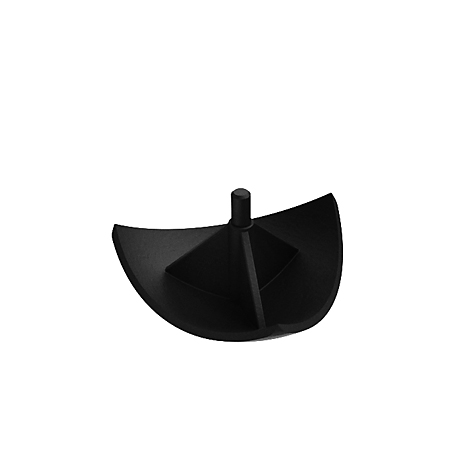

Cover Cap B 3-way Connection Angle I 20
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido
Cover Cap B 3-way Connection Angle I 30
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido
Cover Cap B 3-way Connection Angle I 40
Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the 3-way connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido
