Sistemas de conexión
Angle Element T1 80 x 40, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:AluminioSuperficie:AnodizadoTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)
Angle Element T2 40, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount two profiles as bracing at a 45° angle without miter cutMaterial:AluminioSuperficie:AnodizadoTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)
Angle Element T2 80 x 40, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount two profiles as bracing at a 45° angle without miter cutMaterial:AluminioSuperficie:AnodizadoTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)

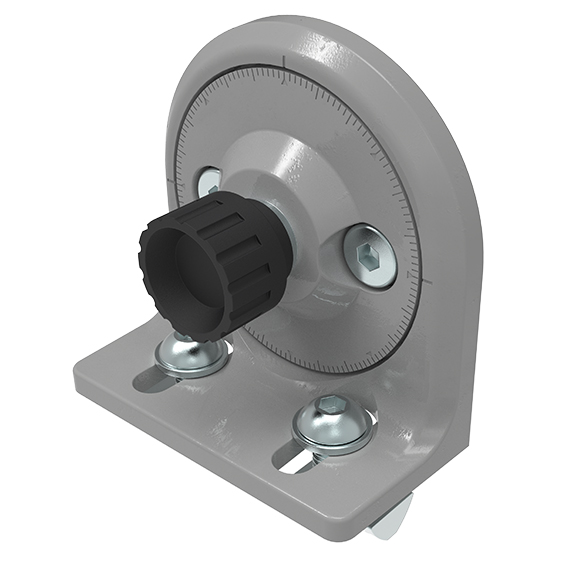

Angle Locking Bracket 40 x 80 (Set)
Color:Body: Alu color Knurled screw: BlackPaíses de Entrega:En todo el mundoDescription:To connect aluminum profiles at an adjustable angle, can be fixed in 2.5° steps by means of a knurled screwMaterial:Body: Aluminum die-cast Knurled screw: Plastic PA, glass fiber reinforced Assembly material: SteelSet:1 angle locking bracket incl. knurled screw, 2 screws DIN 7984 - M8 x 18, 2 screws DIN EN ISO 7380 (34805) - M8 x 18, 2 shims DIN EN ISO 7089 (DIN 125) - 8.4, 4 T-slot nuts - slot 8 - M8Surface:Body: Powder coated Assembly material: Zinc plated

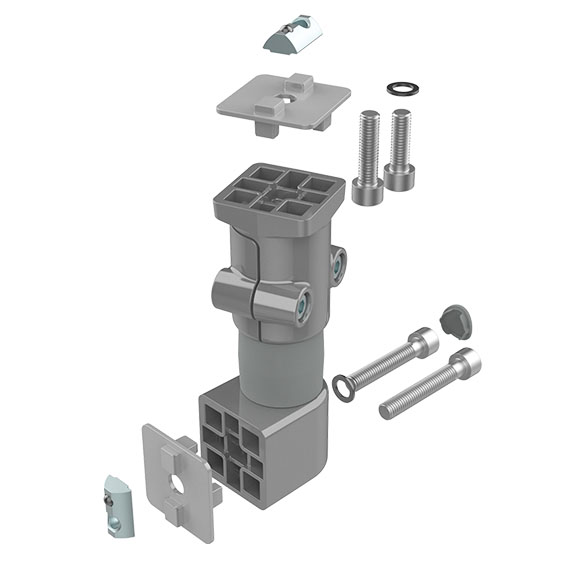

Anschluss-Friktionsgelenk I40L für Systemarm (Set)
Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorPaíses de Entrega:En todo el mundoDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 end friction joint 1 cover cap, 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated

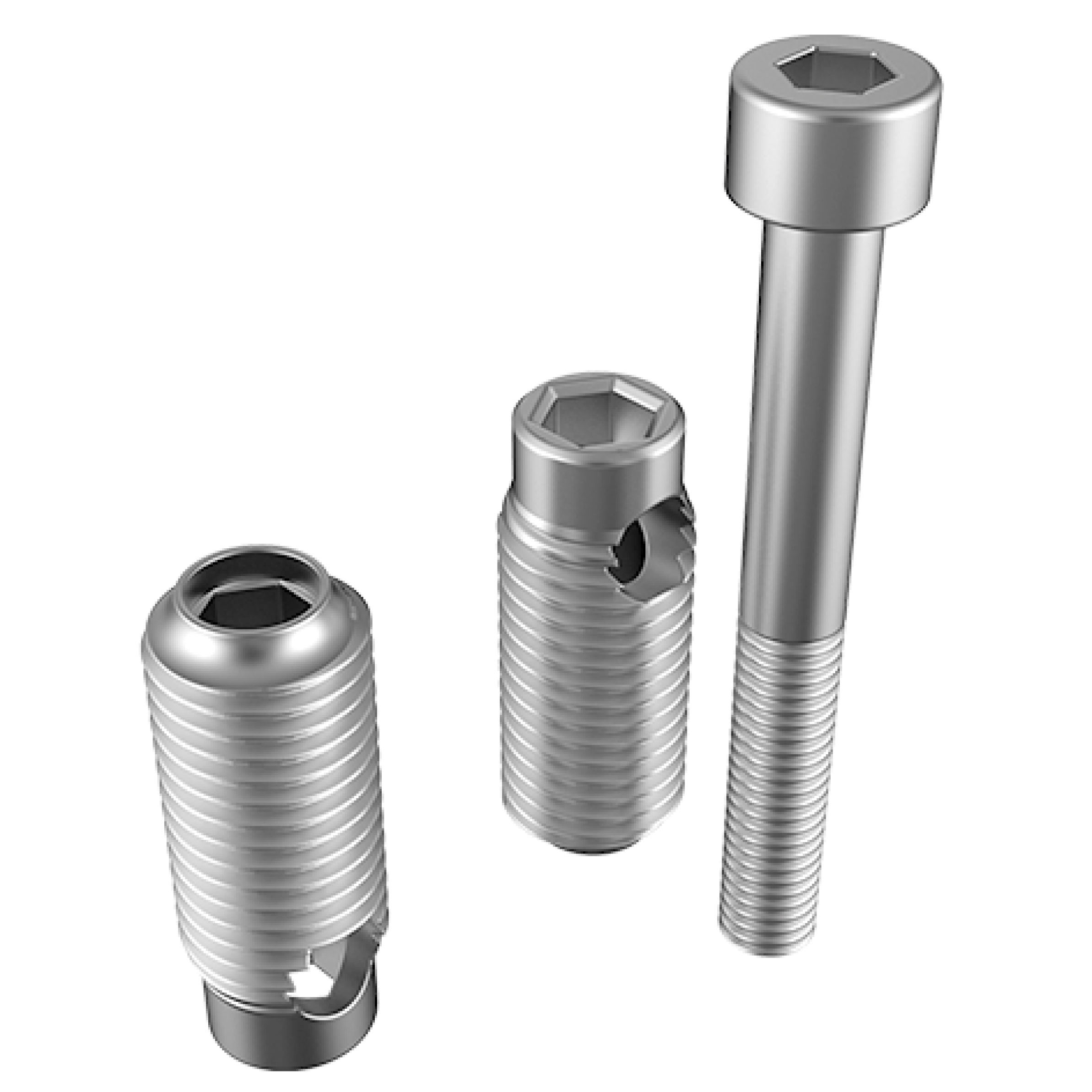

Automatic Butt Connector Stainless Steel
Países de Entrega:En todo el mundoDescription:To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting threadMaterial:Acero inoxidableSuperficie:LisoTip:*Compatible Cover Cap see 099GA081K
Automatic Butt Connector Steel
Países de Entrega:En todo el mundoDescription:To face-to face connect two aluminum profiles fast, assembly without machining; self-cutting threadMaterial:AceroSuperficie:GalvanizadoTip:*Compatible Cover Cap see 099GA081K

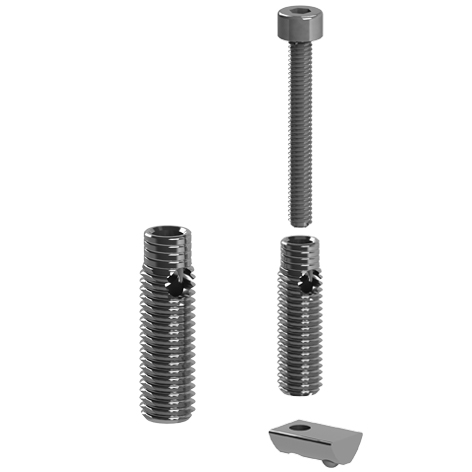

Automatic Connector Stainless Steel
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:Acero inoxidableSuperficie:LisoTip:*Compatible Cover Cap see 099GA081K
Automatic Connector Steel
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:AceroSuperficie:GalvanizadoTip:*Compatible Cover Cap see 099GA081KTip 2:** Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nut
Automatic Double Connector I, Slot 8 (Set)
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles fast and solid, assembly without machining; self-cutting threadMaterial:AceroSuperficie:GalvanizadoTip:Compatible Cover Cap see 099GA081K

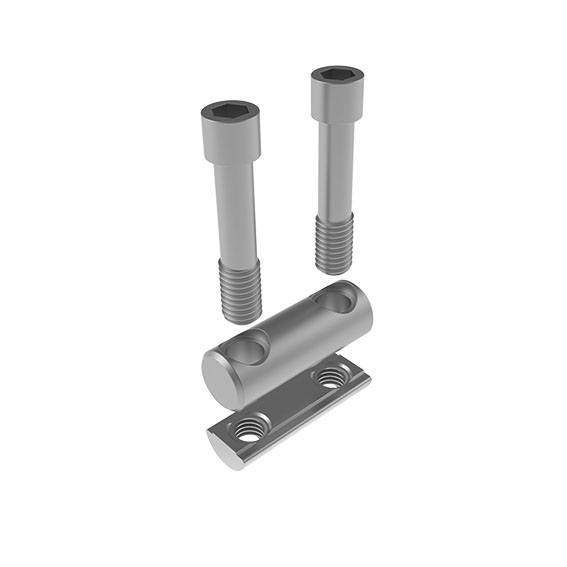

Bolt Connector I, Slot 8
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles; a hole with Ø 14 mmmust be drilled lateral through one of the profilesMaterial:AceroSuperficie:Galvanizado

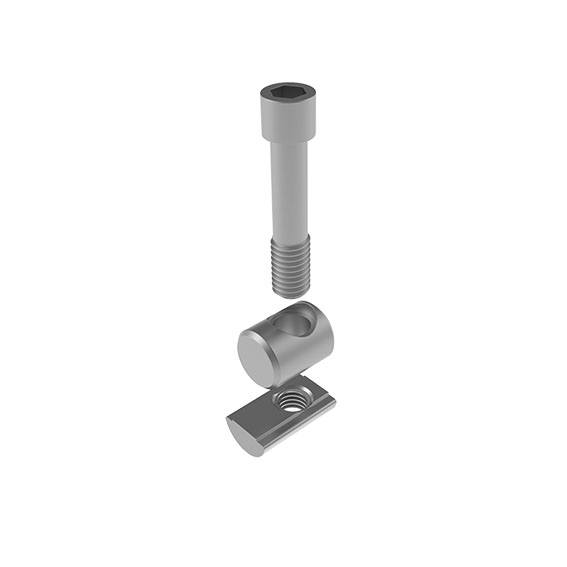

Bolt Connector I, Slot 8, Single Side
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles; a hole with Ø 14 mmmust be drilled lateral through one of the profilesMaterial:AceroSuperficie:Galvanizado

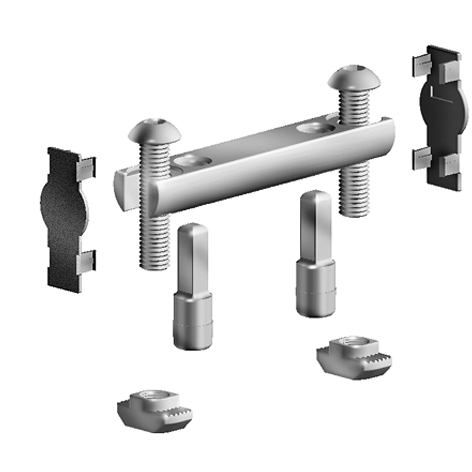

Bolt Connector, Slot 10
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles; a 17 mm through-hole must be drilled through the side of one profileMaterial:Base element: Steel Screws: Steel Fixing bolts: Plastic PA, glass fiber reinforced Screw cover: Plastic PA, glass fiber reinforcedSuperficie:Galvanizado

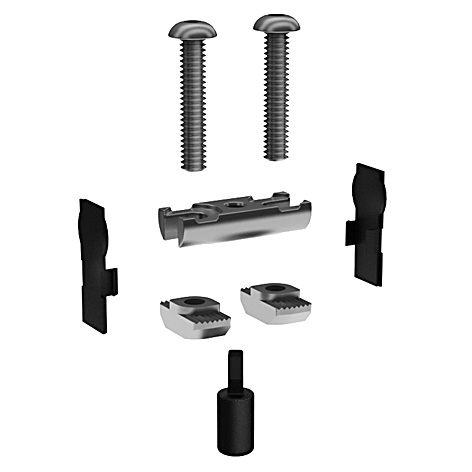

Bolt Connector, Slot 8 / D=11
Color:Fixing bolts: Black Screw cover: BlackPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles; a 11 mm through-hole must be drilled through the side of one profileMaterial:Bolts and screws: Steel Fixing bolts: Plastic PA, glass fiber reinforced Screw cover: Plastic PA, glass fiber reinforcedSurface:Bolts and screws: Zinc plated

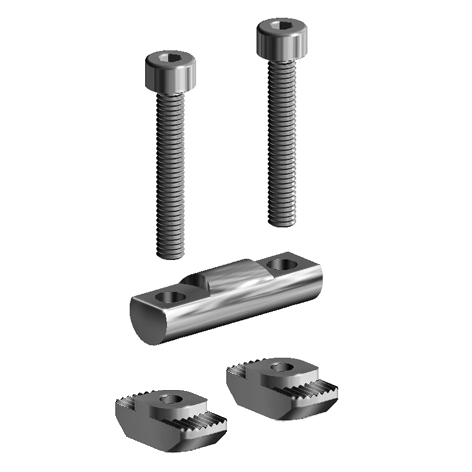

Bolt Connector, Slot 8 / D=8.2
Color:Fixing bolts: Black Screw cover: BlackPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles; a 8.2 mm through-hole must be drilled through the side of one profileMaterial:Bolts and screws: Steel Fixing bolts: Plastic PA, glass fiber reinforced Screw cover: Plastic PA, glass fiber reinforcedSurface:Bolts and screws: Zinc plated

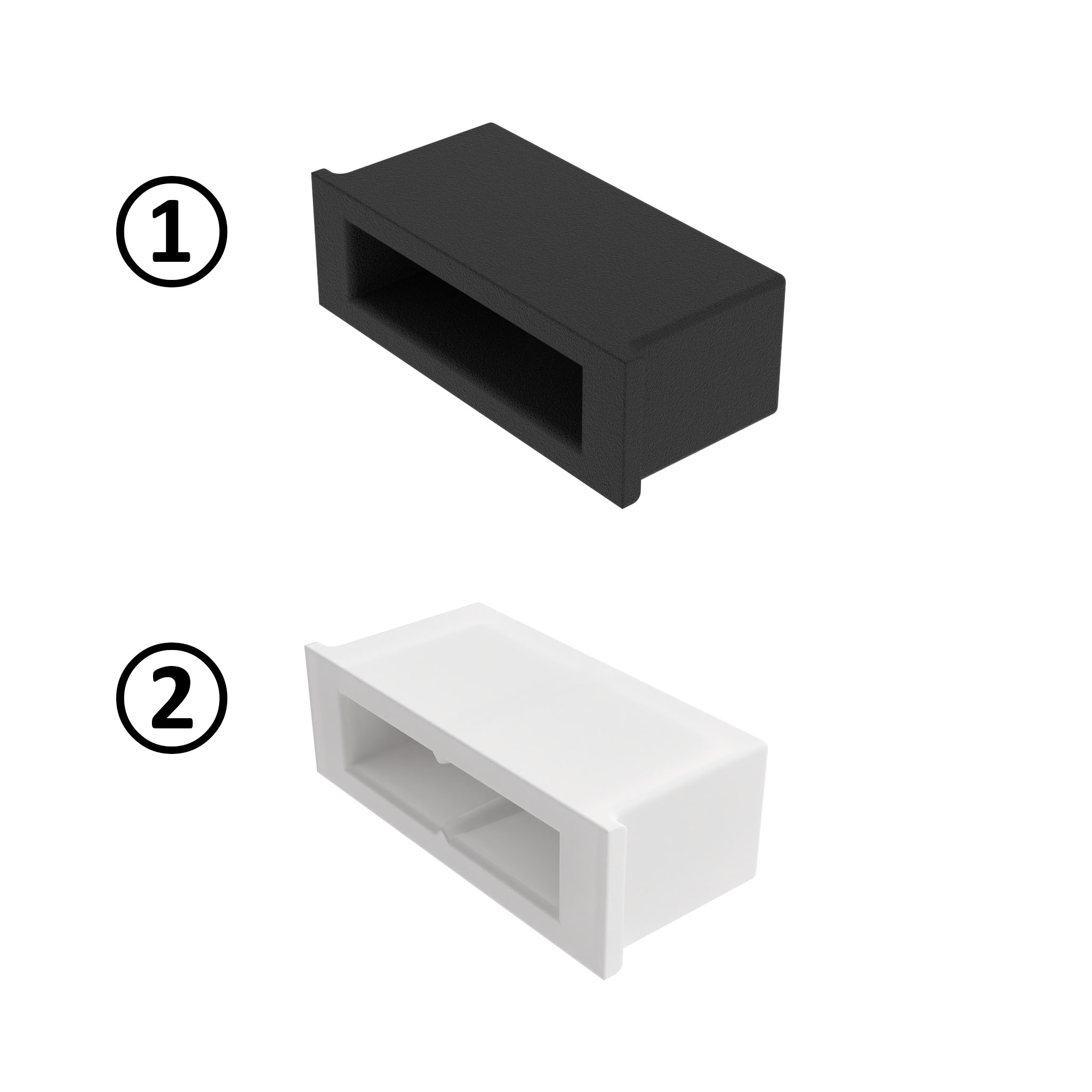

Centering Piece Widening Slot 8 to Slot 10
Color:Negro, naturalPaíses de Entrega:En todo el mundoMaterial:Plástico PA, reforzado con fibra de vidrioTip:To 093W03 compatible Floor Brackets see 093W1171L To 093W02 compatible Alu Connection Angles see 093W303, 093W302, 093W421, 093W603, 093W806, 093W901 To 093W03 compatible Alu Connection Angles see 093W404, 094W451 To 093W03 compatible Zinc Connection Angles see 093W206N08R To 093W02 compatible Turning Angles see 093WG302N08

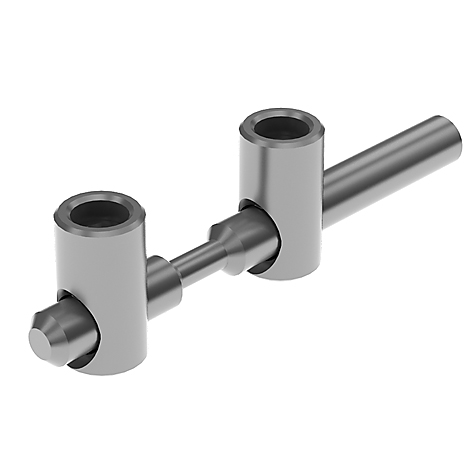

Central Butt Connector B 180° +/-45°
Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profilesof the same type; a blind or through hole must be drilledbefore the assembly; bendable from 90° to 180°Material:Tie-rod: Stainless steel Bushes: SteelSurface:Tie-rod: Plain Bushes: Zinc platedTip:Cover Cap* (1) = profile 40; (2) profile 45; (3) profile 50

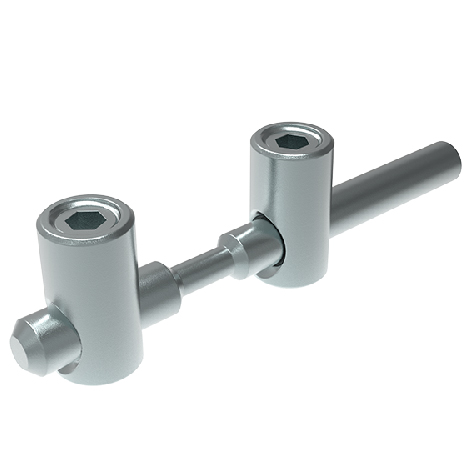

Central Butt Connector I 180° +/-45°
Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles of the same type; a blind or through hole must be drilled before the assembly; bendable from 90° to 180°Material:Tie-rod: Stainless steel Bushes: SteelSurface:Tie-rod: Plain Bushes: Zinc plated

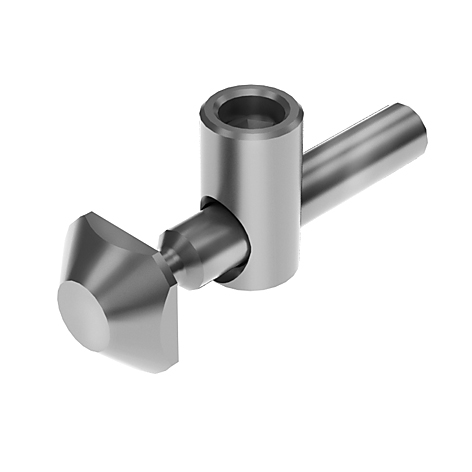

Central Connector B 90° +/-45°
Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles of the same type; a blind or through hole must be drilled before the assembly; bendable from 45° to 135°Material:Tie-rod: Stainless steel Bushes: SteelSurface:Tie-rod: Plain Bushes: Zinc platedTip:Cover Cap* (1) = profile 40; (2) profile 45; (3) profile 50

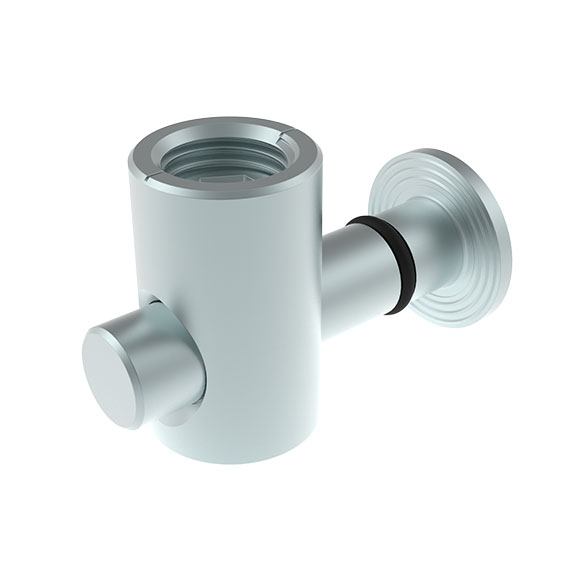

Central Connector B Universal, Slot 10
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles; a blind or through hole must be drilled through one of the profiles to provide access to the tightening screwMaterial:AceroSuperficie:Galvanizado

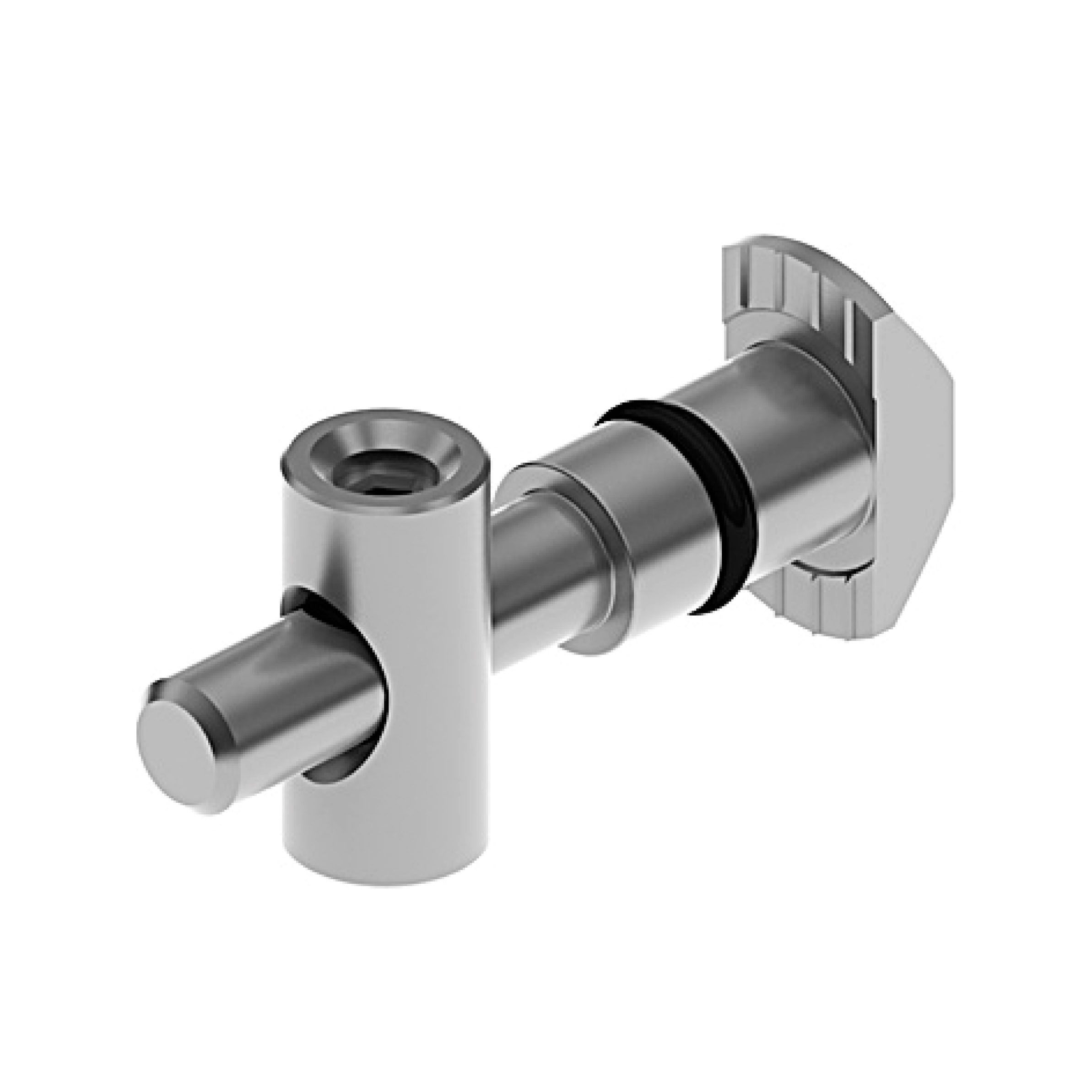

Central Connector B, Bush 9.8 / Slot 10
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles; a through hole must be drilled into one of the profiles to provide access to the tightening screw, the slot walls are nor taffected by this; the bush flush fits with the slot base, thus leaving both slots free to use; the slot can be completely covered with a cover profileMaterial:AceroSuperficie:Galvanizado

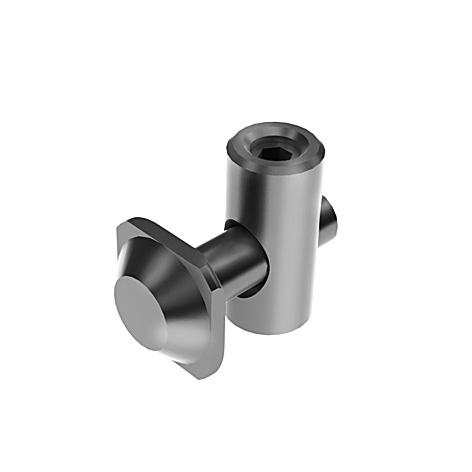

Central Connector B, Slot 6
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles; a hole must be drilled through one of the profiles to provide access to the tightening screwMaterial:Acero inoxidableSuperficie:Liso

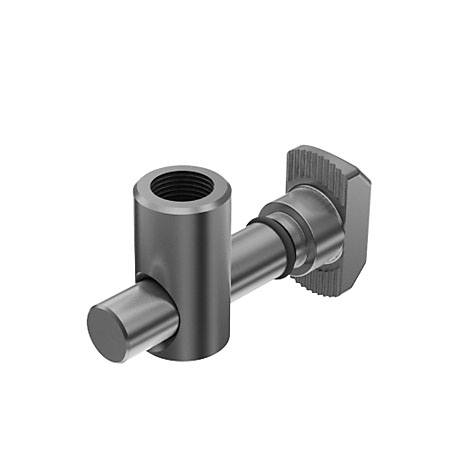

Central Connector B, Slot 8 and Slot 10
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles; a blind or through hole must be drilled through one of the profiles to provide access to the tightening screwMaterial:Galvanizado / lisoSuperficie:GalvanizadoTip:**Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nut

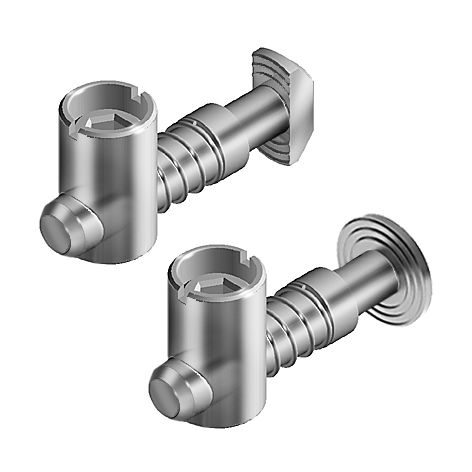

Central Connector Bush 15, Slot 8
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles; a hole must be drilled through one of the profiles to provide access to the tightening screwMaterial:AceroSuperficie:Galvanizado
