Sistemas de conexión

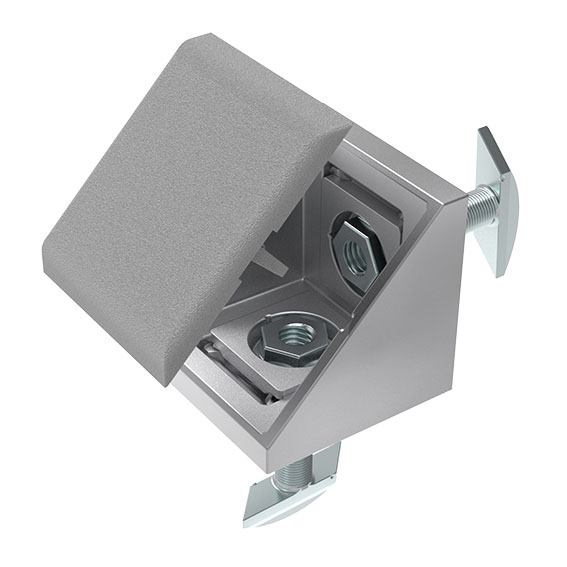

Alu Connection Angle B45 M Length/Cross (Set)
Color:Angle: Alu color Cover cap: Gray≈ RAL 7004 Ring: BlackPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc plated
Alu Connection Angle I40 M (Set)
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA406
Alu Connection Angle I40 M Length/Cross (Set)
Color:Angle: Alu color Cover cap: Gray≈ RAL 7042 Ring: BlackPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc plated
Alu Connection Angle I40 x 80 M (Set)
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedTip:Compatible Cover Cap see 093WA809

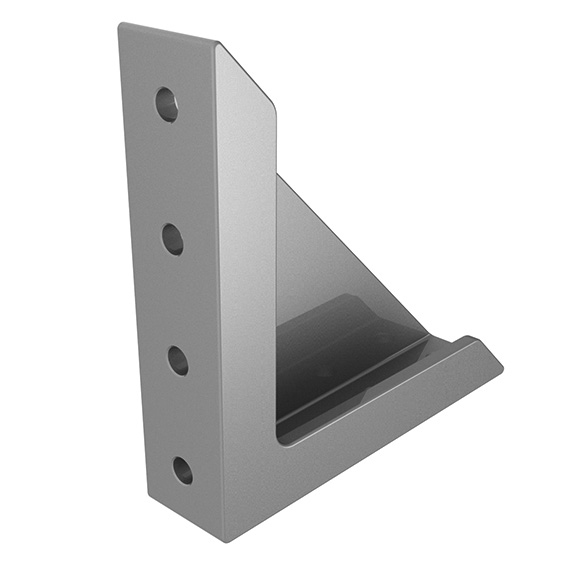

Alu Support Bracket 40 x 160
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles or to securely fix aluminum profiles to the floorMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubiertoTip:Compatible Fixation T-Slot Nut (Set) for Support Bracket 160 see 096000S83

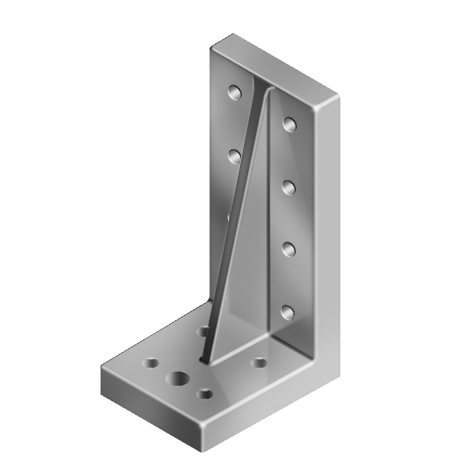

Alu Support Bracket 80 x 100 x 180
Color:- / color aluPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles or to securely fix aluminum profiles to the floorMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvo

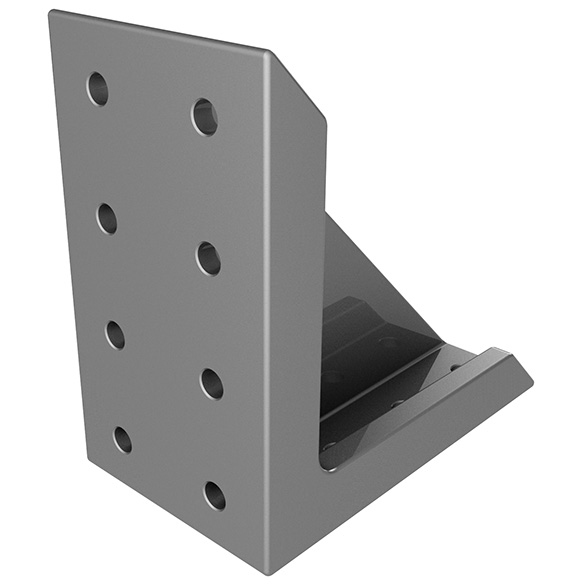

Alu Support Bracket 80 x 160
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles or to securely fix aluminum profiles to the floorMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubiertoTip:Compatible Fixation T-Slot Nut (Set) for Support Bracket 160 see 096000S83

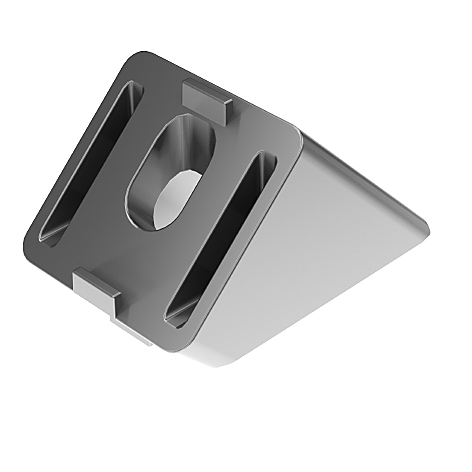

Angle Connector 20, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvo
Angle Connector 25 - 1", 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvo

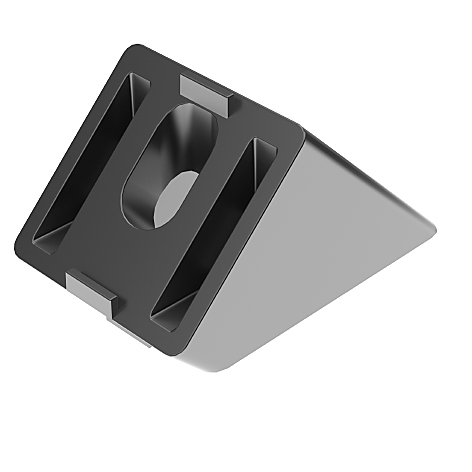

Angle Connector 30, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvo
Angle Connector 38 - 1.5", 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvo

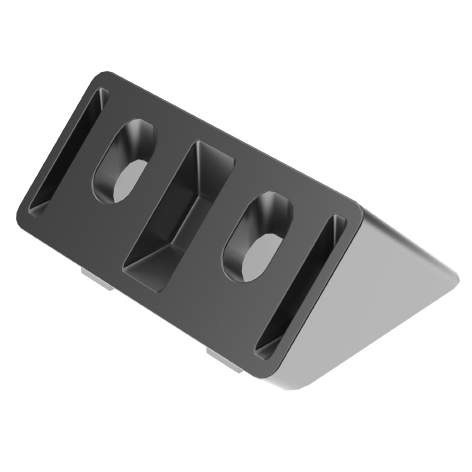

Angle Connector 40 x 20, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvo

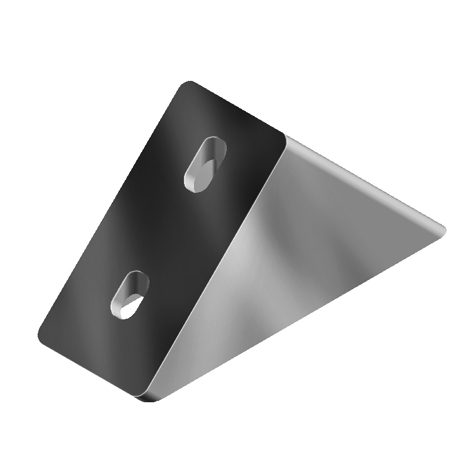

Angle Connector 40 x 80, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Zinc fundido a presiónSuperficie:Liso / Recubierto de polvo
Angle Connector 40, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Zinc fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvo

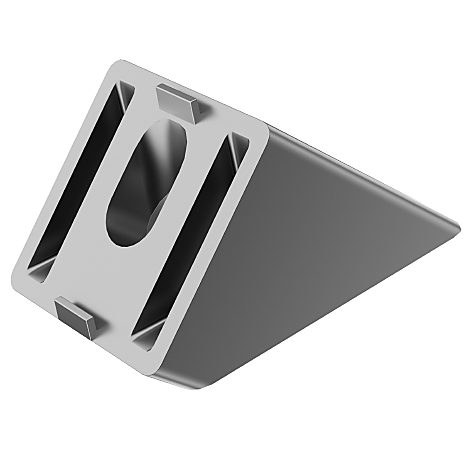

Angle Connector 45, 45°
Países de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvo

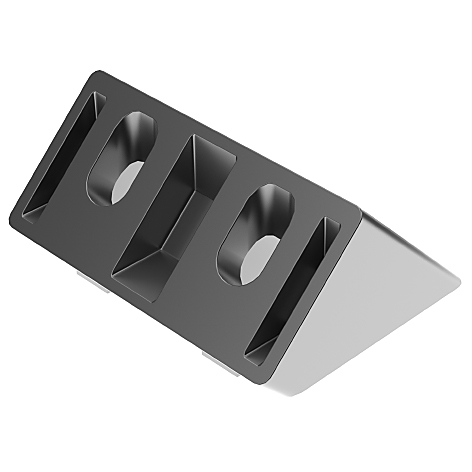

Angle Connector 60 x 30, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvo
Angle Connector 76 x 38 - 3" x 1.5", 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvo

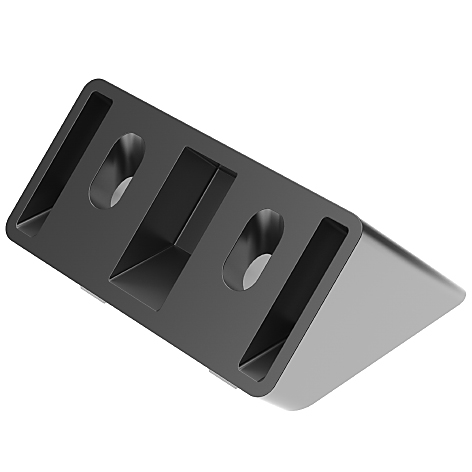

Angle Connector 80 x 40, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvo

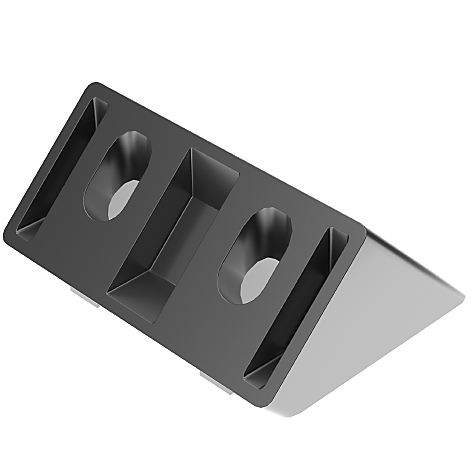

Angle Connector 90 x 45, 45°
Países de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvo

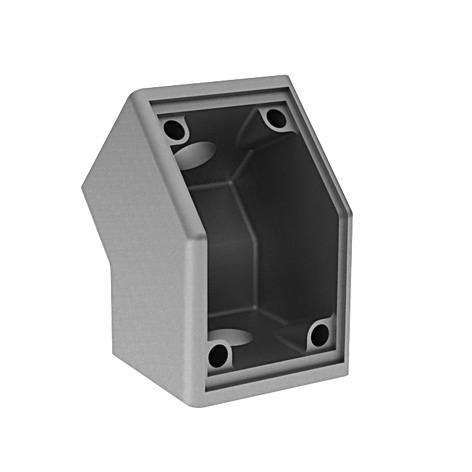

Angle Connector B 30, 45°
Assembly Set:2 self-forming screws S8 x 25 - hexalobular socket T40 , 1 socket head screw - DIN EN ISO 4762 (DIN 912) - M6 x 12, 1 washer DIN EN ISO 7089 (DIN 125) - Form A, 1 hammer nut M6 - slot 8, 1 socket head screw - DIN EN ISO 4762 (DIN 912) - M8 x 16, 1 hammer nut M8 - slot 10Color:Centering pieces: Black Cover caps: Black / alu colorPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Angle connector: Aluminum die-cast Centering pieces: Plastic PA, glass fiber reinforced Cover caps: Plastic PA, glass fiber reinforced Assembly set: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle connector: Plain / Powder coated Assembly set: Zinc plated

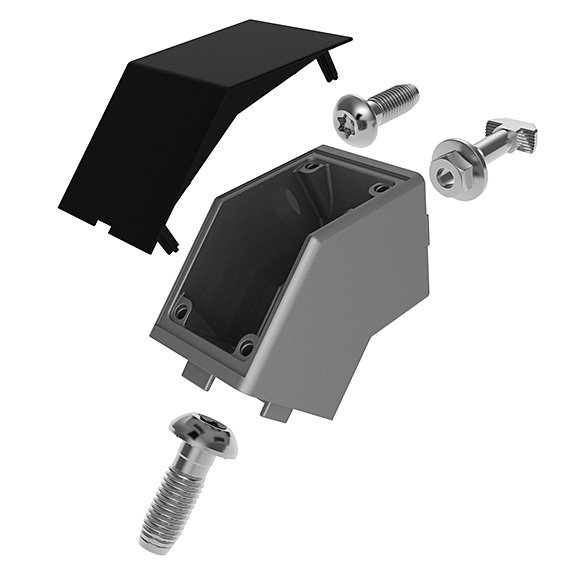

Angle Connector B 40, 45° (Set)
Color:Cover caps: Black / grayPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Angle connector: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Assembly set: SteelSet:1 Angle connector, 1 Cover cap, 2 Self-forming screws S12 x 30 - hexalobular socket T50, 1 Hammer head screw M8 x 20 - slot 10, 1 Flange nut M8Surface:Angle connector: Plain / Powder coated Assembly set: Zinc plated
Angle Connector B 45, 45°
Assembly Set:2 self-forming screws S12 x 30 - hexalobular socket T50, 1 hammer head screw M8 x 20 - slot 10, 1 flange nut M8Color:Cover caps: Black / grayPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Angle connector: Aluminum die-cast Cover caps: Plastic PA, glass fiber reinforced Assembly set: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle connector: Plain / Powder coated Assembly set: Zinc plated
Angle Connector I 40, 45° (Set)
Color:Angle connector: Alu color Cover cap: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:Angle connector: Aluminum die-cast Centering pieces: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforcedSet:1x angle connector, 4x centering pieces, 1x cover capSurface:Angle connector: Powder coated
Angle Element T1 40, 45°
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To mount a profile as bracing at a 45° angle without miter cutMaterial:AluminioSuperficie:AnodizadoTip:Compatible Cover Cap 40 x 40 45° see 091048 (black) / 091048S01 (gray)
