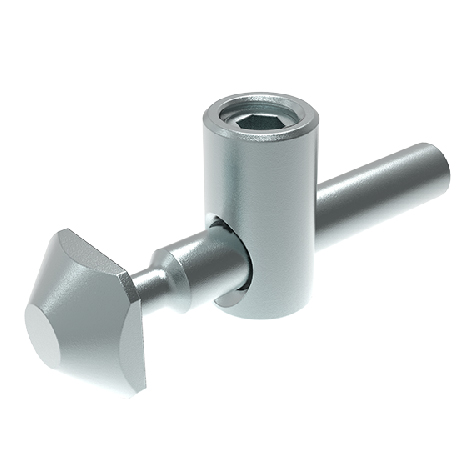

Central Connector I 90° +/-45°

Central Connector I 90° +/-45°

A (mm): 13.0 B (mm): 6.0 D (mm): 6.5 L (mm): 51.0 Profile: I Ranura N (mm): 8 SW (mm): 4 b (mm): 18.5 d (mm): 11.0 t (mm): 20.0

Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles of the same type; a blind or through hole must be drilled before the assembly; bendable from 45° to 135°Material:Tie-rod: Stainless steel Bushes: SteelSurface:Tie-rod: Plain Bushes: Zinc plated

0,00 €

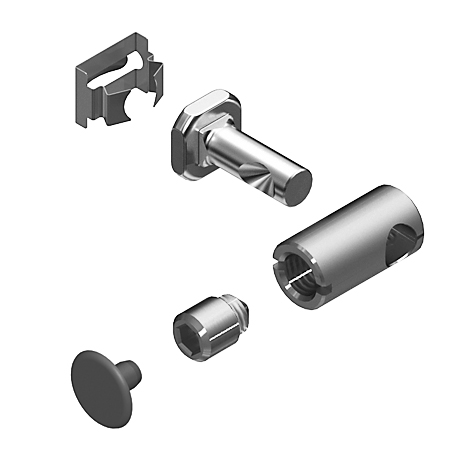

Central Connector I, Slot 8

Central Connector I, Slot 8

ESD: - Profile: I Ranura N (mm): 8 Version: without notches

Color:Cover cap: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles; before the application a 28 mm deep blind hole with Ø 14.2 mm lateral and a 20 mm deep blind hole with Ø 8.2 mm frontal must be drilled; with cover capMaterial:Connector: Steel Clamp: Stainless steel Cover caps: Plastic PPSurface:Connector: Zinc plated Clip: PlainTip:Compatible Radius Seal see 093RD84040R4; if used with the radius seal, the distance dimension of the bore hole should be reduced by the thickness of the radius seal

0,00 €

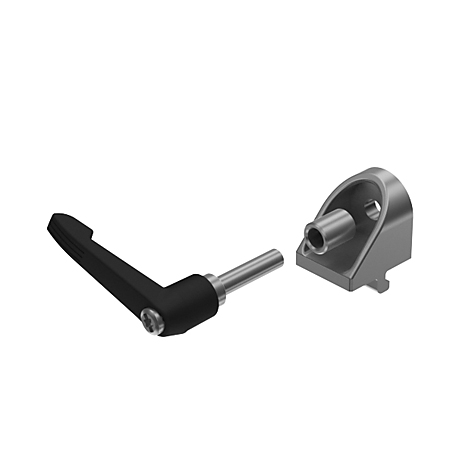

Clamping Angle I 30 with Locking Lever, Slot 6

Clamping Angle I 30 with Locking Lever, Slot 6

Color: Color alu Profile: I Ranura N (mm): 6 Superficie: Polvo cubierto

Color:Color aluPaíses de Entrega:En todo el mundoDescription:To connect aluminum profiles easily and with flexibilityPFA_Fastening:Uso del tornillo M6Material:Bracket: Zinc die-cast KIPP-locking lever: Plastic PA, glass fiber reinforced Mechanic: Blue-galvanised steel (RoHS conform)Especiales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvoTip:Other slots on request

0,00 €

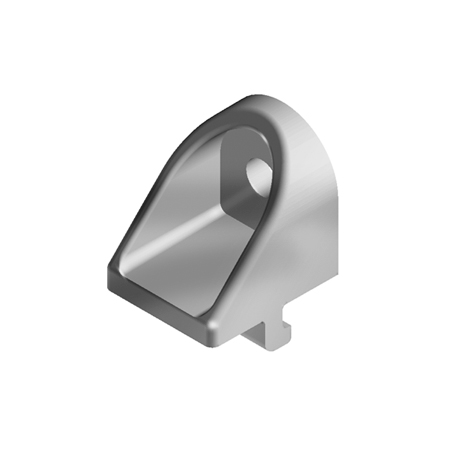

Clamping Angle I 30, Slot 6

Clamping Angle I 30, Slot 6

Color: Color alu Profile: I Ranura N (mm): 6 Superficie: Polvo cubierto

Color:Color aluPaíses de Entrega:En todo el mundoDescription:To connect aluminum profiles easily and with flexibilityPFA_Fastening:Uso del tornillo M6Material:Zinc fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvoTip:Other slots on request

0,00 €

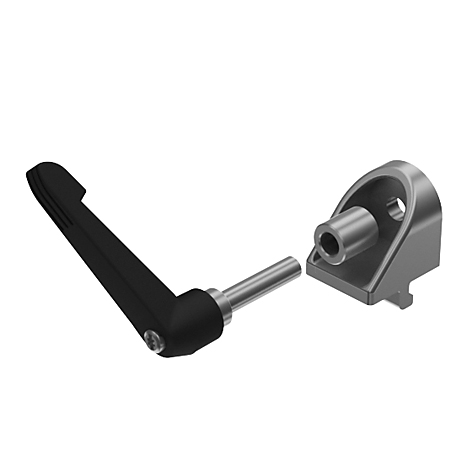

Clamping Angle I 40 with Locking Lever, Slot 8

Clamping Angle I 40 with Locking Lever, Slot 8

Color: Color alu Profile: I Ranura N (mm): 8 Superficie: Polvo cubierto

Color:Color aluPaíses de Entrega:En todo el mundoDescription:To connect aluminum profiles easily and with flexibilityPFA_Fastening:Usando tornillo M8Material:Bracket: Zinc die-cast KIPP-locking lever: Plastic PA, glass fiber reinforced Mechanic: Blue-galvanised steel (RoHS conform)Especiales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvoTip:Other slots on request

0,00 €

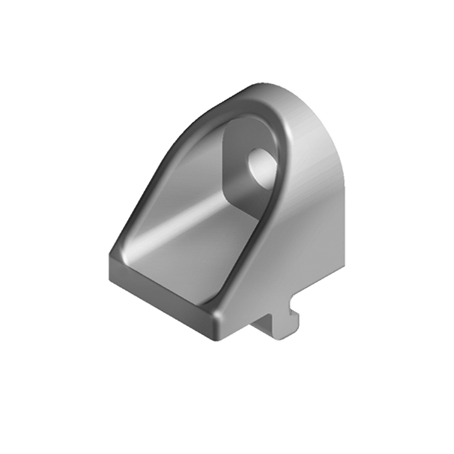

Clamping Angle I 40, Slot 8

Clamping Angle I 40, Slot 8

Color: - Profile: I Ranura N (mm): 8 Superficie: Liso

Color:Color aluPaíses de Entrega:En todo el mundoDescription:To connect aluminum profiles easily and with flexibilityPFA_Fastening:Usando tornillo M8Material:Zinc fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Liso / Recubierto de polvoTip:Other slots on request

0,00 €

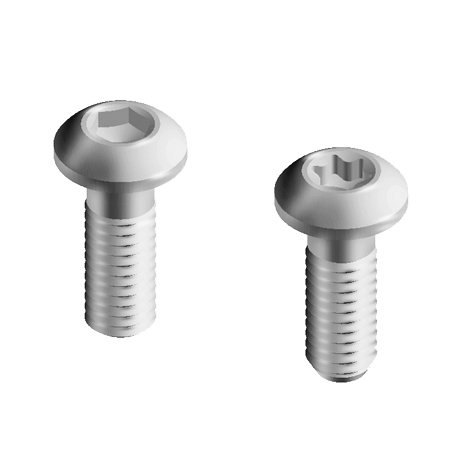

Connecting Screw B

Connecting Screw B

Assembly: Casquillo hexalobular T50 Profile: B Size M x L (mm): M12 x 30

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AceroSuperficie:Galvanizado

0,00 €
Connecting Strip 140 I, Slot 8 (Set)

Connecting Strip 140 I, Slot 8 (Set)

L (mm): 140.0 M: M8 Profile: I Ranura N (mm): 8

Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSet:1 connecting strip 140 - slot 8 4 screws DIN EN ISO 4027 (DIN 914) - M8 x 10Superficie:Galvanizado

0,00 €

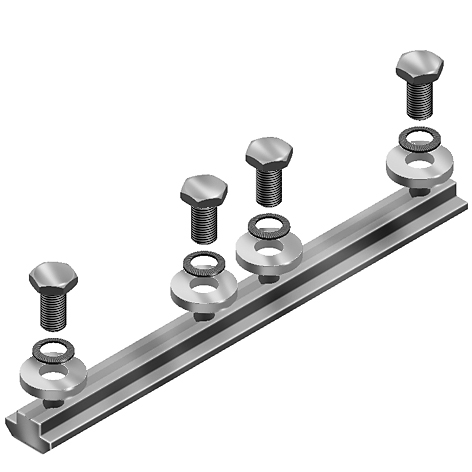

Connecting Strip 180 B, Slot 10 (Set)

Connecting Strip 180 B, Slot 10 (Set)

A1 (mm): 28.0 A2 (mm): 158.0 L (mm): 180.0 M: M8 Profile: B Ranura N (mm): 10

Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSet:1 connecting strip 180, slot 10, 4 screws DIN EN ISO 4017 (DIN 933) - M8 x 16, 4 washers 8-FSt, 4 washers DIN 7349 - 8.4Superficie:Galvanizado

0,00 €
Connecting Strip 180 B, Slot 8

Connecting Strip 180 B, Slot 8

A1 (mm): 80.0 A2 (mm): 160.0 Fig.: ① L (mm): 180.0 M: M6 Profile: B Ranura N (mm): 8 Version: -

Assembly Set:4 screws DIN EN ISO 4762 (DIN 912) - M6 x 12, 4 washers DIN 7349 - 6.4Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSuperficie:Galvanizado

0,00 €

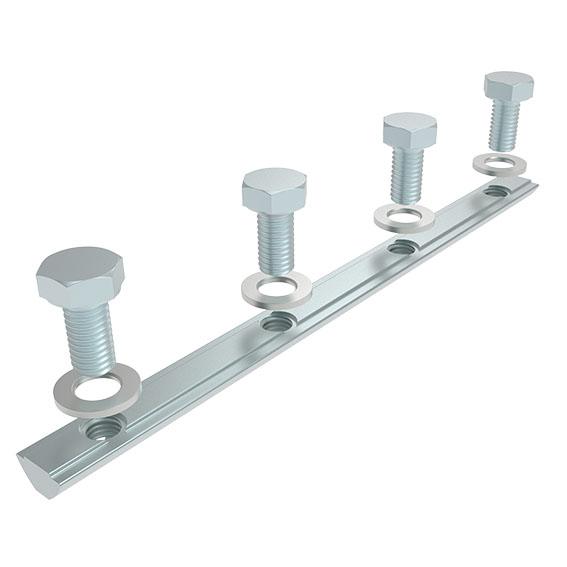

Connecting Strip 180 I, Slot 8

Connecting Strip 180 I, Slot 8

A1 (mm): 50.0 A2 (mm): 150.0 L (mm): 180.0 M: M8 Profile: I Ranura N (mm): 8 Version: -

Assembly Set:4 screws DIN EN ISO 4017 (DIN 933) - M8 x 16 4 washers DIN EN ISO 7089 (DIN 125)Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSuperficie:Galvanizado

0,00 €

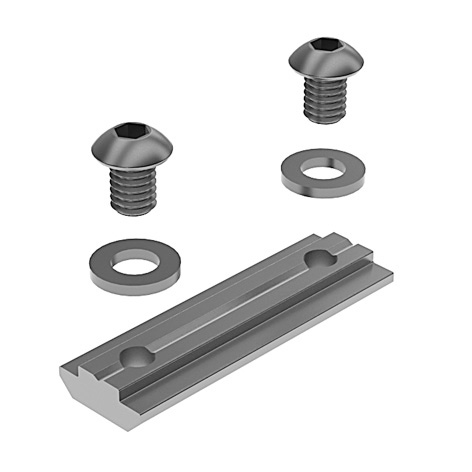

Connecting Strip 50 B, Slot 8

Connecting Strip 50 B, Slot 8

A (mm): 36.0 Juego: Conjunto 2 L (mm): 50.0 M: M6 Profile: B Ranura N (mm): 8

Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles without machiningMaterial:AceroSet 1:1 connecting strip 50, slot 8, 2 screws DIN EN ISO 7380 (34805) - M6 x 8, 2 washers DIN EN ISO 7089 (DIN 125)Set 2:2 connecting strip 50, slot 8, 2 hexagon socket set screws DIN EN ISO 4026 (DIN 913) - M6 x 10Superficie:Galvanizado

0,00 €

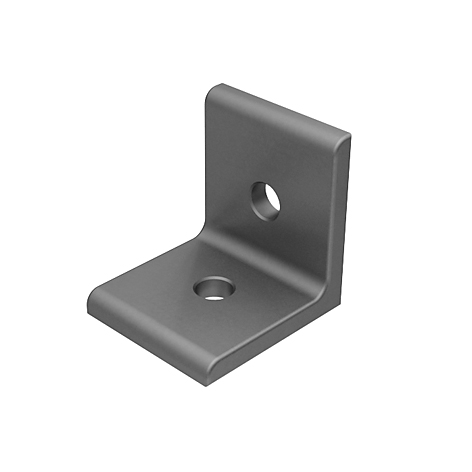

Connection Angle AL 2 Hole, 1 Slot Version

Connection Angle AL 2 Hole, 1 Slot Version

B (mm): 38.1 (1.5") C (mm): 19.0 (0.75") H (mm): 6.0 L (mm): 38.1 (1.5") Version: 38.1 - 1.5" ØD (mm): 9.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:Anodizado

0,00 €

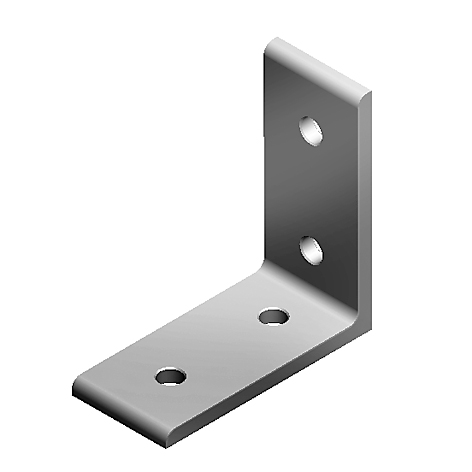

Connection Angle AL 4 Hole, 1 Slot Version

Connection Angle AL 4 Hole, 1 Slot Version

A (mm): 40.0 B (mm): 36.0 C (mm): 20.0 H (mm): 6.0 L (mm): 80.0 Version: 40 / 80 ØD (mm): 9.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:Anodizado

0,00 €

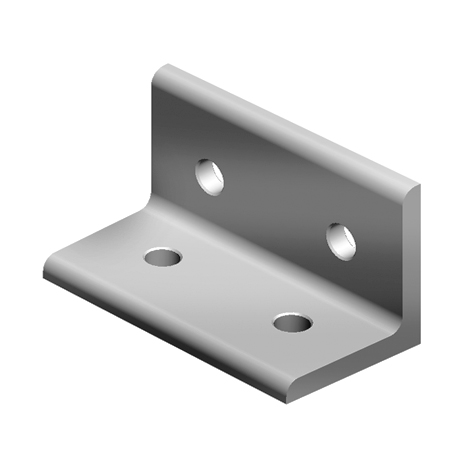

Connection Angle AL 4 Hole, 2 Slots Version

Connection Angle AL 4 Hole, 2 Slots Version

A (mm): 40.0 B (mm): 76.0 C (mm): 20.0 H (mm): 6.0 L (mm): 40.0 Version: 80 / 40 ØD (mm): 9.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:Anodizado

0,00 €

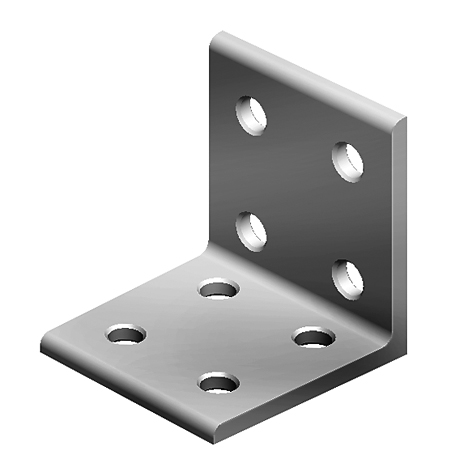

Connection Angle AL 8 Hole, 2 Slots Version

Connection Angle AL 8 Hole, 2 Slots Version

A (mm): 30.0 B (mm): 57.0 C (mm): 15.0 H (mm): 5.0 L (mm): 60.0 Version: 60 / 60 ØD (mm): 7.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:Anodizado

0,00 €

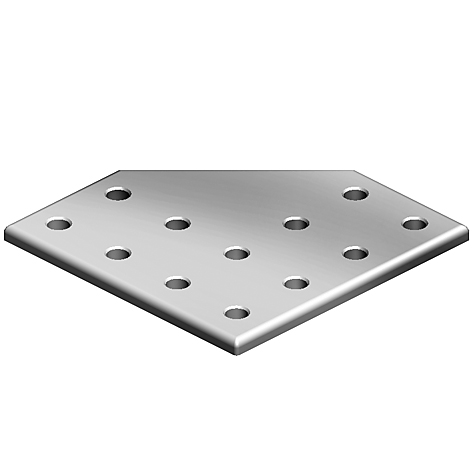

Connection Plate AL L 12 Hole, 2 Slots Version

Connection Plate AL L 12 Hole, 2 Slots Version

A (mm): 30.0 H (mm): 5.0 L (mm): 118.5 Version: 120 / 120 ØD (mm): 7.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

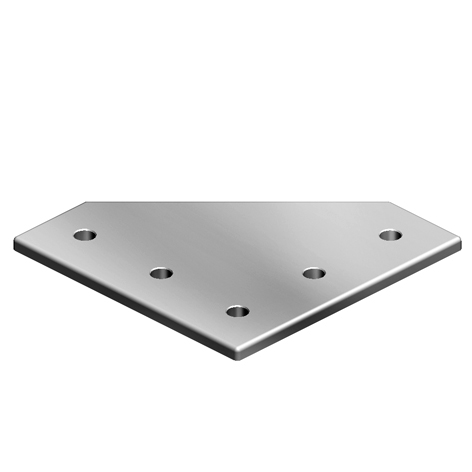

Connection Plate AL L 5 Hole, 1 Slot Version

Connection Plate AL L 5 Hole, 1 Slot Version

A (mm): 30.0 H (mm): 5.0 L (mm): 88.5 Version: 90 / 90 ØD (mm): 7.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

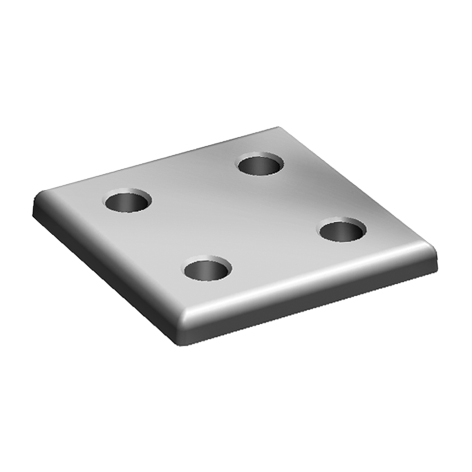

Connection Plate AL Quadrangular 4 Hole, 1 Slot Version

Connection Plate AL Quadrangular 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") H (mm): 6.0 L (mm): 72.0 (2.8") Version: 76.2 / 76.2 - 3" / 3" ØD (mm): 9.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

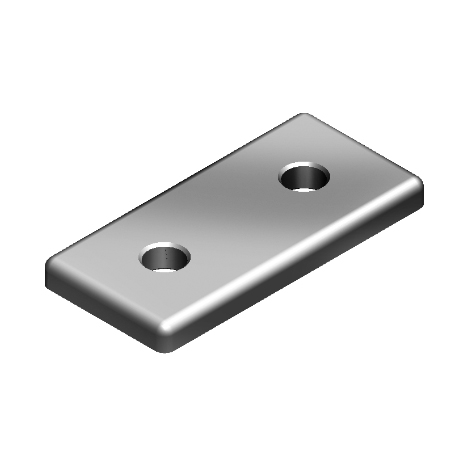

Connection Plate AL Rectangular 2 Hole, 1 Slot Version

Connection Plate AL Rectangular 2 Hole, 1 Slot Version

A (mm): 30.0 B (mm): 27.0 H (mm): 5.0 L (mm): 57.0 Version: 30 / 60 ØD (mm): 7.0

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

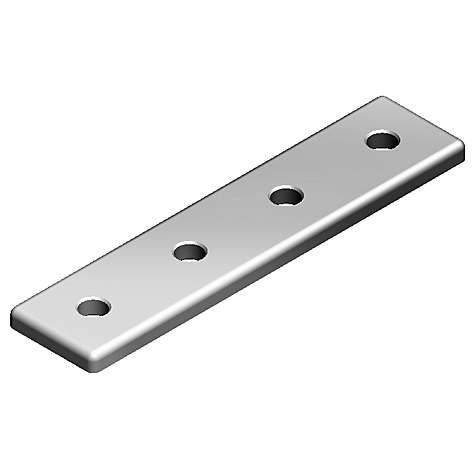

Connection Plate AL Rectangular 4 Hole, 1 Slot Version

Connection Plate AL Rectangular 4 Hole, 1 Slot Version

A (mm): 20.0 B (mm): 18.0 H (mm): 4.0 L (mm): 78.0 Version: 20 / 80 ØD (mm): 5.5

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

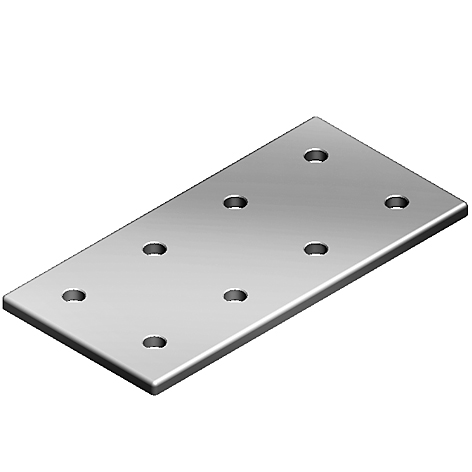

Connection Plate AL Rectangular 8 Hole, 2 Slots Version

Connection Plate AL Rectangular 8 Hole, 2 Slots Version

A (mm): 20.0 B (mm): 36.0 H (mm): 4.0 L (mm): 76.0 Version: 40 / 80 ØD (mm): 5.5

Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

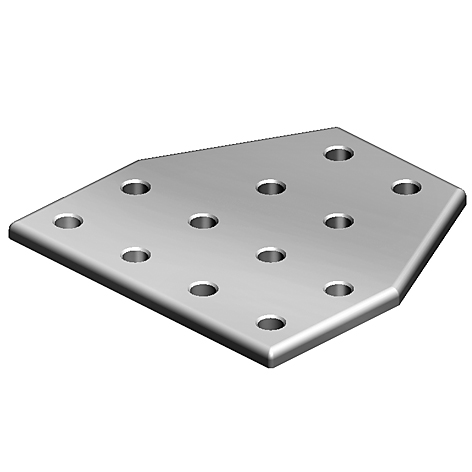

Connection Plate AL T 12 Hole, 2 Slots Version

Connection Plate AL T 12 Hole, 2 Slots Version

A (mm): 25.4 (1") H (mm): 4.0 K (mm): 48.0 (1.89") L (mm): 98.0 (3.858") Version: 102 / 102 - 4" / 4" ØD (mm): 7.0

Países de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €

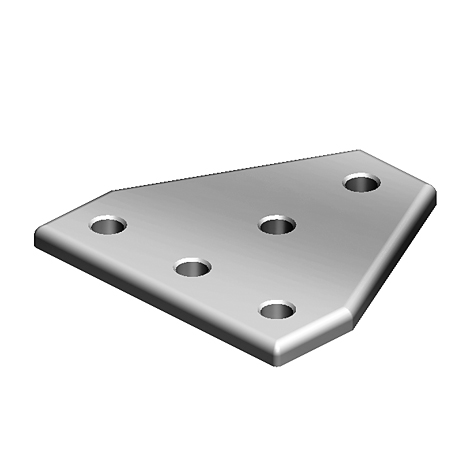

Connection Plate AL T 5 Hole, 1 Slot Version

Connection Plate AL T 5 Hole, 1 Slot Version

A (mm): 45.0 H (mm): 6.0 K (mm): 41.0 L (mm): 131.0 Version: 135 / 135 ØD (mm): 9.0

Países de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesMaterial:AluminioEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Anodizado

0,00 €
