ECO Connection Plate AL L 4 Hole, 1 Slot Version

ECO Connection Plate AL L 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 76.2 (3") Color: - Fig.: ② H (mm): 6.35 (0.25") K (mm): 38.0 (1.49") L (mm): 114.3 (4.5") Superficie: Anodizado Version: 76.2 / 114.3 - 3" / 4.5" ØD (mm): 9.0 (0.35")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
ECO Connection Plate AL L 5 Hole, 1 Slot Version

ECO Connection Plate AL L 5 Hole, 1 Slot Version

A (mm): 25.4 (1") B (mm): 76.2 (3") Color: Negro Fig.: ① H (mm): 4.8 (0.19") K (mm): 25.0 (0.98") L (mm): 76.2 (3") Superficie: Polvo cubierto Version: 76.2 / 76.2 - 3" / 3" ØD (mm): 7.0 (0.27")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
ECO Connection Plate AL L 5 Hole, 1 Slot Version Light

ECO Connection Plate AL L 5 Hole, 1 Slot Version Light

A (mm): 25.4 (1") B (mm): 76.2 (3") Color: Negro Fig.: ① H (mm): 4.8 (0.19") K (mm): 25.0 (0.98") L (mm): 76.2 (3") Superficie: Polvo cubierto Version: 76.2 / 76.2 - 3" / 3" ØD (mm): 7.0 (0.27")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
ECO Connection Plate AL L 7 Hole, 1 Slot Version

ECO Connection Plate AL L 7 Hole, 1 Slot Version

A (mm): 25.4 (1") B (mm): 101.6 (4") H (mm): 4.8 (0.19") K (mm): 25.0 (0.98") L (mm): 101.6 (4") Version: 102 / 102 - 4" / 4" ØD (mm): 7.0 (0.27")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €
ECO Connection Plate AL L 7 Hole, 1 Slot x 2 Slots Version

ECO Connection Plate AL L 7 Hole, 1 Slot x 2 Slots Version

A (mm): 25.4 (1") B (mm): 76.2 (3") H (mm): 4.8 (0.19") K (mm): 25.0 (0.98") K (mm): 51.0 (2") L (mm): 76.2 (3") Version: 76.2 / 76.2 - 3" / 3" ØD (mm): 7.0 (0.27")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €
ECO Connection Plate AL Quadrangular 4 Hole, 1 Slot Version

ECO Connection Plate AL Quadrangular 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 76.2 (3") Color: - Fig.: ② H (mm): 6.35 (0.25") L (mm): 76.2 (3") Superficie: Anodizado Version: 76.2 / 76.2 - 3" / 3" ØD (mm): 9.0 (0.35")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
ECO Connection Plate AL Rectangular 2 Hole, 1 Slot Version

ECO Connection Plate AL Rectangular 2 Hole, 1 Slot Version

A (mm): 25.4 (1") B (mm): 22.2 (0.88") Color: Negro Fig.: ① H (mm): 4.8 (0.19") L (mm): 51.0 (2.01") Superficie: Polvo cubierto Version: 25 / 51 - 1" / 2" ØD (mm): 7.0 (0.27")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
ECO Connection Plate AL Rectangular 3 Hole, 1 Slot Version

ECO Connection Plate AL Rectangular 3 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 38.0 (1.49") Color: - Fig.: ② H (mm): 6.35 (0.25") L (mm): 114.3 (4.5") Superficie: Anodizado Version: 38 / 114 - 1.5" / 4.5" ØD (mm): 9.0 (0.35")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
ECO Connection Plate AL Rectangular 4 Hole, 1 Slot Version

ECO Connection Plate AL Rectangular 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 38.0 (1.49") Color: Negro Fig.: ① H (mm): 6.35 (0.25") L (mm): 152.4 (6") Superficie: Polvo cubierto Version: 38 / 152 - 1.5" / 6" ØD (mm): 9.0 (0.35")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
ECO Connection Plate AL Rectangular 6 Hole, 1 Slot Version

ECO Connection Plate AL Rectangular 6 Hole, 1 Slot Version

A (mm): 25.4 (1") B (mm): 50.8 (2") Color: - Fig.: ② H (mm): 4.8 (0.19") L (mm): 76.2 (3") Superficie: Anodizado Version: 50.8 / 76.2 - 2" / 3" ØD (mm): 7.0 (0.27")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
ECO Connection Plate AL Rectangular 8 Hole, 2 Slots Version

ECO Connection Plate AL Rectangular 8 Hole, 2 Slots Version

A (mm): 25.4 (1") B (mm): 50.8 (2") Color: - Fig.: ② H (mm): 4.8 (0.19") L (mm): 101.6 (4") Superficie: Anodizado Version: 50.8 / 101.6 - 2" / 4" ØD (mm): 7.0 (0.27")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
ECO Connection Plate AL T 12 Hole, 2 Slots Version

ECO Connection Plate AL T 12 Hole, 2 Slots Version

A (mm): 38.1 (1.5") B (mm): 152.4 (6") Color: - Fig.: ② H (mm): 6.35 (0.25") K (mm): 71.0 (2.8") L (mm): 152.4 (6") Superficie: Anodizado Version: 152 / 152 - 5.98" / 5.98" ØD (mm): 9.0 (0.35")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
ECO Connection Plate AL T 4 Hole, 1 Slot Version

ECO Connection Plate AL T 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 76.2 (3") Color: - Fig.: ② H (mm): 6.35 (0.25") K (mm): 38.0 (1.49") L (mm): 114.3 (4.5") Superficie: Anodizado Version: 76.2 / 114.3 - 3" / 4.5" ØD (mm): 9.0 (0.35")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
ECO Connection Plate AL T 5 Hole, 1 Slot Version

ECO Connection Plate AL T 5 Hole, 1 Slot Version

A (mm): 25.4 (1") B (mm): 76.2 (3") Color: Negro Fig.: ① H (mm): 4.8 (0.19") K (mm): 25.4 (1") L (mm): 76.2 (3") Superficie: Polvo cubierto Version: 76.2 / 76.2 - 3" / 3" ØD (mm): 7.0 (0.27")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
ECO Connection Plate AL T 5 Hole, 1 Slot Version Light

ECO Connection Plate AL T 5 Hole, 1 Slot Version Light

A (mm): 25.4 (1") B (mm): 76.2 (3") Color: - Fig.: ② H (mm): 4.8 (0.19") K (mm): 25.0 (0.98") L (mm): 76.2 (3") Superficie: Anodizado Version: 76.2 / 76.2 - 3" / 3" ØD (mm): 7.0 (0.27")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
ECO Connection Plate AL T 6 Hole, 1 Slot Version

ECO Connection Plate AL T 6 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 190.5 (7.5") H (mm): 6.35 (0.25") K (mm): 38.0 (1.49") L (mm): 76.2 (3") Version: 76.2 / 190.5 - 3" / 7.5" ØD (mm): 9.0 (0.35")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €
ECO Connection Plate AL T 7 Hole, 1 Slot Version

ECO Connection Plate AL T 7 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 152.4 (6") H (mm): 6.35 (0.25") K (mm): 38.0 (1.49") L (mm): 152.4 (6") Version: 152 / 152 - 5.98" / 5.98" ØD (mm): 9.0 (0.35")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €
ECO Connection Plate AL T 8 Hole, 1 Slot x 2 Slots Version

ECO Connection Plate AL T 8 Hole, 1 Slot x 2 Slots Version

A (mm): 38.1 (1.5") B (mm): 152.4 (6") H (mm): 6.35 (0.25") K (mm): 76.0 (2.99") K (mm): 38.0 (1.49") L (mm): 114.3 (4.5") Version: 152.4 / 114.3 - 6" / 4.5" ØD (mm): 9.0 (0.35")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €
ECO Connection Plate AL X 12 Hole, 1 Slot x 2 Slots Version

ECO Connection Plate AL X 12 Hole, 1 Slot x 2 Slots Version

A (mm): 38.1 (1.5") B (mm): 190.5 (7.5") H (mm): 6.35 (0.25") K (mm): 38.0 (1.49") K (mm): 76.2 (3") L (mm): 152.4 (6") Version: 152.4 / 190.5 - 6" / 7.5" ØD (mm): 8.89 (0.35")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €
ECO Connection Plate AL X 16 Hole, 2 Slots Version

ECO Connection Plate AL X 16 Hole, 2 Slots Version

A (mm): 38.1 (1.5") B (mm): 228.6 (9") H (mm): 6.35 (0.25") K (mm): 76.0 (2.99") L (mm): 152.4 (6") Version: 152 / 228 - 5.98" / 9" ØD (mm): 9.0 (0.35")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €
ECO Connection Plate AL X 7 Hole, 1 Slot Version

ECO Connection Plate AL X 7 Hole, 1 Slot Version

A (mm): 25.4 (1") B (mm): 127 (5") Color: - Fig.: ② H (mm): 4.8 (0.19") K (mm): 25.0 (0.98") L (mm): 76.2 (3") Superficie: Anodizado Version: 76.2 / 127 - 1" / 5" ØD (mm): 7.0 (0.27")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €
End Friction Joint B45-B40L for System Arm (Set)

End Friction Joint B45-B40L for System Arm (Set)

B1 (mm): 45 B2 (mm): 40 MAmax (Nm): 45.0 Profile: B R (mm): 3.0 Ranura N (mm): 10 W (Nm): 12.0

Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorPaíses de Entrega:En todo el mundoDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 end friction joint 1 cover cap, 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 2 washers 8-FSt, 1 centering plate - slot 10 - 45 x 45, 1 centering plate - slot 10 - 40 x 40, 2 T-slot nuts - slot 10 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated

0,00 €

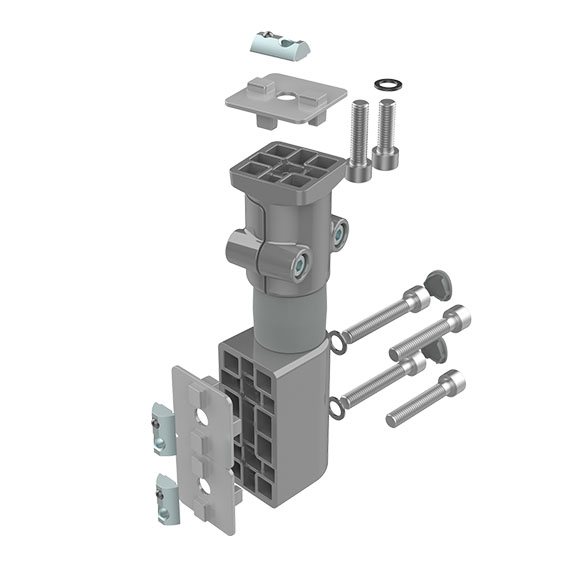

End Friction Joint I80L for System Arm (Set)

End Friction Joint I80L for System Arm (Set)

L x B (mm): 80 x 40 MAmax (Nm): 70.0 Profile: I R (mm): 4.0 Ranura N (mm): 8 W (Nm): 15.0

Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorPaíses de Entrega:En todo el mundoDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 end friction joint 2 cover caps, 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated

0,00 €

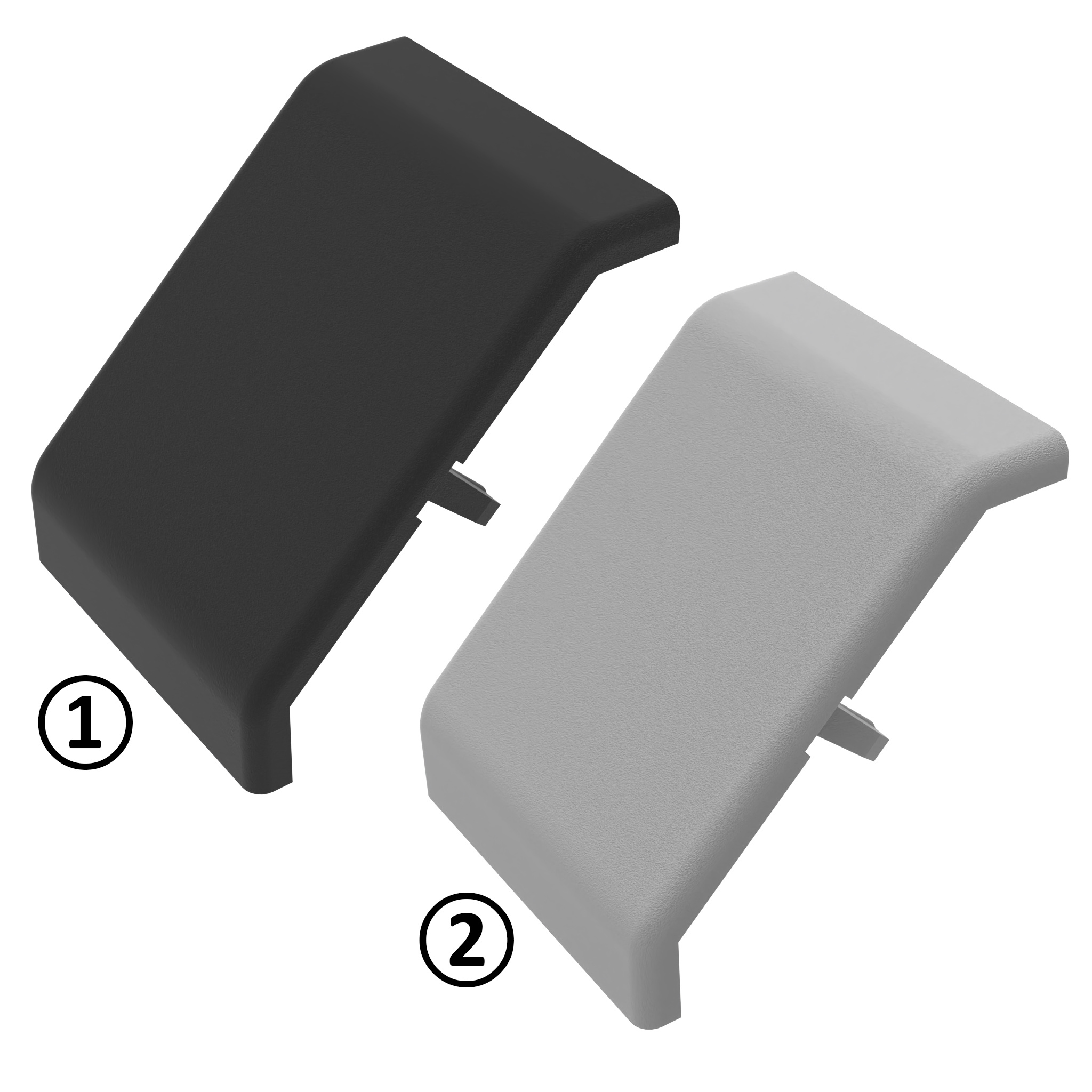

Flat Cover Cap for Alu Connection Angle 45

Flat Cover Cap for Alu Connection Angle 45

Color: Negro ESD: ESD Fig.: ①

Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:To cover the open side of the connection angleMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedidoTip:Compatible Centering Piece Widening Slot 8 to Slot 10 for Alu Connection Angle see 093W02 Compatible Alu Connection Angle 45 see 093W421, 093W423N10

0,00 €
