Sistemas de conexión
Milling Connector B, Slot 8
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles fast and solid; assembly without machiningMaterial:AceroSet:1 milling connector, 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14, 1 hammer nut
Milling Connector I, Slot 8 (Set)
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles fast and solid; assembly without machiningMaterial:AceroSet:1 milling connector, 1 screw DIN EN ISO 4762 (DIN 912) - M5 x 18, 1 hammer nut

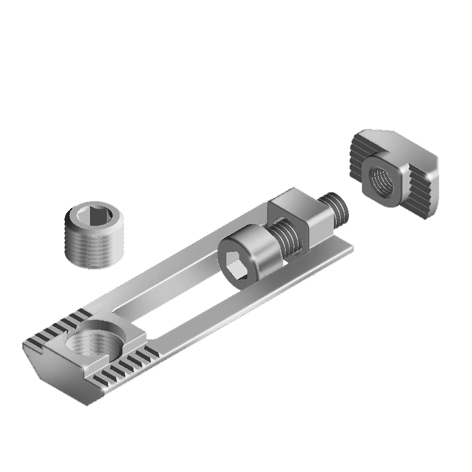

Milling Connector, Slot 10 (Set)
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles fast and solid; assembly without machiningMaterial:AceroSet:1 milling connector, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 18, 1 hammer nut

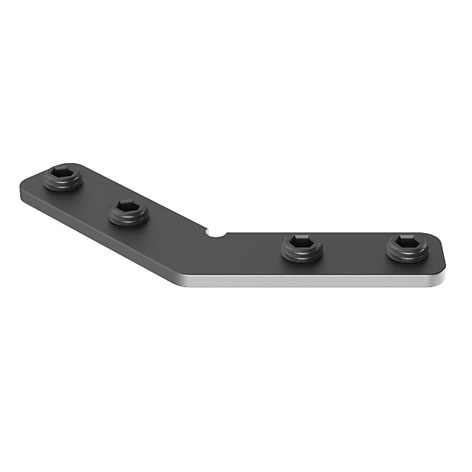

Mitre Connector 45°
Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AceroSuperficie:Galvanizado

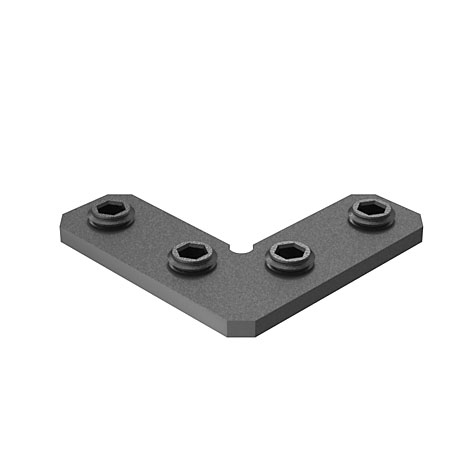

Mitre Connector 90°
Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:AceroSuperficie:Galvanizado
Mitre Connector B 45°-90°, Slot 10
Países de Entrega:En todo el mundoDescription:End-to-end connection of an aluminum profile with a mitre cut (cut γ = 45° - 90°) to another aluminum profile; before the application a hole with Ø 8.2 mm lateral must be drilled; with T-slot nut and threaded pin with AF 4Material:Galvanizado / lisoSuperficie:Galvanizado

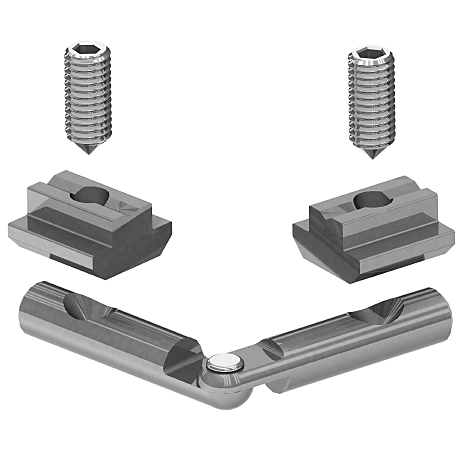

Mitre Connector B 60°-180°, Slot 10
Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles with a mitre cut (cut each γ = 60° - 90°); before the application a hole with Ø 8.2 mm in a distance of 34 mm of the profile end must be drilled; with T-slot nut and threaded pin with AF 4Material:AceroSuperficie:Galvanizado

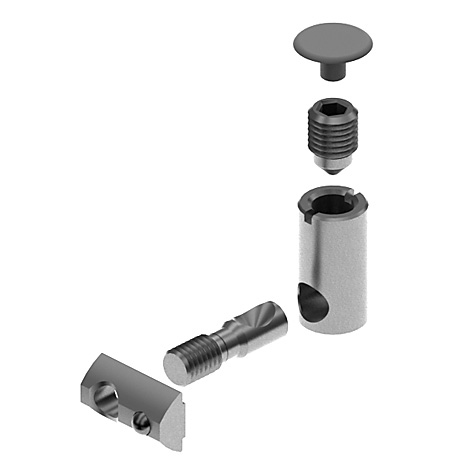

Mitre Connector I 30°-90°, Slot 8
Color:Cover cap: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:End-to-end connection of an aluminum profile with a mitre cut (cut γ = 30° - 90°) to another aluminum profile; before the application each a hole with Ø 14.2 mm lateral and Ø 9.0 mm frontal must be drilled; with T-slot nut and cover capMaterial:Connector and T-slot nut: Steel Cover caps: Plastic PPSurface:Connector and T-slot nut: Zinc plated

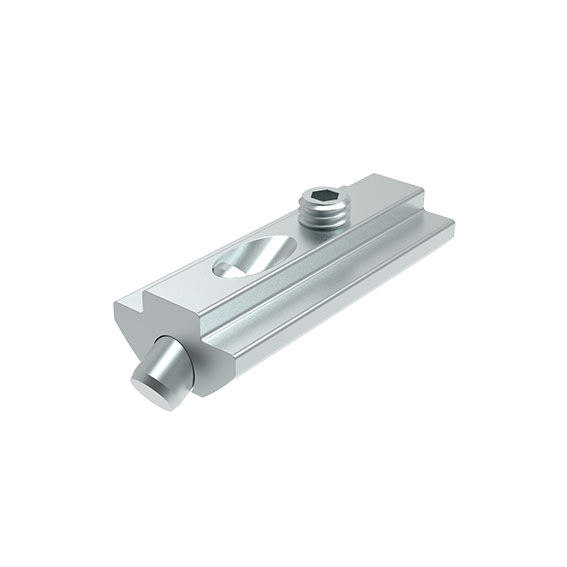

Pin T-slot Nut I, Slot 8
Países de Entrega:En todo el mundoDescription:To enhance the stability of a connection against displacement; a Ø 5.9 mm hole must be drilled into one profileMaterial:Pin T-slot nut: Steel Straight pin DIN EN ISO 8735 (DIN 7979) D6 m6 x 16: Steel Hexagon socket set screw DIN EN ISO 4029 (DIN 916) M6 x 12: SteelSuperficie:Galvanizado

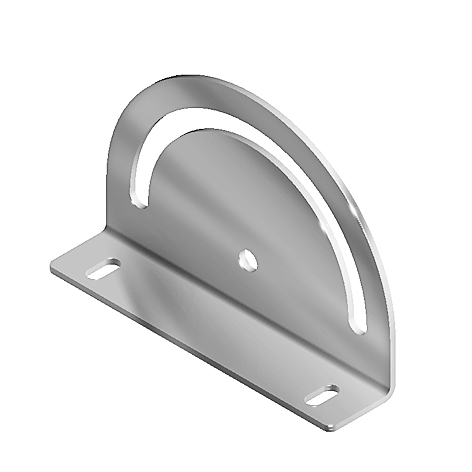

Pivot Angle 130
Países de Entrega:En todo el mundoDescription:To connect aluminum profiles at an adjustable angle; can be fixed with a locking leverMaterial:AceroEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Galvanizado

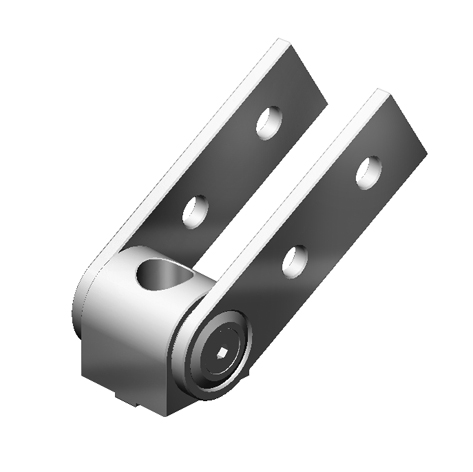

Pivot Joint 180°, 1 Slot
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles, with separate locating pinsMaterial:Joint: Aluminum die-cast Centering piece 5/6 and 6/8: Plastic PA Centering piece 8/10: Zinc die-castEspeciales:Otras superficies, otros colores bajo pedidoSurface:Joint: Powder coated Centering piece: Plain

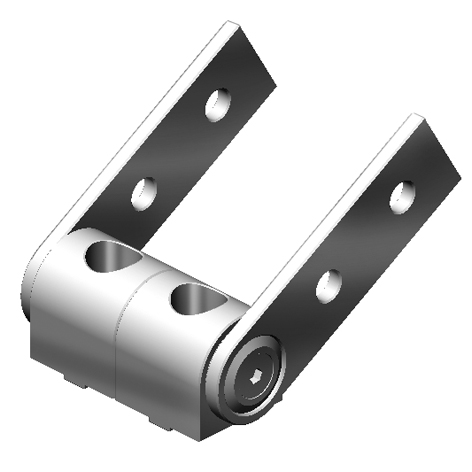

Pivot Joint 180°, 2 Slots
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles, with separate locating pinsMaterial:Joint: Aluminum die-cast Centering piece 5/6 and 6/8: Plastic PA Centering piece 8/10: Zinc die-castEspeciales:Otras superficies, otros colores bajo pedidoSurface:Joint: Powder coated Centering piece: Plain

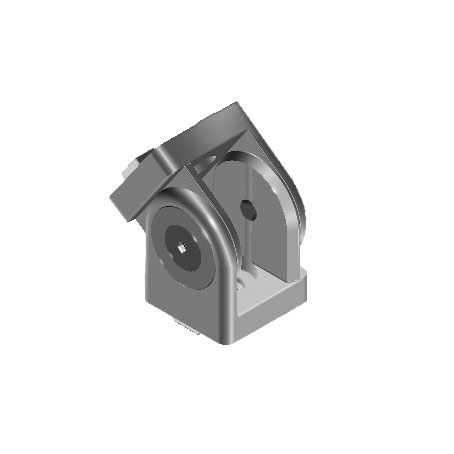

Pivot Joint 20
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; with separate locating pins for slot 5 and slot 6; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Aluminio fundido a presiónSuperficie:Polvo cubierto

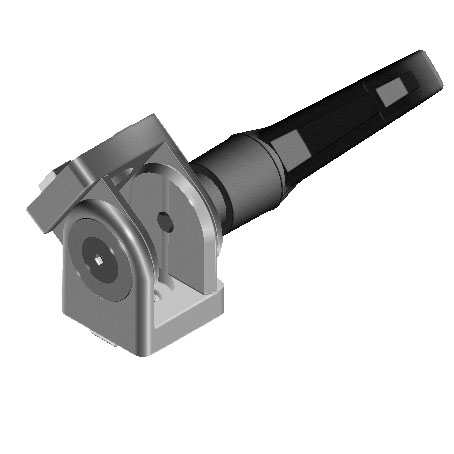

Pivot Joint 20 with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:For connection of two profiles or panels, with attachment at any angle, with separate slot fixing for slot 5 and slot 6; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Aluminum die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedSuperficie:Polvo cubierto

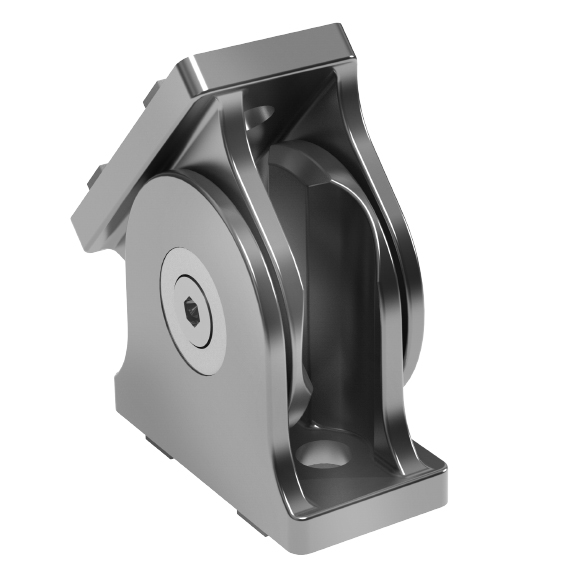

Pivot Joint 20 x 40
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; with separate locating pins for slot 5 and slot 6; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto
Pivot Joint 25 - 1"
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; fixed locating pins for slot 6 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Zinc fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto
Pivot Joint 25 - 1" with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between 2 profiles or panels which can be fixed at any angle; fixed locating pins for slot 6 optional; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Zinc die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto
Pivot Joint 25 x 51 - 1" x 2"
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto
Pivot Joint 25 x 51 - 1" x 2" with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels which can be fixed at any angle; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Aluminum die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto
Pivot Joint 28 - 1.1"
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; fixed locating pins for slot 8 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Zinc fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Lacado
Pivot Joint 28 - 1.1" with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels which can be fixed at any angle; fixed locating pins for slot 8 optional; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Zinc die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto

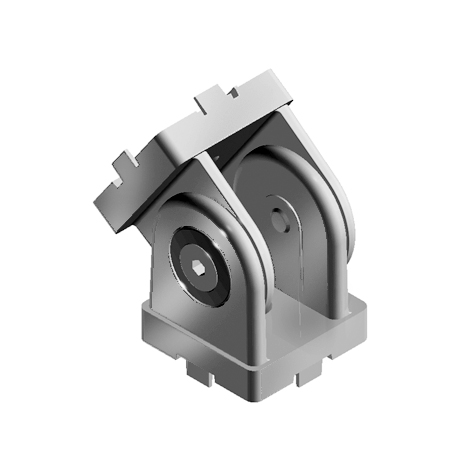

Pivot Joint 30
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between 2 profiles or panels, fixed locating pins for slot 6 or 8 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Zinc fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto

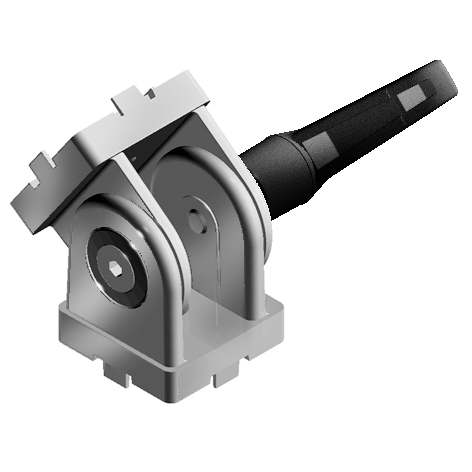

Pivot Joint 30 with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between 2 profiles or panels which can be fixed at any angle; fixed locating pins for slot 8 optional; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Zinc die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto

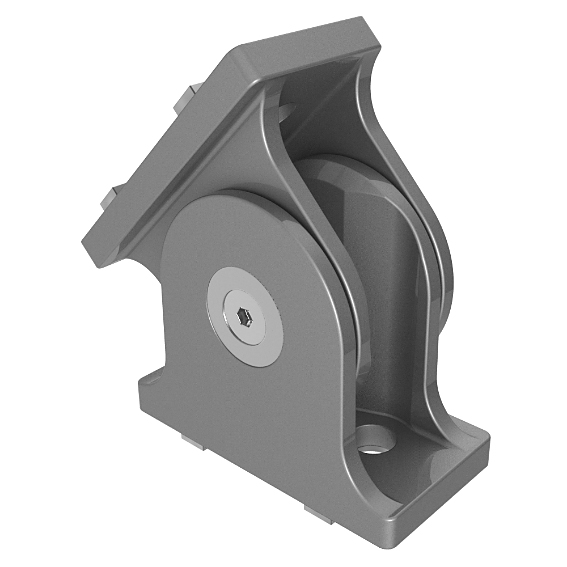

Pivot Joint 30 x 60
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; with separate locating pinsfor slot 6 and 8; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto
