Sistemas de conexión

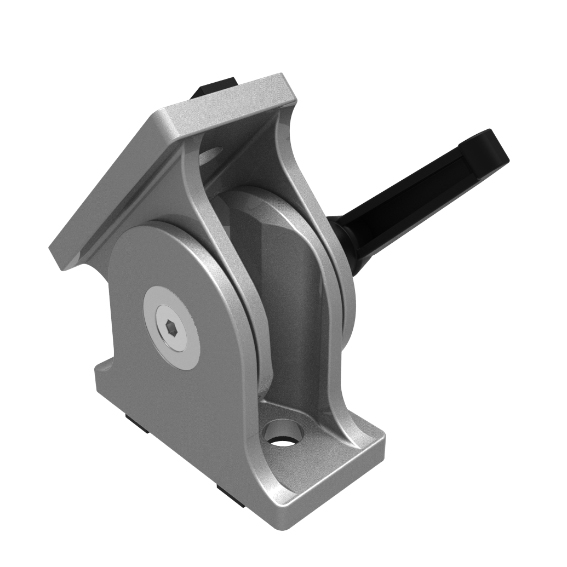

Pivot Joint 30 x 60 with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:For connection of two profiles or panels, with attachment at any angle, with separate slot fixing for slot 6 and slot 8; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Aluminum die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto
Pivot Joint 38 - 1.5"
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; fixed locating pins for slot 8 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Zinc fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto
Pivot Joint 38 - 1.5" with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between 2 profiles or panels which can be fixed at any angle; fixed locating pins for slot 8 optional; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Zinc die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto

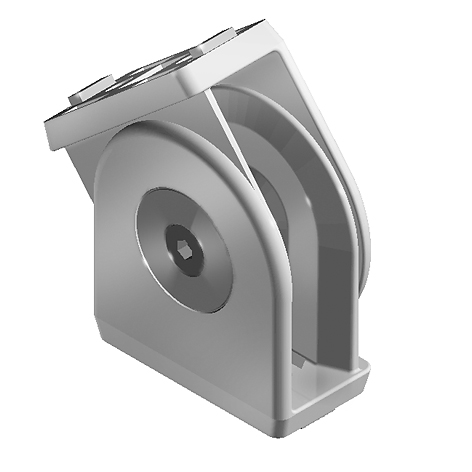

Pivot Joint 38 x 76 - 1.5" x 3"
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; with separate locating pinsfor slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Zinc fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto
Pivot Joint 38 x 76 - 1.5" x 3" with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Zinc die-cast KIPP-locking lever: Zinc die-castEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto

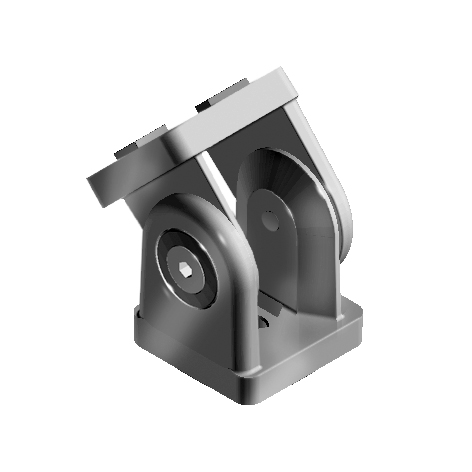

Pivot Joint 40
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; with separate locating pinsfor slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Zinc fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubiertoTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

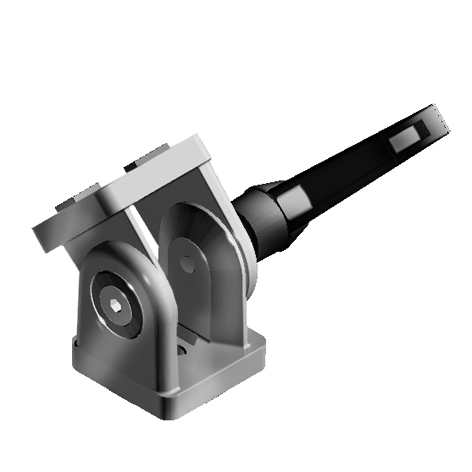

Pivot Joint 40 with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Zinc die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubiertoTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

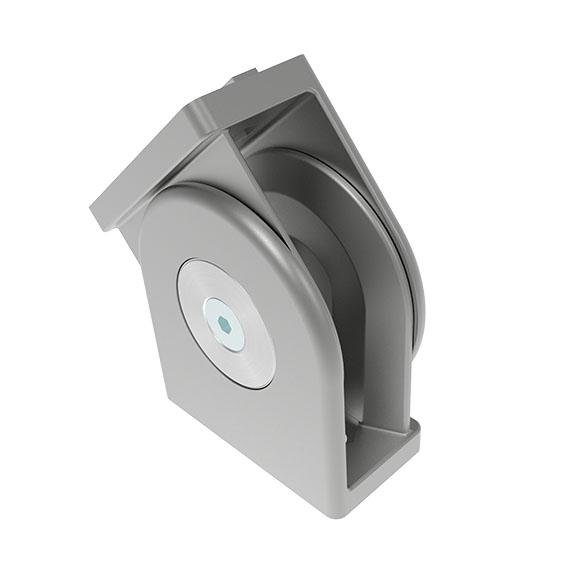

Pivot Joint 40 x 80
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; with separate locating pinsfor slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubiertoTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

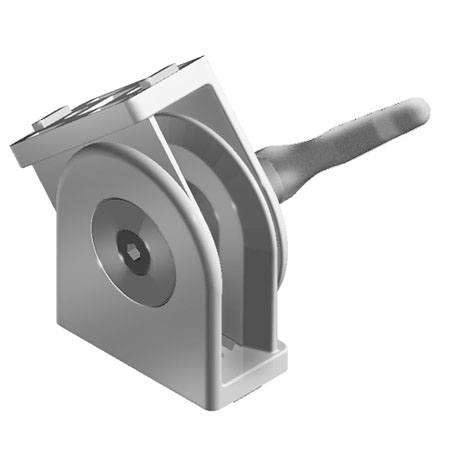

Pivot Joint 40 x 80 with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Aluminum die-cast KIPP-locking lever: Zinc die-castEspeciales:Otras superficies, otros colores bajo pedidoSurface:Joint: Powder coated KIPP-locking lever: silver metallic plastic coatedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

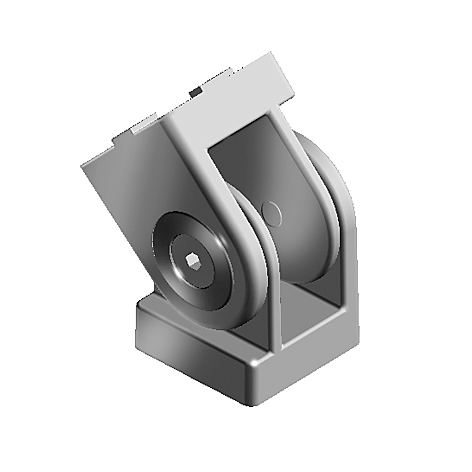

Pivot Joint 45
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; with separate locating pinsfor slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Aluminio fundido a presiónSuperficie:Polvo cubierto
Pivot Joint 45 with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Aluminum die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedSuperficie:Polvo cubierto

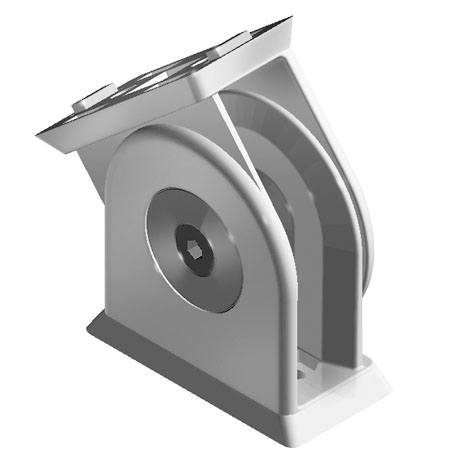

Pivot Joint 45 x 90
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; with separate locating pins for slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubiertoTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

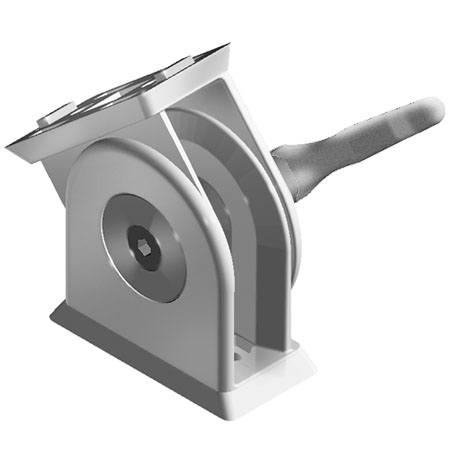

Pivot Joint 45 x 90 with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Aluminum die-cast KIPP-locking lever: Zinc die-castEspeciales:Otras superficies, otros colores bajo pedidoSurface:Joint: Powder coated KIPP-locking lever: silver metallic plastic coatedTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Pivot Joint B 20
Color:Color aluPaíses de Entrega:En todo el mundoDescription:For connection of two profiles or panels, with attachment at any angle, fixed locating pins for slot 5 or 6 optional; by tightening or loosening the screws you can adjust the frictional resistance of the joint continuously, or you can fix it at a defined position; thicker walls for stronger lockingMaterial:Aluminio fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubiertoTip:Screw of the pivot joint fork must be mounted first in the straight position of the joint through the hole in the bearing block.

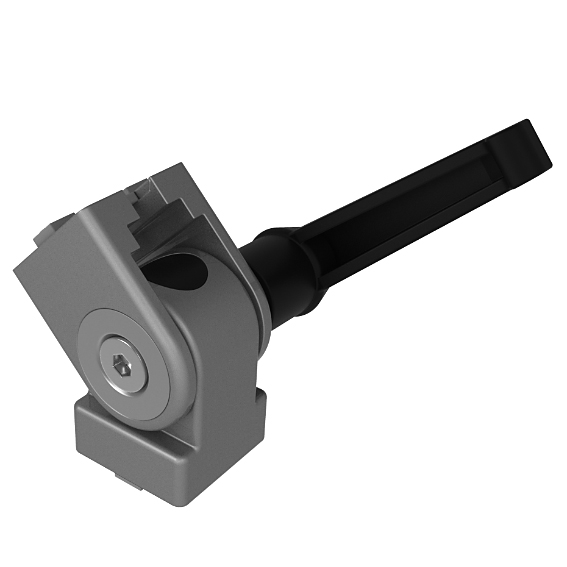

Pivot Joint B 20 with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:For connection of two profiles or panels, with attachment at any angle, fixed locating pins for slot 5 or 6 optional; by tightening or loosening the screws and the KIPP-locking lever you can adjust the frictional resistance of the joint continuously, or you can fix it at a defined position; thicker walls for stronger lockingMaterial:Joint: Aluminum die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubiertoTip:Screw of the pivot joint fork must be mounted first in the straight position of the joint through the hole in the bearing block.

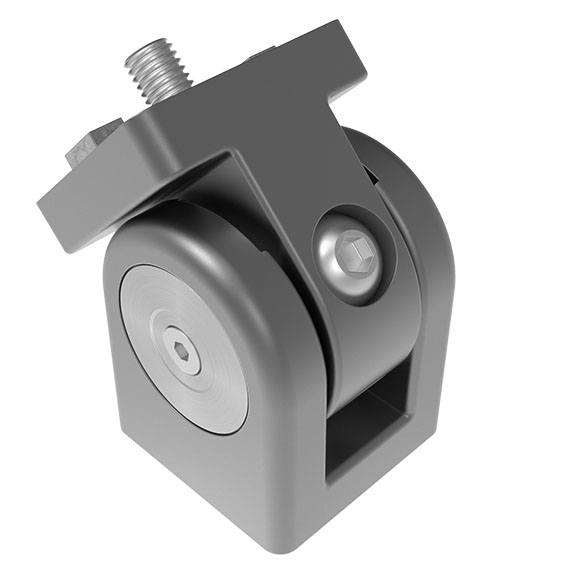

Pivot Joint B 40
Color:Pivot bearing: White aluminum ≈ RAL 9006 Cover cap: Gray ≈ RAL 7042Países de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles, with separate locating pins for slot 8 and slot 10Material:Pivot bearing: Aluminum die-cast Bearing shims: Steel Ball bearings: Steel Screws: Steel Cover cap: Plastic PASet:1 pivot bearing 4 locating pins slot 8 / slot 10 2 screws M8 (pre-assembled)Surface:Pivot bearing: Powder coated, Bearing shims: Zinc plated Ball bearings: Zinc plated Screws: Zinc plated
Pivot Joint ZN 45
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels; with separate locating pinsfor slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Zinc fundido a presiónEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubiertoTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

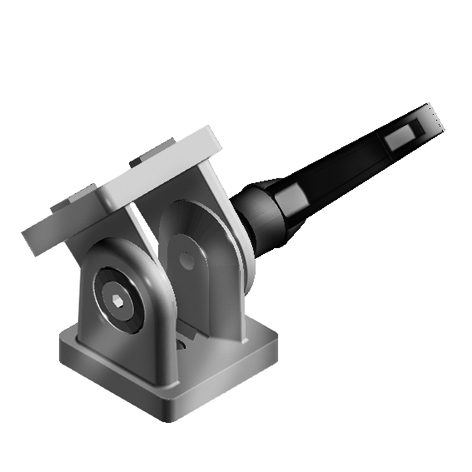

Pivot Joint ZN 45 with Locking Lever
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one positionMaterial:Joint: Zinc die-cast KIPP-locking lever: Plastic PA, glass fiber reinforcedEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubiertoTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

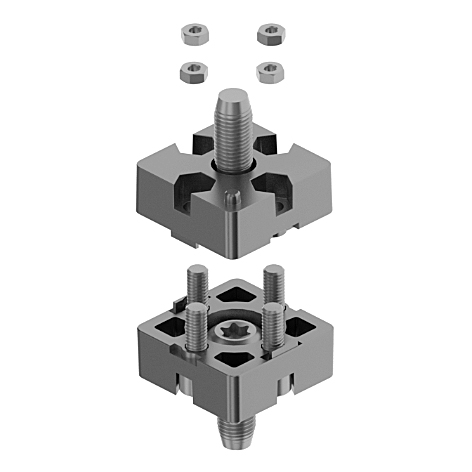

Plate Butt Connector B AL (Set)
Color:Color aluPaíses de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles of the same typeMaterial:Plate connector: Aluminum die-cast Screws / hammer nuts: SteelSet 1:2 plate connectors, 2 screws DIN 7984 - M8 x30, 4 screws DIN 7984 - M5 x 20, 4 hexagon nuts DIN EN ISO 4032 (DIN 934) - M5Set 2:2 plate connectors, 2 self forming screws S12 x 30 - hexalobular socket T50, 4 screws DIN 7984 - M6 x 20, 4 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6Set 3:2 plate connectors, 2 self forming screws S12 x 30 - hexalobular socket T50, 4 screws DIN 7984 - M6 x 20, 4 hexagon nuts DIN EN ISO 4032 (DIN 934) - M6Surface:Plate connector: Plain / powder coated Screws / hammer nuts: Zinc platedTip:Individual Plate Connector, not as part of a set, see 099EA30300808R

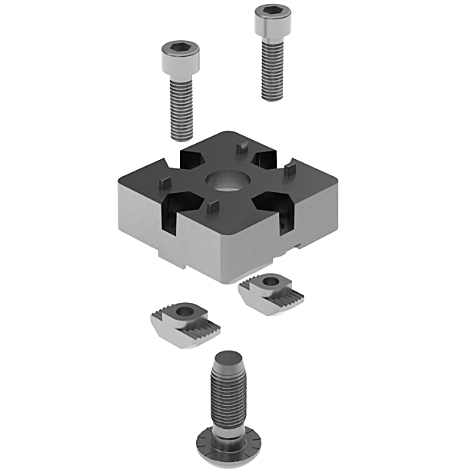

Plate Connector B AL
Assembly Set 1:1 screw DIN 7984 - M8 x 30, 2 screws DIN 7984 - M5 x 16, 2 hammer nuts - slot 8 - M5Assembly Set 2:1 self forming screw S12 x 30 - hexalobular socket T50, 2 screws DIN 7984 - M6 x 20, 2 hammer nuts - slot 10 - M6Color:Color aluPaíses de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesMaterial:Plate connector: Aluminum die-cast Assembly set: SteelEspeciales:Otras superficies bajo pedidoSurface:Plate connector: Plain / powder coated Assembly set: Zinc plated

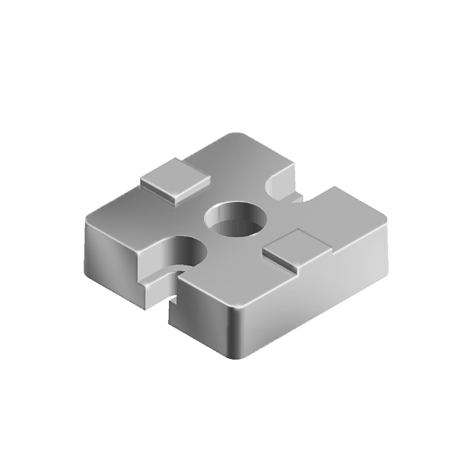

Plate Connector B ZN 45, Slot 10
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesFastening:For screws: 1 x M12 x 30, 2 x M6 x 18 and 2 T-slot nuts or hammer nutsMaterial:Zinc fundido a presiónSuperficie:Liso / Recubierto de polvo

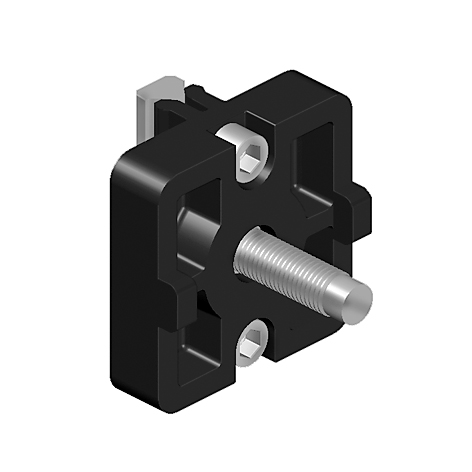

Plate Connector I PA 40, Slot 8 (Set)
Color:NegroPaíses de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesMaterial:Plástico PA, reforzado con fibra de vidrioSet:1 plate connector, 1 wedge, zinc plated steel, 2 cylinder head screws, M4 x 14, zinc plated steel, 1 self tapping screw, SF7 x 22, zinc plated steelEspeciales:Otras superficies, otros colores bajo pedido
Plate Connector I ZN 40 (Set)
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To tee connect two aluminum profilesMaterial:Plate Connector: Zinc die-cast Assembly set: SteelSet 1:1 self-tapping screw SF7 x 22, 1 double T-slot nut - Nut 8 - M8, 2 shaft screws M8Set 2:2 self-tapping screws SF7 x 22, 1 double T-slot nut - Nut 8 - M8, 2 shaft screws M8Set 3:2 self-tapping screws SF7 x 22, 2 double T-slot nut - Nut 8 - M8, 4 shaft screws M8Surface:Plate Connector: Plain / powder coated Assembly set: Zinc plated

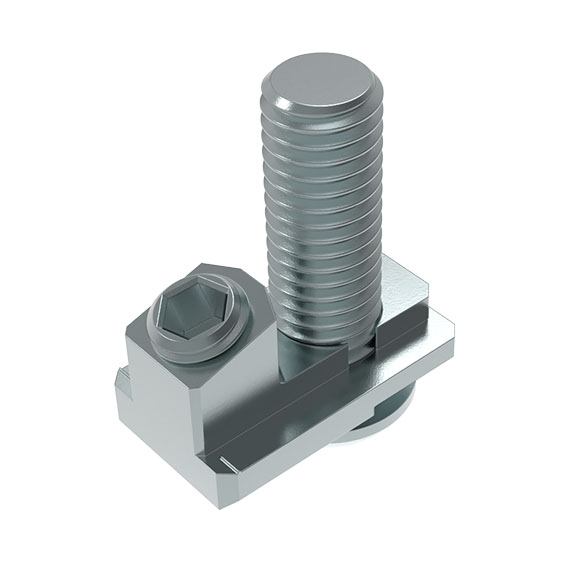

Profile Connector 90° B / M30, Slot 8 (Set)
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AceroSet:1 Profile Connector 90° B / M30 1 self forming screw S8 x 25Superficie:Galvanizado
