Sistemas de conexión
Steel Connection Angle 30 x 45
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AceroSuperficie:Galvanizado

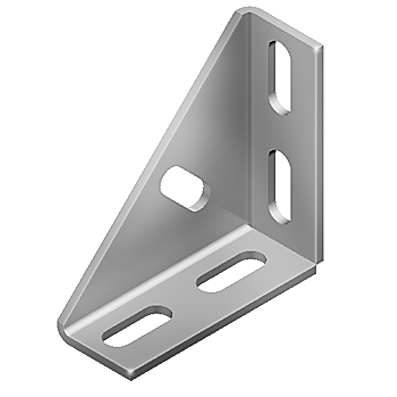

Steel Connection Angle 30 x 80
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AceroSuperficie:Galvanizado

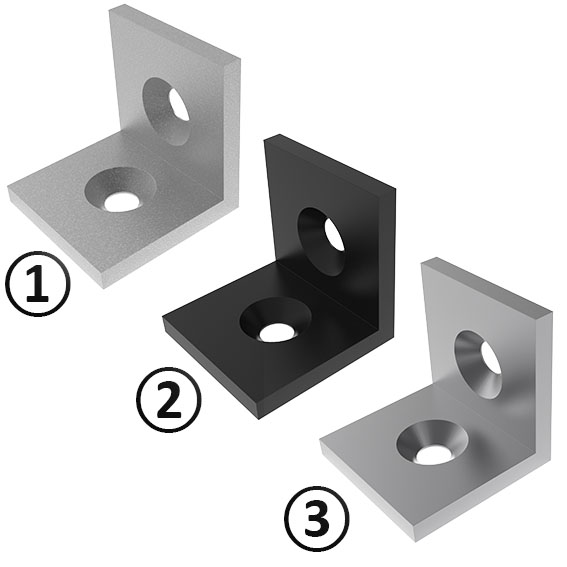

Steel Connection Angle 40
Color:Negro, color alu, -Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AceroEspeciales:Otras superficies bajo pedidoSuperficie:Galvanizado / recubierto de polvo

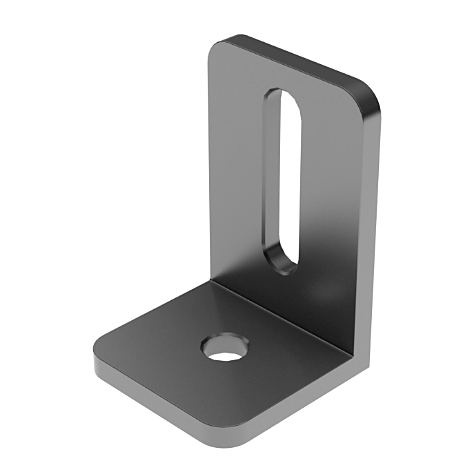

Steel Connection Angle 40 EH
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AceroEspeciales:Otras superficies bajo pedidoSuperficie:Galvanizado

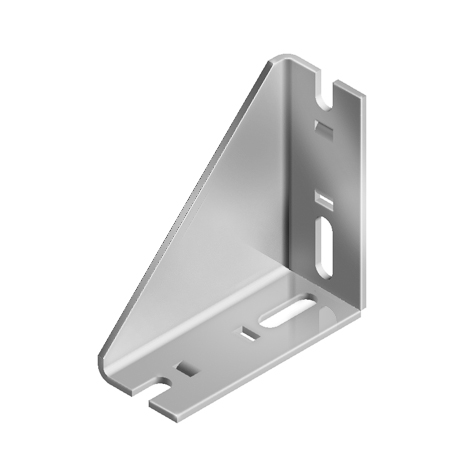

Steel Connection Angle 45 x 100
Países de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right anglesMaterial:AceroSuperficie:Galvanizado
Steel Support Bracket 80 x 160
Color:Color aluPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles at right angles or to securely fix aluminum profiles to the floorMaterial:Ductile iron SS410SEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubiertoTip:Compatible Fixation T-slot Nut for Connection Angle 80 / 160 see 096000S83
Threaded Connection Stud for Cube Connector
Países de Entrega:En todo el mundoDescription:To mount cube connectors 2D or 3D and attach leveling feet or swivel and fixed castors at the same timeMaterial:AceroSuperficie:Galvanizado

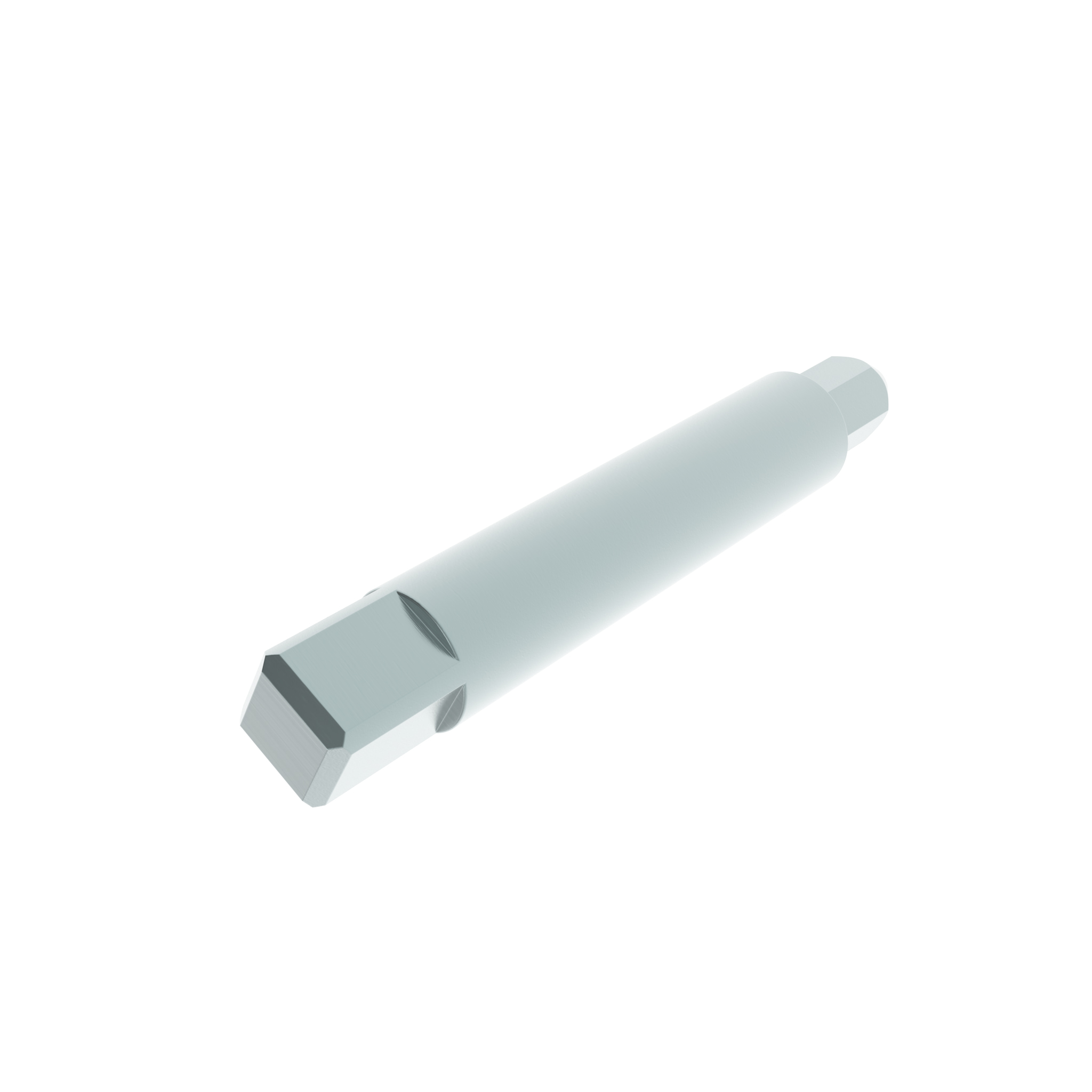

Tool for Cutting Bush with Shank
Países de Entrega:En todo el mundoDescription:For turning the Cutting Bush with Shank into a profile core hole 10.2 mmMaterial:AceroSuperficie:GalvanizadoTip:Compatible Cutting Bush with Shank see 09308801

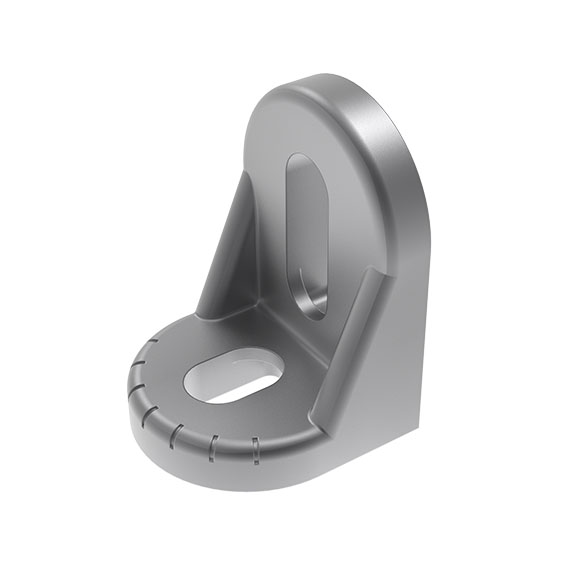

Turning Angle 30
Assembly Set 1:1 screw DIN 7984 - M6 x 14, 1 screw DIN 7984 - M8 x 16, 1 washer DIN EN ISO 7089 (DIN 125) - M6, 1 hammer nut - slot 10 - M8, 1 hammer nut - slot 8 - M6, 2 centering pieces - slot 8 to slot 10Assembly Set 2:2 screws DIN 7984 - M8 x 16, 2 hammer nuts - slot 10 - M8, 4 centering pieces - slot 8 to slot 10Color:Turning angle: Alu color Centering piece: BlackPaíses de Entrega:En todo el mundoDescription:To connect aluminum profiles at various angles from 0° to 180°Material:Angle: Aluminum die-cast Centering piece: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Turning angle: Plain / powder coated Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02

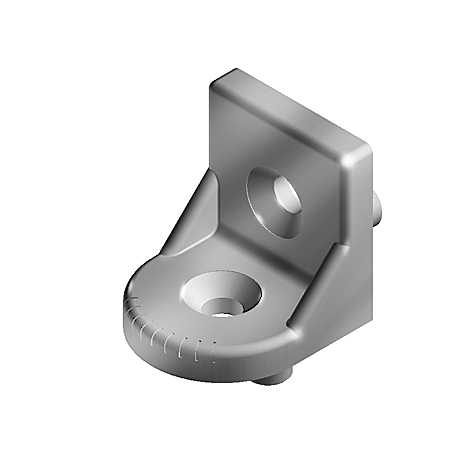

Turning Angle 45
Assembly Set:2 screws DIN EN ISO 10642 (DIN 7991) - M8 x 18, 2 hammer nuts - slot 10 - M8, 4 Centering bolt slot 8, 4 Centering bolt slot 10Color:Turning angle: Alu color Centering bolts: BlackPaíses de Entrega:En todo el mundoDescription:To connect aluminum profiles at various angles from 0° to 180°Material:Turning Angle: Aluminum die-cast Centering bolts: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Turning angle: Plain / powder coated Assembly set: Zinc platedTip:*With 4 centering bolts slot 8 and 4 centering bolts slot 10

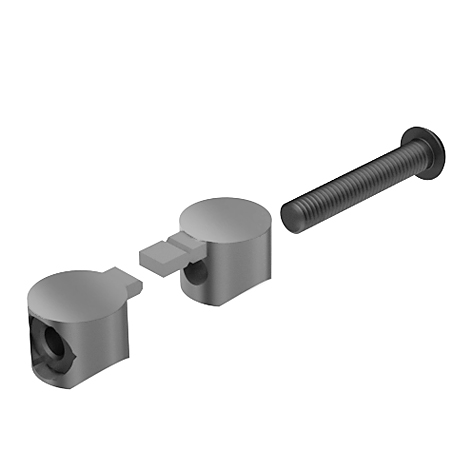

Universal Butt Connector I
Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles Of the same type; assembly set includedMaterial:Zinc fundido a presiónSuperficie:GalvanizadoTip:*Without nut, thread integrated

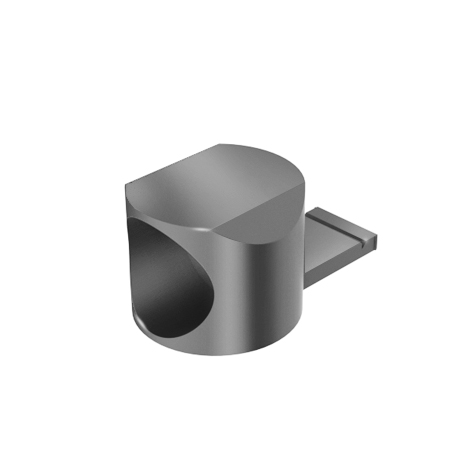

Universal Connector B
Assembly Set:1 screw DIN EN ISO 4762 (DIN 912) -M8 x 30, 1 T-slot nut, slot 10, with spring leafPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:Universal *Surface:Universal connector: Plain Assembly set: Zinc plated

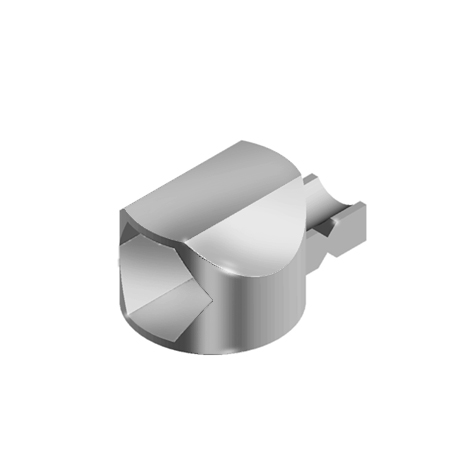

Universal Connector I
Assembly Set 1:1 T-slot nut - slot 5 - M4, 1 screw DIN EN ISO 4762 (DIN 912) - M4 x 14Assembly Set 2:1 T-slot nut - slot 6 - M6, 1 screw DIN EN ISO 7380 (DIN 34805) - M6 x 22Assembly Set 3:1 T-slot nut - slot 8 - M8, 1 screw DIN EN ISO 7380 (DIN 34805) - M8 x 30Assembly Set 4:Stainless steel: 1 T-slot nut - slot 8 - M8, 1 screw DIN EN ISO 7380 (DIN 34805) - M8 x 30Países de Entrega:En todo el mundoDescription:To connect two aluminum profilesMaterial:Zinc fundido a presión / acero inoxidableSuperficie:Galvanizado / liso

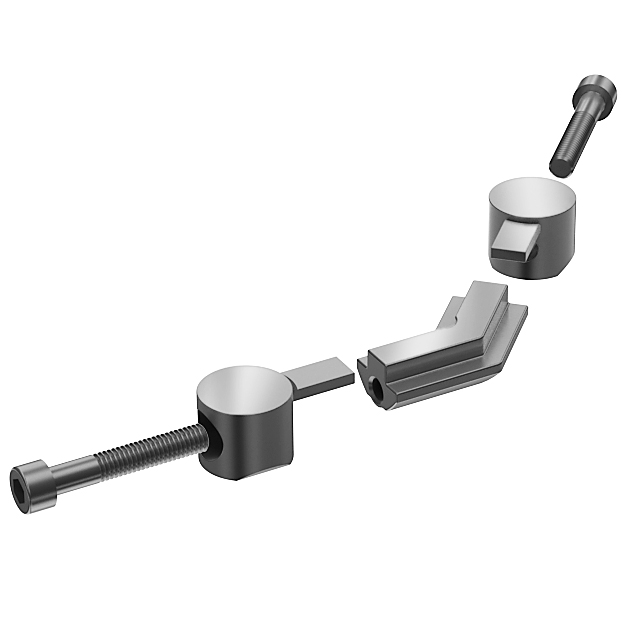

Universal Mitre Connector I (Set)
Países de Entrega:En todo el mundoDescription:End-to-end connection of two aluminum profiles with a mitre cutMaterial:Zinc fundido a presiónSet:1 mitre connector, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 35Superficie:Galvanizado

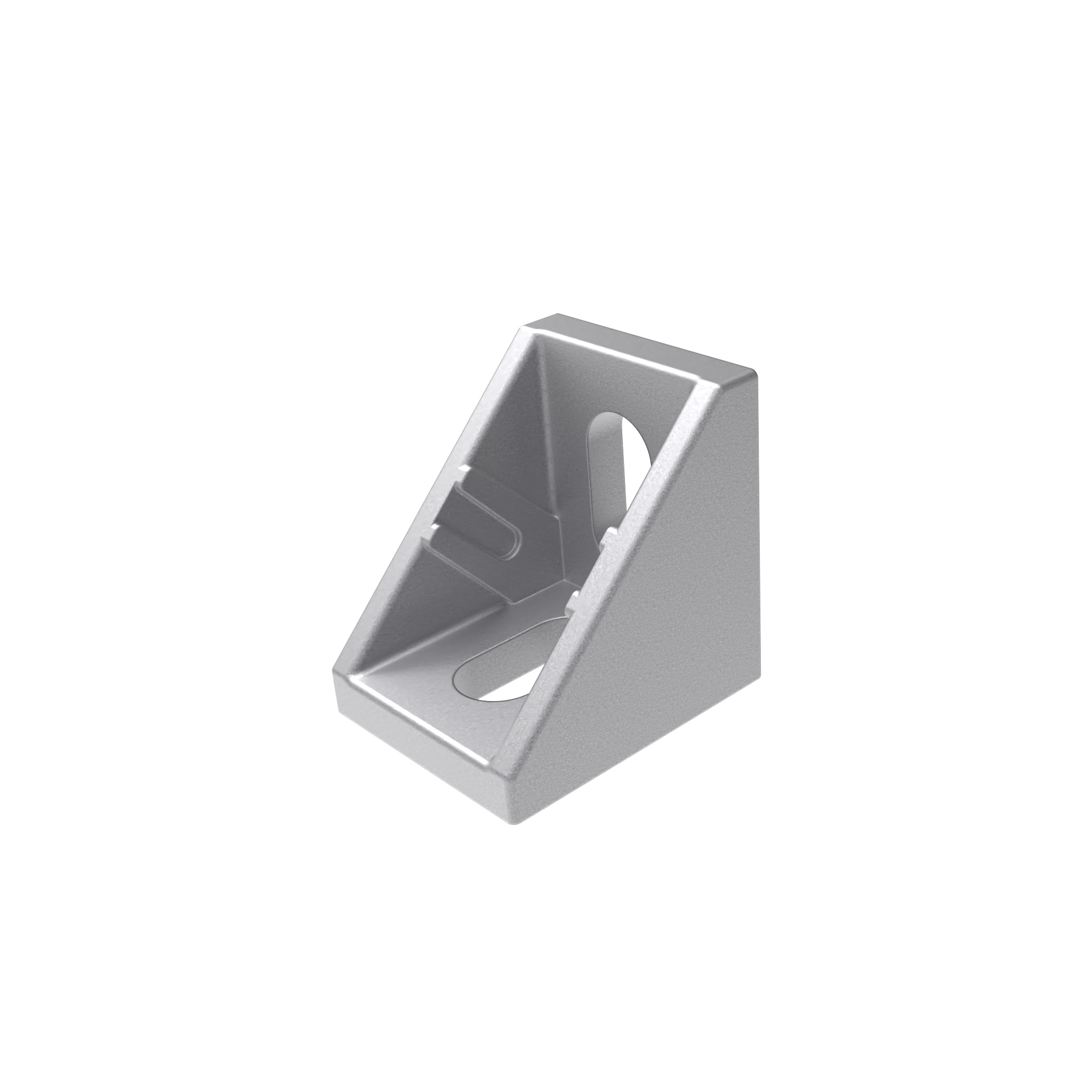

Zinc Connection Angle 20
Assembly Set:1 cover cap - plastic PA - black, 2 T-slot nuts - slot 5 - M5, 2 screws DIN 6912 - M5 x 8Color:Angle: Alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Assembly set: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA201

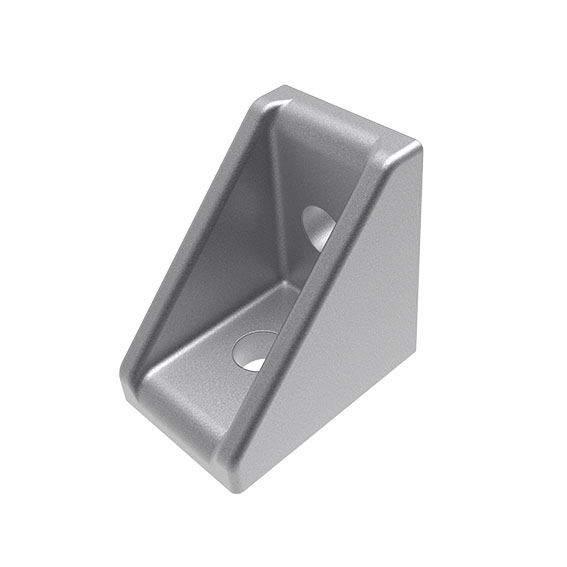

Zinc Connection Angle 20 x 28
Assembly Set:2 hammer nuts - slot 8 - M6, 2 screws DIN 7984 - M6 x 12Países de Entrega:En todo el mundoDescription:To connect two profiles and panels at right anglesMaterial:Angle: Zinc die-cast Assembly set: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle: Plain Assembly set: Zinc platedTip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02

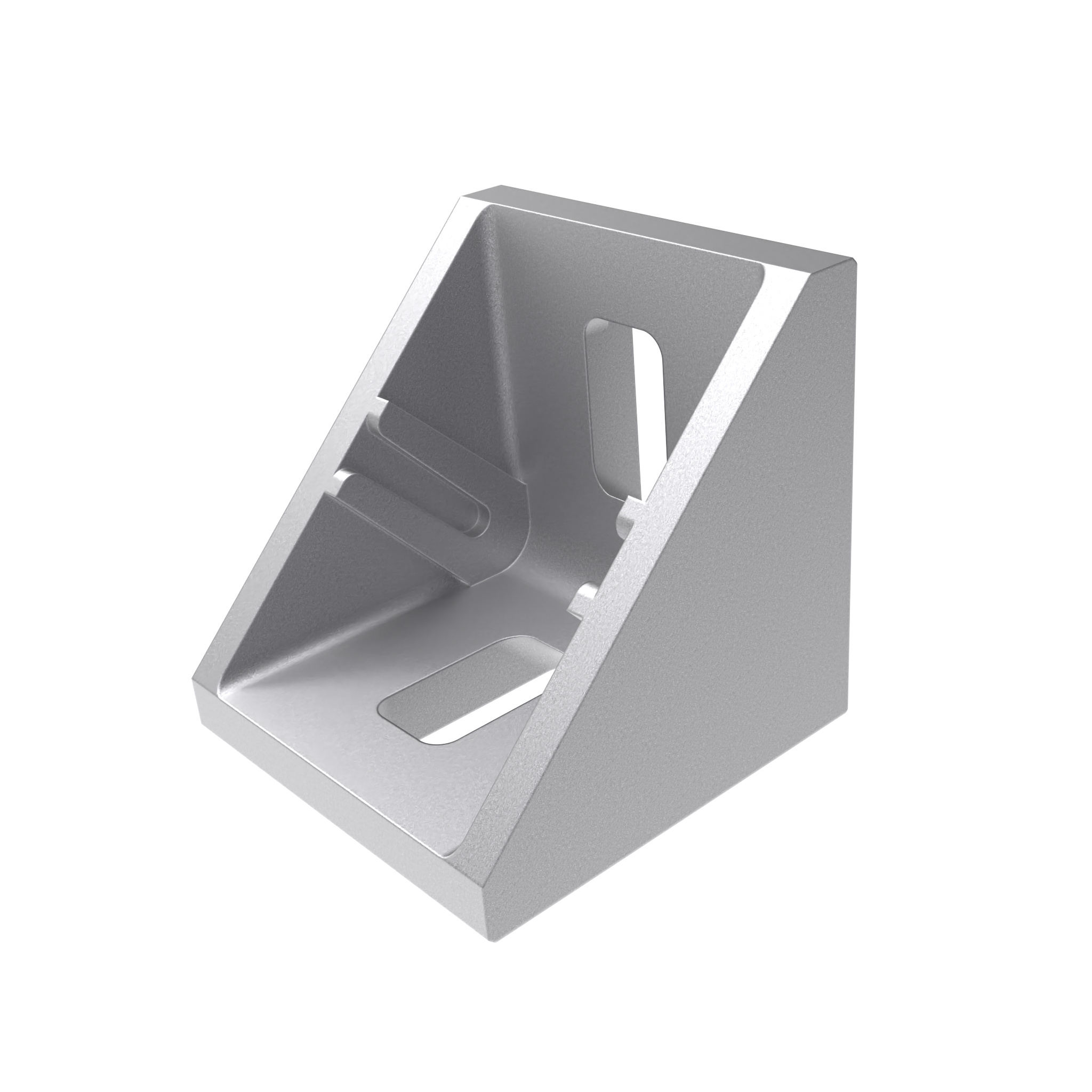

Zinc Connection Angle 30
Assembly Set:1 Cover cap - Plastic PA - black, 2 T-slot nuts - slot 6 - M6, 2 Screws DIN EN ISO 7380 (DIN 34805) - M6 x 12Color:Angle: Alu color Cover cap: BlackPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA301
Zinc Connection Angle 40
Assembly Set:1 Cover cap - Plastic PA - black, 2 T-slot nuts - slot 8 - M8, 2 Screws DIN EN ISO 7380 (DIN 34805) - M8 x 16Color:Angle: Alu color Cover cap: BlackPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA402
Zinc Connection Angle 40 flat
Assembly Set:1 Cover cap - Plastic PA - black, 2 T-slot nuts - slot 8 - M8, 2 Screws DIN EN ISO 7380 (DIN 34805) - M8 x 16Color:Angle: - / alu color Cover cap: BlackPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA401
Zinc Connection Angle 40 x 80 flat
Assembly Set:1 Cover cap - Plastic PA - black, 4 T-slot nuts - slot 8 - M8, 4 Screws DIN EN DIN EN ISO 7380 (DIN 34805) - M8 x 16Color:Angle: Alu color Cover cap: BlackPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle: Plain / Powder coated Assembly set: Zinc platedTip:Compatible Cover Cap see 093WA802

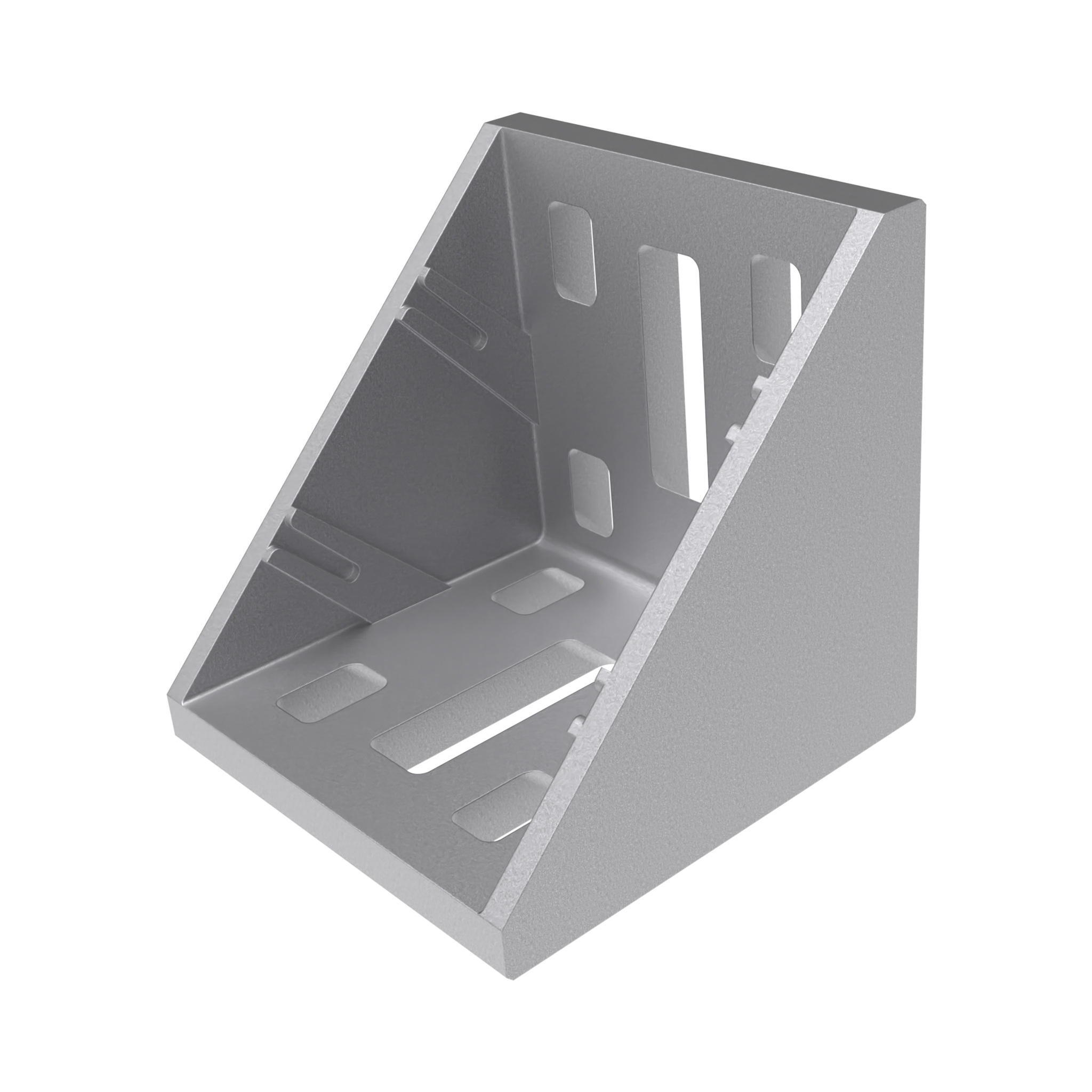

Zinc Connection Angle 60
Color:Angle: Alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Assembly set: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle: Plain / Powder coatedTip:Compatible Cover Cap see 093WA601

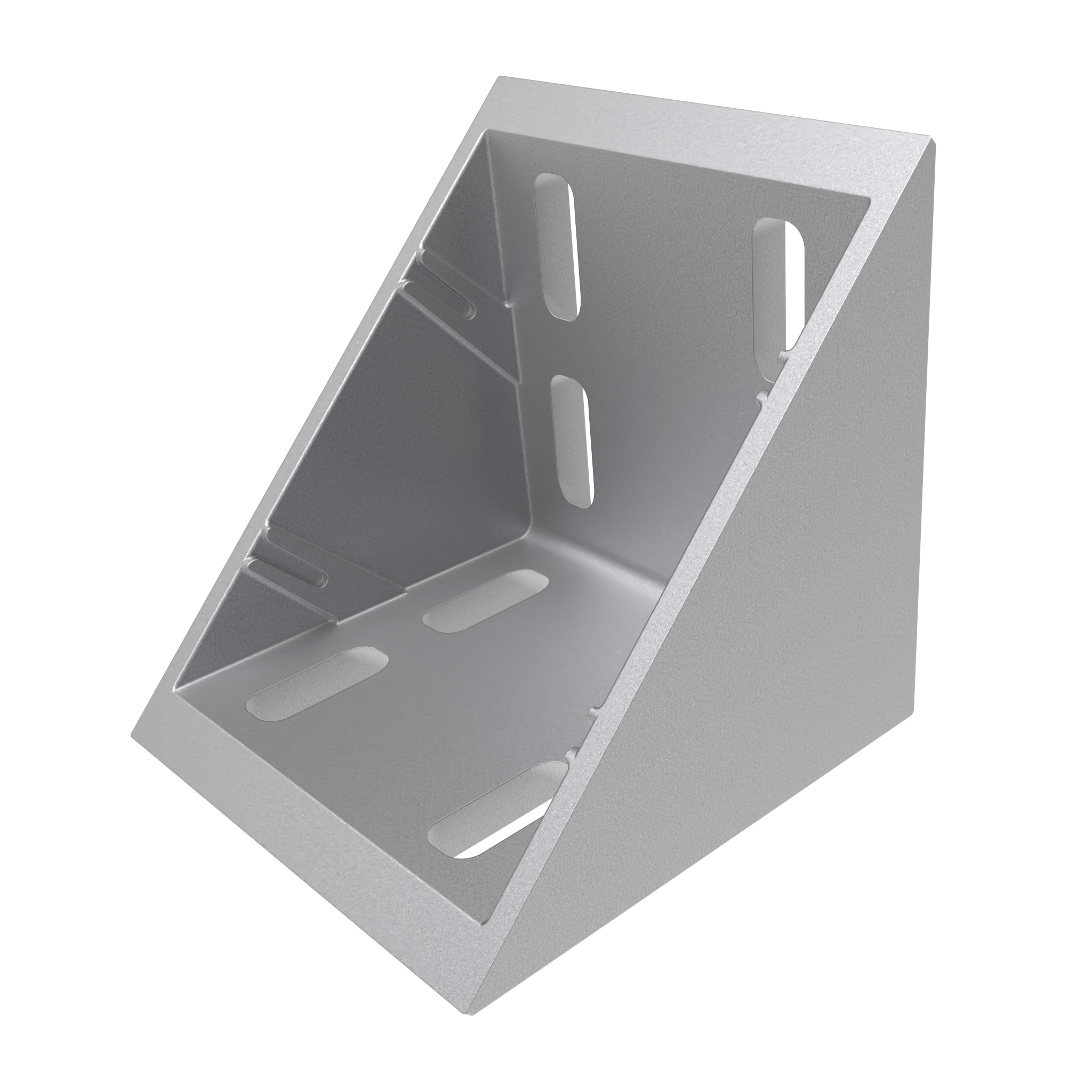

Zinc Connection Angle 80 flat
Color:Angle: Alu colorPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Assembly set: SteelEspeciales:Otras superficies, otros colores bajo pedidoSurface:Angle: Plain / Powder coatedTip:Compatible Cover Cap see 093WA803

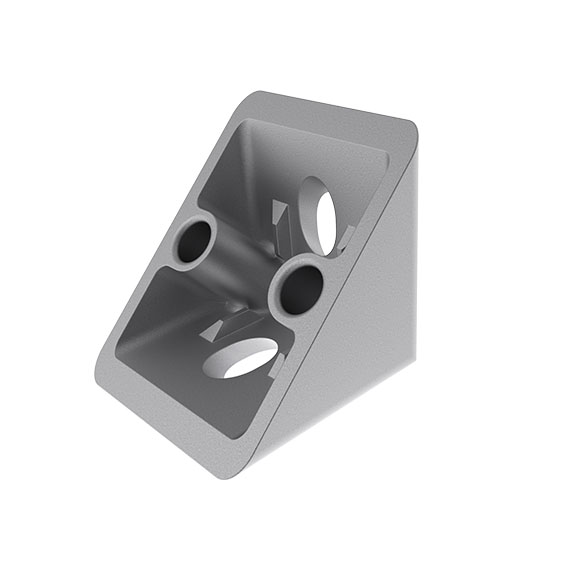

Zinc Connection Angle I 40
Assembly Set:1 cover cap - plastic PA - black, 2 T-slot nuts - slot 8 - M8, 2 screws DIN EN DIN EN ISO 7380 (DIN 34805) - M8 x 16, 1 washer DIN 988Color:Cover cap: BlackPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles or panels at right angles, the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedConsejo:Otras superficies, otros colores bajo pedido
Zinc Connection Angle I 40 x 80 flat (Set)
Color:Angle: Alu color Cover cap: BlackPaíses de Entrega:En todo el mundoDescription:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSet:1 connection angle 1 cover cap 4 T-slot nut - slot 8 - M8 4 screws DIN EN ISO 7380 (DIN 34805) - M8 x 18 4 washerEspeciales:Otros tamaños, otras superficies bajo pedidoSurface:Angle: Powder coated Screws: Zinc plated T-slot nuts: Zinc plated
