Product Portrait
Monitor Mounts
For round tubes, profiles and perforated plates: Stable holding, easy installation, and optimal screen comfort in any work environment.
Our monitor mounts connect ergonomic flexibility with robust mechanics. Whether used on round tubes, square profiles, or perforated sheets, the mountings can be quickly installed and individually aligned.
Thanks to its adjustable axe(s), the screen can be positioned precisely in an office or workshop. This reduces the potential for back strain and muscle pain.
VESA compatibility facilitates assembly of standard monitors (VESA MIS-D 75/100). There is also a version with clamping lever for quick locking. Robust, durable, and versatile - the monitor mounts complement any modular workstation system perfectly.
HIGHLIGHTS
- It can be mounted stably on Profile 40 / 45 with Slot 8 / 10, or
- An adapter can be used for round tubes, profiles, and perforated sheets
- The axis adjustment facilitates optimal positioning of the screen
- VESA MIS-D 75/100 compatible
- Modular adapter for monitor mount FX
- Ergonomic flexibility reduces strain

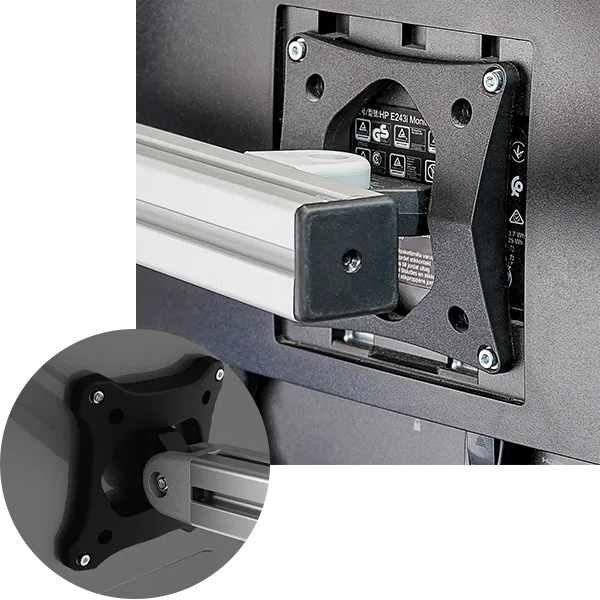

Ideal position, at all times
The monitor mount adapts flexibly to any workstation. Screens can be easily rotated and tilted by adjusting the axis.
Another advantage:
With an adapter, the mounting is also suitable for special applications.
The monitor mounts are used in:
- Workshops and production lines
- Laboratories and test stations
- Vehicle and machine operating stations
- Modular workstation systems
YOU WOULD LIKE TO SEE ALL Monitor Attachments?
Click here to discover all the possibilities.
Versions
Versions of the monitor mounts:

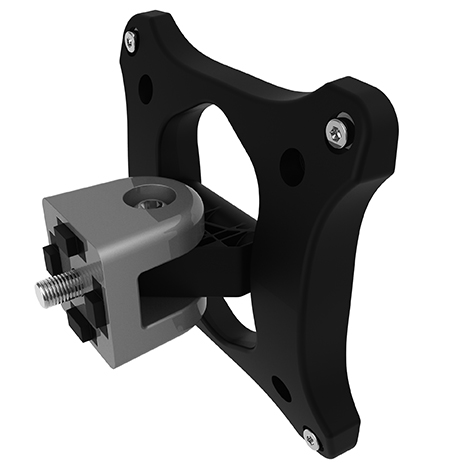

- Monitor support VESA standard for Profile 40 / 45, Slot 8 / 10

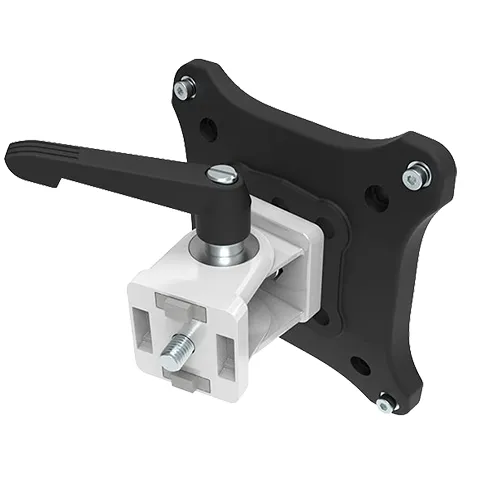

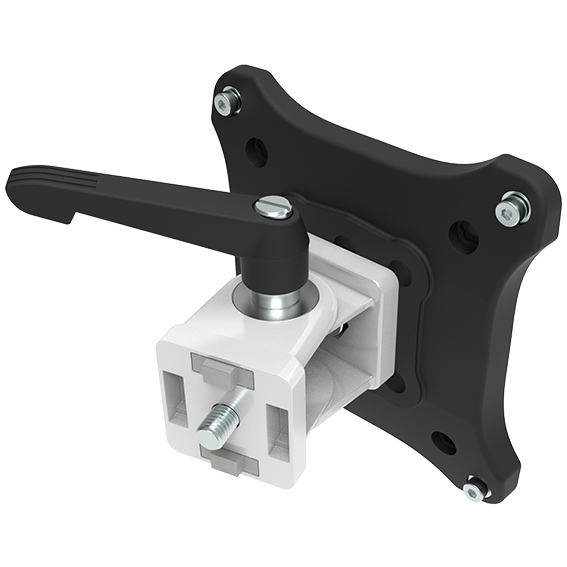

- Monitor support VESA standard with clamping lever for Profile 40 / 45, Slot 8 / 10

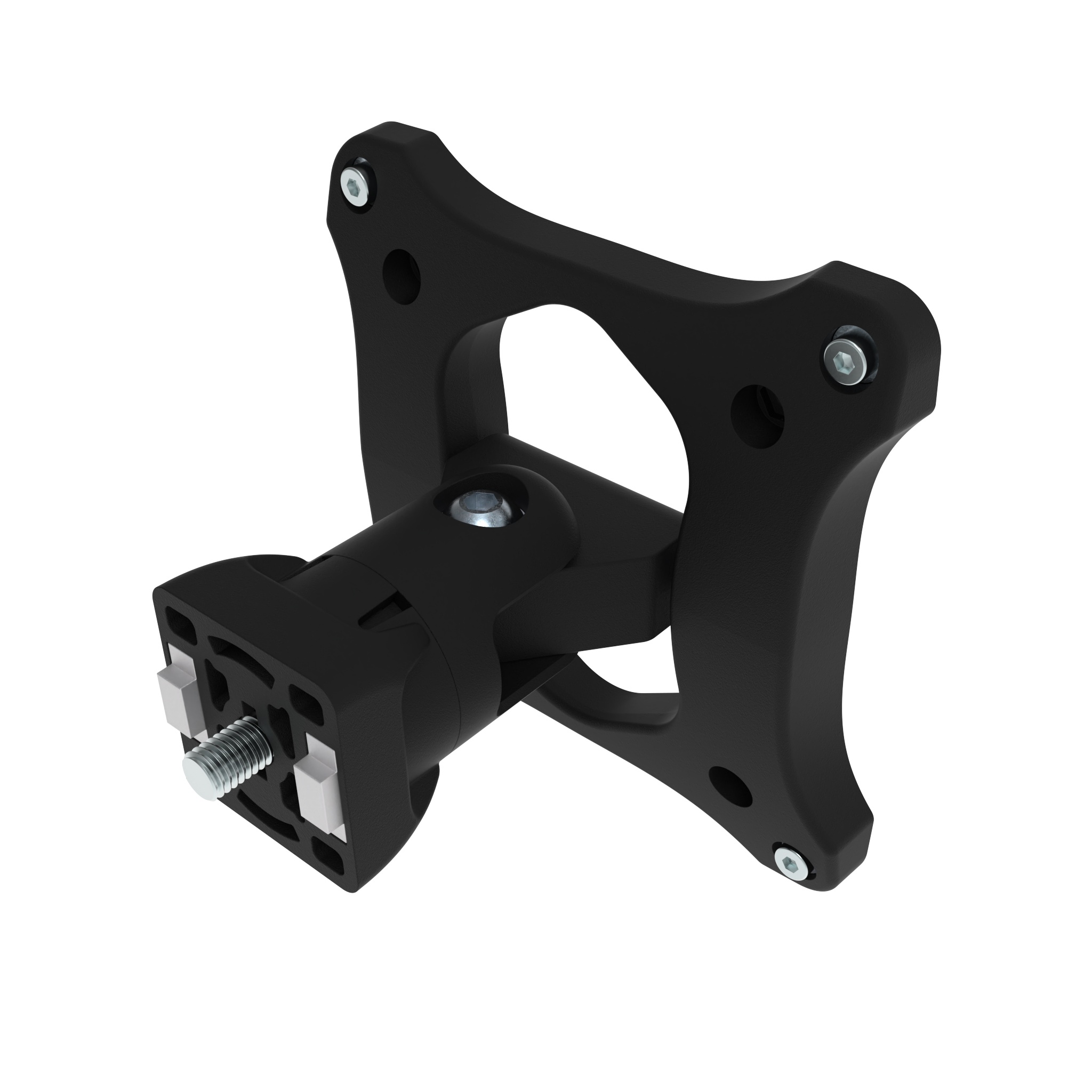

- Monitor support FX for Profile 40 / 45, Slot 8 / 10

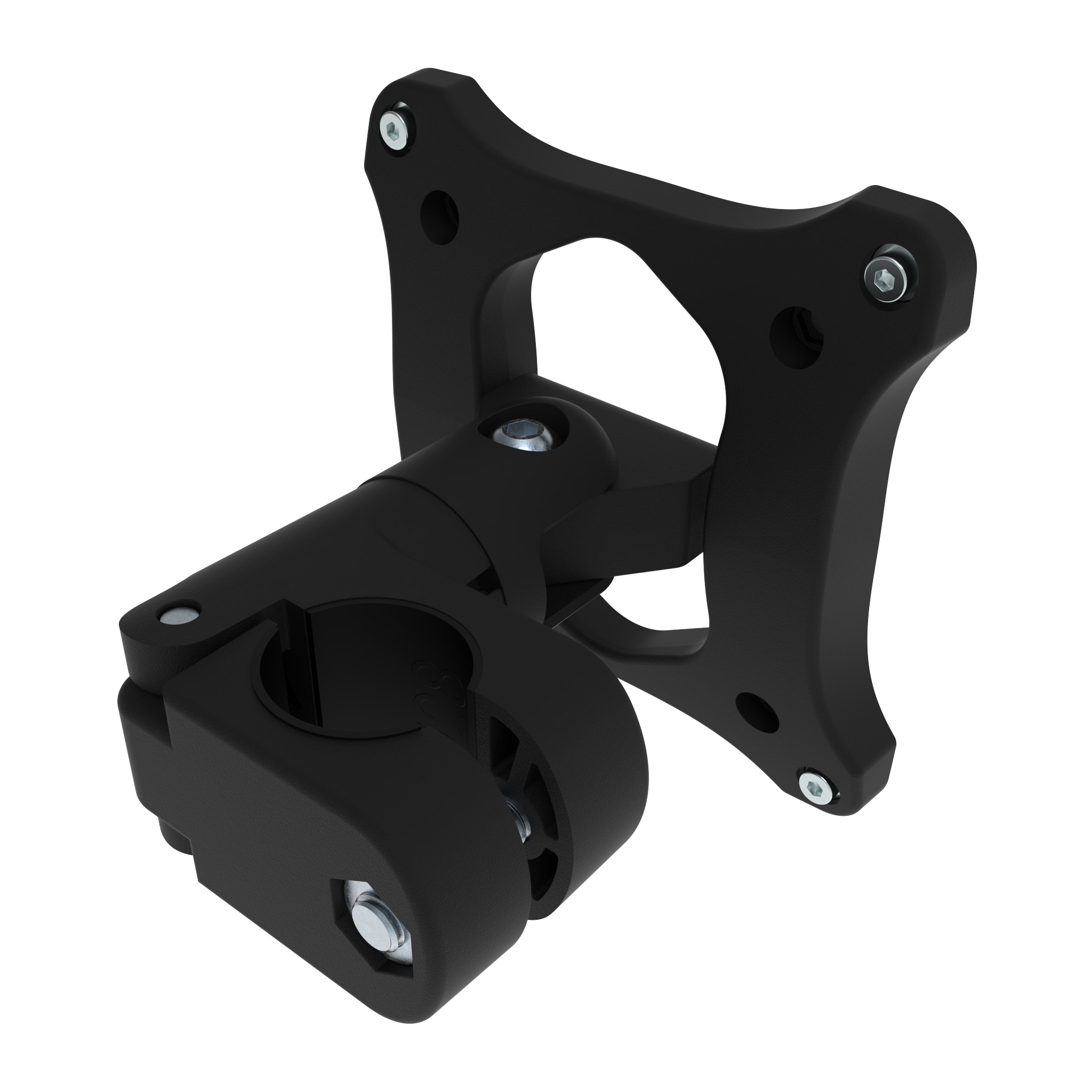

- Monitor support FX for round tubes D28 / D30

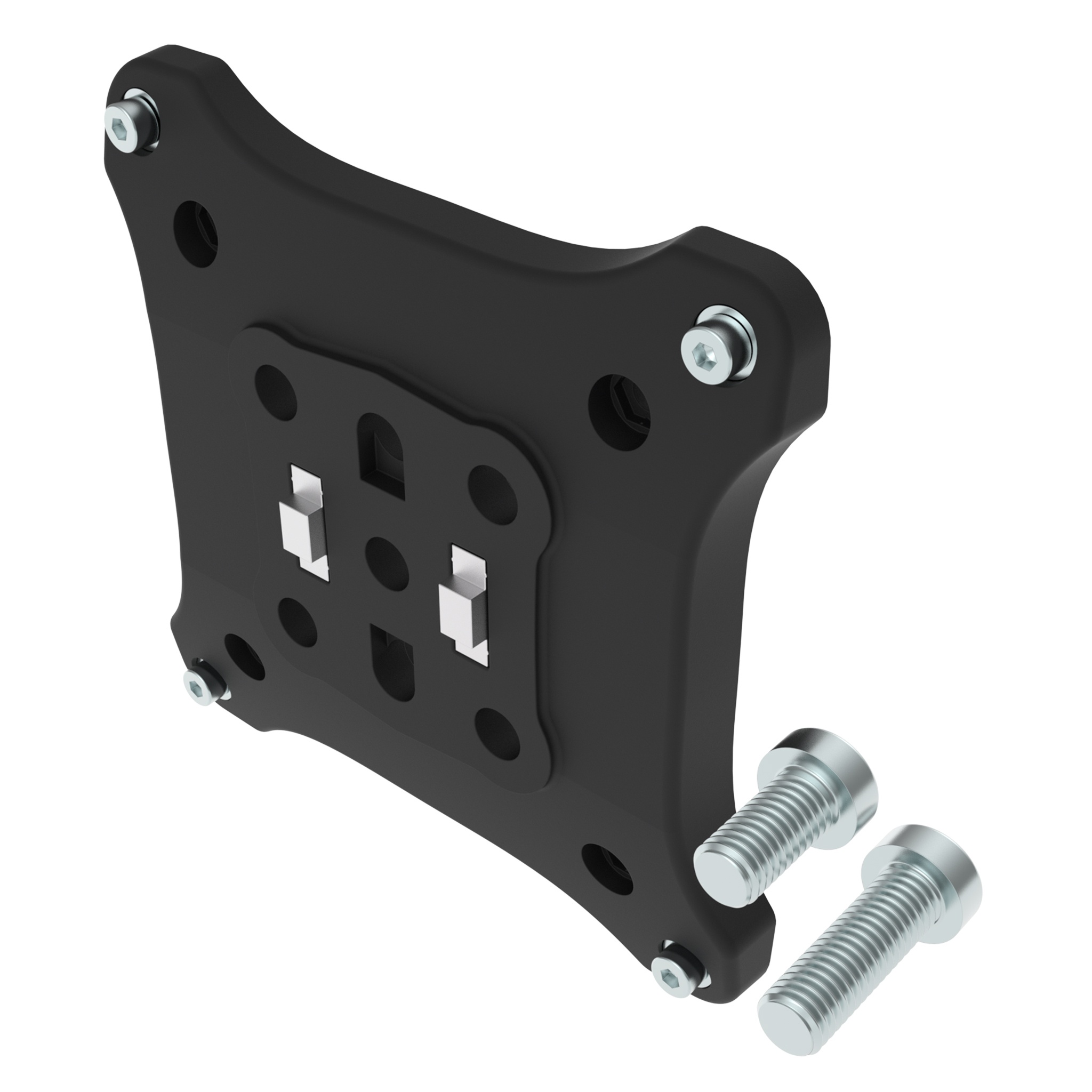

- Monitor holder VESA for direct mounting for profile 40/45, Slot 8 / 10
Description:To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible, can be adjusted horizontally and vertically for optimum visibilityMaterial:Monitor bracket: Plastic PA, glass fiber reinforced Articulation piece: Plastic PA, glass fiber reinforced Centering piece: Plastic PA, glass fiber reinforced Mounting material: SteelSurface:Mounting material: Zinc platedColor:Monitor bracket: Black Articulation piece: Gray Centering piece: PlainTip:Compatible Adapter Plate see 061SAP40HTip 2:Mounting with the articulation piece oriented horizontally is recommended to prevent the holder from twisting when using heavy monitors or when adjusting the viewing angle.Especiales:Otros colores, otros tamaños bajo pedidoPaíses de Entrega:En todo el mundo
Description:To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible, can be adjusted horizontally or vertically for optimum visibility, can be fixed with KIPP locking lever at any angle; with separate locating pins for slot 8 and slot 10Material:Monitor mounting plate: Plastic PA, glas fiber reinforced Pivot joint: Zinc die-cast KIPP locking lever: Plastic PA, glas fiber reinforcedSurface:Pivot joint: LaqueredColor:Monitor mounting plate: Black Pivot joint: Alu colored Locking lever: BlackSet 1:1 monitor mounting plate 1 assembly set for monitor: 4 cylinder head screws M4 x 12, 4 washers 1 pivot joint 40 with locking lever 1 assembly set for profile: 1 screw M8 x 25 (frontal), 1 screw M8 x 16 (lateral), 2 locating pinsSet 2:1 monitor mounting plate 1 assembly set for monitor: 4 cylinder head screws M4 x 12, 4 washers 1 pivot joint 45 with locking lever 1 assembly set for profile: 1 screw M8 x 25 (frontal), 1 screw M8 x 16 (lateral), 2 locating pins 1 cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8Tip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Especiales:Otros colores bajo pedidoPaíses de Entrega:En todo el mundo
Description:To fix flat screens to tubes or tubular frame profiles, VESA MIS-D 75/100 compatible, can be adjusted horizontally and vertically for optimum visibility, 360° rotatableMaterial:Monitor holder: Plastic PA, glass fiber reinforced Holder FX: Plastic PA, glass ball reinforced with carbon Rotating adapter: Steel, plastic PA glass fiber reinforced Spring: Spring steel SS313 Screw: Steel Nut: Steel Washers: SteelSurface:Screw: Zinc plated Nut: Zinc plated Washers: Zinc platedColor:Monitor holder: Black Holder FX: Black Rotating adapter: BlackTip:Mounting on vertical tubes or tubular frame profiles is recommended to prevent the holder from twisting when using heavy monitors or when adjusting the viewing angle.Países de Entrega:En todo el mundo
Description:To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible, can be adjusted horizontally and vertically for optimum visibility, 360° rotatableMaterial:Monitor holder: Plastic PA, glass fiber reinforced Holder FX: Plastic PA, glass fiber reinforced Rotating adapter: Steel, plastic PA glass fiber reinforced Spring: Spring steel SS313 Screw: Steel Nut: Steel Washers: Steel Centering piece: Die-cast zincSurface:Screw: Zinc plated Nut: Zinc plated Washers: Zinc platedColor:Monitor holder: Black Holder FX: Black Rotating adapter: BlackPaíses de Entrega:En todo el mundo
Description:To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible; with separate locating pins for slot 8 and slot 10Material:Monitor mounting plate: Plastic PA, glass fiber reinforcedColor:Monitor mounting plate: BlackSet:1 monitor mounting plate 1 assembly set for monitor: 4 cylinder head screws M4x12, 4 washers assembly set for profile: M8x25 frontal and M8x16 slot side, 2 centering piecesTip:Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801Especiales:Otros colores bajo pedidoPaíses de Entrega:En todo el mundo
ACCESSORIES

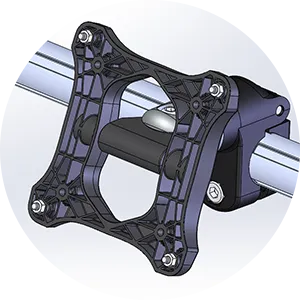

Friction adapter for VESA monitor support FX system
The friction adapter for the FX system provides stable and flexible fastening of VESA MIS-D 75/100 monitors. Compatible with the monitor mount FX for round tubes D28/D30 and Profile 40 / 45 (Slot 8 / 10), it can be easily adjusted and precisely positioned – ideal for ergonomic workplaces.
