Door Stop with Magnetic Catch (Set)

Fuerza de cierre (N): 30 Ranura N (mm): 8 / 10

Color:Door stop: Black Fixation element: BlackPaíses de Entrega:En todo el mundoDescription:Easy to mount stop for doors and flapsMaterial:Door stop: Plastic PA, glass fiber reinforced Magnet: Neodym Counter Plate: Steel Locating pin: Zinc die-cast Screws: Steel Fixation element: Plastic PA, glass fiber reinforcedSet:1 Door stop 1 Counter Plate 1 Locating pin 2 Screws DIN EN ISO 10642 (DIN 7991) - M5 x 14, 1 Fixation elementEspeciales:Otros colores bajo pedidoSurface:Magnet: Plain Counter Plate: Zinc plated Locating pins: Plain Screws: Zinc plated

0,00 €

Double Ball Catch MS

A1 (mm): 49.0 A2 (mm): 29.5 B1 (mm): 8.8 B2 (mm): 7.9 C1 (mm): 40.0 C2 (mm): 20.0 D1 (mm): 13.0 D2 (mm): 10.8 Tornillo: M3

Color:CromoPaíses de Entrega:En todo el mundoDescription:Quick catch for doors, adjustable clamping force, 2 possible positions (sideways / from the front)PFA_Fastening:Por delante, con tornillos avellanadosMaterial:Body: Brass Threaded pin: Steel Spring: Stainless steel Ball: Stainless steelSuperficie:Cromado chapado

0,00 €

Double Ball Catch PA

Color: Gris ≈ RAL 7004 ESD: - Fuerza de cierre (N): 25

Color:Negro, grisPaíses de Entrega:En todo el mundoDescription:A quick locking device for doors and flaps with and without framePFA_Fastening:Usando tornillos M5Material:Housing standard version: Plastic PA, glass fibre reinforced Housing ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Ball: Stainless steel Bushing: Steel, zinc platedEspeciales:Otros colores bajo pedido

0,00 €

Double Bearing Unit 2 Rollers Centric Shaft Ø 14

Profile: I

Países de Entrega:En todo el mundoDescription:To build sliding carriages To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm Completely pre-assembled from roller profile I slot 8Material:Roller: Steel Screws: Steel Washers: Steel Tension pins: Steel Profile: AluminumSurface:Roller: Zinc plated Screws: Zinc plated Washers: Zinc plated Tension pins: Zinc plated Profile: AnodizedTip:Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01

0,00 €

Double Bearing Unit 2 Rollers Eccentric Shaft Ø 14

Profile: I

Países de Entrega:En todo el mundoDescription:To build sliding carriages To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm Completely pre-assembled from roller profile I slot 8 To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washerMaterial:Roller: Steel Screws: Steel Excentric screw: Steel Adjusting washer: Steel Washers: Steel Tension pins: Steel Profile: AluminumSurface:Roller: Zinc plated Screws: Zinc plated Excentric screw: Zinc plated Adjusting washer: Zinc plated Washers: Zinc plated Tension pins: Zinc plated Profile: AnodizedTip:Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01

0,00 €

Double System Arm I40H 695 (Set)

Fig.: ① Juego: Conjunto 1 Profile: I Version: With Friction Joint

Color:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Monitor mount: BlackPaíses de Entrega:En todo el mundoDescription:Stable double pivot arm with a reach of approximately 695 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Monitor mount: Plastic PA, glas fiber reinforcedSet 1:1 double system arm I40H 695 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 double system arm I40H 695 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 double system arm I40H 695 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 4:1 double system arm I40H 695 with monitor mount 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8 1 assembly set for monitor: 4 cylinder head screws M4 x 12, 4 washersSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc plated

0,00 €

Double System Arm I40L 695 (Set)

Fig.: ④ Juego: Set 4 Profile: I Version: With Monitor Mount

Color:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu color Monitor mount: BlackPaíses de Entrega:En todo el mundoDescription:Stable double pivot arm with a reach of approximately 695 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: Steel Monitor mount: Plastic PA, glas fiber reinforcedSet 1:1 double system arm I40L 695 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 double system arm I40L 695 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 double system arm I40L 695 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 4:1 double system arm I40L 695 with monitor mount 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 2 washers 8-FSt, 2 centering plates, 2 T-slot nuts - slot 8 - M8 1 assembly set for monitor: 4 cylinder head screws M4 x 12, 4 washersSurface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc plated

0,00 €

Double System Arm I80H 695 (Set)

Fig.: ③ Juego: Conjunto 3 Profile: I Version: With Double Friction Joint

Color:Arm: Alu color Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorPaíses de Entrega:En todo el mundoDescription:Stable double pivot arm with a reach of approximately 695 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Arm: Aluminum Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet 1:1 double system arm I80H 695 with friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 2:1 double system arm I80H 695 with end friction joint 2 cover cap 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side), 2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Set 3:1 double system arm I40H 695 with double friction joint 3 cover caps 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side), 3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side), 3 washers 8-FSt, 3 centering plates, 3 T-slot nuts - slot 8 - M8Surface:Arm: Anodized Housing: Powder coated Screws: Zinc plated Washers: Zinc plated Centering plates: Powder coated T-slot nuts: Zinc plated

0,00 €

Double-decker Dolly for SLC 600 x 400, with 4 Swivel Casters

Collor de rodillo: Negro ESD: ESD Roscado de rueda giratoria: Plástico PP

Color:Caster: See tablePaíses de Entrega:En todo el mundoDescription:For highest flexibility for inner company material supply Fits non-stackable SLC and euro containerMaterial:Dolly frame: Steel Roller housing: Steel Caster: See table Screws: SteelSuperficie:Galvanizado

0,00 €

Drill / Driver Holder FX D50 for Profile 40 / 45, Slot 8 / 10

Color: Negro

Color:Holder: Black, gray Centering piece: BlackPaíses de Entrega:En todo el mundoDescription:Ready to use tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: Steel Centering piece: Plastic PA, glass fibre reinforcedEspeciales:Otros colores bajo pedidoSurface:Screw: Zinc plated Nut: Zinc plated

0,00 €

Drill / Driver Holder FX D50 for Square Holes 9 x 9 (8.7 x 8.7)

Color: Negro Fig.: ①

Color:Rear mounting holder: Black, gray Front locking adapter: Black, gray Drill / driver holder: Black, grayPaíses de Entrega:En todo el mundoDescription:Ready to use tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for perforated metals up to 1.4 mm thick; To organize workstations, with labeling area for standard labelsMaterial:Rear mounting holder black version: Plastic PA, carbon fibre reinforced Rear mounting holder gray version: Plastic PA, glass fibre reinforced Front locking adapter: Plastic PA, glass ball reinforced Drill / driver holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelSpecials:Other colors on request, For other sheet metal thicknesses on requestSurface:Screw: Zinc plated Nut: Zinc platedTip:For profiles 40 / 45, slot 8 / 10 see 6TM840NL12591S01 For round tubes D28 / D30 see 6TM8D283L12591S01

0,00 €

Drill / Driver Holder FX D50 for Tubes D28 / D30

Color: Negro

Color:Holder: Black, grayPaíses de Entrega:En todo el mundoDescription:Ready to use tool Drill / Driver Holder for a wide range of standard cordless screwdrivers, 360° turnable, for aluminum profiles; To organize workstationsMaterial:Holder: Plastic PA, glass ball reinforced Spring: Spring steel SS313 Screw: Steel Nut: SteelEspeciales:Otros colores bajo pedidoSurface:Screw: Zinc plated Nut: Zinc plated

0,00 €

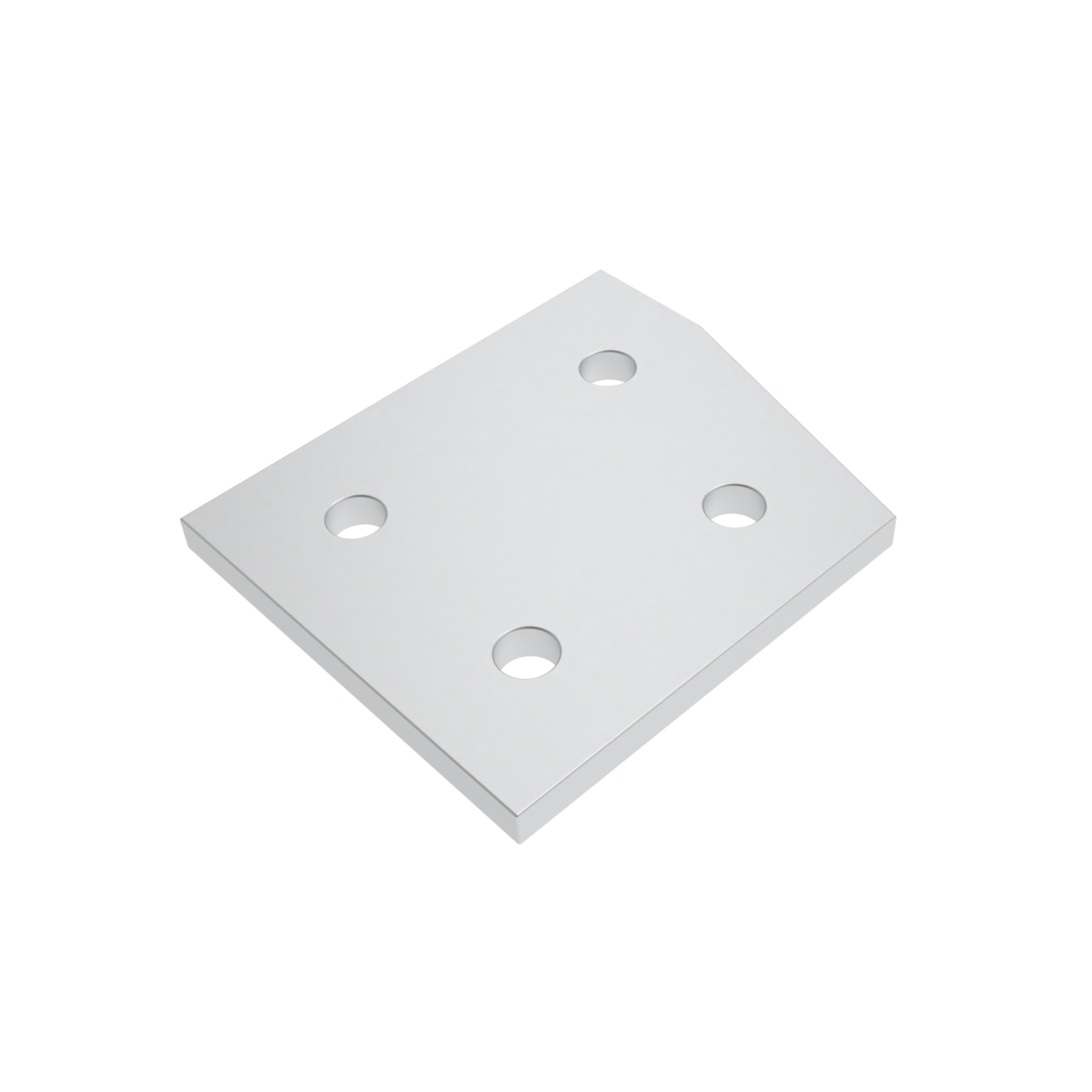

ECO Connection Plate AL 15° 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 76.2 (3") H (mm): 6.35 (0.25") K (mm): 23.98 (0.94") K (mm): 74.9 (2.94") L (mm): 88.9 (3.5") Version: 76.2 / 88.9 - 3" / 3.5" ØD (mm): 9.0 (0.35")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €

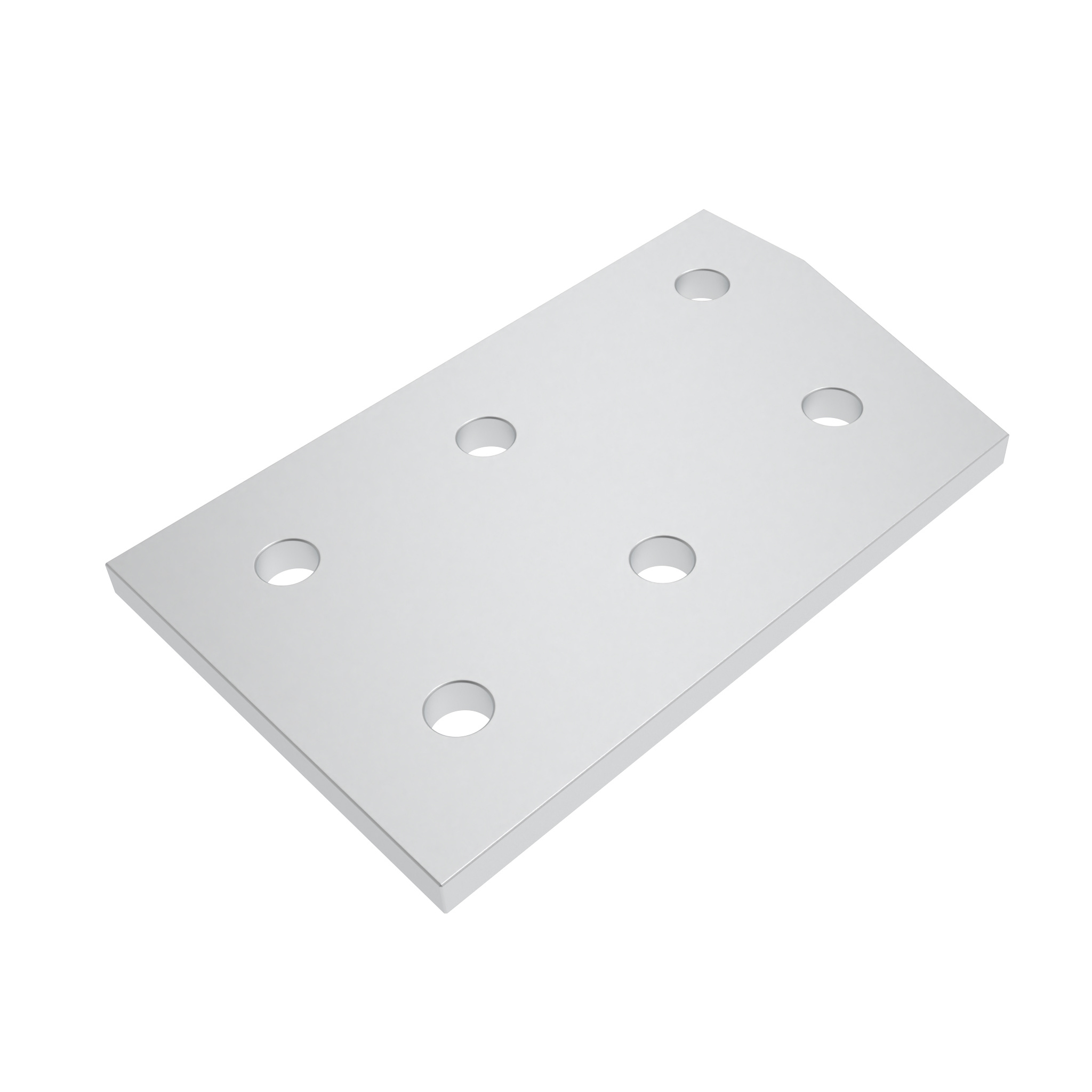

ECO Connection Plate AL 15° 6 Hole, 1 Slot x 2 Slots Version

A (mm): 38.1 (1.5") B (mm): 76.2 (3") H (mm): 6.35 (0.25") K (mm): 113.0 (4.44") K (mm): 23.98 (0.94") L (mm): 127 (5") Version: 76.2 / 127 - 3" / 5" ØD (mm): 9.0 (0.35")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €

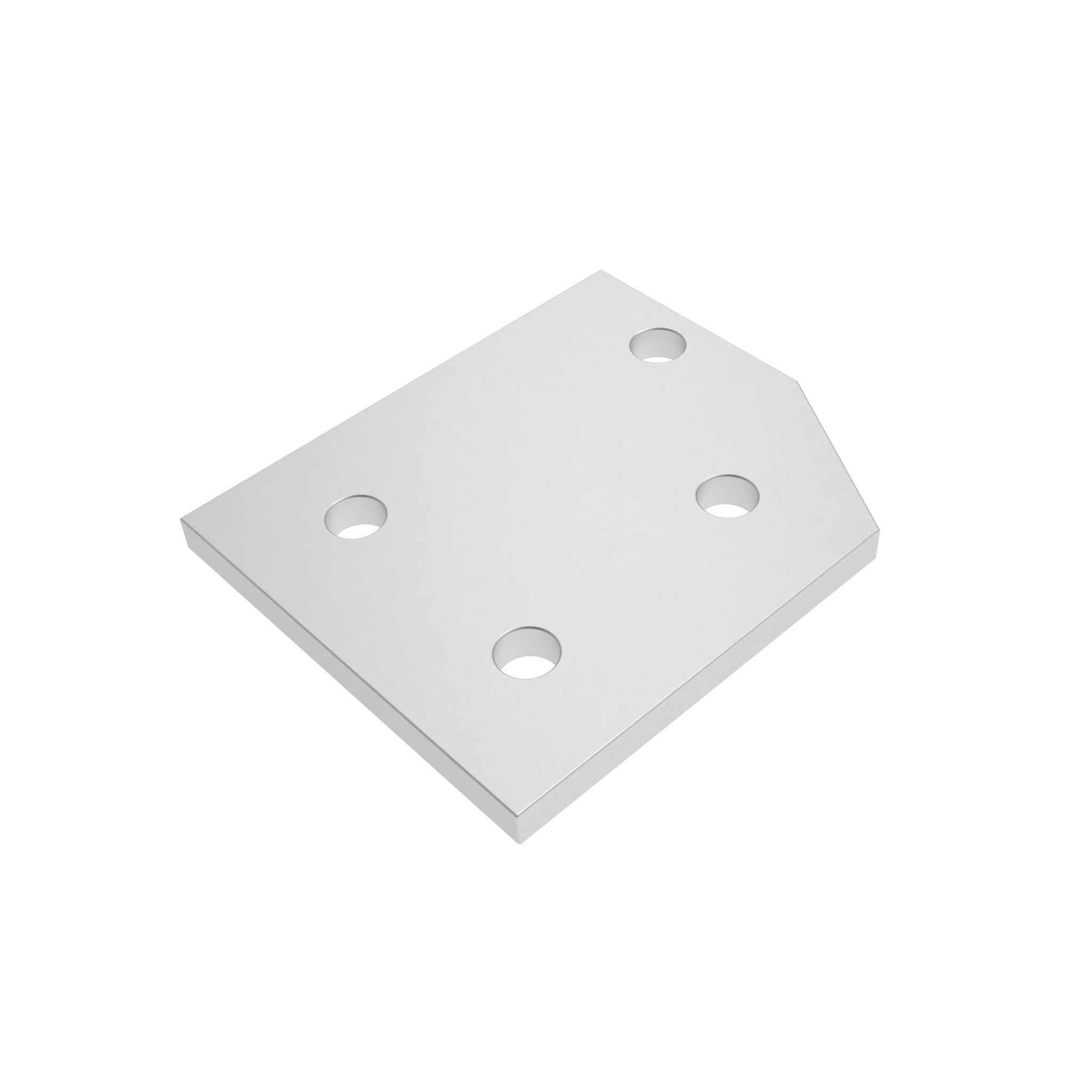

ECO Connection Plate AL 30° 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 76.2 (3") H (mm): 6.3 (0.25") K (mm): 45.36 (1.78") K (mm): 71.09 (2.79") L (mm): 88.9 (3.5") Version: 76.2 / 88.9 - 3" / 3.5" ØD (mm): 9.0 (0.35")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €

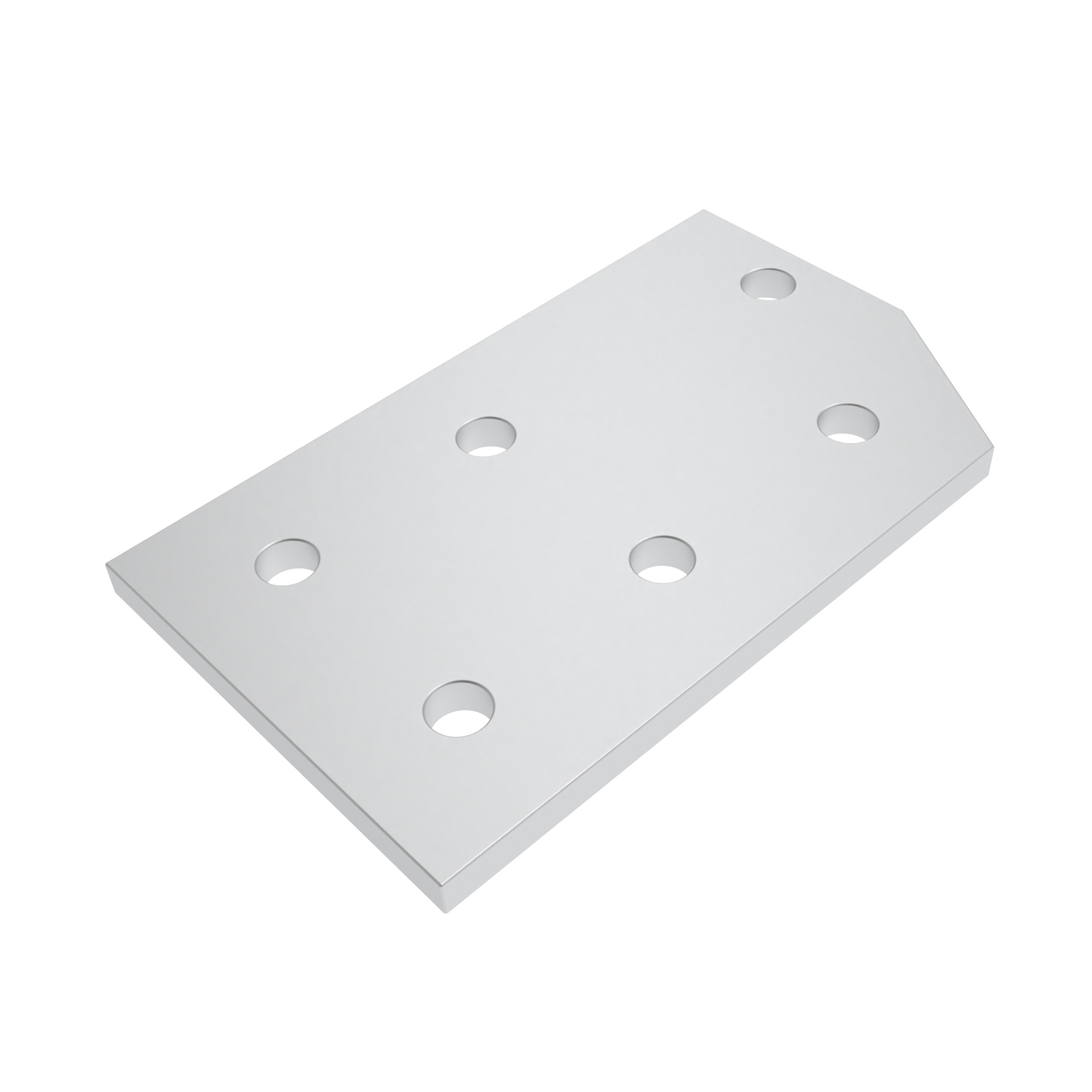

ECO Connection Plate AL 30° 6 Hole, 1 Slot x 2 Slots Version

A (mm): 38.1 (1.5") B (mm): 76.2 (3") H (mm): 6.35 (0.25") K (mm): 44.86 (1.76") K (mm): 109.19 (4.29") L (mm): 127 (5") Version: 76.2 / 127 - 3" / 5" ØD (mm): 8.89 (0.35")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €

ECO Connection Plate AL 45° 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 76.2 (3") H (mm): 6.3 (0.25") K (mm): 25.95 (1.06") K (mm): 65.05 (2.56") L (mm): 114.3 (4.5") Version: 76.2 / 114.3 - 3" / 4.5" ØD (mm): 9.0 (0.35")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €

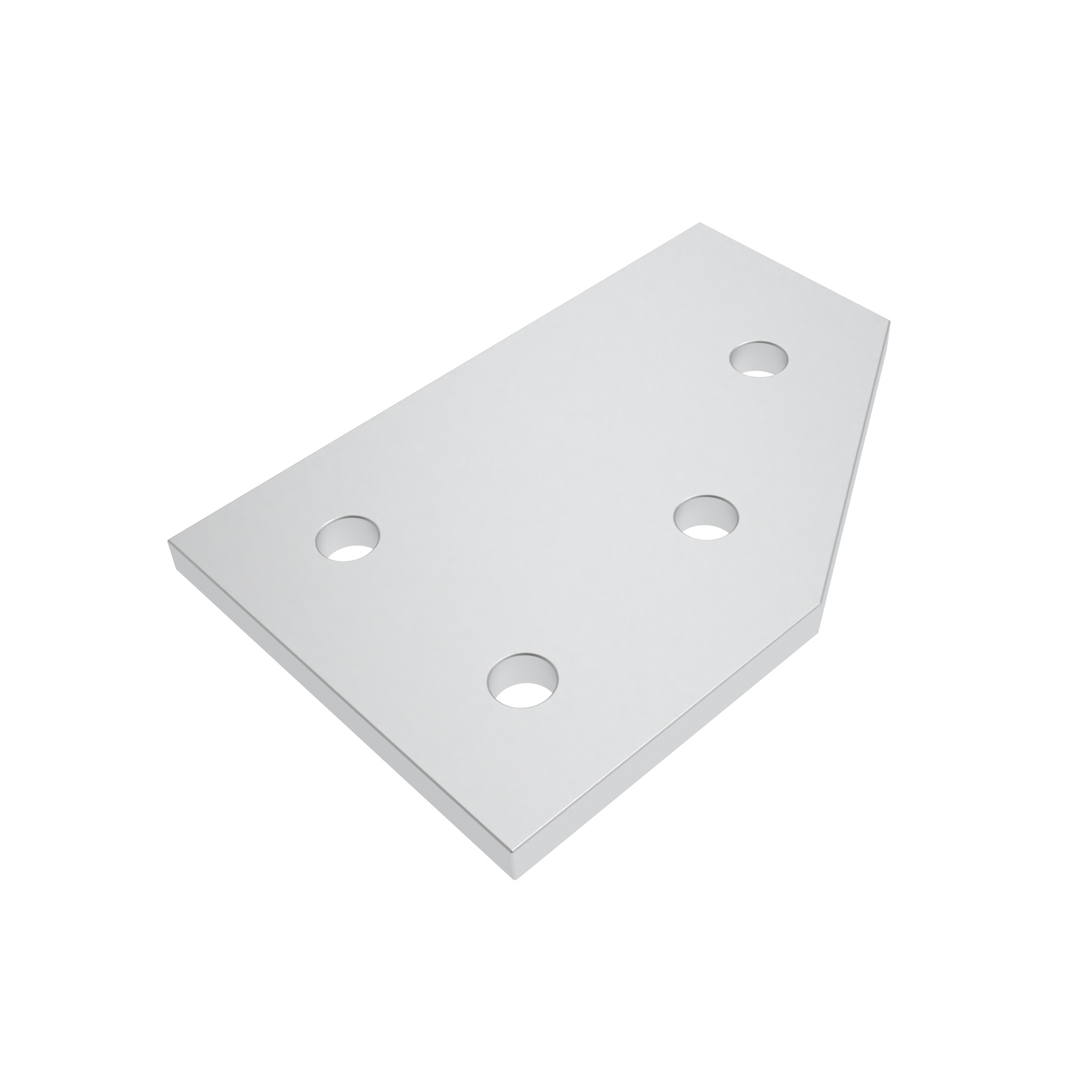

ECO Connection Plate AL 60° 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 76.2 (3") H (mm): 6.35 (0.25") K (mm): 43.21 (1.7") K (mm): 57.15 (2.25") L (mm): 114.3 (4.5") Version: 76.2 / 114.3 - 3" / 4.5" ØD (mm): 9.0 (0.35")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €

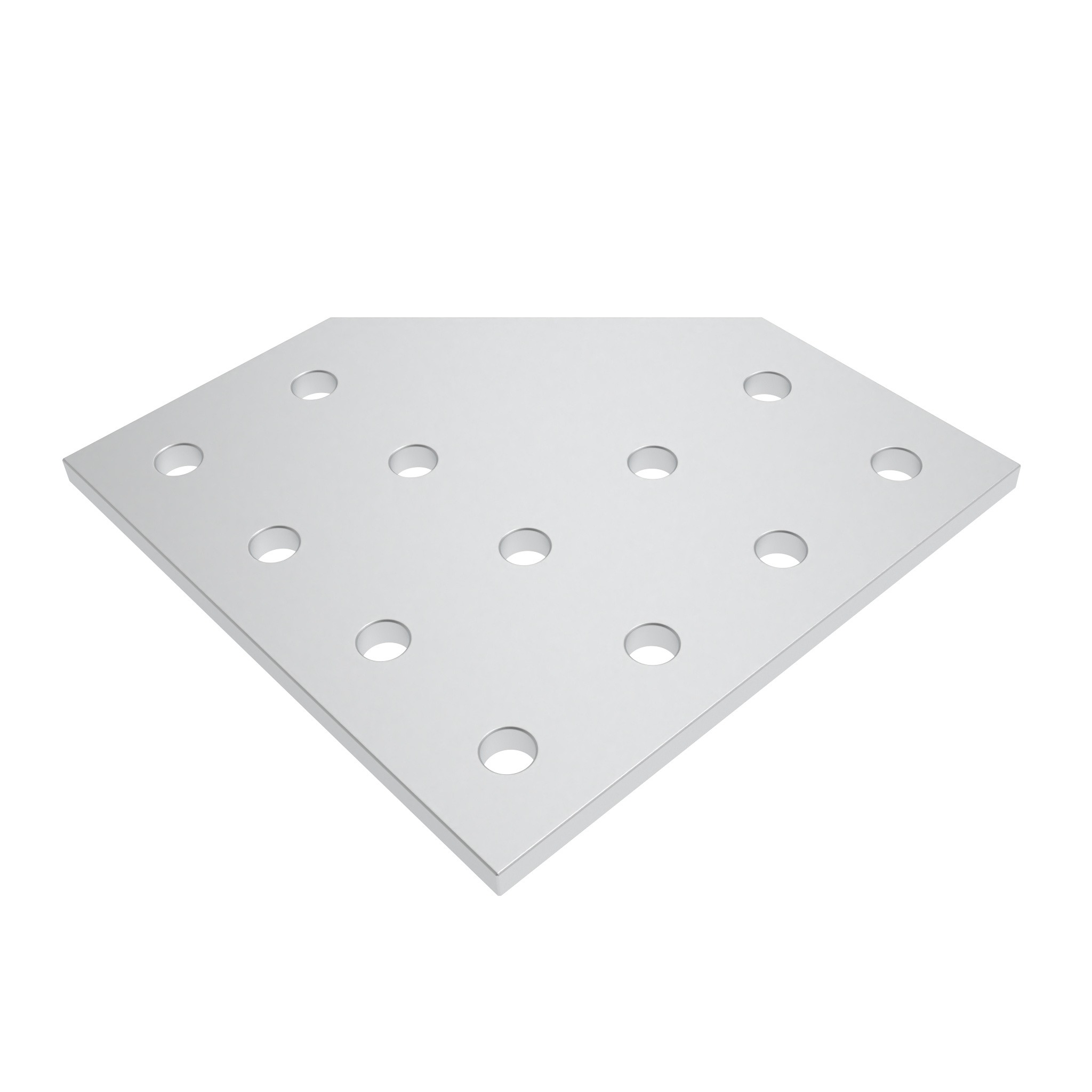

ECO Connection Plate AL L 12 Hole, 2 Slots Version

A (mm): 25.4 (1") B (mm): 101.6 (4") H (mm): 4.8 (0.19") K (mm): 51.0 (2.00") L (mm): 101.6 (4") Version: 102 / 102 - 4" / 4" ØD (mm): 7.0 (0.27")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €

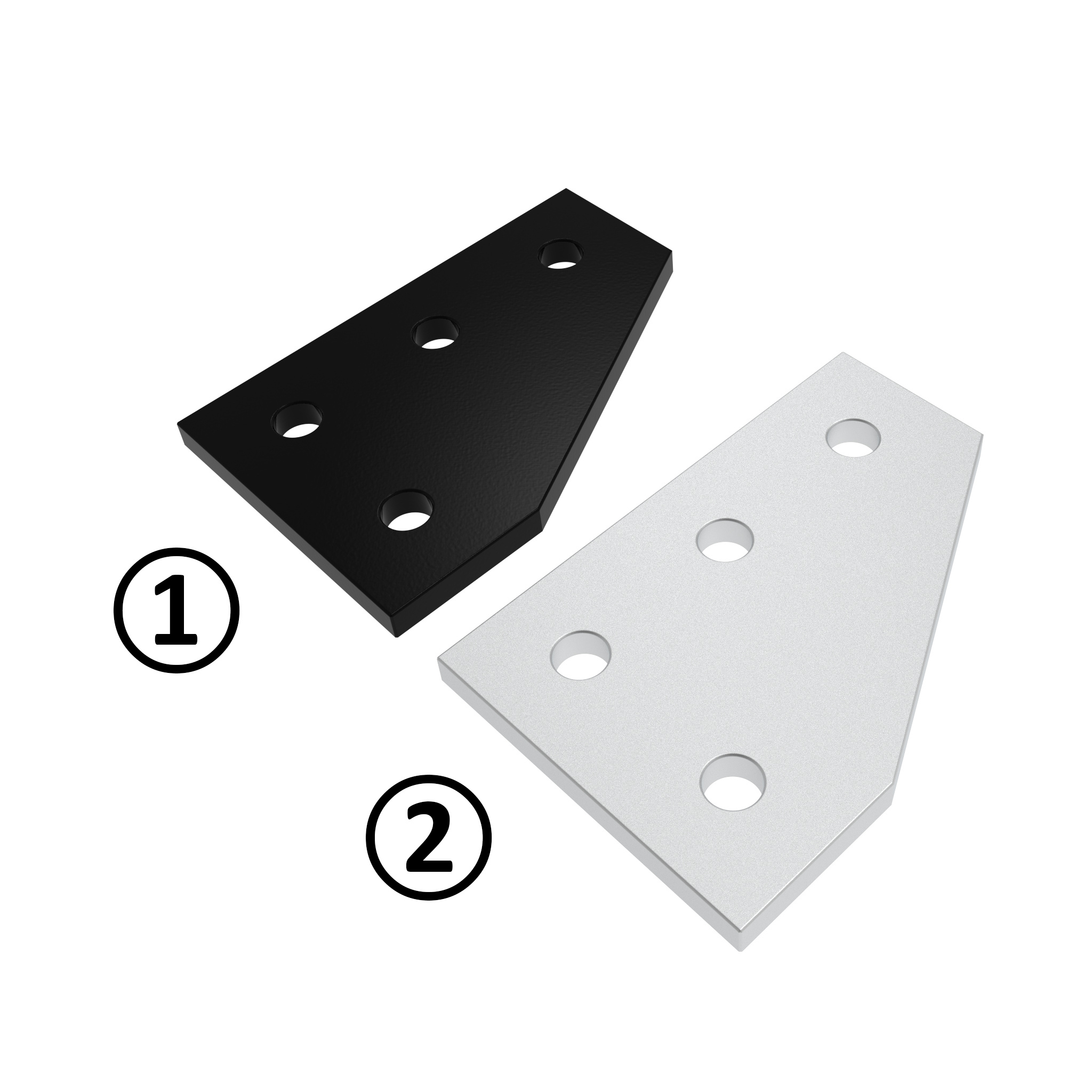

ECO Connection Plate AL L 4 Hole, 1 Slot Version

A (mm): 38.1 (1.5") B (mm): 76.2 (3") Color: - Fig.: ② H (mm): 6.35 (0.25") K (mm): 38.0 (1.49") L (mm): 114.3 (4.5") Superficie: Anodizado Version: 76.2 / 114.3 - 3" / 4.5" ØD (mm): 9.0 (0.35")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €

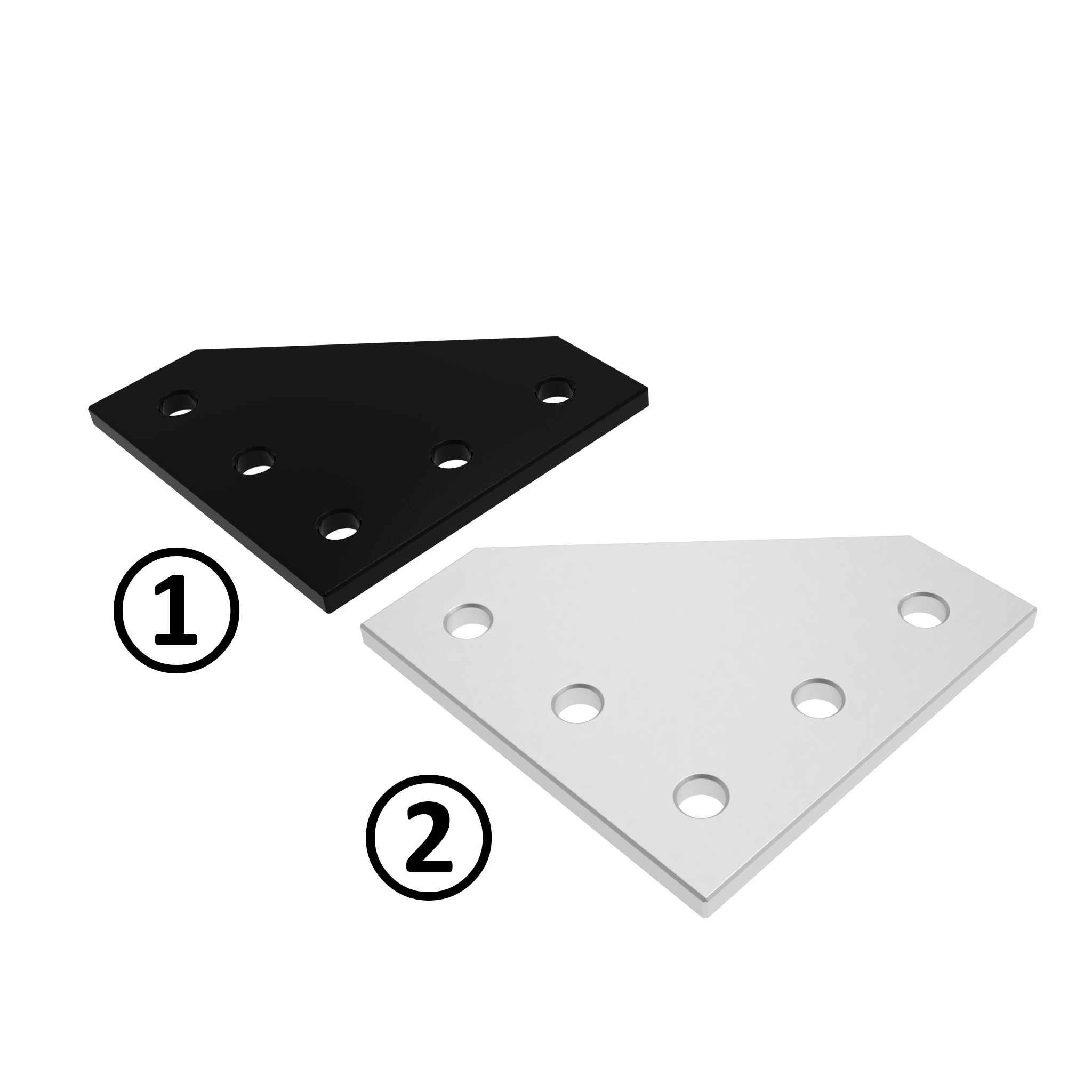

ECO Connection Plate AL L 5 Hole, 1 Slot Version

A (mm): 25.4 (1") B (mm): 76.2 (3") Color: Negro Fig.: ① H (mm): 4.8 (0.19") K (mm): 25.0 (0.98") L (mm): 76.2 (3") Superficie: Polvo cubierto Version: 76.2 / 76.2 - 3" / 3" ØD (mm): 7.0 (0.27")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €

ECO Connection Plate AL L 5 Hole, 1 Slot Version Light

A (mm): 25.4 (1") B (mm): 76.2 (3") Color: Negro Fig.: ① H (mm): 4.8 (0.19") K (mm): 25.0 (0.98") L (mm): 76.2 (3") Superficie: Polvo cubierto Version: 76.2 / 76.2 - 3" / 3" ØD (mm): 7.0 (0.27")

Color:NegroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Polvo cubierto / anodizado

0,00 €

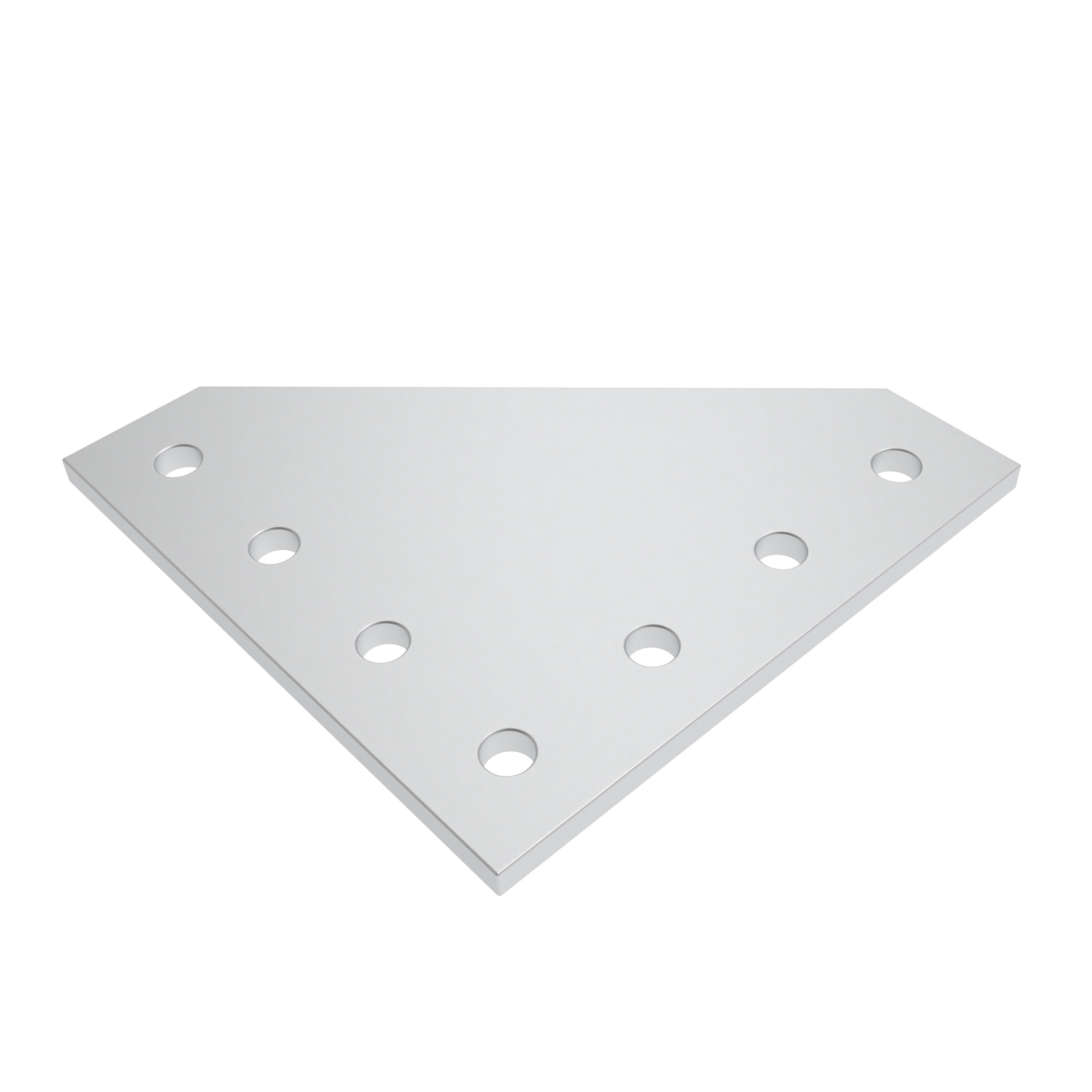

ECO Connection Plate AL L 7 Hole, 1 Slot Version

A (mm): 25.4 (1") B (mm): 101.6 (4") H (mm): 4.8 (0.19") K (mm): 25.0 (0.98") L (mm): 101.6 (4") Version: 102 / 102 - 4" / 4" ØD (mm): 7.0 (0.27")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €

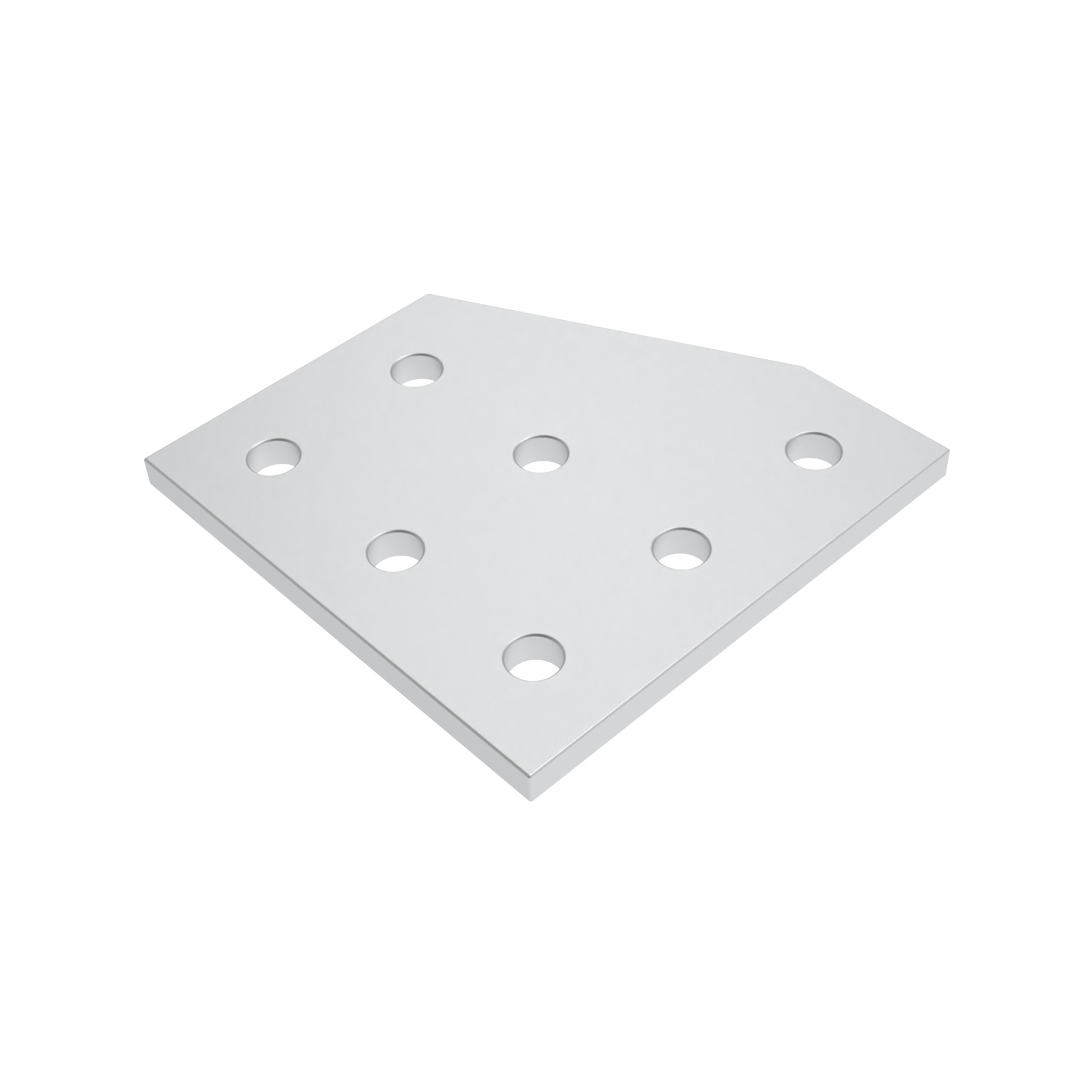

ECO Connection Plate AL L 7 Hole, 1 Slot x 2 Slots Version

A (mm): 25.4 (1") B (mm): 76.2 (3") H (mm): 4.8 (0.19") K (mm): 25.0 (0.98") K (mm): 51.0 (2") L (mm): 76.2 (3") Version: 76.2 / 76.2 - 3" / 3" ØD (mm): 7.0 (0.27")

Países de Entrega:NorteaméricaDescription:To connect two aluminum profilesMaterial:AluminioSuperficie:Anodizado

0,00 €
