Productos

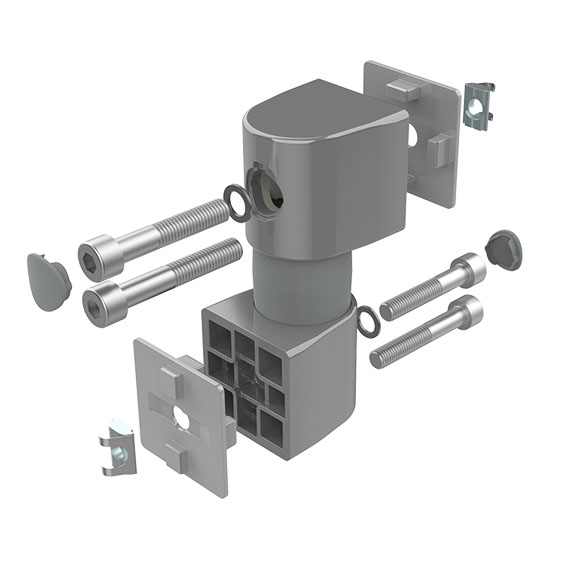

Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorPaíses de Entrega:En todo el mundoDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 3 cover caps 3 screws DIN 912 - M8 x 45 (for T-slot nut) 3 screws DIN 912 - M8 x 50 (for core hole) 3 washers 8-FSt 3 centering plates 3 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated

Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorPaíses de Entrega:En todo el mundoDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 2 cover caps 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 2 washers 8-FSt 2 centering plates 2 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated

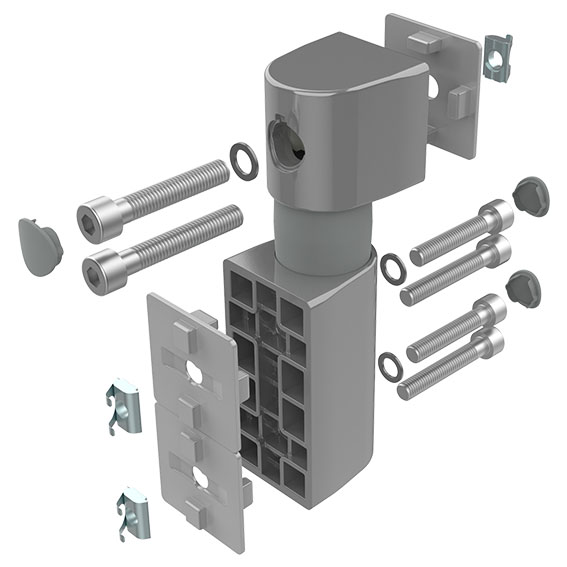

Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorPaíses de Entrega:En todo el mundoDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 4 cover caps 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut) 4 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole) 4 washers 8-FSt 4 centering plates 4 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated

Color:Housing: Alu color Cover ring: Gray ≈ RAL 7042 Cover caps: Gray ≈ RAL 7042 Centering plates: Alu colorPaíses de Entrega:En todo el mundoDescription:Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; Friction joint can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)Material:Housing: Aluminum die-cast Cover ring: Plastic Inserts: Steel Friction shaft: Steel Cover caps: Plastic Screws: Steel Washers: Steel Centering plates: Aluminum die-cast T-slot nuts: SteelSet:1 friction joint 3 cover caps 3 screws DIN 912 - M8 x 45 (for T-slot nut) 3 screws DIN 912 - M8 x 50 (for core hole) 3 washers 8-FSt 3 centering plates 3 T-slot nuts - slot 8 - M8Surface:Housing: Powder coated Centering plates: Powder coated Screws: Zinc plated Washers: Zinc plated T-slot nuts: Zinc plated

Color:NegroPaíses de Entrega:En todo el mundoDescription:To mount on doors, flaps and aluminum profilesPFA_Fastening:Por delante, con tornillos avellanadosMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Descarga electrostática ESD, otros tamaños, otros colores bajo pedido

Color:Rojo / blanco / negroPaíses de Entrega:En todo el mundoDescription:For fast and reliable safety marking according to ASR A1.3 / DIN EN ISO 7010, self-adhesive; Easy recognition from long distance; Forklift-resistant and slip-proof floor sign with outstanding adhesive strength, suitable for almost all industrial floorsFastening:Self-adhesive surface on the backsideMaterial:Plástico PVC

Color:Azul / blanco / negroPaíses de Entrega:En todo el mundoDescription:For fast and reliable safety marking according to ASR A1.3 / DIN EN ISO 7010, self-adhesive; Easy recognition from long distance; Forklift-resistant and slip-proof floor sign with outstanding adhesive strength, suitable for almost all industrial floorsFastening:Self-adhesive surface on the backsideMaterial:Plástico PVC

Color:Azul / blanco / negroPaíses de Entrega:En todo el mundoDescription:For fast and reliable safety marking according to ASR A1.3 / DIN EN ISO 7010, self-adhesive; Easy recognition from long distance; Forklift-resistant and slip-proof floor sign with outstanding adhesive strength, suitable for almost all industrial floorsFastening:Self-adhesive surface on the backsideMaterial:Plástico PVC

Color:Color aluPaíses de Entrega:En todo el mundoDescription:To fix glass and other panelsMaterial:Zinc fundido a presiónSet:1 glass panel clamp, 1 screw M5 x 16, 5 rubber pads for panels 2 - 9 mmEspeciales:Otras superficies, otros colores bajo pedidoSuperficie:Polvo cubierto

Color:PA, grisPaíses de Entrega:En todo el mundoDescription:To insert panels with 2.0 to 8.0 mm thickness subsequently into assebled structuresMaterial:Plástico PP + TPEConsejo:Observación: ¡Está realizando el pedido en metros!Tip 2:For a complete insert profile a suitable support strip I AL is required.

Color:NegroPaíses de Entrega:En todo el mundoDescription:To store and provide small parts; simple assembly by swiveling into the profile slot, optional fixation possibility using 1 or 2 screws M5Material:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido

Color:Grab container: Black Label window: Transparent (colorless)Países de Entrega:En todo el mundoDescription:To store and provide small parts; simple assembly by swiveling into the suspension profile, optional adapter allows for horizontally pivoting fixation; the clearly visible label area enables secure parte identification; stackableMaterial:Grab container standard version: Plastic PA, glass fiber reinforced Grab container ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Label window: Plastic PC Label: Carton 250 g/m²Set:1 grab container, 1 label window, 1 labelEspeciales:Otros colores bajo pedidoTip:Compatible Swivel Adapter for Profile Slot see 061MA2291NS01

Color:Grab tray: Black, yellow, red, blue, green, gray Label window: Transparent (colorless)Países de Entrega:En todo el mundoDescription:To provide hardware and small parts on sorting area for selective grabbing of smallest components; simple assembly by swiveling into the profile slot; the clearly visible label area enables secure part identificationMaterial:Grab tray standard version: Plastic PA, glass fiber reinforced Grab tray ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced Label window: Plastic PC Label: Carton 250 g/m² Bumper: Plastic PU, ≈ 65-70 Shore ASet:1 grab tray, 1 label window, 1 label, 4 bumper, self-adhesiveEspeciales:Otros colores bajo pedido

Color:Grab tray: Black, yellow, red, green, gray Label window: Transparent (colorless)Países de Entrega:En todo el mundoDescription:To provide hardware and small parts on sorting area for selective grabbing of smallest components; simple assembly by swiveling into the suspension profile or grid plate; the clearly visible label area enables secure part identificationMaterial:Versión estándar: Plástico PA, reforzado con bolas de vidrio Versión de descarga electrostática ESD: Plástico PA, reforzado con fibra de carbonoSet:1 grab tray, 1 label window, 1 label, 4 bumper, self-adhesiveEspeciales:Otros colores bajo pedido

Color:Cover caps: BlackPaíses de Entrega:En todo el mundoDescripción:Para conectar eléctricamente piezas móviles entre sí como cable de tierra flexible, y para crear conexiones conductoras de electricidad ESD entre bastidores yuxtapuestos como conexión equipotencial; gran sección transversal del conductor (16 mm²), capacidad de carga de corriente de 120 A máx.Material:Earth lead: Copper Assembly material: Steel Cover caps: Plastic PA, glass fiber reinforcedSet 1:(Listed in assembly sequence incl. tightening torques): 2 T-slot nuts - slot 6 - M6, 2 threaded pins DIN EN ISO 4029 (DIN 916) - M6 x 22 (M = 10 Nm), 2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M6 (M = 34 Nm), 1 earth lead 200 mm, 2 serrated lock washers DIN 6798 - 6,11, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6 (M = 25 Nm), 2 cover capsSet 2:(Listed in assembly sequence incl. tightening torques): 2 T-slot nuts - slot 8 - M8, 2 threaded pins DIN EN ISO 4029 (DIN 916) - M8 x 30 (M = 10 Nm), 2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M8 (M = 34 Nm), 1 earth lead 300 mm, 2 serrated lock washers DIN 6798 - 8.4, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8 (M = 25 Nm), 2 cover capsSet 3:(Listed in assembly sequence incl. tightening torques): 2 T-slot nuts - slot 8 - M8, 2 threaded pins DIN EN ISO 4029 (DIN 916) - M8 x 30 (M = 10 Nm), 2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M8 (M = 34 Nm), 1 earth lead 200 mm, 2 serrated lock washers DIN 6798 - 8.4, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8 (M = 25 Nm), 2 cover capsSet 4:(Listed in assembly sequence incl. tightening torques): 2 T-slot nuts - slot 10 - M8, 2 threaded pins DIN EN ISO 4029 (DIN 916) - M8 x 30 (M = 10 Nm), 2 flanged hexagon nuts DIN EN ISO 4161 (DIN 6923) - M8 (M = 34 Nm), 1 earth lead 200 mm, 2 serrated lock washers DIN 6798 - 8.4, 2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8 (M = 25 Nm), 2 cover capsSurface:Earth Lead: Tin plated Assembly material: Zinc plated

Países de Entrega:En todo el mundoDescription:To make an ESD electrostatical discharging connection between panel and aluminum profileMaterial:T-Slot Nut, grub screw, serrated washer: Steel Hexagon nut, washer: BrassSuperficie:Galvanizado

Países de Entrega:En todo el mundoDescription:For guiding floor dollys on one side in FIFO stations, with a wheel width of up to 40 mm with 2 slots at the top, bottom and sides; to extend two guiding rails, connect them face to face with connecting strip in the slots; sign posts can be mounted in the slot from aboveMaterial:AluminioSuperficie:AnodizadoTip:For cut: To order, please replace "xxxx" in the part number by the required length in mm, e.g. "0350" for 350 mm or "2000" for 2000 mm Compatible connecting strip see 096060S20 Compatible infeed cap for FIFO monorail rail (set) see 2082CCS02 Compatible monorail angle connector for post see 093WS30145S01 Compatible mounting set for posts support struts see 93WS30145S02 Compatible cover profiles see 092080

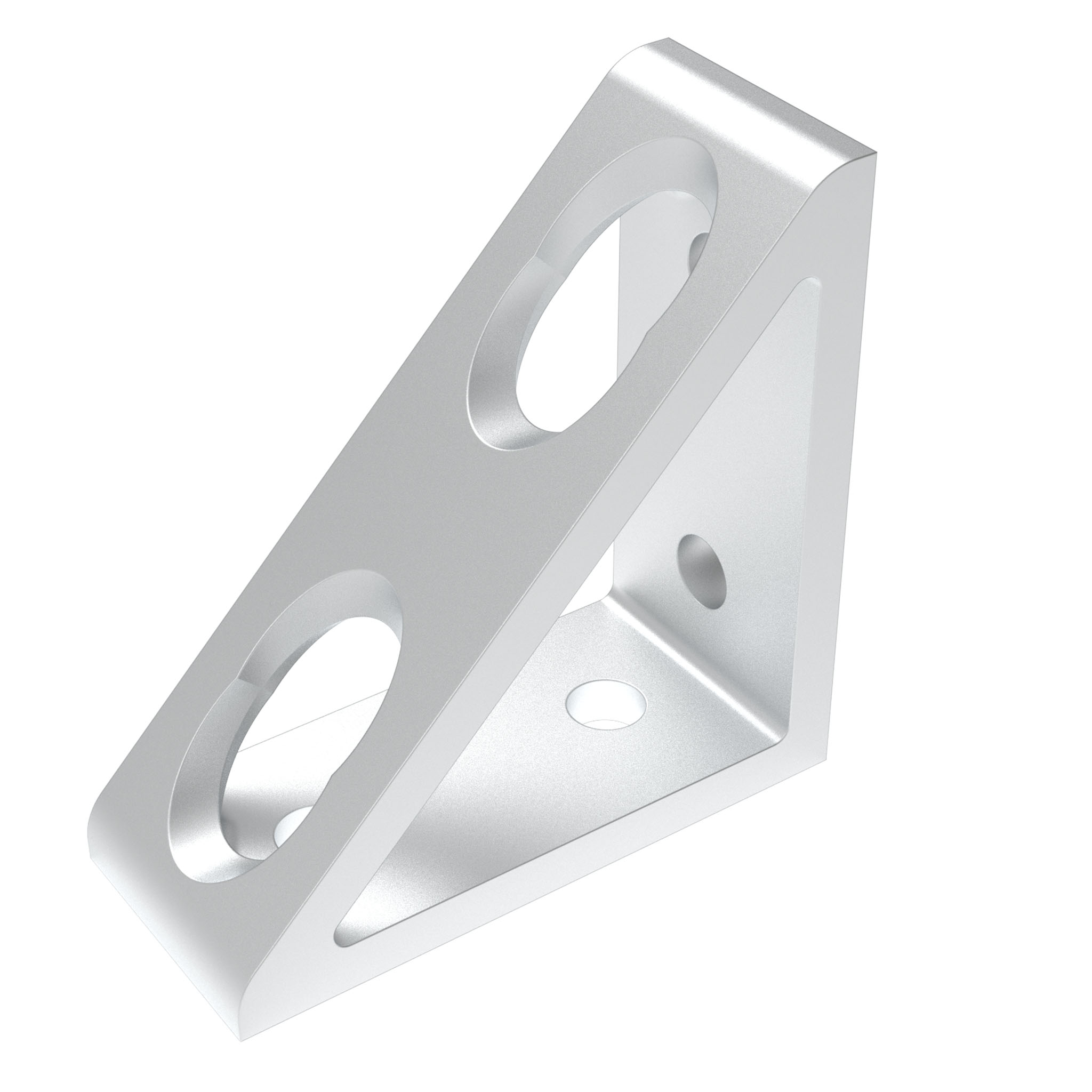

Color:Color aluPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:Anodizado

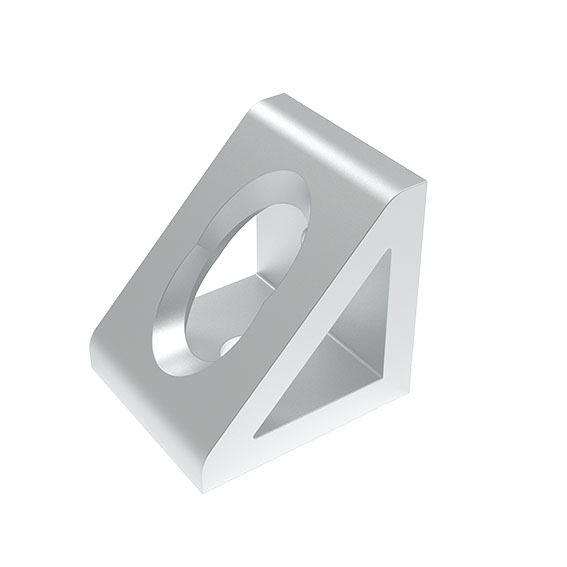

Color:Color alu, negroPaíses de Entrega:NorteaméricaDescription:To connect two aluminum profiles at right anglesMaterial:AluminioSuperficie:Anodizado

Color:Negro, amarillo, rojo, azul, grisPaíses de Entrega:En todo el mundoDescription:To mount on doors, flaps and aluminum profilesPFA_Fastening:Por delante con tornillos de cabeza hexagonal o tornillos de cabeza hueca, o por detrás con tuercas hexagonales M8 y pernosMaterial:Plástico PA, reforzado con fibra de vidrioEspeciales:Otros colores bajo pedido

Color:NegroPaíses de Entrega:North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, BulgariaDescription:To mount on doors, flaps and aluminum profilesPFA_Fastening:Por delante, con tornillos de cabeza cilíndrica; por detrás, con tuercas hexagonales o tornillos de cabeza hexagonal insertados.Material:Plástico PA, reforzado con fibra de vidrio

Color:Negro, color aluPaíses de Entrega:En todo el mundoDescription:To mount on doors, flaps and aluminum profilesFastening:From the back, using M5 screws; From the front with optional fastening setMaterial:AluminioSuperficie:Polvo cubierto / anodizadoTip:Compatible Fastening Set see 092330

Color:Negro, color aluPaíses de Entrega:En todo el mundoDescription:To mount on doors, flaps and aluminum profilesFastening:From the back, using M5 screws; From the front with optional fastening setMaterial:AluminioSuperficie:Polvo cubierto / anodizadoTip:Compatible Fastening Set see 092330

Color:Negro, color aluPaíses de Entrega:En todo el mundoDescription:To mount on doors, flaps and aluminum profilesFastening:From the back, using M8 screws; From the front with optional fastening setMaterial:AluminioSuperficie:Polvo cubierto / anodizadoTip:Compatible Fastening Set see 092331
