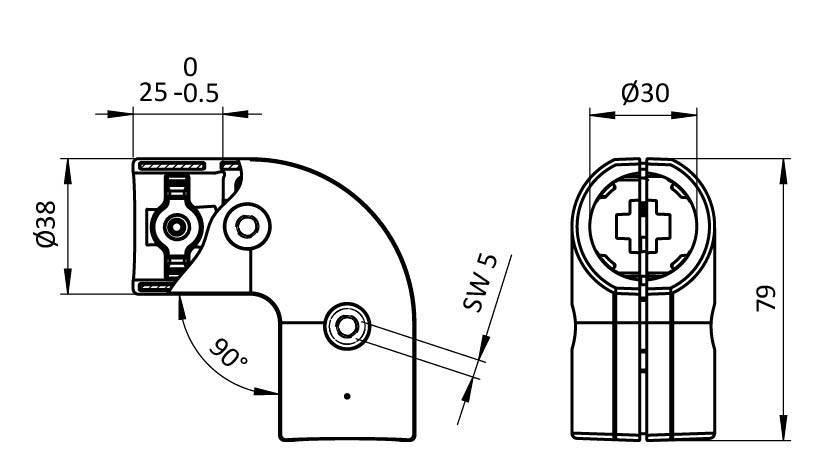

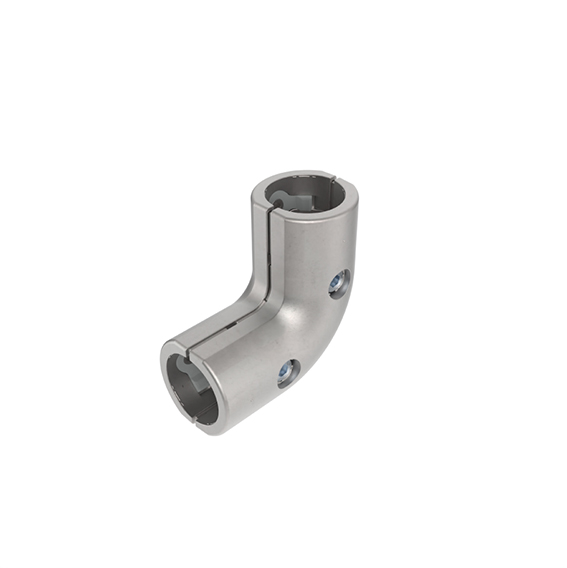

Corner Connector 2D30 (Set)
Réf. produit :
099RV30ES01
Informations sur le produit "Corner Connector 2D30 (Set)"
Pays de livraison:
Monde entier
Description:

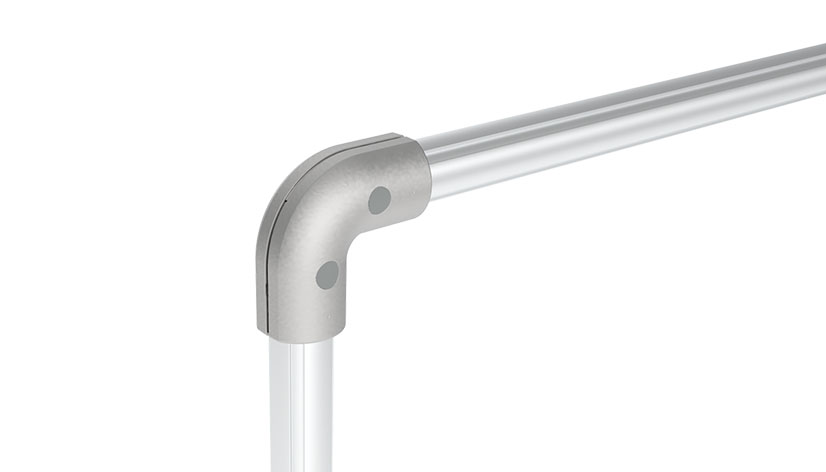

To connect two tubular frame profiles with Ø 30 mm outer diameter at right angles; with pre-centering; completely pre-assembled set
Matériau:
Connecteur : fonderie d'aluminium
Kit d'assemblage : acier
Set:
2 components for corner connector 2D30,
2 screw DIN EN ISO 4762 (DIN 912) - M6 x 25,
2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6
Etat de surface:
Kit d'assemblage : zingué
Tip:
Compatible Cover Cap for Tubular Frame Profile Connector D30 see 099RV30CC06
Monde entier
Description:
To connect two tubular frame profiles with Ø 30 mm outer diameter at right angles; with pre-centering; completely pre-assembled set
Matériau:
Connecteur : fonderie d'aluminium
Kit d'assemblage : acier
Set:
2 components for corner connector 2D30,
2 screw DIN EN ISO 4762 (DIN 912) - M6 x 25,
2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6
Etat de surface:
Kit d'assemblage : zingué
Tip:
Compatible Cover Cap for Tubular Frame Profile Connector D30 see 099RV30CC06
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Code PA: | 146936 |
| Code douanier exportation: | 76169910 |
| Conditionnement: | 10 kits |
| Modèle: | Pour profilés tubulaires de structure |
| Poids (g): | 215.5 |
| Zolltarifnummer: | 76169910990 |
