D30, Composants pour profilé tubulaire
Slide Rail D30
Description:To build simple slipways by clipping on a tubular frame profile with Ø 30 mm outer diameter; also applicable as support strip for the mouting of panels with vario block AL D30Matériau:Plastique HDPECouleur:Noir, grisInformation:Remarque : vous passez commande en mètres !Pays de livraison:Monde entier
Protection Cap D30
Description:To prevent damages, scratches or injuries by the end of tubular frame profiles with Ø 30 mm outer diameter; End-position damping in Karakuri/LCA applications; Prevents movement of tubular frame profiles on slippery surfaces and absorbs some vibration; Punch through safe due to added steel inlay, elastic and surrounding designMaterial:Protection cap: Plastic TPE Inlay: SteelSurface:Inlay: Zinc platedCouleur:Gris ≈ RAL 7042Options:Autres couleurs, autres tailles sur demandePays de livraison:Monde entier
Cover Cap for Tubular Frame Connectors D30
Description:To cover the screw hole of connectors for tubular frame profiles with Ø 30 mm outer diameterMatériau:Plastique PA, renforcé fibre de verreCouleur:Gris ≈ RAL 7042Pays de livraison:Monde entier
Threaded Sleeve AL D30
Description:To fix leveling feet or casters to the front of tubular frame profiles with Ø 30 mm outer diameterMatériau:AluminumPays de livraison:Monde entier
Outer T-Connector D30 (Set)
Description:To connect two tubular frame profiles with Ø 30 mm outer diameter at right anglesMatériau:Connecteur : fonderie d'aluminium Kit d'assemblage : acierEtat de surface:Kit d'assemblage : zinguéSet:2 components for outer T-connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Pays de livraison:Monde entier
Connecteur 90° D30 - rainure 8 (Kit)
Description:To connect a tubular frame profile with Ø 30 mm outer diameter with a slot 8 aluminum profileMaterial:Connector: Aluminum die-cast Adapter plate: Aluminum die-cast Assembly set: SteelEtat de surface:Kit d'assemblage : zinguéFastening:On profile I - slot 8 - using screw DIN EN ISO 7380 (DIN 34805) - M6 x 14Set:2 components for outer T-connector D30 - slot 8 1 adapter plate 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28 1 self locking nut DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Pays de livraison:Monde entier
Corner Connector 2D30 (Set)
Description:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angles; with pre-centering; completely pre-assembled setMatériau:Connecteur : fonderie d'aluminium Kit d'assemblage : acierEtat de surface:Kit d'assemblage : zinguéSet:2 components for corner connector 2D30, 2 screw DIN EN ISO 4762 (DIN 912) - M6 x 25, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Profile Connector D30 see 099RV30CC06Pays de livraison:Monde entier

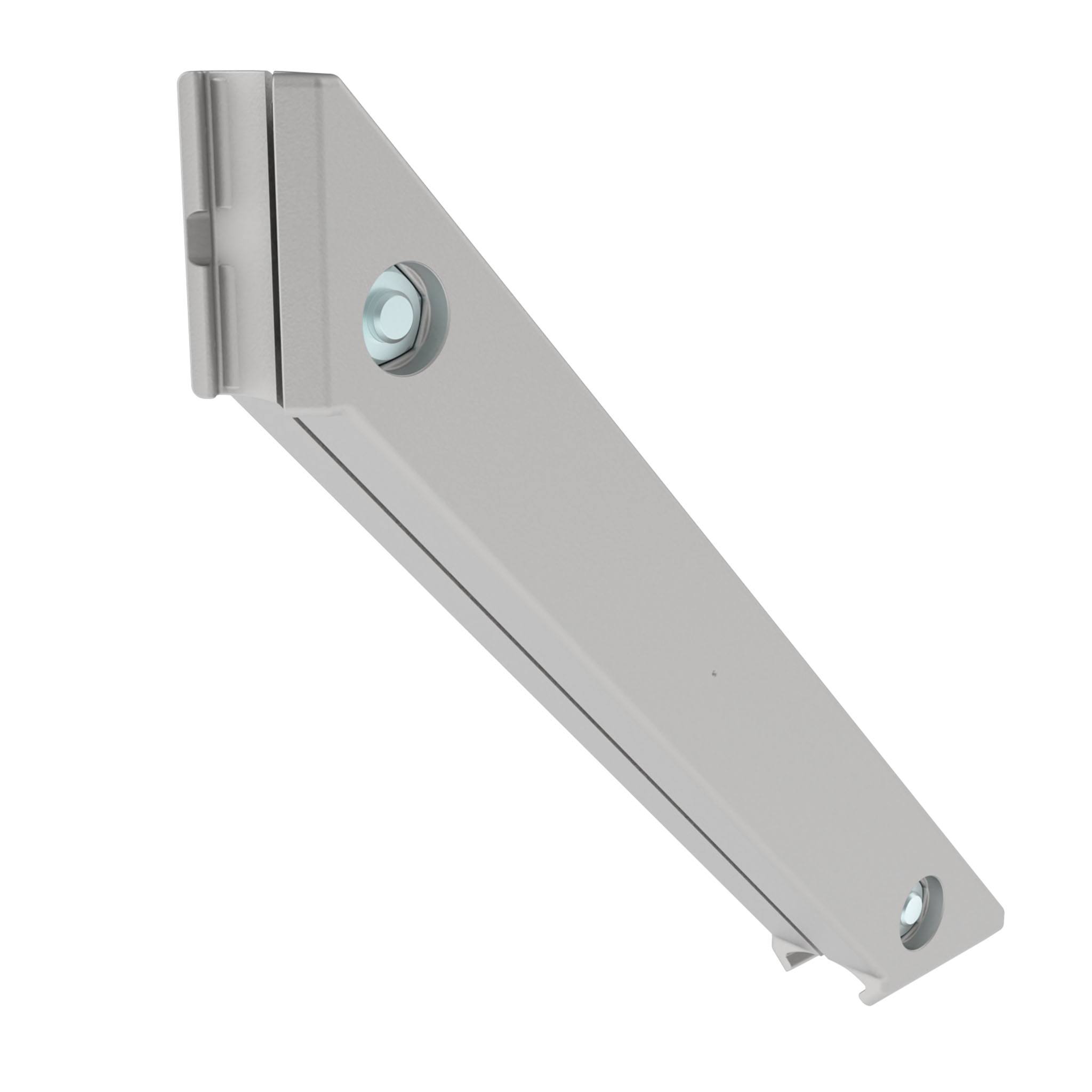

Angle Connector 2D30 (Set)
Description:To connect two tubular frame profiles with Ø 30 mm outer diameter at right angle; Completely pre-assembled setMatériau:Connecteur : fonderie d'aluminium Kit d'assemblage : acierEtat de surface:Kit d'assemblage : zinguéSet:2 components for angle connector 2D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 14, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07Pays de livraison:Monde entier

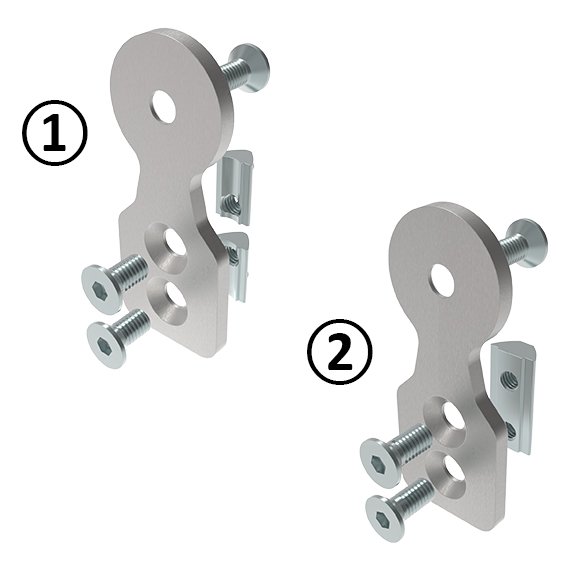

Plaque de connexion 90° D30 (Kit)
Description:To connect a tubular frame profile with Ø 30 mm outer diameter with an aluminum profile at right angles; Screw connetion to the core hole M6 of the tubular frame profile Ø 30 mm or to the threaded sleeve AL D30 M6 for tubular frame profilesMatériau:AcierEtat de surface:ZinguéSet 1:1 T-connector plate, 2 T-slot nuts - slot 6 - M6, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 12, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 20Set 2:1 T-connector plate, 1 double T-slot nut - slot 8 - 2x M6, 2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 14, 1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 20Pays de livraison:Monde entier
Parallel Connector D30 (Set)
Description:To parallelly connect two tubular frame profiles with Ø 30 mm outer diameter; with pre-centering; completely pre-assembled setMatériau:Connecteur : fonderie d'aluminium Kit d'assemblage : acierEtat de surface:Kit d'assemblage : zinguéSet:2 components for parallel connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Caps for Tubular Frame Connectors D30 see 099RV30CC07Pays de livraison:Monde entier

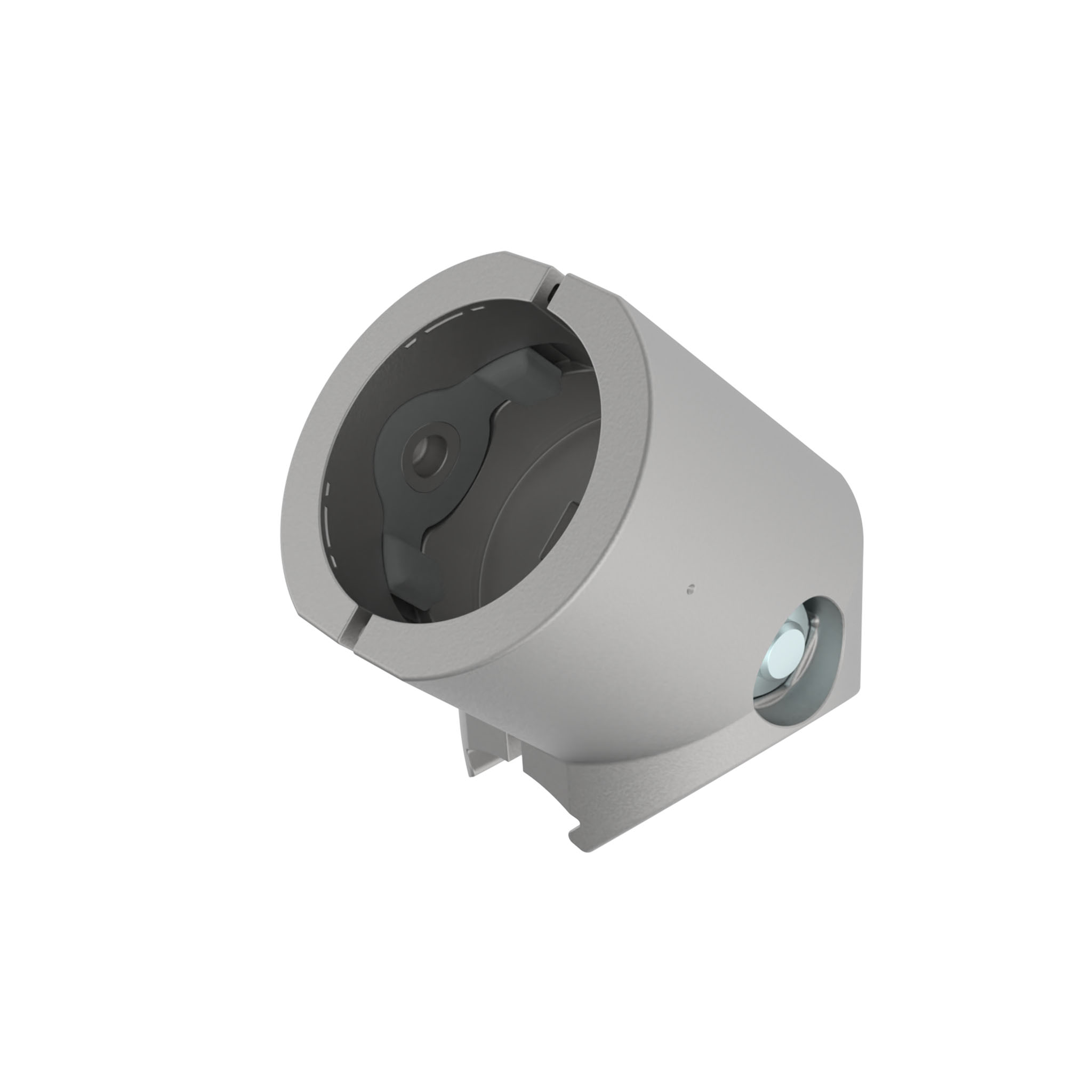

Angle Connector D30, 45° (Set)
Description:To connect two tubular frame profileswith Ø 30 mm outer diameterat 45°; with pre-centering; completely pre-assembled setMatériau:Connecteur : fonderie d'aluminium Kit d'assemblage : acierEtat de surface:Kit d'assemblage : zinguéSet:2 components for angle connector D30, 45°, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Pays de livraison:Monde entier
Cross Connector D30 (Set)
Description:To cross connect two tubular frame profiles with Ø 30 mm outer diameter; Completely pre-assembled setMatériau:Connecteur : fonderie d'aluminium Kit d'assemblage : acierEtat de surface:Kit d'assemblage : zinguéSet:2 components for cross connector D30, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Pays de livraison:Monde entier
Cross Ball Connector D30 (Set)
Description:To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMatériau:Connecteur : fonderie d'aluminium Kit d'assemblage : acierEtat de surface:Kit d'assemblage : zinguéSet:4 cross ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Pays de livraison:Monde entier
Mounting Bracket D30 (Set)
Description:To support an roller track AL or a aluminum profile slot 8 on a crossing tubular frame profile with Ø 30 mm outer diameterMatériau:AcierEtat de surface:ZinguéSet:1 mounting bracket, 2 T-slot nuts - slot 8 - M6, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16Pays de livraison:Monde entier
Outer Ball Connector D30 (Set)
Description:To connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMatériau:Connecteur : fonderie d'aluminium Kit d'assemblage : acierEtat de surface:Kit d'assemblage : zinguéSet:4 components for outer ball connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Pays de livraison:Monde entier
Outer Ball Butt Connector D30 (Set)
Description:To connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled setMatériau:Connecteur : fonderie d'aluminium Kit d'assemblage : acierEtat de surface:Kit d'assemblage : zinguéSet:4 components for outer ball butt connector D30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 30, 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06Pays de livraison:Monde entier
Pièce d'adaptation D30, R8
Description:Pour connecter un profilé tubulaire sur un profilé avec rainurefiles R8Matériau:Fonderie d'aluminiumColor:V_PlainTip:Compatible Outer Ball Connector D30 (Set) see 099RV30KS01 Compatible Outer T-Connector D30 (Set) see 099RV3090LS01 Compatible Cross Ball Connector D30 (Set) see 099RV30KS04 Compatible Cross Connector D30 (Set) see 099RV30XS01 Compatible Parallel Connector D30 (Set) see 099RV30PS02 Compatible Angle Connector 2D30 (Set) see 099RV3090QS01 Compatible Angle Connector D30, 45° (Set) see 099RV3045S01 Compatible T-slot Nut see 096006Pays de livraison:Monde entier
Slide Bearing D40/D30
Description:For low-friction movement on tubular frame profiles, allows radial and linear movementMatériau:Plastique POMPays de livraison:Monde entier
Vario Block AL D30
Description:To attach panels firmly to tubular frame profiles with Ø 30 mm outer diameter; ESD electrostatical dischargingMaterial:Vario block AL: Aluminum die-cast Assembly set: SteelEtat de surface:Kit d'assemblage : zinguéSet:1 vario block AL - 2-part, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20, 1 square nut DIN 557 - M6 2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6Tip:Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC07Options:Autres surfaces, autres couleurs sur demandePays de livraison:Monde entier
Panel Clip D30
Description:To temporarelly attach panels to tubes or tubular frame profiles with Ø 30 mm outer diameter; For screwing the surface element a hexagon nut M5 can be inserted in the panel clip D30Matériau:Plastique PA, renforcé à la bille de verreCouleur:Gris ≈ RAL 7042Tip:Compatible Hexagon Nuts see 4DIN934M5MPays de livraison:Monde entier
Top Suspension D30 (Set)
Description:To mount table tops or shelf boards within a frame of tubular frame profiles with Ø 30 mm outer diameterMatériau:AcierEtat de surface:ZinguéSet:1 top suspension D30 1 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Pays de livraison:Monde entier
Top Corner Suspension D30 (Set)
Description:For putting in plates, shelf boards or work piece carriers horizontally on tubular frame profiles with Ø 30 mm outer diameter; With holes to screw on tubular frame profile and plateMaterial:Top corner suspension: Steel Screws: SteelSurface:Top corner suspension: Zinc plated; Screws: Zinc platedSet:1 top corner suspension 2 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Tip:Please note for cutting table tops to size: Tubular Frame Connectors D30 require a 5 mm gap all the way aroundPays de livraison:Monde entier
Top Clamp D30 (Set)
Description:To mount wooden table tops or chipboards on a frame of tubular frame profiles with Ø 30 mm outer diameterMaterial:Clamp: Steel Spacer: Plastic PA, glass fiber reinforced Screws: SteelSurface:Clamp: Zinc plated Screws: Zinc platedColor:Spacer: Gray ≈ RAL 7042Set:1 clamp 1 spacer 1 wood screw 6 x 25 2 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16Pays de livraison:Monde entier
Mounting Clamp D30 (Set)
Description:To attach panels universally to tubes and tubular frame profiles with Ø 30 mm outer diameter; including spacer to position panels over outer tubular frame connectors D30Material:Mounting clamp: Plastic PA Spacer: Plastic PA Assembly set: SteelEtat de surface:Kit d'assemblage : zinguéColor:Mounting clamp: Gray Spacer: GraySet:1 mounting clamp 1 spacer 1 square nut DIN 557 - M5 1 self-tapping screw SF4 x 12Pays de livraison:Monde entier
