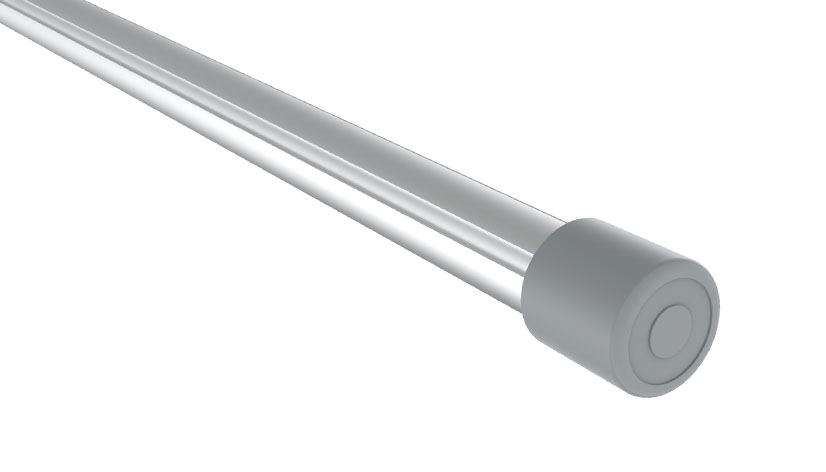

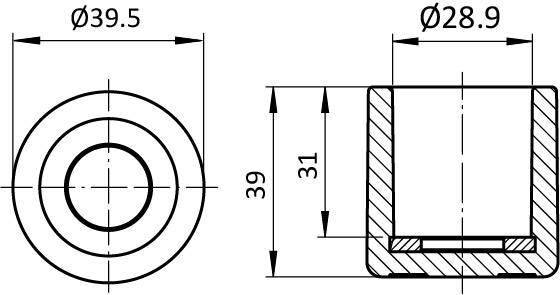

Protection Cap D30

Informations sur le produit "Protection Cap D30"

Couleur:
Gris ≈ RAL 7042

Pays de livraison:
Monde entier

Description:
To prevent damages, scratches or injuries by the end of tubular frame profiles with Ø 30 mm outer diameter;
End-position damping in Karakuri/LCA applications;
Prevents movement of tubular frame profiles on slippery surfaces and absorbs some vibration;
Punch through safe due to added steel inlay, elastic and surrounding design

Material:
Protection cap: Plastic TPE
Inlay: Steel

Options:
Autres couleurs, autres tailles sur demande

Surface:
Inlay: Zinc plated

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Conditionnement: 10 pièces
Modèle: Pour profilés tubulaires de structure
Poids (g): 37.1

Variantes

ID de produit Profilé
099RV30CC03 I
