Connecteur d'angle avec passage de câbles

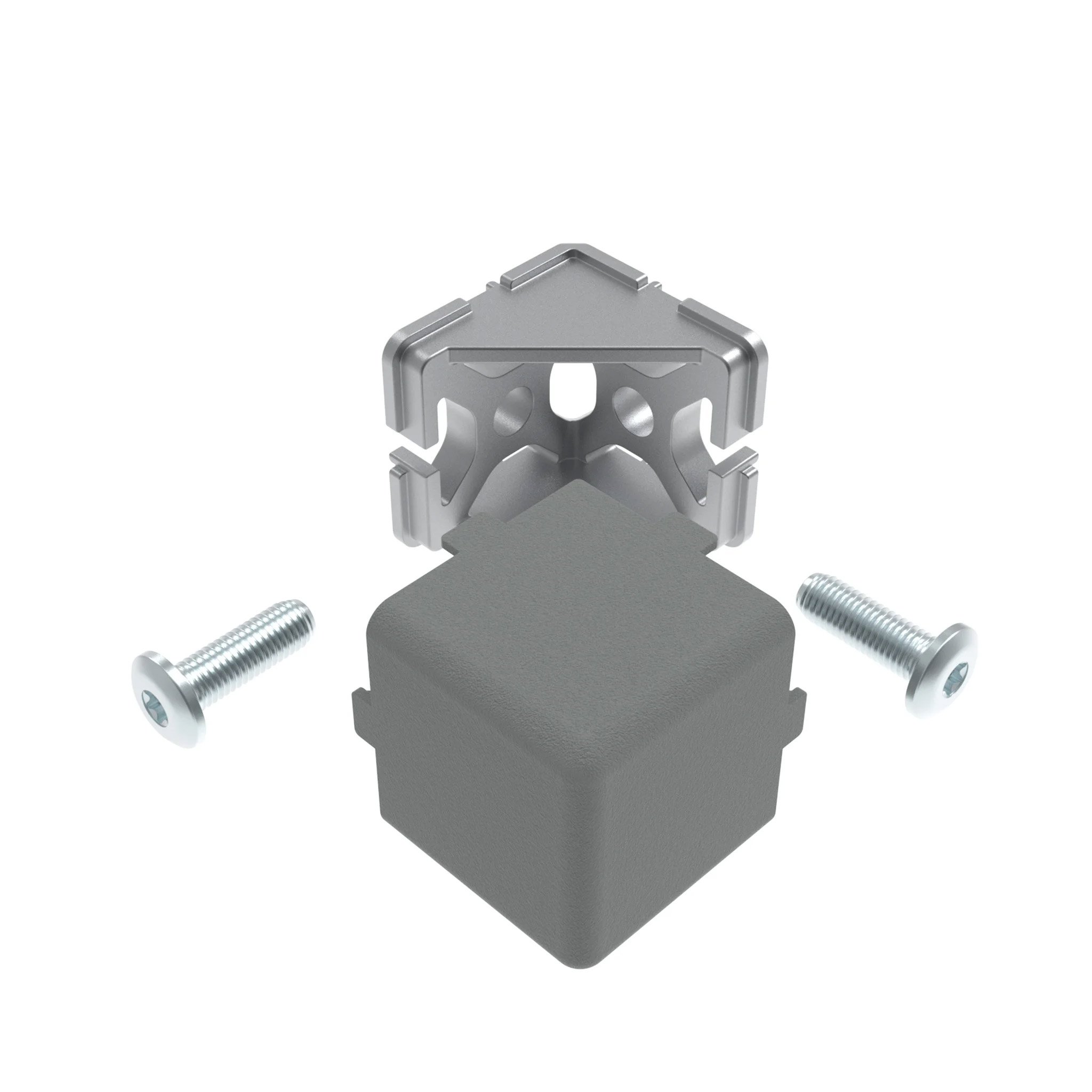

Connecteur d'angle 40, 2D avec passage de câbles (Kit)

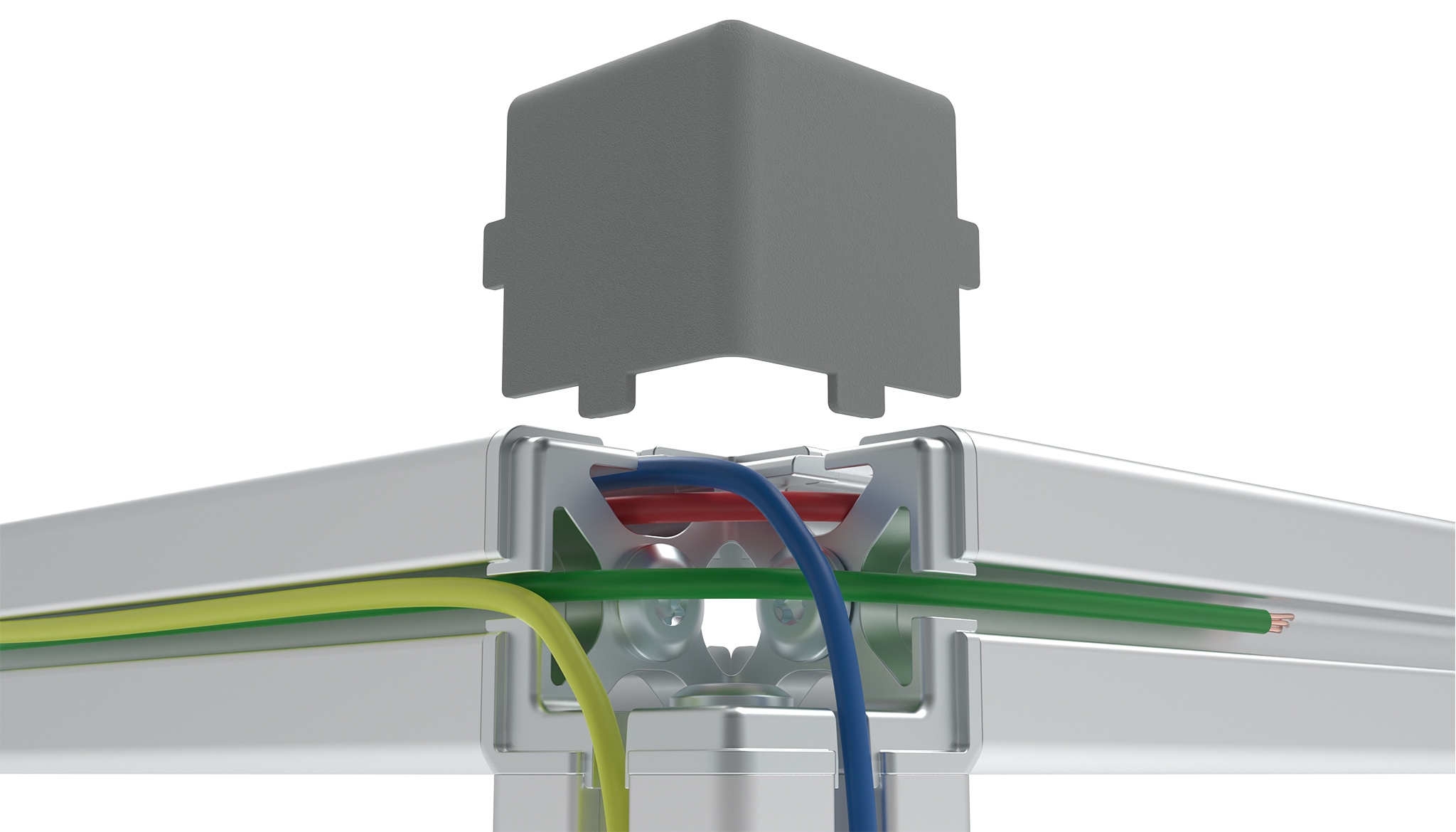

Couleur:Cache : gris ≈ RAL 7042Pays de livraison:Monde entierDescription:To connect two aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 40, 2D with cable passage 1 cover cap 2 self forming screws - S7 x 22Options:Autres matières, autres surfaces, autres couleurs sur demandeSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mm

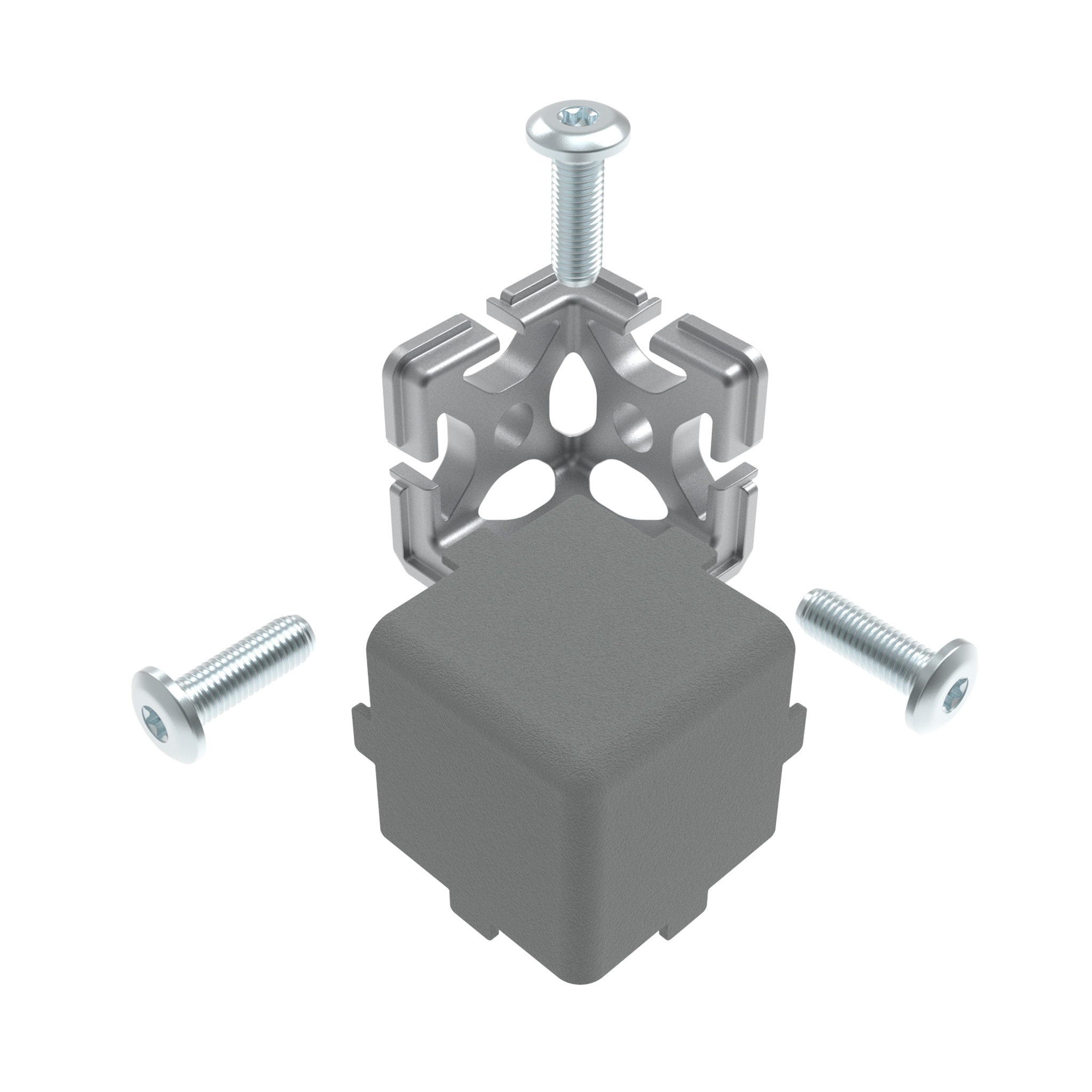

Connecteur d'angle 40, 3D avec passage de câbles (Kit)
Couleur:Cache : gris ≈ RAL 7042Pays de livraison:Monde entierDescription:To connect three aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 40, 3D with cable passage 1 cover cap 3 self forming screws - S7 x 22Options:Autres matières, autres surfaces, autres couleurs sur demandeSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mm

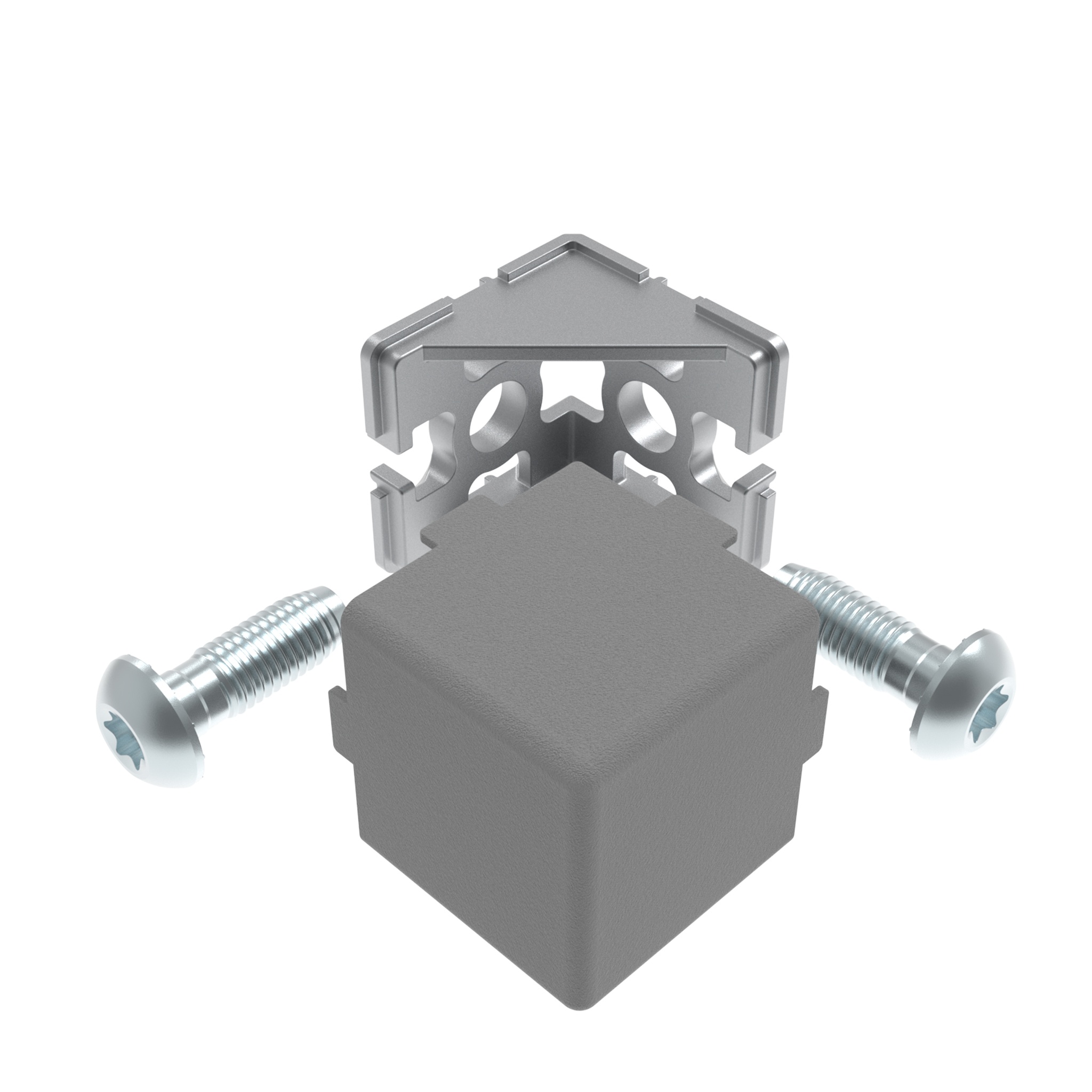

Connecteur d'angle 45, 2D avec passage de câbles (Kit)

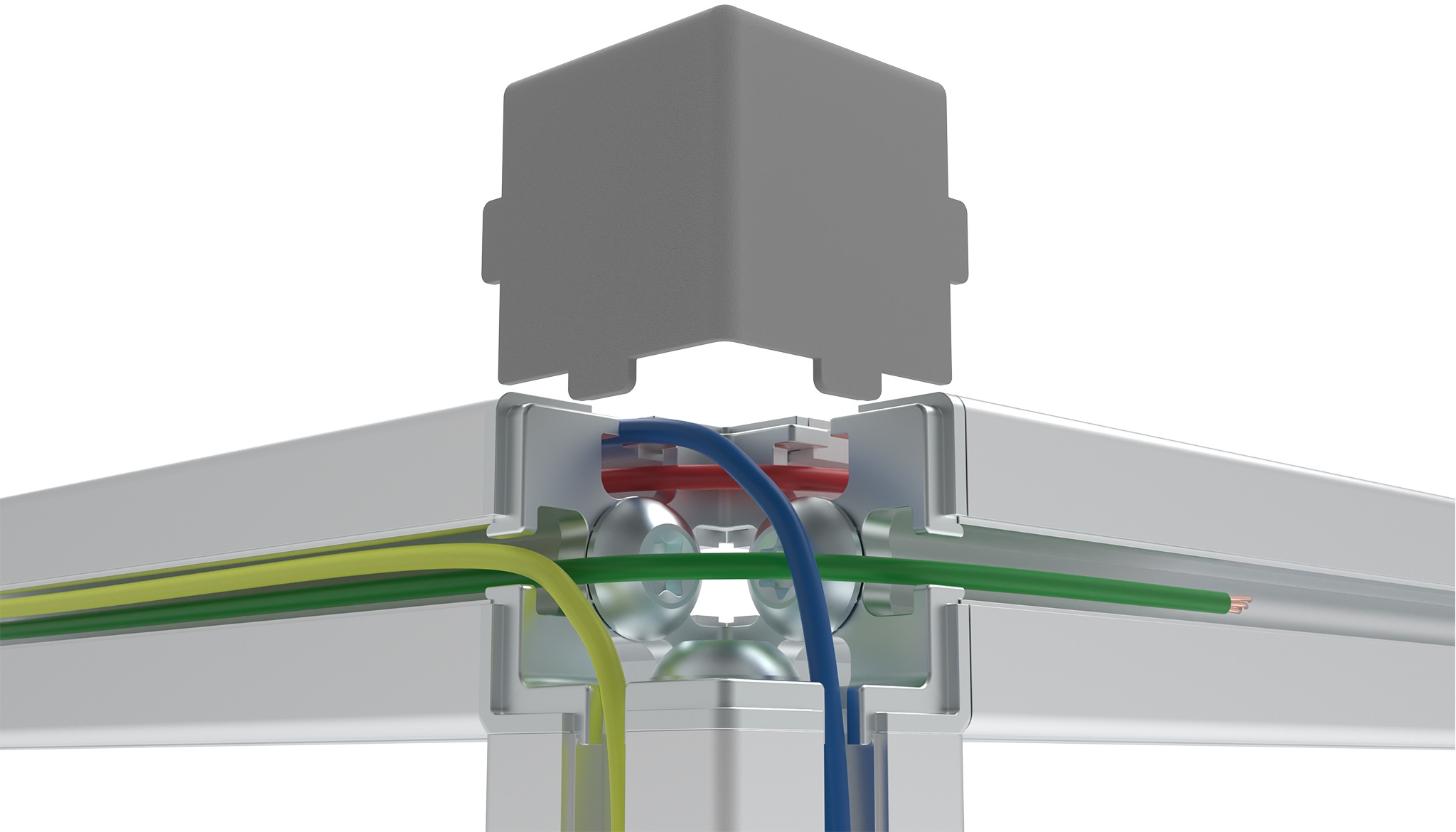

Color:Cover cap: gray ≈ RAL 7004Pays de livraison:Monde entierDescription:To connect two aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 45, 2D with cable passage 1 cover cap 2 self forming screws - S12 x 30Options:Autres matières, autres surfaces, autres couleurs sur demandeSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mm

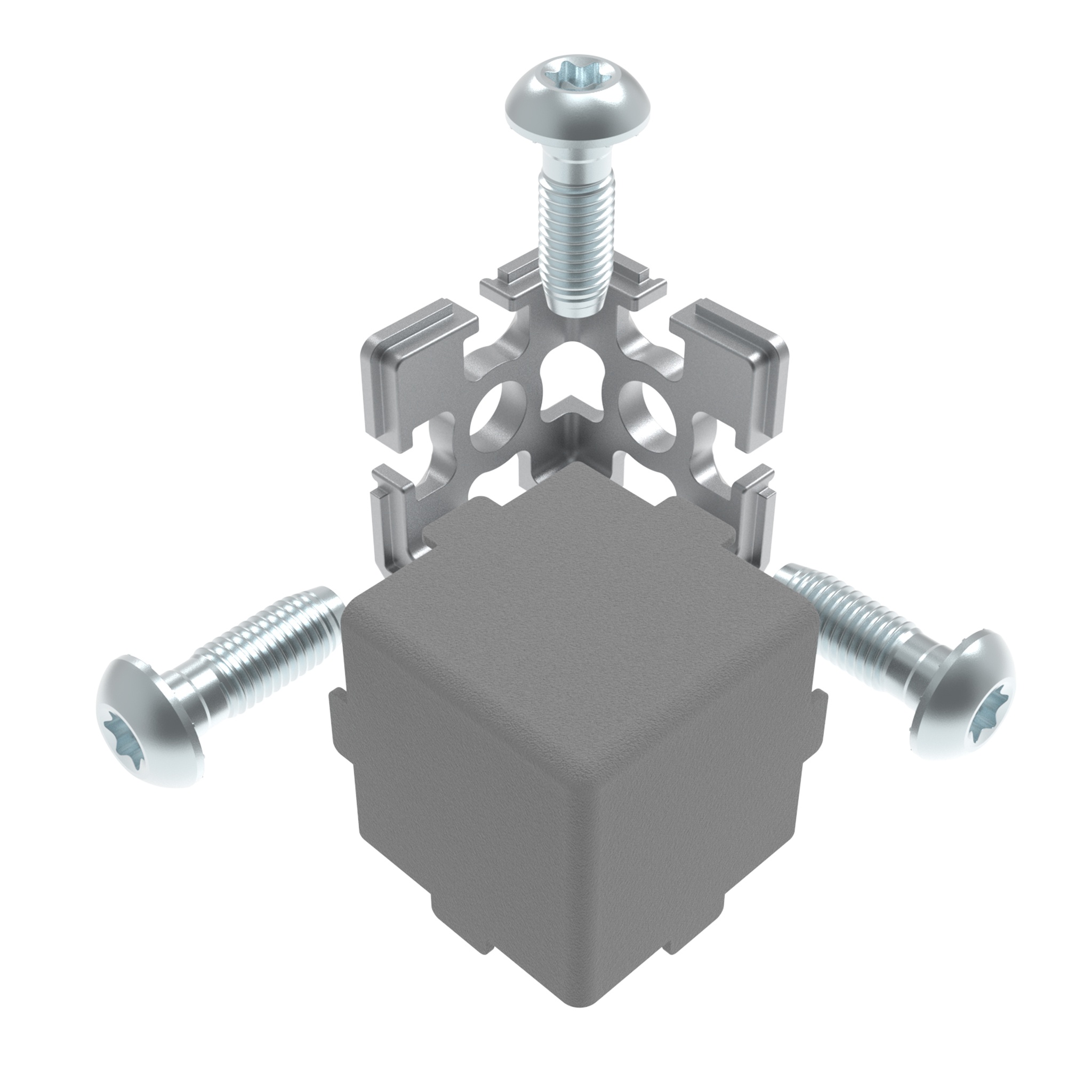

Connecteur d'angle 45, 3D avec passage de câbles (Kit)
Color:Cover cap: gray ≈ RAL 7004Pays de livraison:Monde entierDescription:To connect three aluminum profiles at right angles, with opening in slot geometry for passage of cables; With cover cap to cover the open side of the corner connectorMaterial:Corner connector: Zinc die-cast Cover cap: Plastic PA, glass ball reinforced Self forming screw: SteelSet:1 corner connector 45, 3D with cable passage 1 cover cap 3 self forming screws - S12 x 30Options:Autres matières, autres surfaces, autres couleurs sur demandeSurface:Corner connector: Zinc plated Self forming screw: Zinc platedTip:The maximum number of cables which can be passed through the opening in the slot geometry depends on the outer cable diameter: Max. 6 cabels with an outer diameter of 3 mm Max. 4 cabels with an outer diameter of 4 mm Max. 3 cabels with an outer diameter of 5 mm Max. 2 cabels with an outer diameter of 6 mm
