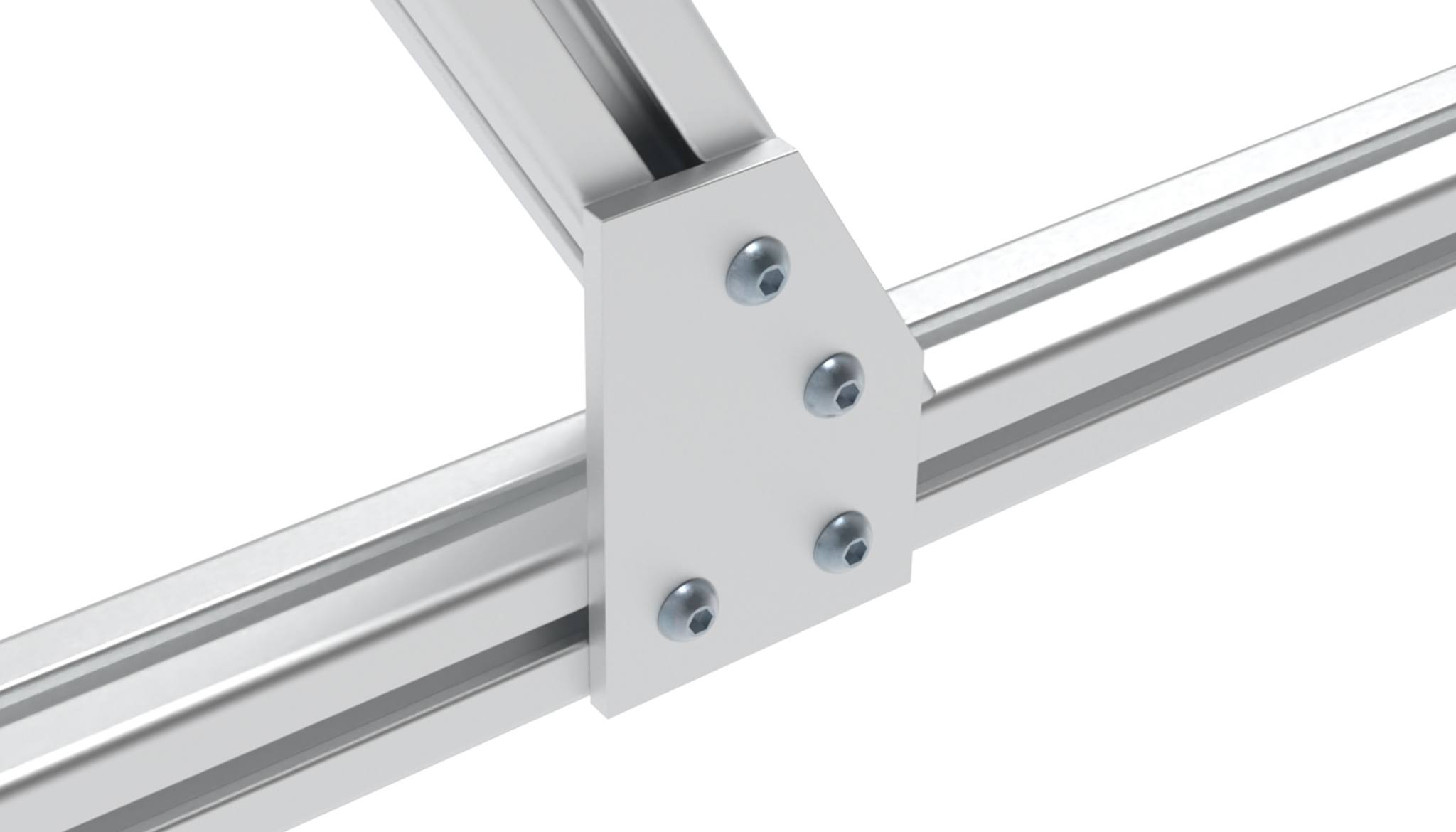

Plaques de connexion

A (mm): 30.0 | H (mm): 5.0 | L (mm): 118.5 | Version: 120 / 120 | ØD (mm): 7.0

A (mm): 30.0 | H (mm): 5.0 | L (mm): 88.5 | Version: 90 / 90 | ØD (mm): 7.0

A (mm): 38.1 (1.5") | H (mm): 6.0 | L (mm): 72.0 (2.8") | Version: 76.2 / 76.2 - 3" / 3" | ØD (mm): 9.0

A (mm): 30.0 | B (mm): 27.0 | H (mm): 5.0 | L (mm): 57.0 | Version: 30 / 60 | ØD (mm): 7.0

A (mm): 20.0 | B (mm): 18.0 | H (mm): 4.0 | L (mm): 78.0 | Version: 20 / 80 | ØD (mm): 5.5

A (mm): 20.0 | B (mm): 36.0 | H (mm): 4.0 | L (mm): 76.0 | Version: 40 / 80 | ØD (mm): 5.5

A (mm): 25.4 (1") | H (mm): 4.0 | K (mm): 48.0 (1.89") | L (mm): 98.0 (3.858") | Version: 102 / 102 - 4" / 4" | ØD (mm): 7.0

A (mm): 45.0 | H (mm): 6.0 | K (mm): 41.0 | L (mm): 131.0 | Version: 135 / 135 | ØD (mm): 9.0

A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.35 (0.25") | K (mm): 23.98 (0.94") | K (mm): 74.9 (2.94") | L (mm): 88.9 (3.5") | Version: 76.2 / 88.9 - 3" / 3.5" | ØD (mm): 9.0 (0.35")

A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | H (mm): 6.35 (0.25") | K (mm): 113.0 (4.44") | K (mm): 23.98 (0.94") | L (mm): 127 (5") | Version: 76.2 / 127 - 3" / 5" | ØD (mm): 9.0 (0.35")

A (mm): 25.4 (1") | B (mm): 101.6 (4") | H (mm): 4.8 (0.19") | K (mm): 51.0 (2.00") | L (mm): 101.6 (4") | Version: 102 / 102 - 4" / 4" | ØD (mm): 7.0 (0.27")

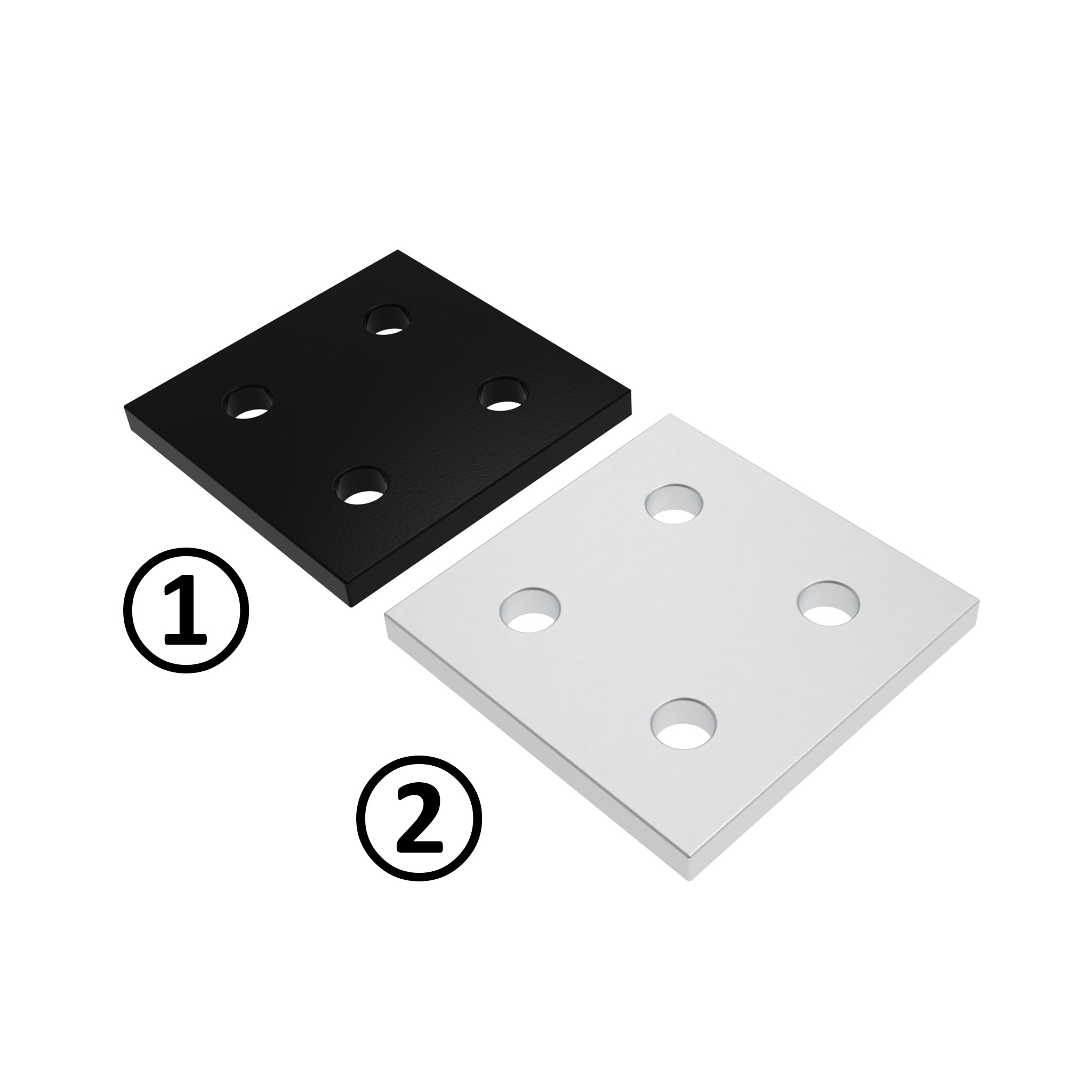

A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | Couleur: - | Etat de surface: Anodisé | Fig.: ② | H (mm): 6.35 (0.25") | K (mm): 38.0 (1.49") | L (mm): 114.3 (4.5") | Version: 76.2 / 114.3 - 3" / 4.5" | ØD (mm): 9.0 (0.35")

A (mm): 25.4 (1") | B (mm): 76.2 (3") | Couleur: Noir | Etat de surface: Peint. poudre | Fig.: ① | H (mm): 4.8 (0.19") | K (mm): 25.0 (0.98") | L (mm): 76.2 (3") | Version: 76.2 / 76.2 - 3" / 3" | ØD (mm): 7.0 (0.27")

A (mm): 25.4 (1") | B (mm): 76.2 (3") | Couleur: Noir | Etat de surface: Peint. poudre | Fig.: ① | H (mm): 4.8 (0.19") | K (mm): 25.0 (0.98") | L (mm): 76.2 (3") | Version: 76.2 / 76.2 - 3" / 3" | ØD (mm): 7.0 (0.27")

A (mm): 25.4 (1") | B (mm): 101.6 (4") | H (mm): 4.8 (0.19") | K (mm): 25.0 (0.98") | L (mm): 101.6 (4") | Version: 102 / 102 - 4" / 4" | ØD (mm): 7.0 (0.27")

A (mm): 25.4 (1") | B (mm): 76.2 (3") | H (mm): 4.8 (0.19") | K (mm): 25.0 (0.98") | K (mm): 51.0 (2") | L (mm): 76.2 (3") | Version: 76.2 / 76.2 - 3" / 3" | ØD (mm): 7.0 (0.27")

A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | Couleur: - | Etat de surface: Anodisé | Fig.: ② | H (mm): 6.35 (0.25") | L (mm): 76.2 (3") | Version: 76.2 / 76.2 - 3" / 3" | ØD (mm): 9.0 (0.35")

A (mm): 25.4 (1") | B (mm): 22.2 (0.88") | Couleur: Noir | Etat de surface: Peint. poudre | Fig.: ① | H (mm): 4.8 (0.19") | L (mm): 51.0 (2.01") | Version: 25 / 51 - 1" / 2" | ØD (mm): 7.0 (0.27")

A (mm): 38.1 (1.5") | B (mm): 38.0 (1.49") | Couleur: - | Etat de surface: Anodisé | Fig.: ② | H (mm): 6.35 (0.25") | L (mm): 114.3 (4.5") | Version: 38 / 114 - 1.5" / 4.5" | ØD (mm): 9.0 (0.35")

A (mm): 38.1 (1.5") | B (mm): 38.0 (1.49") | Couleur: Noir | Etat de surface: Peint. poudre | Fig.: ① | H (mm): 6.35 (0.25") | L (mm): 152.4 (6") | Version: 38 / 152 - 1.5" / 6" | ØD (mm): 9.0 (0.35")

A (mm): 25.4 (1") | B (mm): 50.8 (2") | Couleur: - | Etat de surface: Anodisé | Fig.: ② | H (mm): 4.8 (0.19") | L (mm): 76.2 (3") | Version: 50.8 / 76.2 - 2" / 3" | ØD (mm): 7.0 (0.27")

A (mm): 25.4 (1") | B (mm): 50.8 (2") | Couleur: - | Etat de surface: Anodisé | Fig.: ② | H (mm): 4.8 (0.19") | L (mm): 101.6 (4") | Version: 50.8 / 101.6 - 2" / 4" | ØD (mm): 7.0 (0.27")

A (mm): 38.1 (1.5") | B (mm): 152.4 (6") | Couleur: - | Etat de surface: Anodisé | Fig.: ② | H (mm): 6.35 (0.25") | K (mm): 71.0 (2.8") | L (mm): 152.4 (6") | Version: 152 / 152 - 5.98" / 5.98" | ØD (mm): 9.0 (0.35")

A (mm): 38.1 (1.5") | B (mm): 76.2 (3") | Couleur: - | Etat de surface: Anodisé | Fig.: ② | H (mm): 6.35 (0.25") | K (mm): 38.0 (1.49") | L (mm): 114.3 (4.5") | Version: 76.2 / 114.3 - 3" / 4.5" | ØD (mm): 9.0 (0.35")
