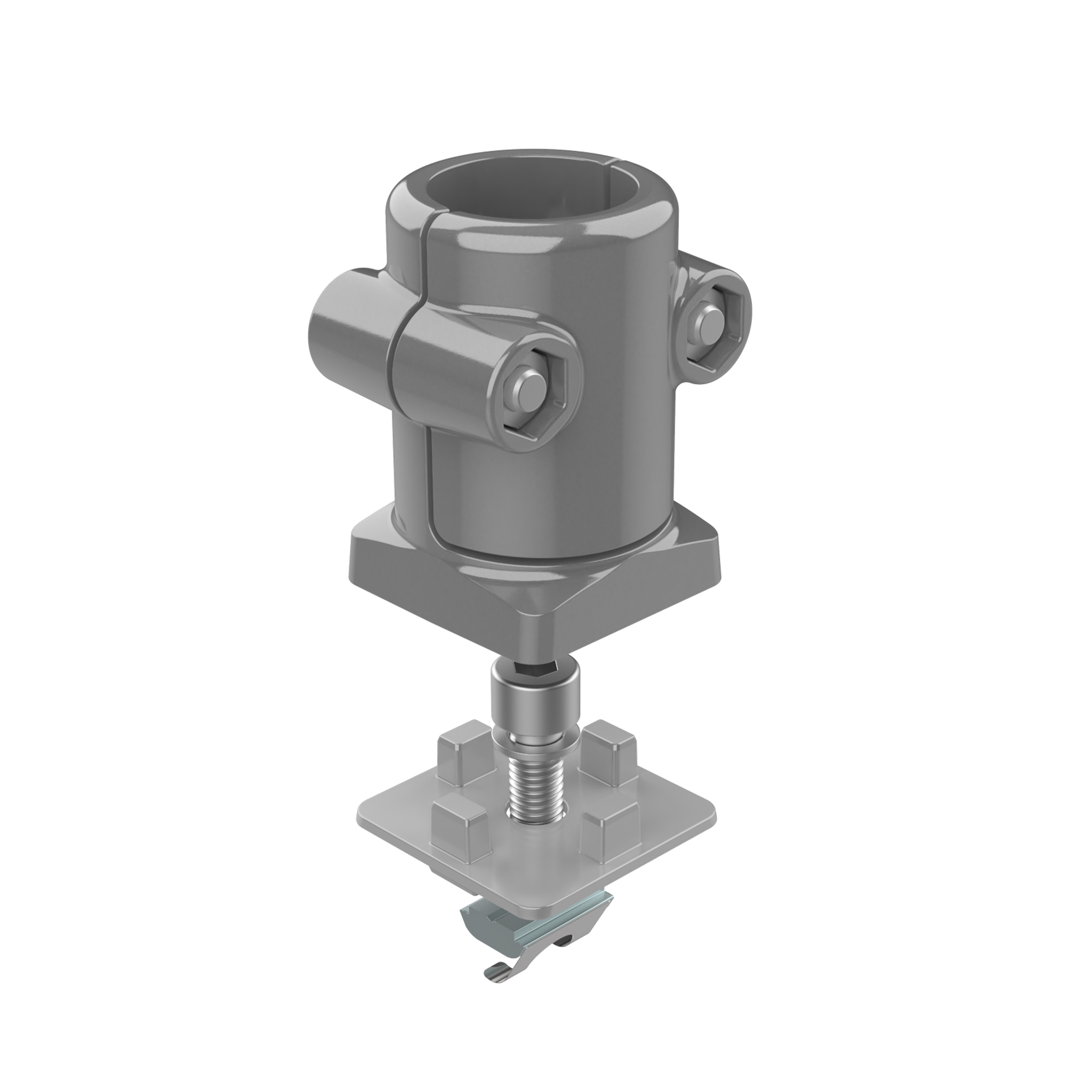

Pièce d'adaptation D28 - 40 M8 (Kit)
Prix régulier :
0,00 €
Réf. produit :
061FA40S01
Conditionnement:
10 kits
Informations sur le produit "Pièce d'adaptation D28 - 40 M8 (Kit)"
Color:
Adapter piece: Alu color
Centering plate: Alu color
Pays de livraison:
Monde entier
Description:

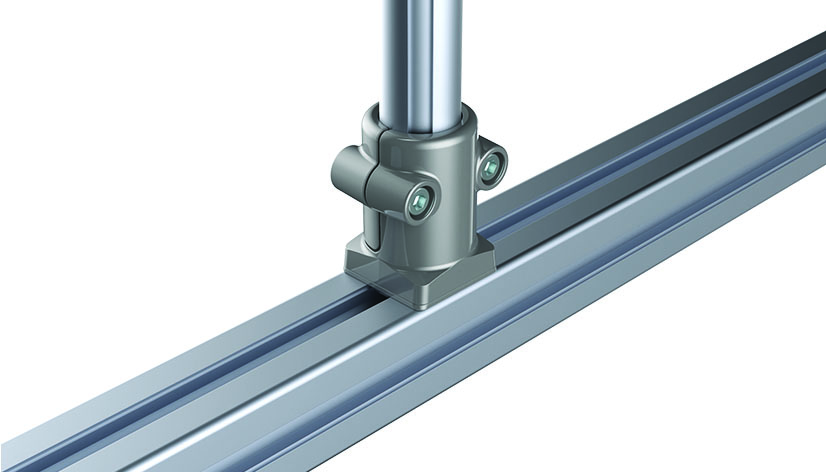

To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile;
Adapter piece can be attached lateral or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)
Material:
Adapter piece: Alu die-cast
Centering plate: Alu die-cast
Screws: Steel
Washer: Steel
T-slot nut: Steel
Set:
1 adapter piece
1 centering plate
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut)
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole)
1 washer 8-FSt
1 T-slot nut - slot 10 - M8
Surface:
Adapter piece: Laquered
Centering plate: Laquered
Screws: Zinc plated
Washer: Zinc plated
T-slot nut: Zinc plated
Information:
Insert fileté pour réduction du Ø 10.2mm central en M8 voir 09308801
Adapter piece: Alu color
Centering plate: Alu color
Pays de livraison:
Monde entier
Description:
To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile;
Adapter piece can be attached lateral or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)
Material:
Adapter piece: Alu die-cast
Centering plate: Alu die-cast
Screws: Steel
Washer: Steel
T-slot nut: Steel
Set:
1 adapter piece
1 centering plate
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut)
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole)
1 washer 8-FSt
1 T-slot nut - slot 10 - M8
Surface:
Adapter piece: Laquered
Centering plate: Laquered
Screws: Zinc plated
Washer: Zinc plated
T-slot nut: Zinc plated
Information:
Insert fileté pour réduction du Ø 10.2mm central en M8 voir 09308801
| Conditionnement: | 10 kits |
|---|---|
| Modèle: | Pour profilés tubulaires de structure |
| Poids (g): | 208.5 |
| ECLASS 6.0: | 23360290 |
| ECLASS 7.0: | 23360290 |
| ECLASS 8.0: | 23360290 |
| ECLASS 9.0: | 23360290 |
| ECLASS 10.0: | 23360290 |
| ECLASS 11.0: | 23360290 |
| ECLASS 12.0: | 23360290 |
| ECLASS 13.0: | 23360290 |
| Zolltarifnummer: | 76169990990 |
| Code douanier exportation: | 76169910, 76169990 |
| Code ERP: | 149316 |
