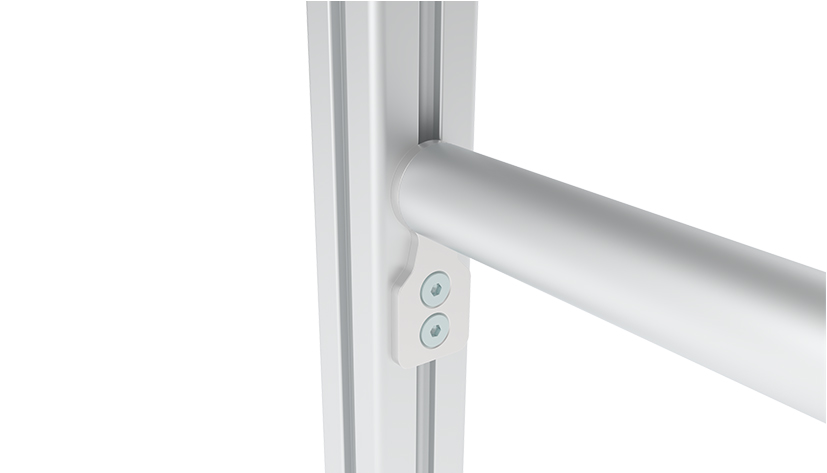

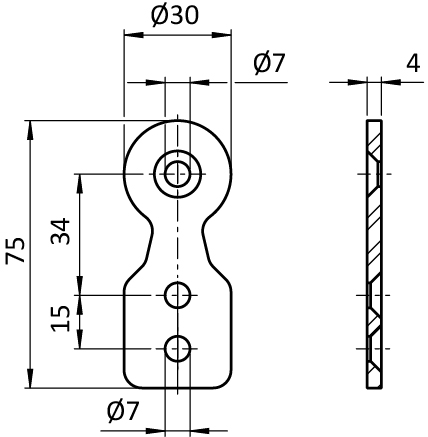

Plaque de connexion 90° D30 (Kit)

Informations sur le produit "Plaque de connexion 90° D30 (Kit)"

Pays de livraison:
Monde entier

Description:
To connect a tubular frame profile with Ø 30 mm outer diameter with an aluminum profile at right angles;
Screw connetion to the core hole M6 of the tubular frame profile Ø 30 mm or to the threaded sleeve AL D30 M6 for tubular frame profiles

Matériau:
Acier

Set 1:
1 T-connector plate,
2 T-slot nuts - slot 6 - M6,
2 screws DIN 7991 - M6 x 12,
1 screw DIN 7991 - M6 x 20

Set 2:
1 T-connector plate,
1 double T-slot nut - slot 8 - 2x M6,
2 screws DIN 7991 - M6 x 14,
1 screw DIN 7991 - M6 x 20

Etat de surface:
Zingué

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Conditionnement: 10 kits
Modèle: Pour profilés tubulaires de structure
Poids (g): 71.0

Variantes

ID de produit Fig. Kit Profilé Rainure N (mm)
093VAD30V Kit 2 I 8
093VAD30VS01 Kit 1 I 6
