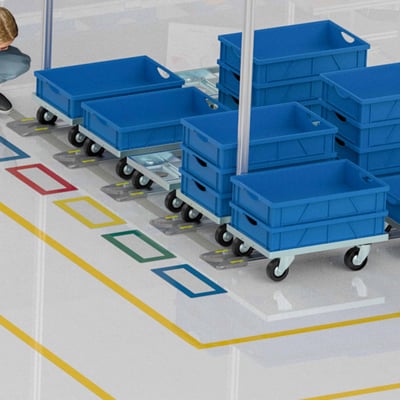

With FATH self-adhesive Floor Marking Tapes, you can mark surfaces easily and safely. One of the most important functions of floor marking is separating vehicle routes and walkways. Clearly marked walkways ensure that employees and visitors stay safe if industrial trucks or forklifts are moving around the production area or warehouse.
You will comply with the obligation to visually separate vehicle routes from walkways with FATH Floor Marking Tapes. ASR A1.3 specifies that vehicle route boundaries should be delimited by marking strips at least 5 cm wide. Stair steps can also be clearly marked with adhesive tape in signal colors to minimize the risk of falling.
Full flexibility with new production requirements: The self-adhesive floor marking tapes can be removed from the floor without leaving any residue when production changeovers, restructurings or plant expansions are pending. The floor remains intact after removing the adhesive tape because no chemicals or acidic substances are required to remove them. Leased buildings, warehouses and spaces can also be temporarily labeled without causing any consequential damage.
The dimensionally stable FATH Floor Marking Tapes can be cut to fit your needs and affixed to industrial floors without prior marking. Vehicles can drive over them immediately, and they are easy to clean. They are suitable for almost all industrial floors and surfaces such as stone, concrete or metal. Unlike paint or lacquer markings, there are no long drying times and no unpleasant odors. Thanks to the durable plastic surface suitable for industrial use, the floor marking tapes withstand heavy use by forklift trucks.
Thanks to a new printing concept, the multi-colored FATH Floor Marking Tapes are extremely durable. The color print is applied on the inside and is covered by a transparent film. This means that the print image is fully enclosed between the film and the adhesive and is thus permanently protected against wear and scratches, even after long use and heavy stress on the surface.
Still not sure which FATH Floor Marking Tapes fit your challenges?
Download more product information here.
FATH Floor Marking Tapes are available in rolls in widths of 50, 75 and 100 mm and in all important marking colors – in single color and two-color versions. This enables companies to set up a secure color coding system for walkways, separate areas, storing spaces, parking spaces and entire areas in production plants and warehouses. When used correctly, the selected colors provide a largely intuitive recognition of the marked areas.
The self-adhesive FATH Floor Marking Tapes are available as rolls in the following versions:
Roll
Length: 50 meters (165 feet)
Width: 50 mm / 75 mm / 100 mm

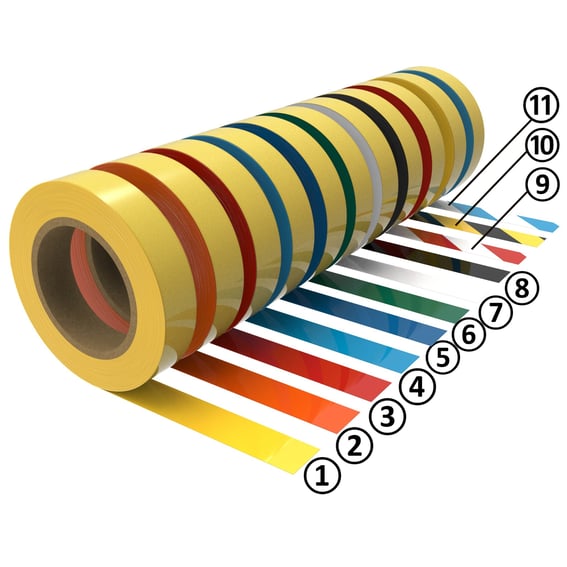

Colors
① yellow ≈ RAL 1018
② red ≈ RAL 3020
③ blue ≈ RAL 5017
④ blue ≈ RAL 5012
⑤ green ≈ RAL 6016
⑥ white ≈ RAL 9003
⑦ red / white
⑧ black / yellow
The FATH floor marking tapes are also available in the width 50 mm as temporary tape TESA® 60760. Here the length is 198 mm on a roll.
The FATH LEAN experts are happy to help you find the ideal solution - from planning to execution.
Contact us and tell us your challenge.
We have collected and answered the most frequently asked questions about our floor marking tapes for you. Perhaps your question is already included.
If not, please write to us.
Self-adhesive floor markings offer great flexibility. They are very easy to install. Self-adhesive floor marking tapes can be run over immediately, no drying time is required to use the marked area. In addition, no odorous substances are produced upon application, as is otherwise the case when marking with lacquer or paint. The escape of any health-threatening lacquer or paint substances is thereby avoided.
Yes, due to the quality of the floor marking, the tapes can be removed without additives.
Yes, the FATH floor marking, including the floor marking tape, is forklift-resistant. It can be driven over, and is resistant due to its nature and quality.
Yes, the color of the FATH floor marking is wear-resistant. Of particular note is the special production process for multi-colored floor markings, for example yellow-black. The print or color is on the inside of the transparent film, - enclosed between the adhesive and the film. This manufacturing process offers a clear advantage over most tapes available on the market.
A combination of FATH floor marking tapes and floor marking windows are particularly well suited to visualize the "keep your distance" command and to enforce it easily.
A distance of 20 to 30 centimeters from the pallet spaces is particularly suitable so that the floor markings are not damaged by rolling over them - for example with steel containers.
Yes. Thanks to a special sandwich production process (the print is enclosed between the adhesive and the transparent film) all floor markings, even those in a red and white color, are particularly resistant to forklifts and are highly wear-resistant.
All FATH floor markings feature industrial grade slip resistance and offer maximum safety, for example, wherever residues or contamination appear under the work shoes.
Due to a broad color spectrum that offers many different colors to choose from, FATH floor markings are particularly suitable for establishing a color coding system.
Yes, the floor marking is self-adhesive and can be stepped on immediately. After the adhesive is allowed to cure it becomes very resistant.
Self-adhesive floor markings provide a high degree of flexibility and are therefore ideal for fulfilling lean considerations in production and storage. They are very easy to install and can be easily removed when changing between operations. Thanks to the self-adhesive solution, new markings can be established just as quickly.
Self-adhesive floor marking tapes from FATH can also be driven over immediately; no drying time is required to use the marked areas. In addition, no nuisance arises from odors during or after application, as is otherwise the case when marking with varnish or paint. The potentially harmful emission from varnishes or paints is thereby avoided.
Studies have shown that floor markings of paint or lacquer are subject to significantly greater abrasion than self-adhesive floor markings.
The FATH floor marking tape can be applied more rapidly and with significantly less preparation time - partly because no auxiliary lines need to be established beforehand.

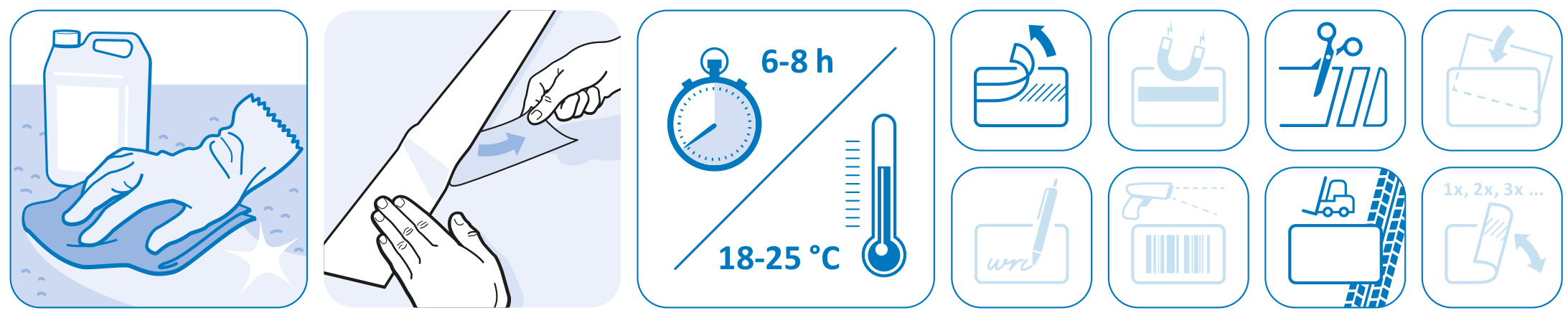

The substrate should be finished and free of dust and grease. The more finished the substrate is, the better the adhesion of the floor marking.
Driveways and walkways can be clearly separated from one another using floor marking tapes or spacer strips. Storage spaces in the incoming / outgoing goods areas can be marked quickly and easily with the pre-punched symbols and floor signs, which are particularly suitable for area labeling.
After printing out the parking space numbers / barcodes or pictograms, and applying and adhering notes on them without the need for lamination, the floor marking is then complete!
The price of a floor marking tape is an important consideration. Comparisons have shown that the total costs are significantly less compared to those associated with painted markings.
You see it every day: Floor markings in all areas of production, logistics, hallways or road traffic. Mostly we do not pay much attention to them, but you as the person responsible know that floor markings are an important part of public and operational organization. They demarcate areas, protect employees and goods from danger and visualize escape routes and emergency routes.

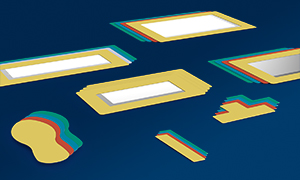

The self-adhesive, durable FATH floor marking shapes and floor windows are easy to attach in the desired position, can be driven on immediately and are easy to clean. They are suitable for almost all industrial floors and substrates such as stone, concrete or metal.
These self-adhesive floor signs can be detached from the floor without leaving residue if reorganization or facility extensions are planned. The floor remains intact after signs are removed since no chemicals or acid-based substances are required to remove them.
Prohibition, mandatory, warning and information stickers help enormously to establish the new required behaviors in people's minds in the long term. They are a simple but effective measure to protect customers, visitors and employees.
