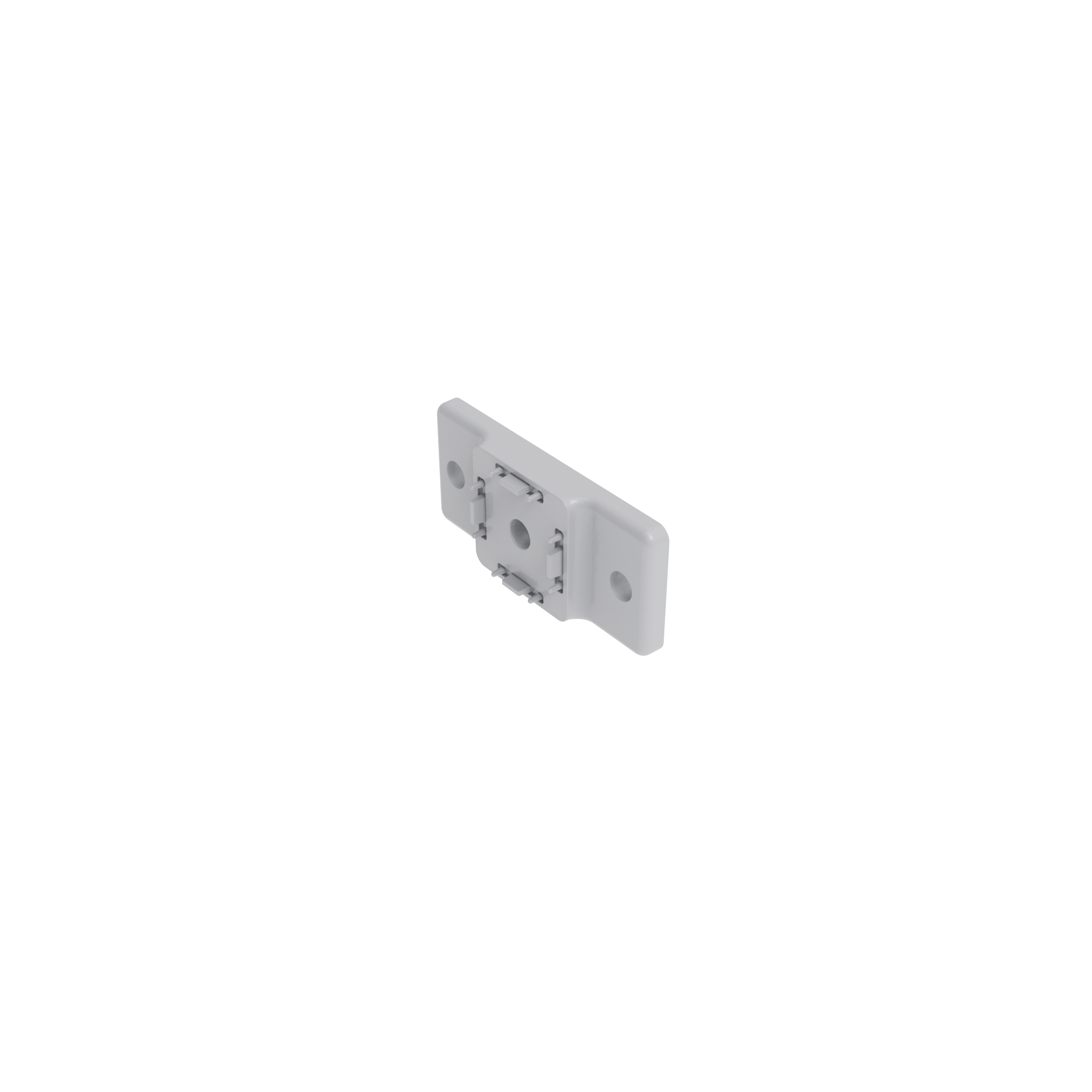

Adapter Plate 40 Height Adjustable
€0.00

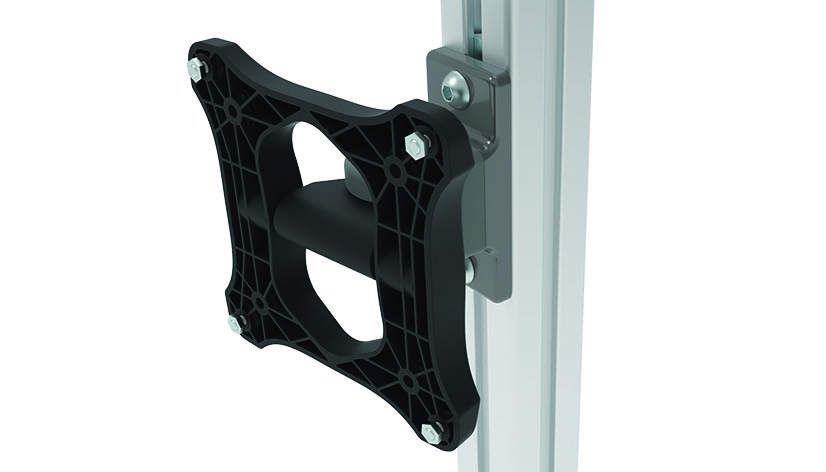

To connect a monitor mount or an aluminum profile at right angles, as well to tee connect two aluminum profiles; accessible mounting holes allow to adjust the position later
Adapter plate: Die cast aluminum
Pressed nut: Steel
Surface:
Adapter plate: Powder coated
Pressed nut: Zinc plated
Color:
Alu color
Tip:
Compatible Monitor Mount see 061SM7510040
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Aluminum die-cast |
| Weight (g): | 64.0 |
| ERP Number: | 143235 |
Product Portraits
Classifications
- ECLASS 6.0
- 23360290
- ECLASS 7.0
- 23360290
- ECLASS 8.0
- 23360290
- ECLASS 9.0
- 23360290
- ECLASS 10.0
- 23360290
- ECLASS 11.0
- 23360290
- ECLASS 12.0
- 23360290
- ECLASS 13.0
- 23360290
- Zolltarifnummer
- 76169910990
- Customs Tariff Number Export
- 76169910
Certificates
Matching accessories
Description:To fix flat screens to aluminum profile structures, VESA MIS-D 75/100 compatible, can be adjusted horizontally and vertically for optimum visibilityMaterial:Monitor bracket: Plastic PA, glass fiber reinforced Articulation piece: Plastic PA, glass fiber reinforced Centering piece: Plastic PA, glass fiber reinforced Mounting material: SteelSurface:Mounting material: Zinc platedColor:Monitor bracket: Black Articulation piece: Gray Centering piece: PlainTip:Compatible Adapter Plate see 061SAP40HTip 2:Mounting with the articulation piece oriented horizontally is recommended to prevent the holder from twisting when using heavy monitors or when adjusting the viewing angle.Specials:Other colors, other sizes on requestDelivery Countries:Worldwide
