Alu Connection Angle 20
Product number:
093W203N05S03
Product information "Alu Connection Angle 20"
Assembly Set:
2 hammer nuts - slot 6 - M4,
2 screws DIN 7984 - M4 x 8
Color:
Angle: Alu color
Delivery Countries:
Worldwide
Description:

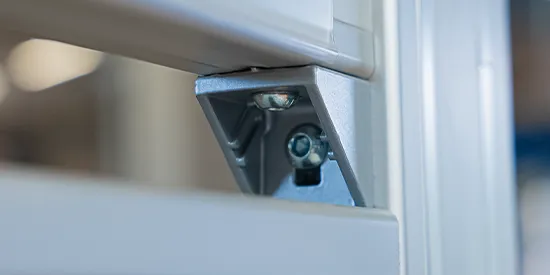

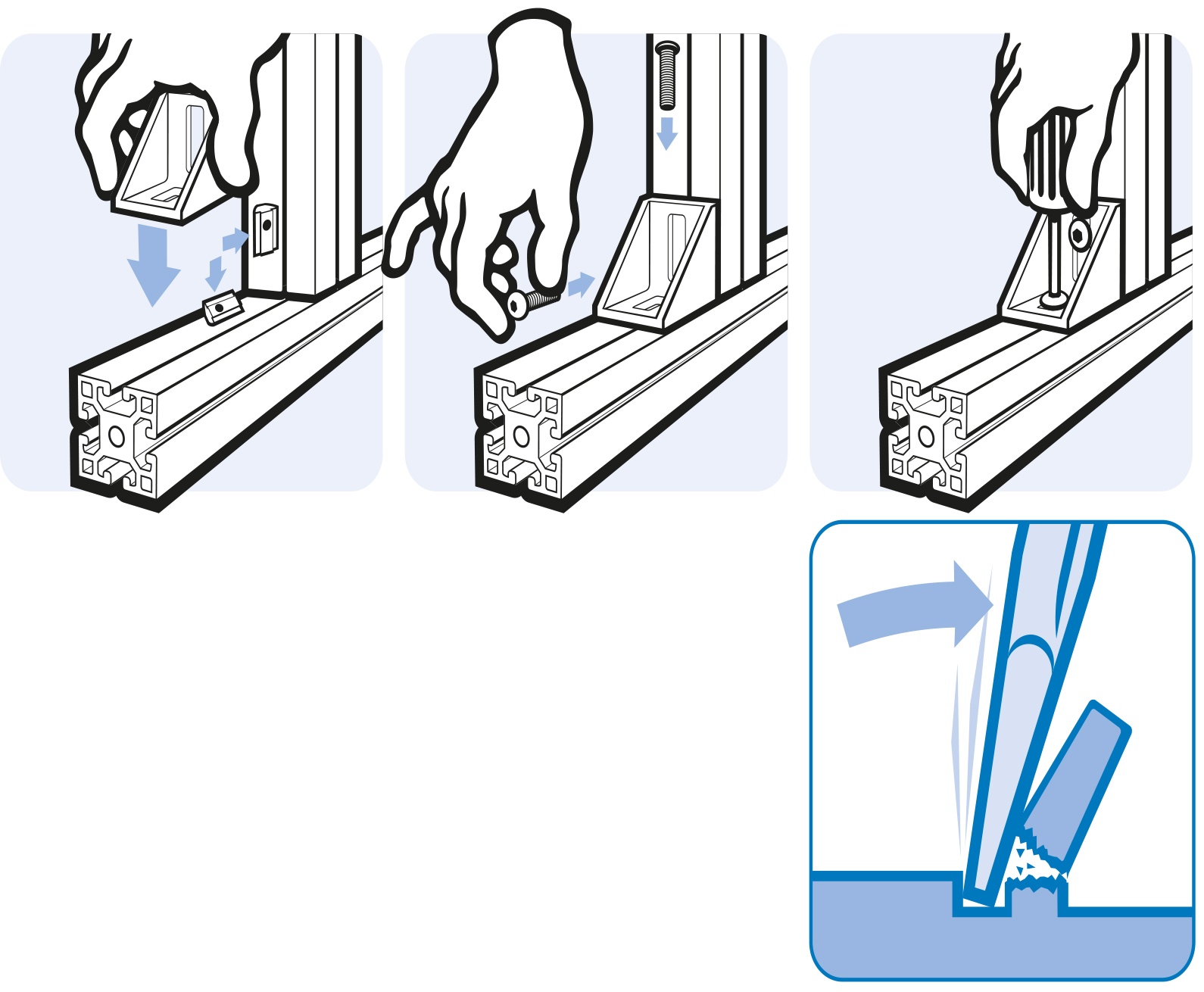

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Assembly set: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated
Tip:
Compatible Cover Cap see 093WA203
Zolltarifnummer:
76169910990
2 hammer nuts - slot 6 - M4,
2 screws DIN 7984 - M4 x 8
Color:
Angle: Alu color
Delivery Countries:
Worldwide
Description:
To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap
Material:
Angle: Aluminum die-cast
Assembly set: Steel
Specials:
Other surfaces, other colors on request
Surface:
Angle: Plain / Powder coated
Assembly set: Zinc plated
Tip:
Compatible Cover Cap see 093WA203
Zolltarifnummer:
76169910990
Model: | Aluminum die-cast, profile 20 and up |
---|---|
Pack Quantity: | 10 pieces / 10 set |
Weight (g): | 4.4 |
Variants

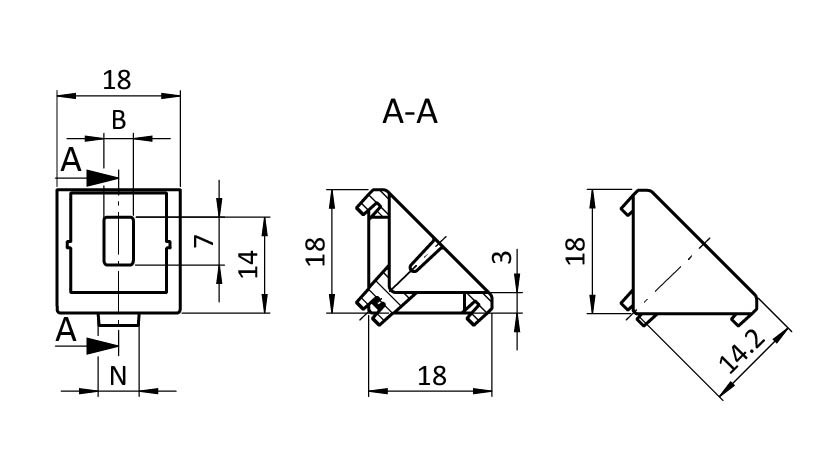

Product ID | Surface | Color | Version | Profile | B (mm) | Slot N (mm) |
---|---|---|---|---|---|---|
093W203 | Plain | 4.3 | ||||
093W203N05 | Plain | 4.3 | 5 | |||
093W203N05S03 | Plain | 5.3 | 5 | |||
093W203N06 | Plain | 4.3 | 6 | |||
093W203N06S01 | Plain | incl. assembly set | B | 4.3 | 6 | |
093W203N06S03 | Powder coated | Alu color | 4.3 | 6 | ||
093W203N06S04 | Powder coated | Alu color | incl. assembly set | B | 4.3 | 6 |
093W203N06S05 | Plain | 5.3 | 6 | |||
093W203S01 | Plain | 5.3 |
