Alu Connection Angles

FATH aluminum angles securely and precisely connect aluminum profiles at a 90-degree angle — no drilling required. The product range includes classic alu connection angles as well as practical automatic variants with automatic alignment of the rhombus screw. The suitable version is offered to match the modular dimensions of each aluminum bracket.
Alu Connection Angle M (Set)

It doesn’t get any faster than this! Simply attach FATH Alu Connection Angles M with pre-installed magnetic rhombus screws to the Profiles with slot 8, tighten the nuts, and you’re done! The aluminum profiles are now stably connected.

To Product Portrait

Filter products

New
Alu Connection Angle 20 – product image of all versions

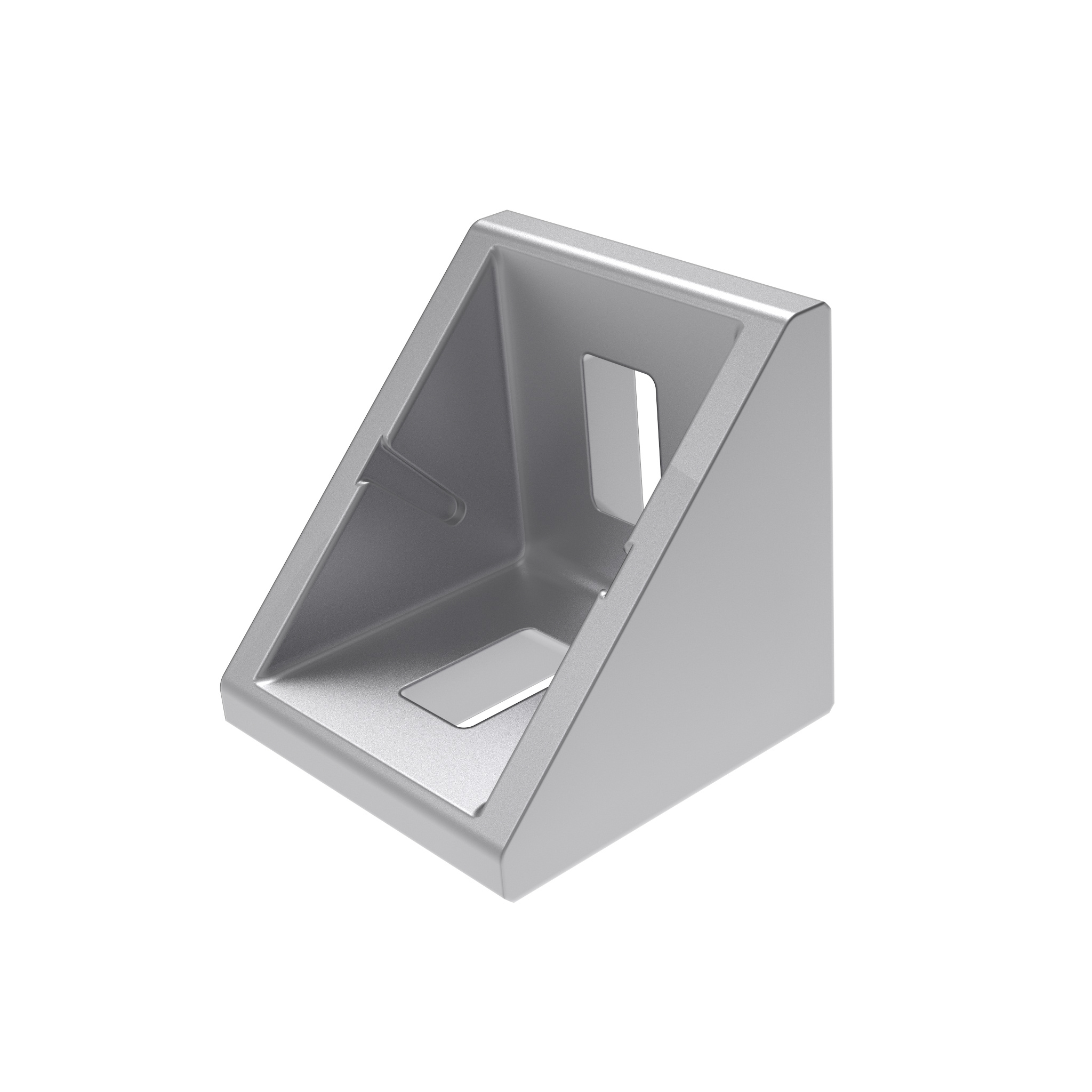

Alu Connection Angle 20

Version: - Profile: - B (mm): 5.3 Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedColor:Angle: Alu colorAssembly Set 1:2 hammer nuts - slot 6 - M4, 2 screws DIN 7984 - M4 x 8Assembly Set 2:4 hammer nuts - slot 6 - M4, 4 screws DIN EN ISO 7380-1 (DIN 34805-1) - M4 x 8Tip:Compatible Cover Cap see 093WA203Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00

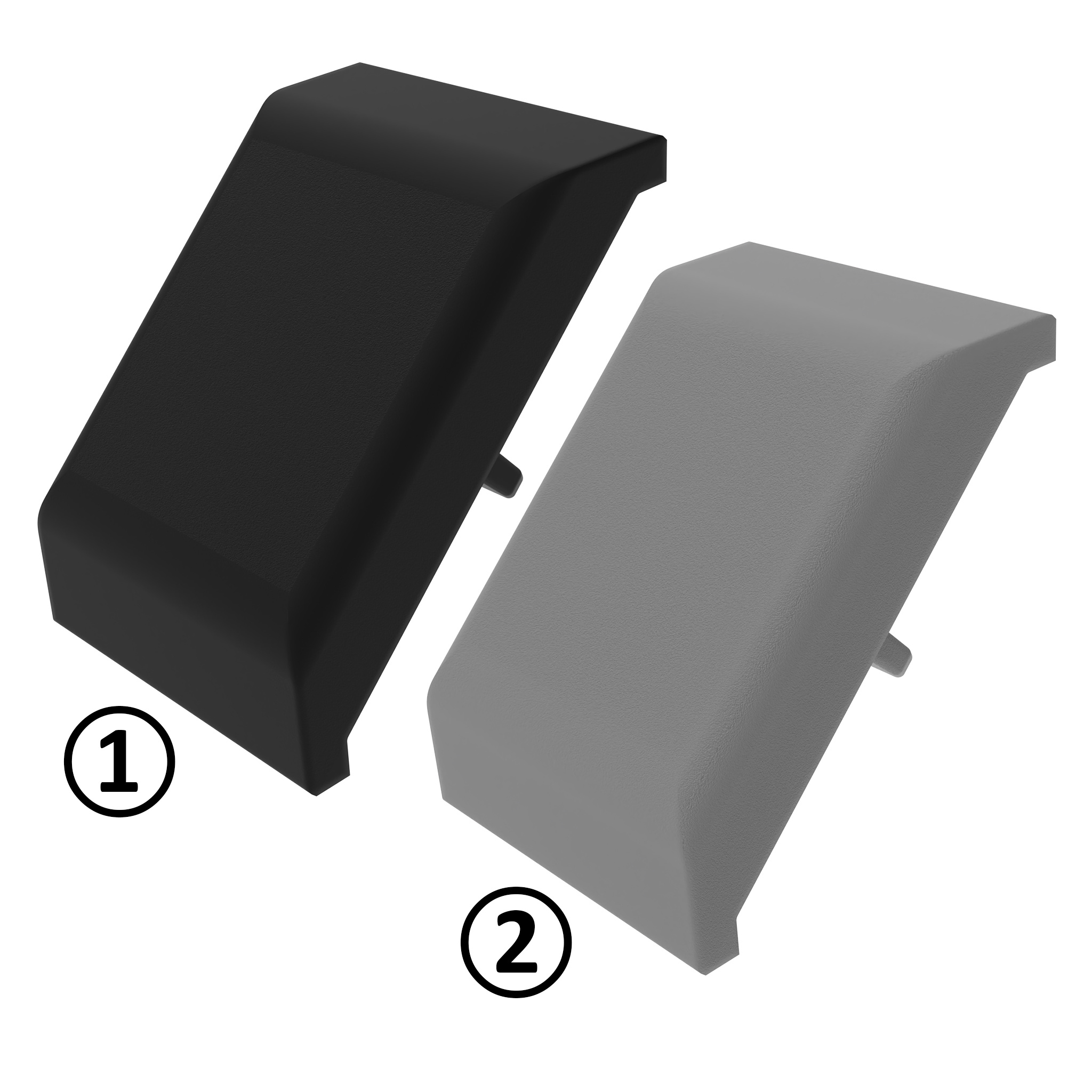

Cover Cap for Alu Connection Angle 20 – product image of all versions

Cover Cap for Alu Connection Angle 20

Fig.: ① Color: Black

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:Black, grayTip:Compatible Alu Connection Angle see 093W203Specials:Other colors on requestDelivery Countries:Worldwide

€0.00
Alu Connection Angle 20 x 40 – product image of all versions

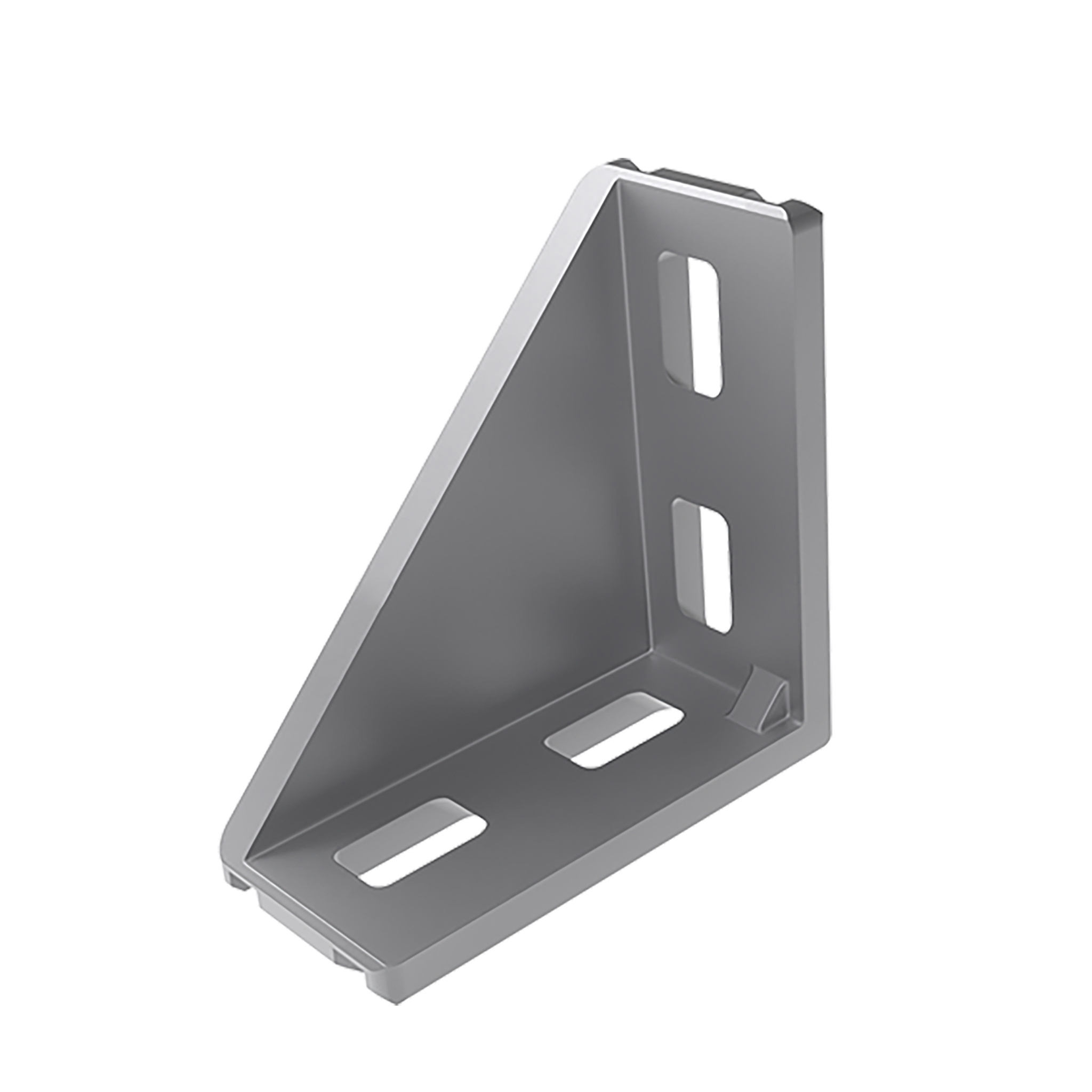

Alu Connection Angle 20 x 40

Version: - Profile: - Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedColor:Angle: Alu colorAssembly Set:4 hammer nuts - slot 6 - M4, 4 screws DIN EN ISO 7380-1 (DIN 34805-1) - M4 x 8Tip:Compatible Cover Cap see 093WA202Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Cover Cap for Alu Connection Angle 20 x 40 – product image of all versions

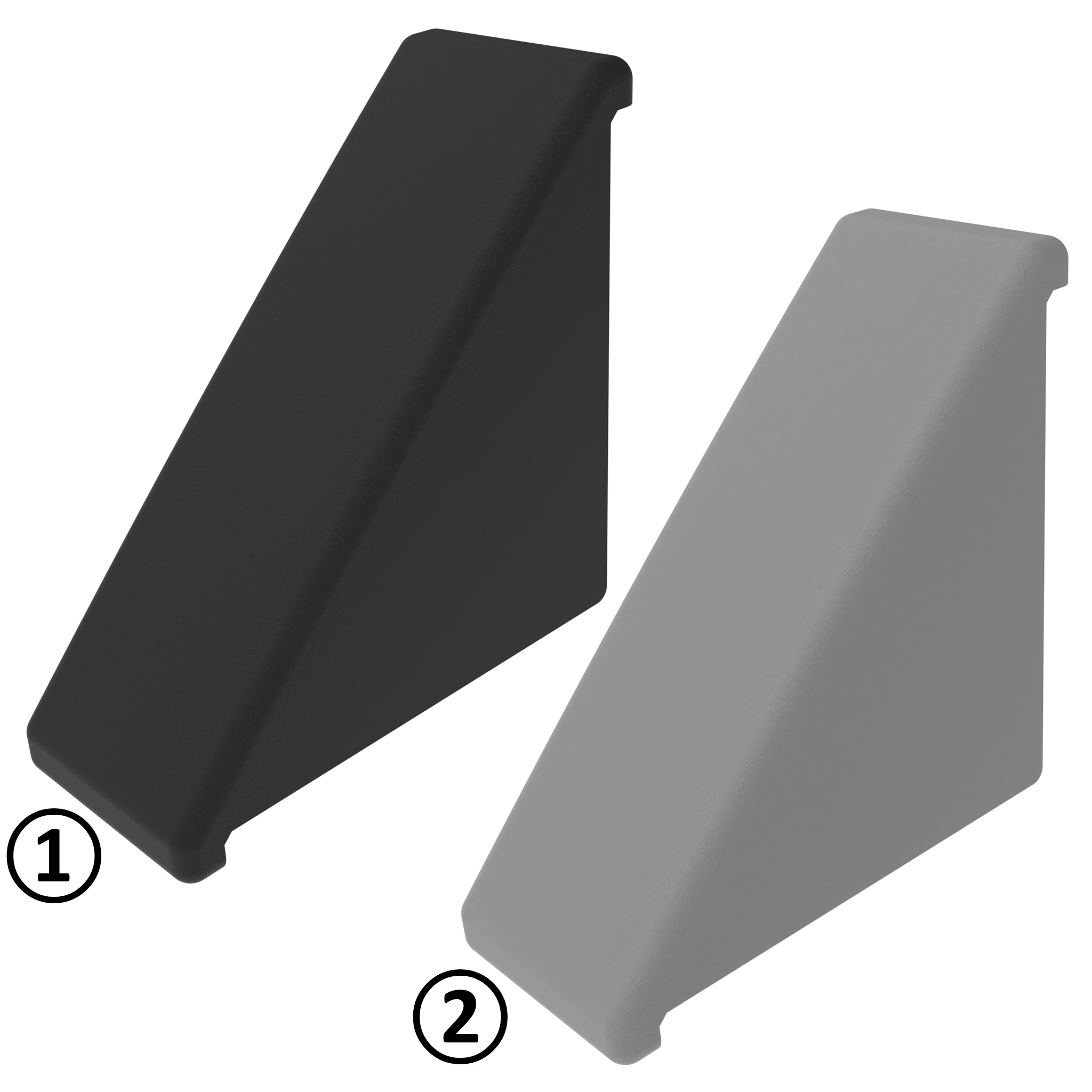

Cover Cap for Alu Connection Angle 20 x 40

Fig.: ① Color: Black

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:Black, grayTip:Compatible Connection Angle see 093W202Specials:Other colors on requestDelivery Countries:Worldwide

€0.00

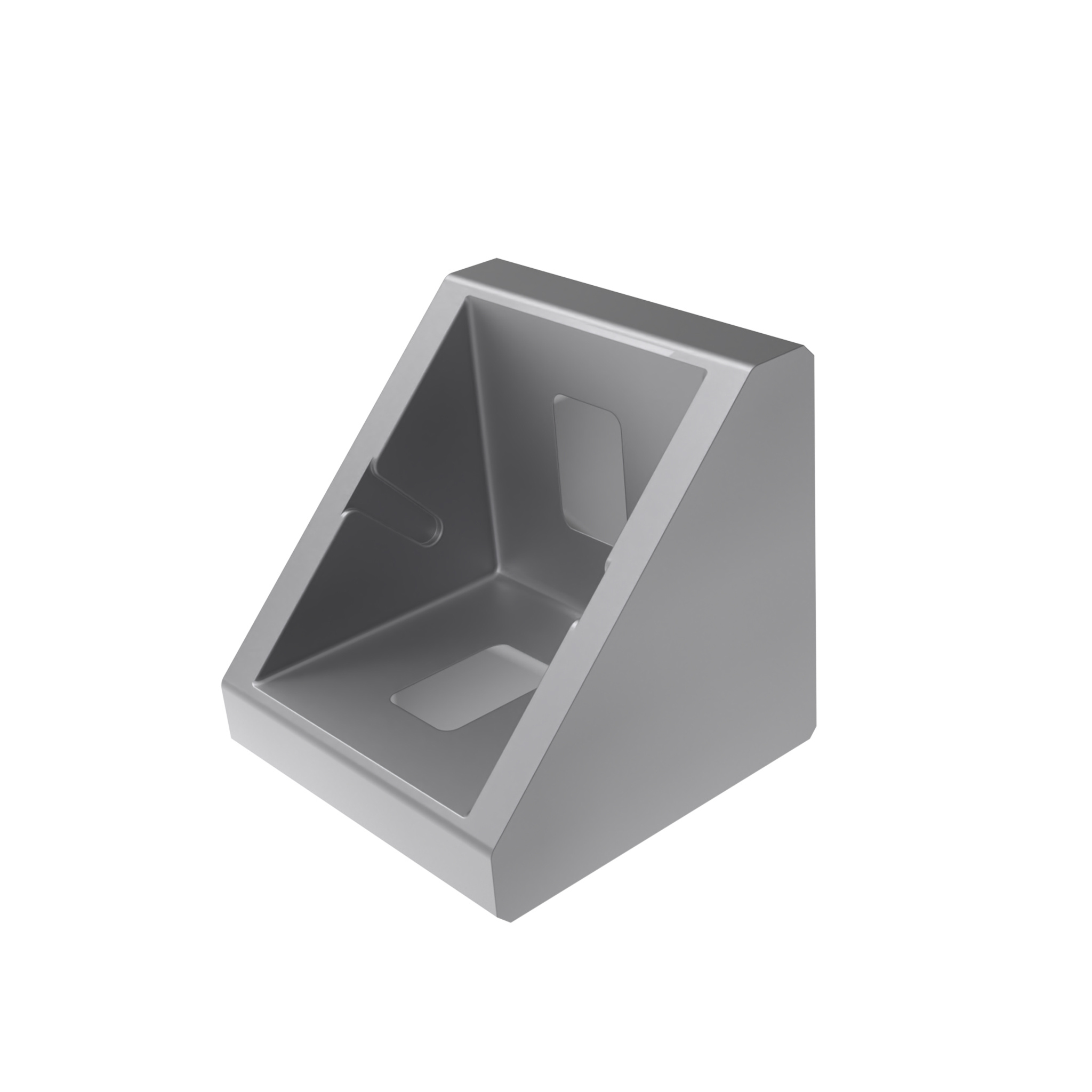

Alu Connection Angle 30 – product image of all versions

Alu Connection Angle 30

Version: - Profile: - Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedColor:Angle: Alu colorAssembly Set 1:2 hammer nuts - slot 8 - M6, 2 screws DIN 7984 - M6 x 14 Assembly Set 2:1 hammer nut - slot 8 - M6, 1 screw DIN 7984 - M6 x 14, 1 hammer nut - slot 10 - M6, 1 screw DIN 7984 - M6 x 18Assembly Set 3:2 hammer nuts - slot 10 - M6, 2 screws DIN 7984 - M6 x 18Tip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA303S02Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Cover Cap for Alu Connection Angle 30 – product image of all versions

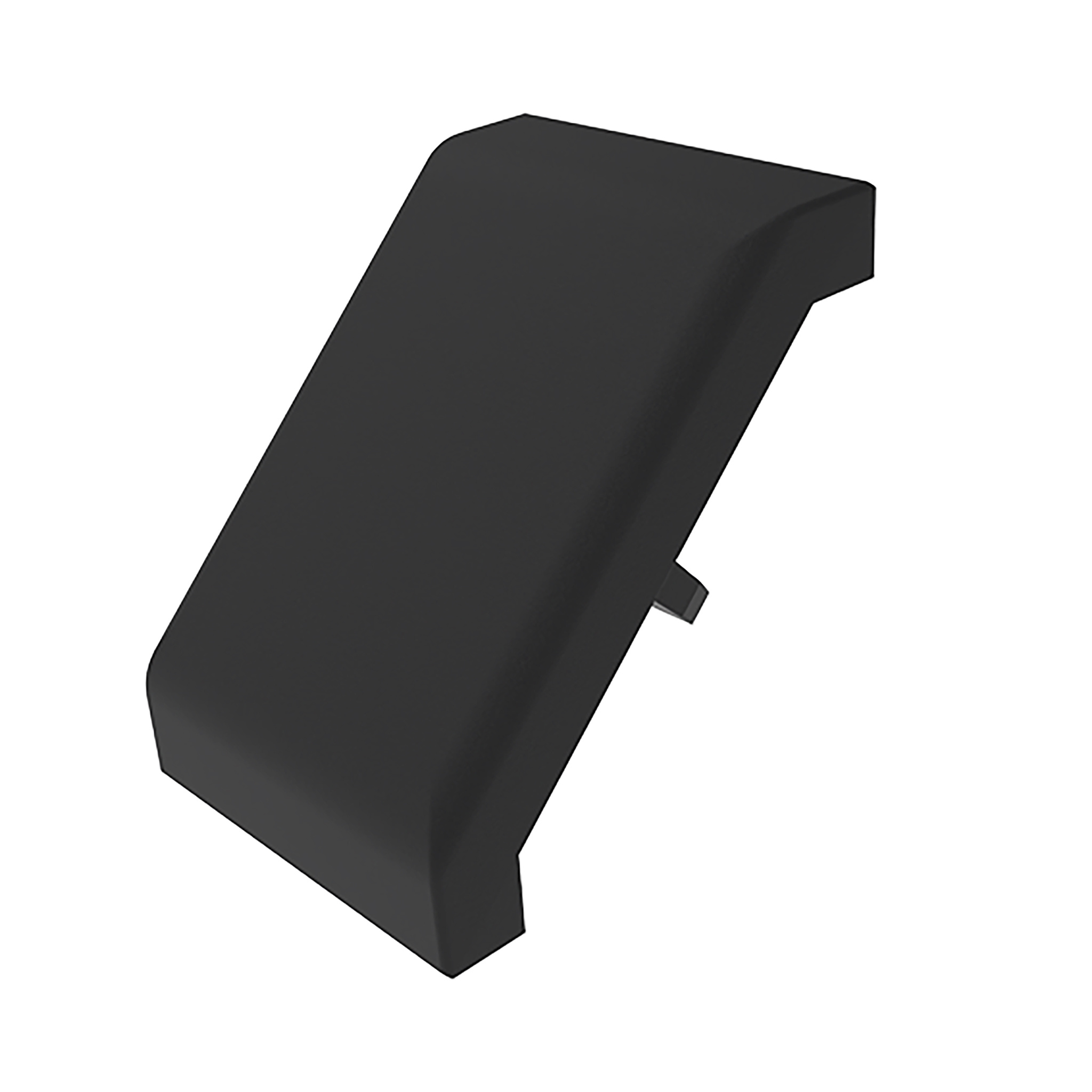

Cover Cap for Alu Connection Angle 30

Fig.: ① Color: Black

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:Black, grayTip:Compatible Connection Angle see 093W303Specials:Other colors on requestDelivery Countries:Worldwide

€0.00
Alu Connection Angle 20 x 40 – product image of all versions

Alu Connection Angle 30 x 60

Version: - Profile: - Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedColor:Angle: Alu colorAssembly Set:4 hammer nuts - slot 8 - M6, 4 screws DIN 7984 - M6 x 14Tip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA302Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Cover Cap for Alu Connection Angle 30 x 60 – product image of all versions

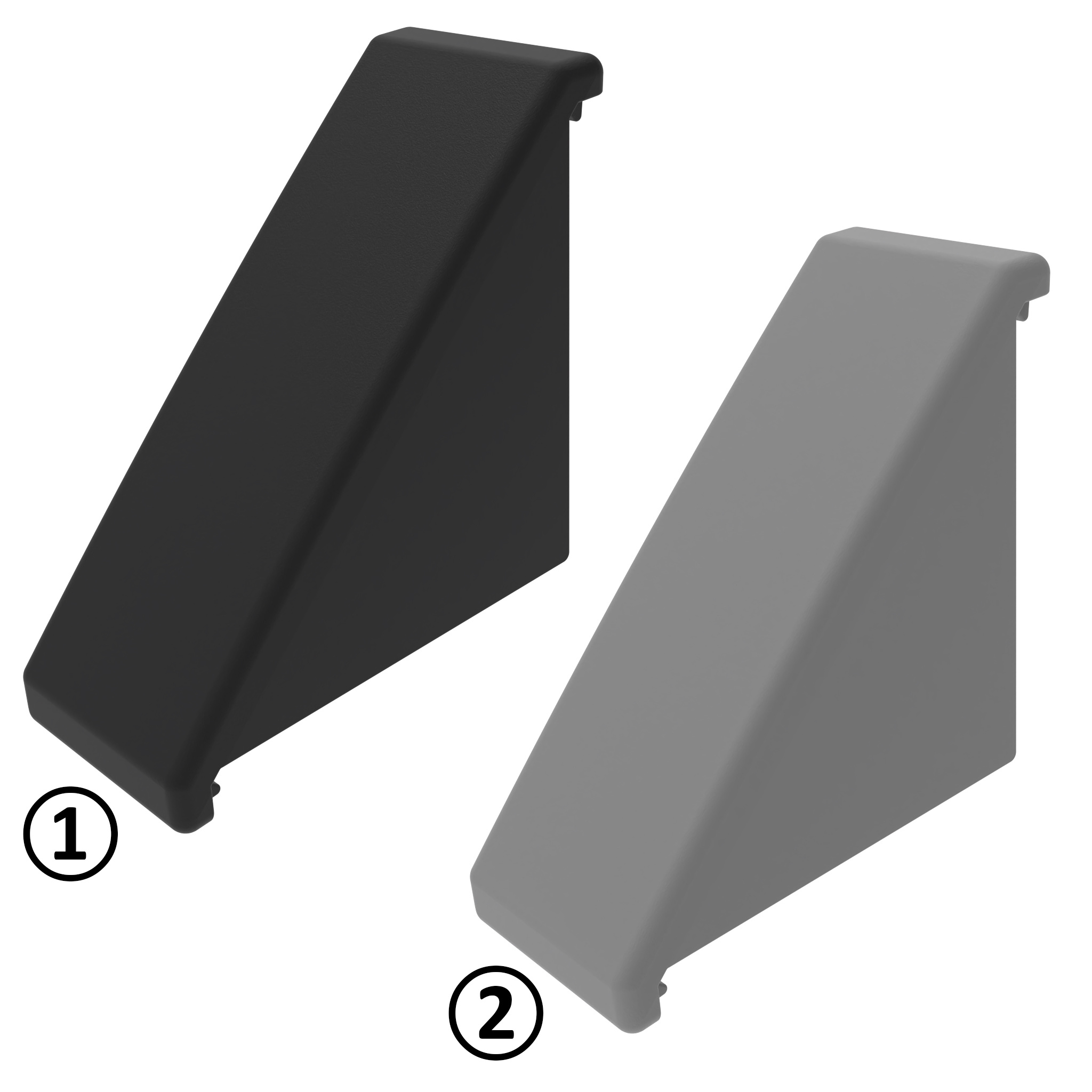

Cover Cap for Alu Connection Angle 30 x 60

Fig.: ① Color: Black

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:Black, grayTip:Compatible Connection Angle see 093W302Specials:Other colors on requestDelivery Countries:Worldwide

€0.00

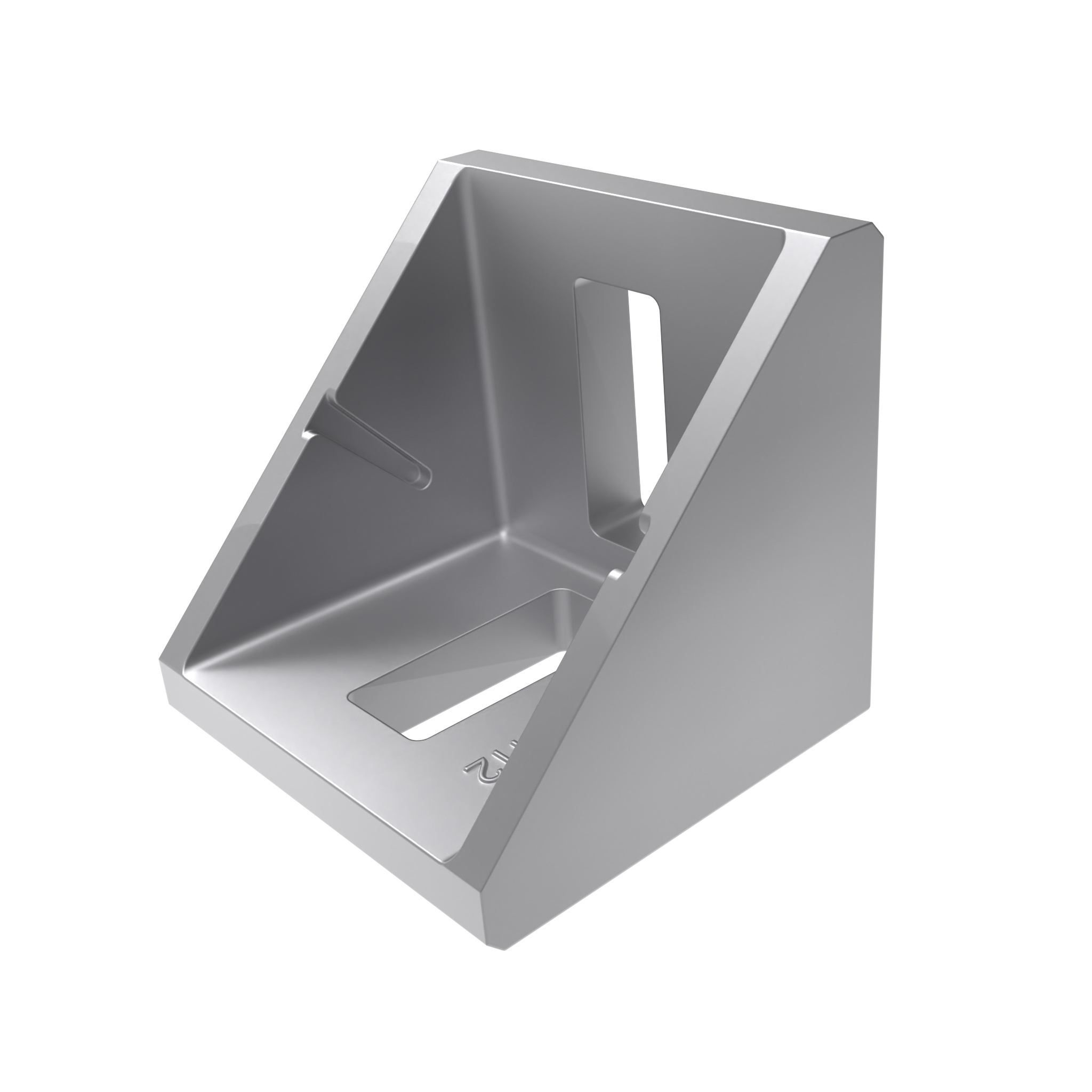

Alu Connection Angle 40 – product image of all versions

Alu Connection Angle 40

Version: - Profile: - Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedColor:Alu colorAssembly Set:2 hammer head screws - slot 10 - M8 x 20, 2 flange nuts M8Tip:Compatible Cover Cap see 093WA404Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Cover Cap for Alu Connection Angle 40 – product image

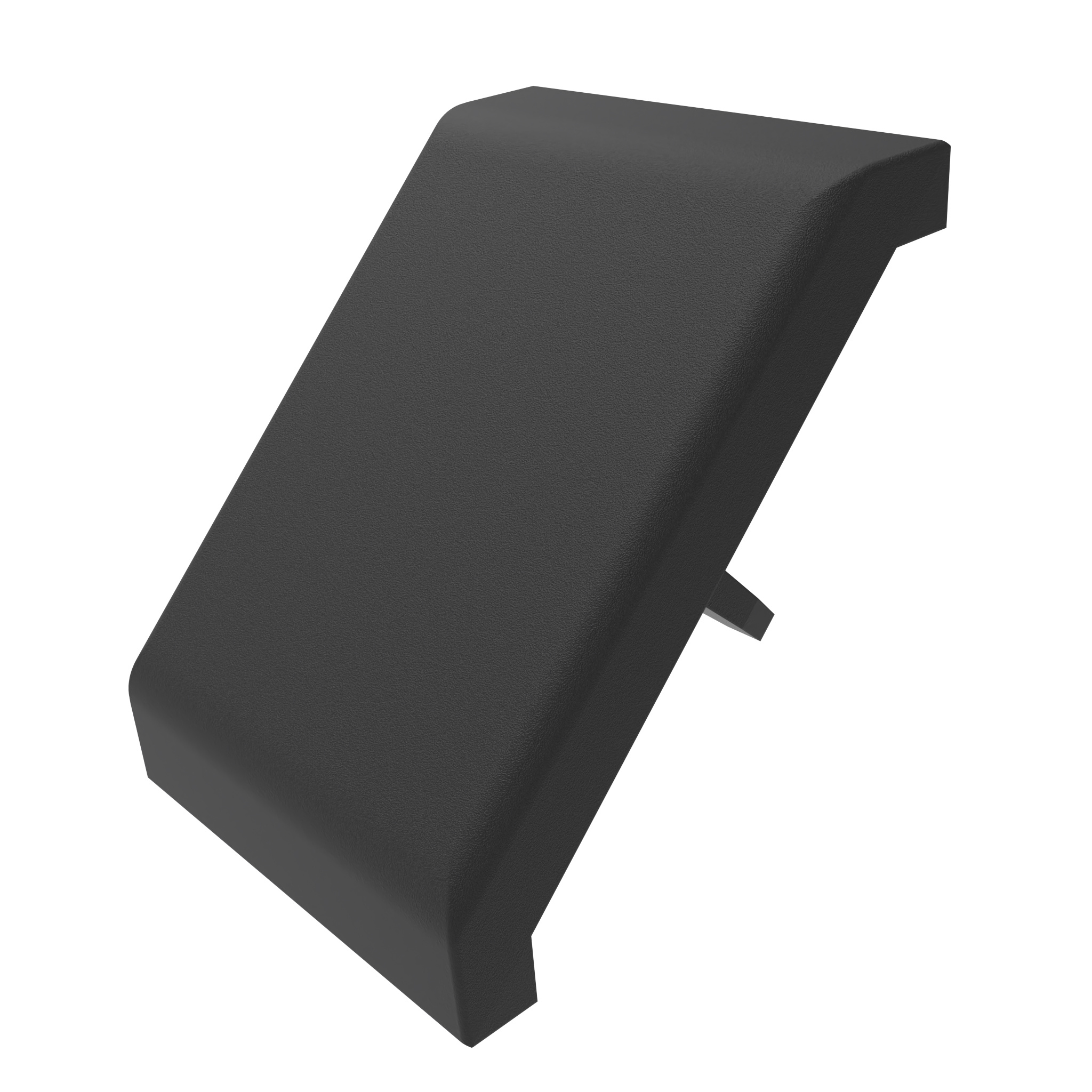

Cover Cap for Alu Connection Angle 40

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:BlackTip:Compatible Connection Angle see 093W404Specials:Other colors on requestDelivery Countries:Worldwide

€0.00
Alu Connection Angle I40 M (Set) – product image

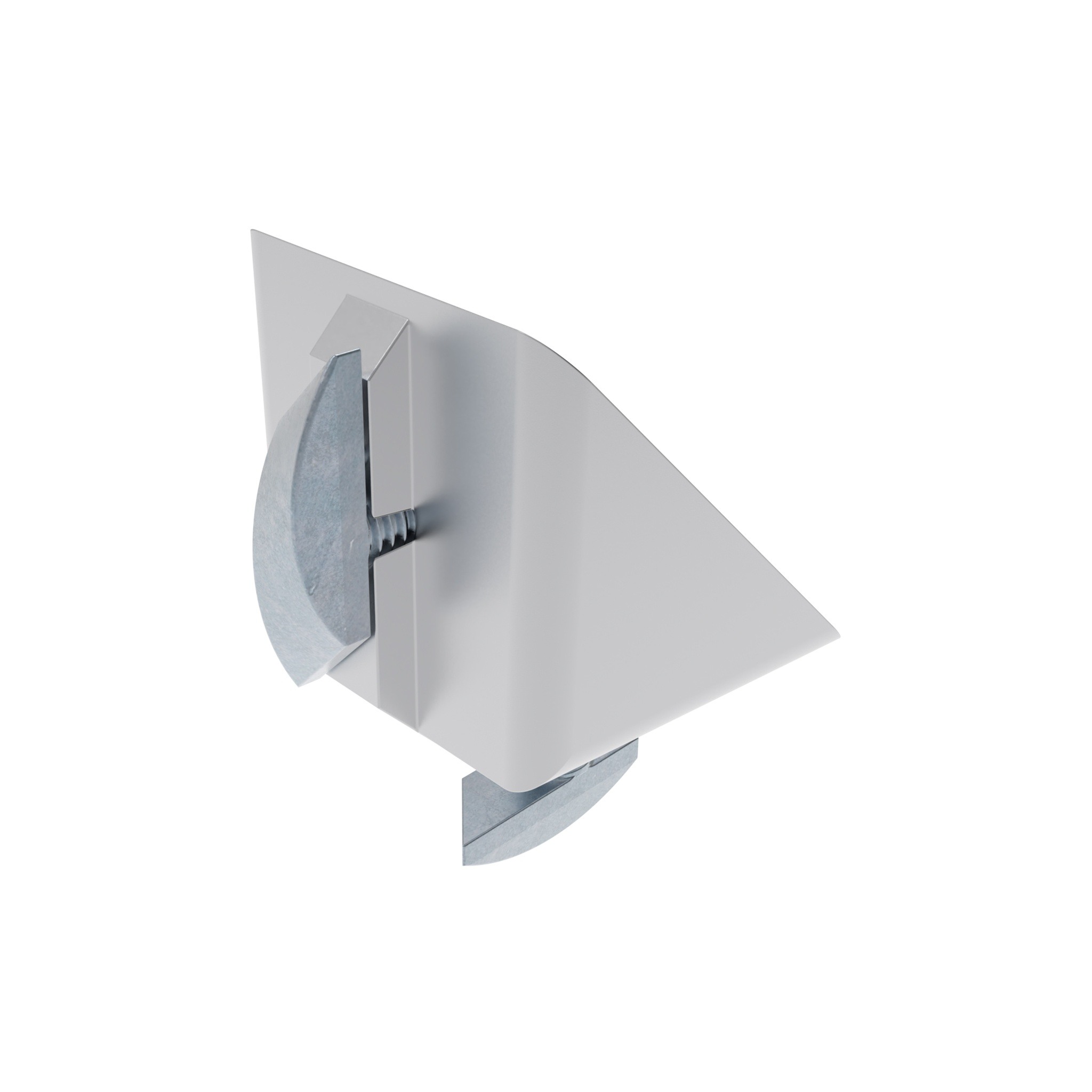

Alu Connection Angle I40 M (Set)

Profile: I Slot N (mm): 8

Description:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedColor:Alu colorTip:Compatible Cover Cap see 093WA406Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Cover Cap for Alu Connection Angle I40 M (Set) – product image of all versions

Cover Cap for Alu Connection Angle I40 M (Set)

Fig.: ① Color: Black

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:Black, grayTip:Compatible Alu Connection Angle I40 M (Set) see 093W406N08S01Specials:Other colors on requestDelivery Countries:Worldwide

€0.00
Alu Connection Angle I40 M Length/Cross (Set) – product image

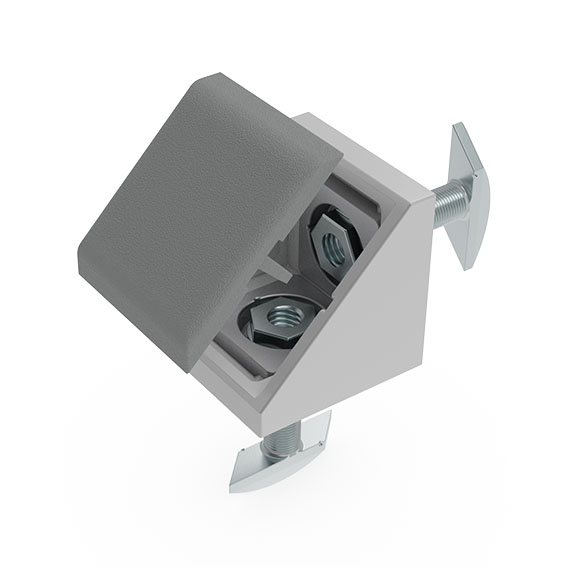

Alu Connection Angle I40 M Length/Cross (Set)

Profile: I Slot N (mm): 8

Description:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedColor:Angle: Alu color Cover cap: Gray≈ RAL 7042 Ring: BlackSet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capDelivery Countries:Worldwide

€0.00
Alu Connection Angle 40 x 80 – product image of all versions

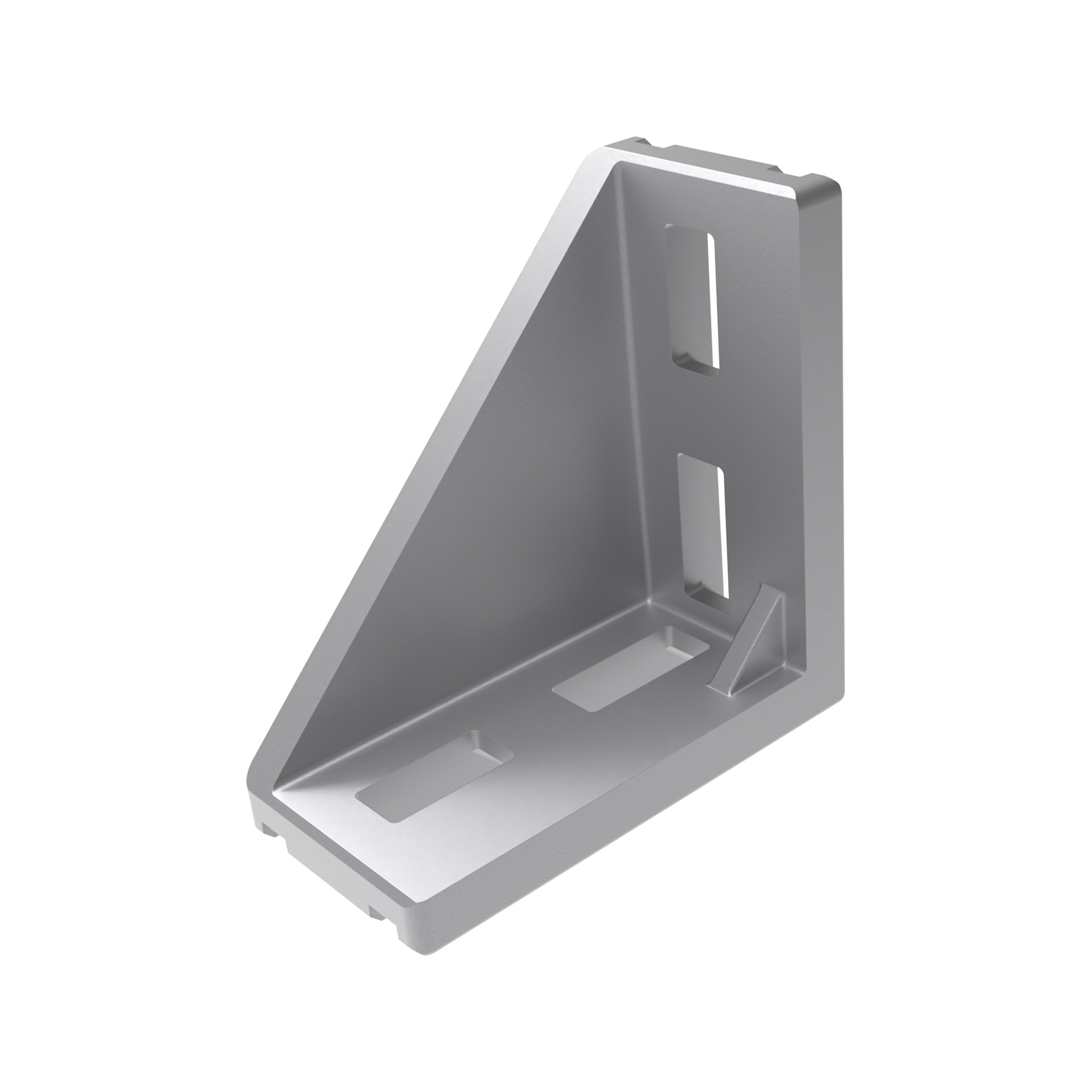

Alu Connection Angle 40 x 80

Version: - Profile: - Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedColor:Alu colorAssembly Set:4 hammer head screws - slot 10 - M8 x 25, 4 flange nuts M8Tip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Cover Cap see 093WA403Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Cover Cap for Alu Connection Angle 40 x 80 – product image

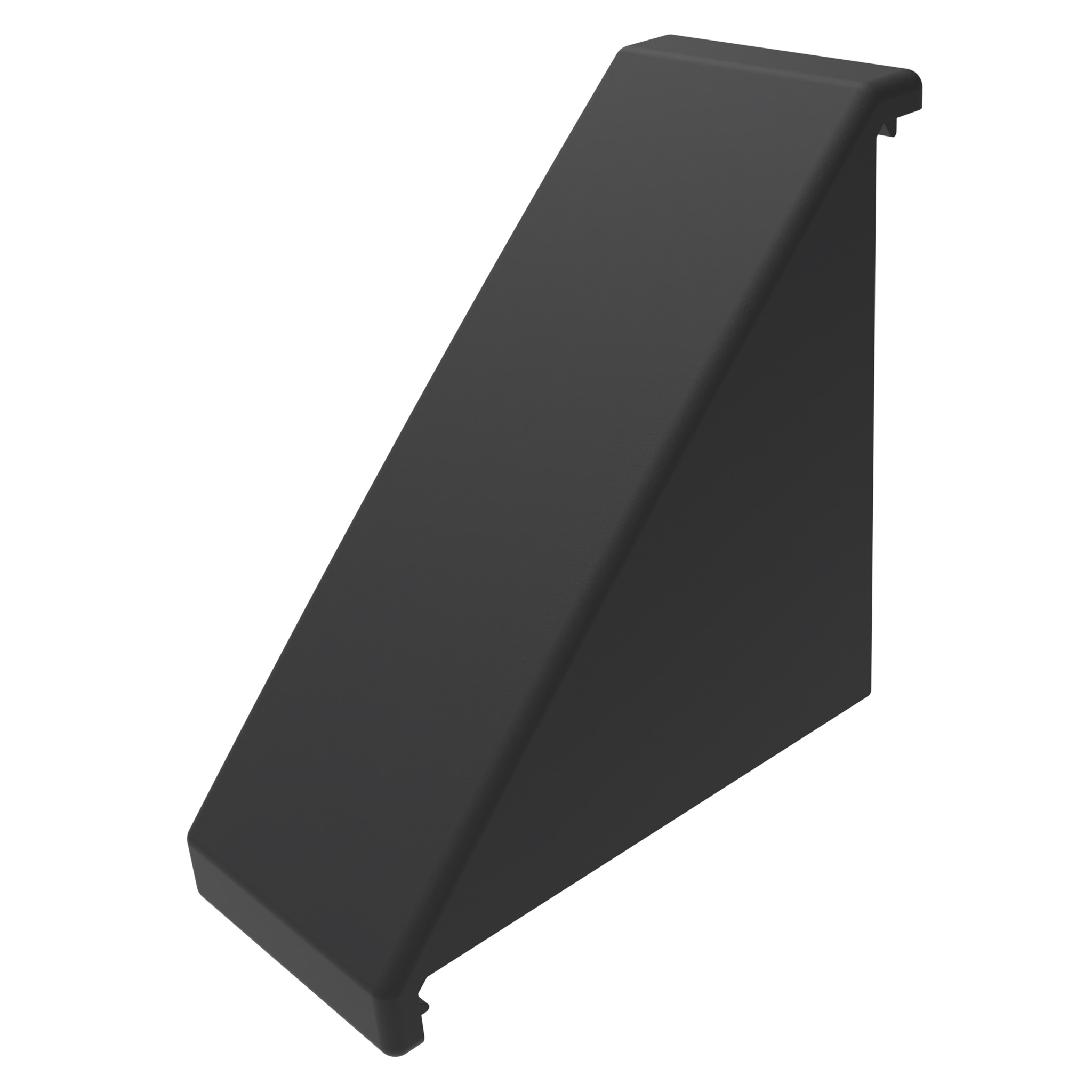

Cover Cap for Alu Connection Angle 40 x 80

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:BlackTip:Compatible Alu Connection Angle see 093W403Specials:Other colors on requestDelivery Countries:Worldwide

€0.00

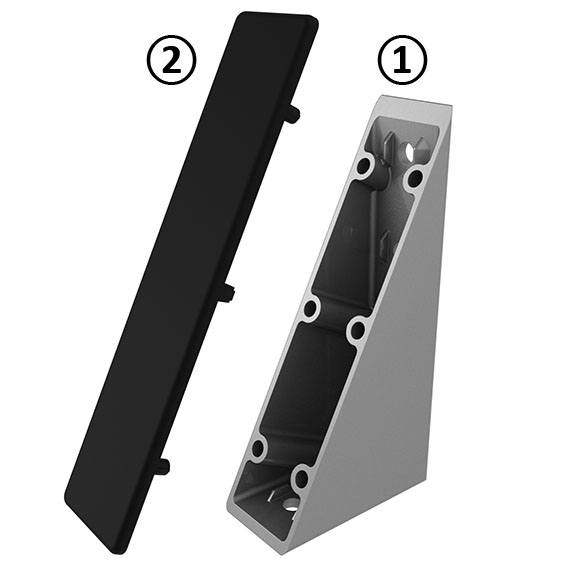

Alu Connection Angle 40 x 80 x 160 (Set) – product image

Alu Connection Angle 40 x 80 x 160 (Set)

Profile: I Slot N (mm): 8

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Angle: Powder coated Screws and T-nuts: Zinc platedColor:Angle: Alu color Cover cap: BlackSet:1 angle, 1 cover cap - plastic PA - black, 4 T-slot nuts - slot 8 - M8, 4 screws DIN EN ISO 7380 (DIN 34805) - M8 x 16 4 square washersSpecials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Alu Connection Angle I40 x 80 M (Set) – product image

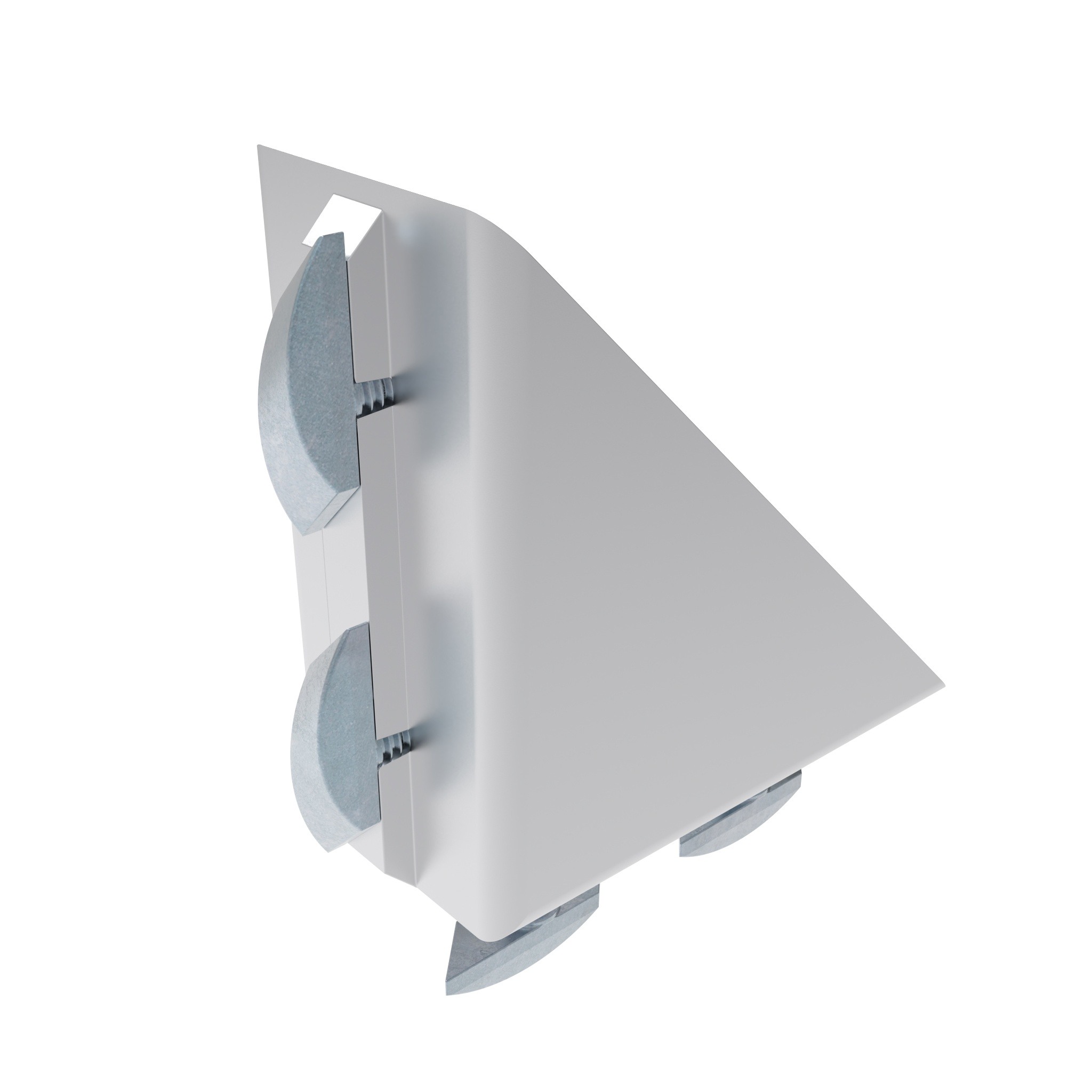

Alu Connection Angle I40 x 80 M (Set)

Profile: I Slot N (mm): 8

Description:To connect two aluminum profiles quickly at right angles, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Magnet rhombus screws: Steel Countersunk nuts: SteelSurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedColor:Alu colorTip:Compatible Cover Cap see 093WA809Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Cover Cap for Alu Connection Angle I40 x 80 M (Set) – product image of all versions

Cover Cap for Alu Connection Angle I40 x 80 M (Set)

Fig.: ① Color: Black

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:Black, grayTip:Compatible Alu Connection Angle I40 x 80 M (Set) see 093W809N08S01Specials:Other colors on requestDelivery Countries:Worldwide

€0.00

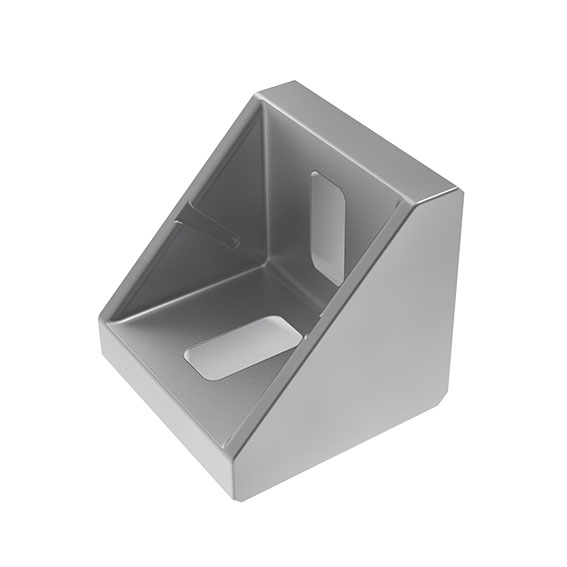

Alu Connection Angle 45 – product image of all versions

Alu Connection Angle 45

Version: - Profile: - Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedColor:Alu colorAssembly Set:2 hammer head screws - slot 10 - M8 x 25, 2 flange nuts M8Tip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 Compatible Flat Cover Cap see 093WA421S02Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Alu Connection Angle 45 T – product image of all versions

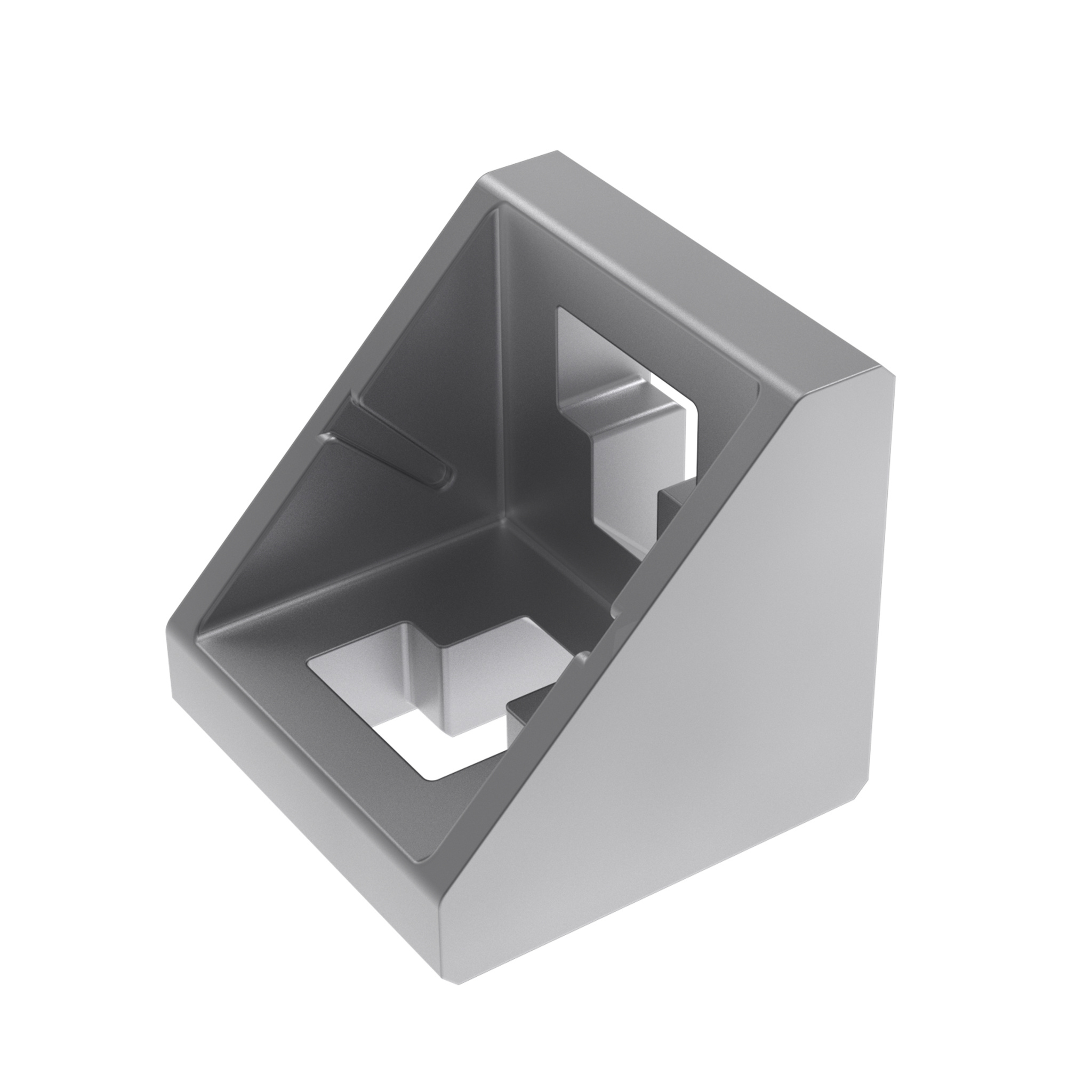

Alu Connection Angle 45 T

Version: - Profile: - Slot N (mm): 10

Description:To connect two aluminum profiles or panels at right angles, the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Assembly set: SteelSurface:Angle: Plain Assembly set: Zinc platedColor:Alu colorAssembly Set:2 hammer head screws - slot 10 - M8 x 25, 2 flange nuts M8Tip:Compatible Flat Cover Cap see 093WA421S02Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Flat Cover Cap for Alu Connection Angle 45 – product image of all versions

Flat Cover Cap for Alu Connection Angle 45

Fig.: ① ESD: - Color: Black

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:Black, grayTip:Compatible Centering Piece Widening Slot 8 to Slot 10 for Alu Connection Angle see 093W02 Compatible Alu Connection Angle 45 see 093W421, 093W423N10Specials:Other colors on requestDelivery Countries:Worldwide

€0.00
Alu Connection Angle B45 M Length/Cross (Set) – product image

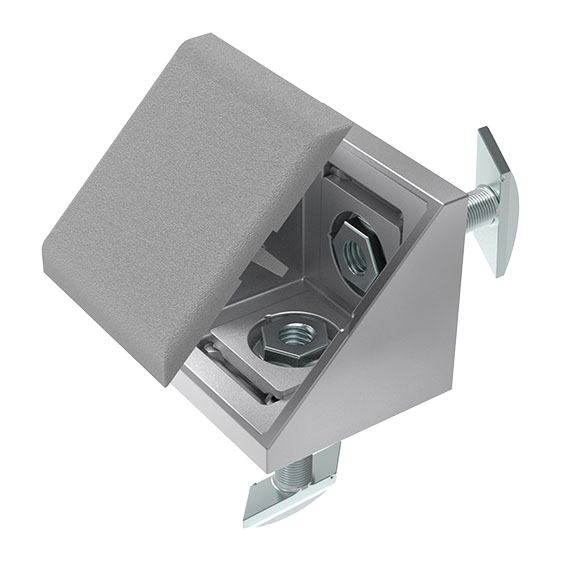

Alu Connection Angle B45 M Length/Cross (Set)

Profile: B Slot N (mm): 10

Description:To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover capMaterial:Angle: Aluminum die-cast Cover cap: Plastic PA, glass fiber reinforced, Magnet rhombus screws: Steel Countersunk nuts: Steel Insert: Zinc die-cast # Ring: Plastic PESurface:Angle: Powder coated Magnet rhombus screws: Zinc plated Countersunk nuts: Zinc platedColor:Angle: Alu color Cover cap: Gray≈ RAL 7004 Ring: BlackSet:1 angle 2 magnet rhombus screws 2 countersunk nuts M8 1 cover capDelivery Countries:Worldwide

€0.00

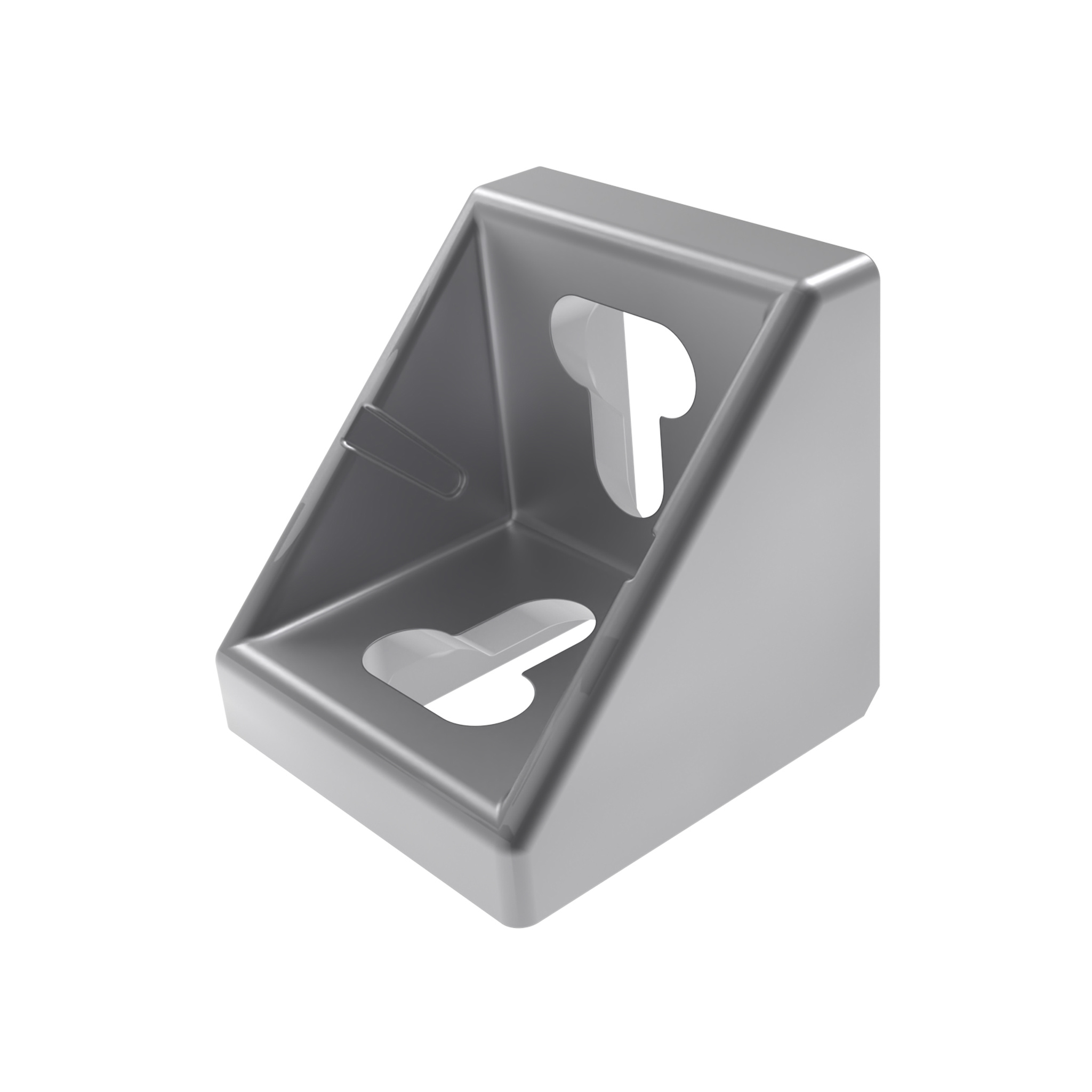

Alu Connection Angle 43 x 42 – product image of all versions

Alu Connection Angle 43 x 42

Version: - Profile: - Slot N (mm): 10

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Aluminum die-castSurface:Angle: Plain Assembly set: Zinc platedAssembly Set:2 hammer head screws - slot 10 - M8 x 25, 2 flange nuts M8Tip:Compatible Cover Cap see 093WA422Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Cover Cap for Alu Connection Angle 43 x 42 – product image

Cover Cap for Alu Connection Angle 43 x 42

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:BlackTip:Compatible Alu Connection Angle 43 x 42 see 093W422N10Specials:Other colors on requestDelivery Countries:Worldwide

€0.00
