Central Connectors for aluminum profiles

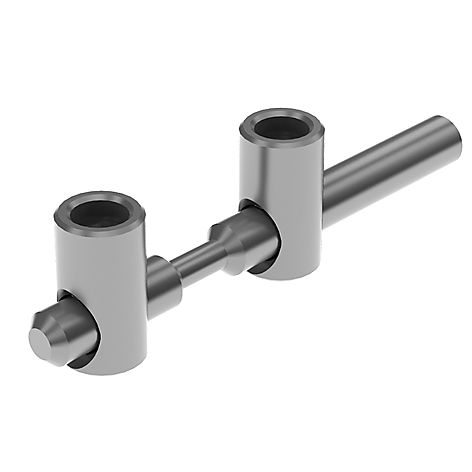

Central Butt Connector B 180° +/-45°

SW (mm): 4 D (mm): 7.1 Profile: B A (mm): 31.0 B (mm): 10.0 L (mm): 75.0 d (mm): Ø11 b (mm): 18.0 Slot N (mm): 8 t (mm): 22.0

Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profilesof the same type; a blind or through hole must be drilledbefore the assembly; bendable from 90° to 180°Material:Tie-rod: Stainless steel Bushes: SteelSurface:Tie-rod: Plain Bushes: Zinc platedTip:Cover Cap* (1) = profile 40; (2) profile 45; (3) profile 50Tip 2:Compatible Cover Cap for Central Connector B, Slot 10 see 091107

€0.00

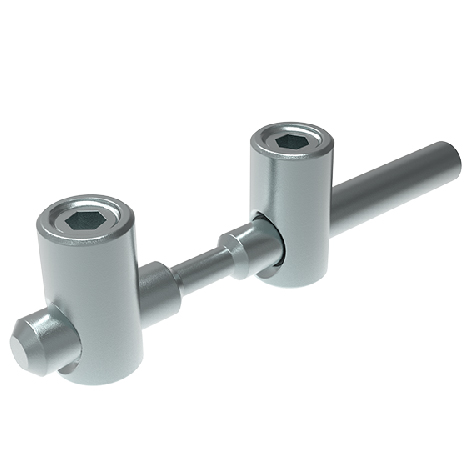

Central Butt Connector I 180° +/-45°

SW (mm): 4 D (mm): 6.5 Profile: I A (mm): 31.0 L (mm): 75.0 d (mm): 11.0 Slot N (mm): 8 t (mm): 20.0

€0.00

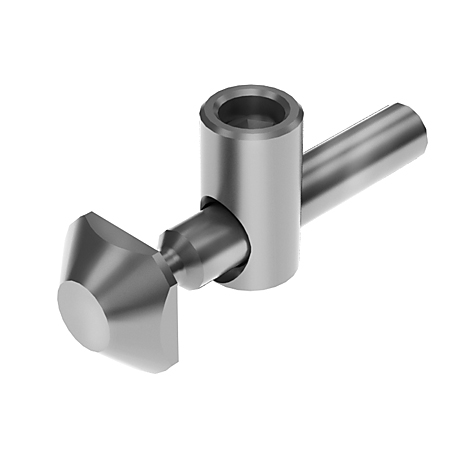

Central Connector B 90° +/-45°

SW (mm): 4 D (mm): 7.1 Profile: B L (mm): 51.0 d (mm): Ø11 b (mm): 18.0 Slot N (mm): 8 t (mm): 22.0

Delivery Countries:WorldwideDescription:End-to-end connection of two aluminum profiles of the same type; a blind or through hole must be drilled before the assembly; bendable from 45° to 135°Material:Tie-rod: Stainless steel Bushes: SteelSurface:Tie-rod: Plain Bushes: Zinc platedTip:Cover Cap* (1) = profile 40; (2) profile 45; (3) profile 50Tip 2:Compatible Cover Cap for Central Connector B, Slot 10 see 091107

€0.00

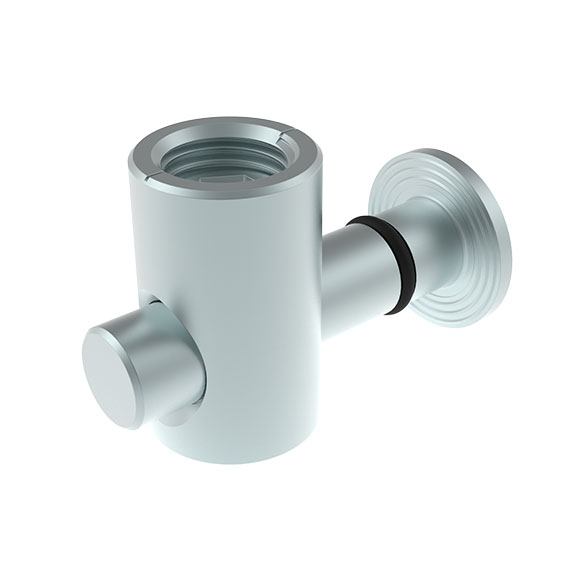

Central Connector B Universal, Slot 10

SW (mm): 6 D (mm): 9.8 Profile: B A (mm): 19.6 B (mm): 5.5 L (mm): 46.0 d (mm): 16.85 Slot N (mm): 10

€0.00

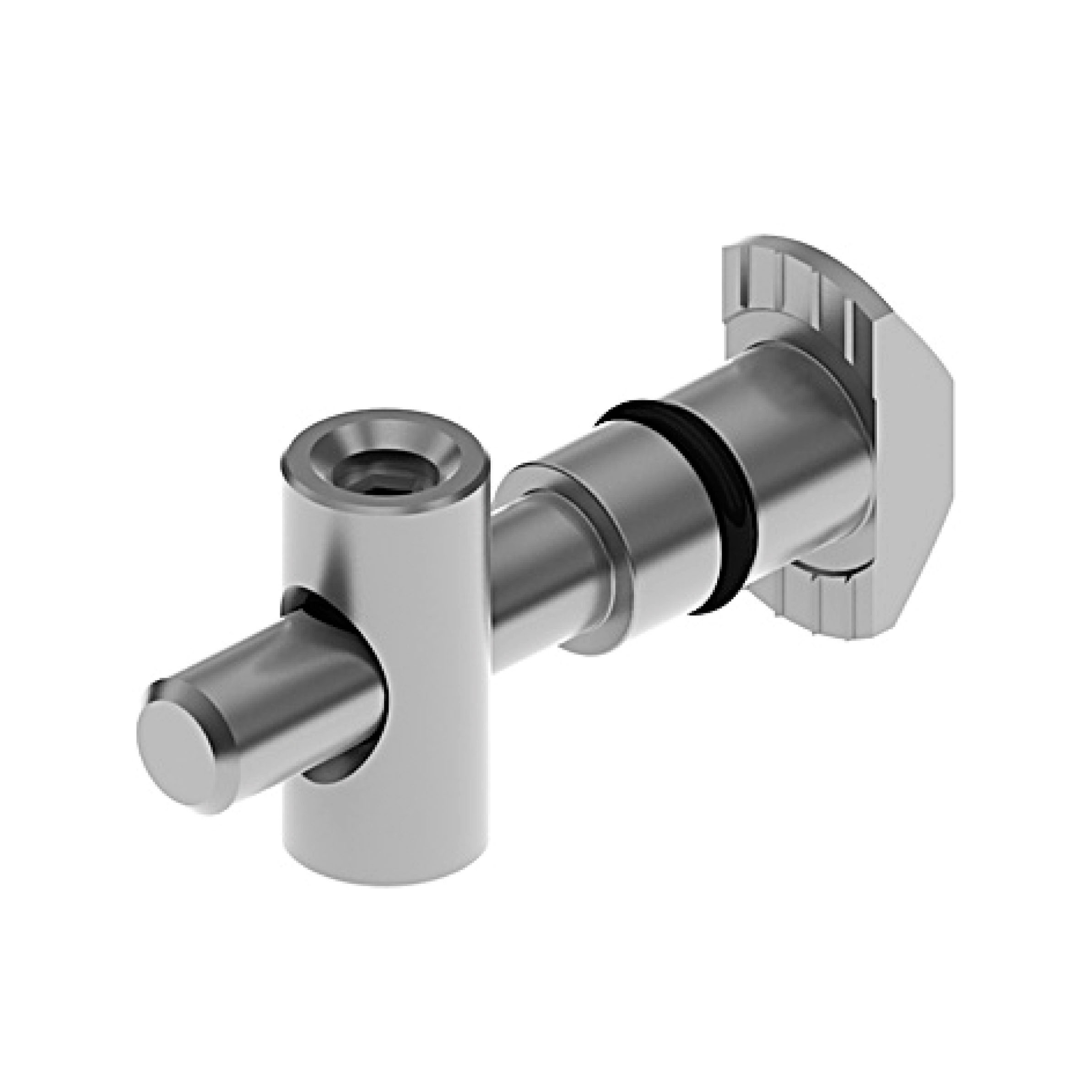

Central Connector B, Bush 9.8 / Slot 10

SW (mm): 3 D (mm): 6.8 Version: 90° Profile: B A (mm): 19.4 B (mm): 5.3 L (mm): 45.6 d (mm): Ø9.8 b (mm): 22.5 Slot N (mm): 10

Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles; a through hole must be drilled into one of the profiles to provide access to the tightening screw, the slot walls are nor taffected by this; the bush flush fits with the slot base, thus leaving both slots free to use; the slot can be completely covered with a cover profileMaterial:SteelSurface:Zinc plated

€0.00

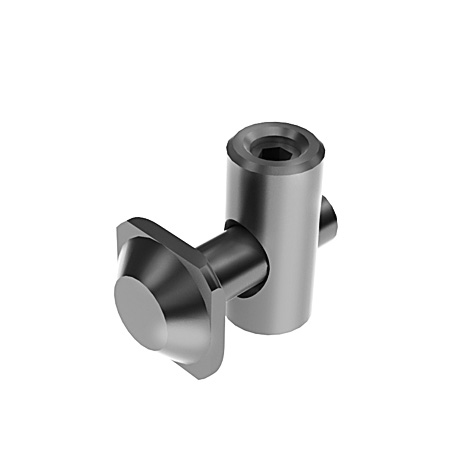

Central Connector B, Slot 6

SW (mm): 2.5 D (mm): 5.2 Profile: B A (mm): 11.0 B (mm): 3.6 L (mm): 20.1 d (mm): 7.9 b (mm): 10.0 Slot N (mm): 6 Opening Angle: 0° / 90° t (mm): 18.5

Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles; a hole must be drilled through one of the profiles to provide access to the tightening screwMaterial:Stainless steelSurface:Plain

€0.00

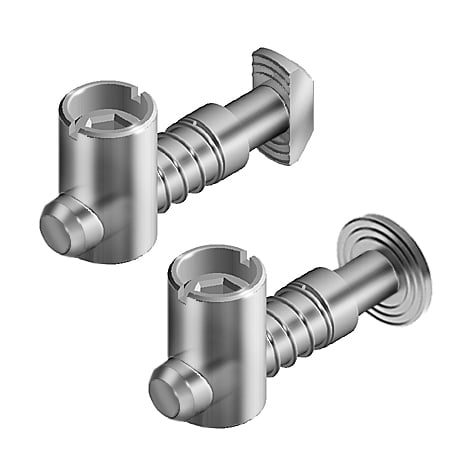

Central Connector B, Slot 8 and Slot 10

SW (mm): 6 D (mm): 9.8 Version: 0° Profile: B A (mm): 19.6 B (mm): 5.5 L (mm): 45.5 d (mm): Ø17 b (mm): 22.5 Slot N (mm): 10 t (mm): 31.0 *(1) 34.0 *(2) 36.0 *(3) 41.0 *(4)

Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles; a blind or through hole must be drilled through one of the profiles to provide access to the tightening screwMaterial:Zinc plated / plainSurface:Zinc platedTip:**Automatic connector with assembly set for profil B incl. hammer nut instead of T-slot nutTip 2:Compatible Cover Cap for Central Connector B, Slot 10 see 091107

€0.00

Central Connector Bush 15, Slot 8

Version: (B) Hammer vertically / horizontally to bush

€0.00

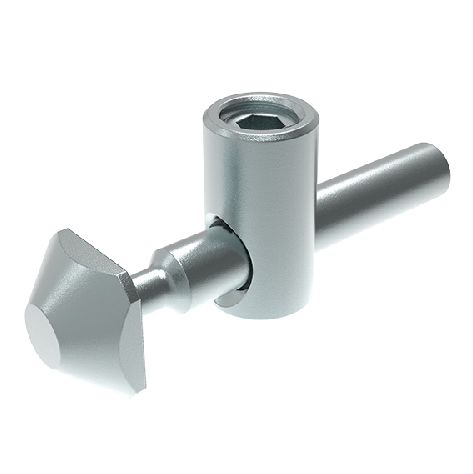

Central Connector I 90° +/-45°

SW (mm): 4 D (mm): 6.5 Profile: I A (mm): 13.0 B (mm): 6.0 L (mm): 51.0 d (mm): 11.0 b (mm): 18.5 Slot N (mm): 8 t (mm): 20.0

€0.00

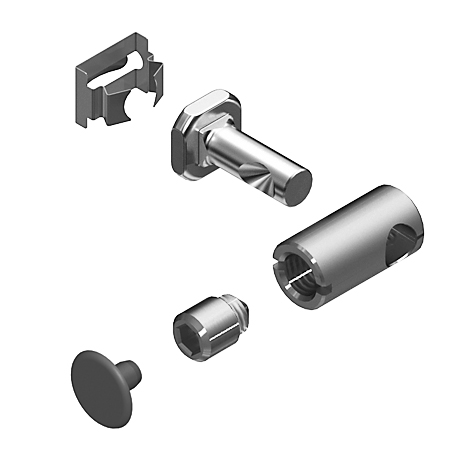

Central Connector I, Slot 8

Version: without notches Profile: I ESD: - Slot N (mm): 8

Color:Cover cap: Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To connect two aluminum profiles at right angles; before the application a 28 mm deep blind hole with Ø 14.2 mm lateral and a 20 mm deep blind hole with Ø 8.2 mm frontal must be drilled; with cover capMaterial:Connector: Steel Clamp: Stainless steel Cover caps: Plastic PPSurface:Connector: Zinc plated Clip: PlainTip:Compatible Radius Seal see 093RD84040R4; if used with the radius seal, the distance dimension of the bore hole should be reduced by the thickness of the radius seal

€0.00

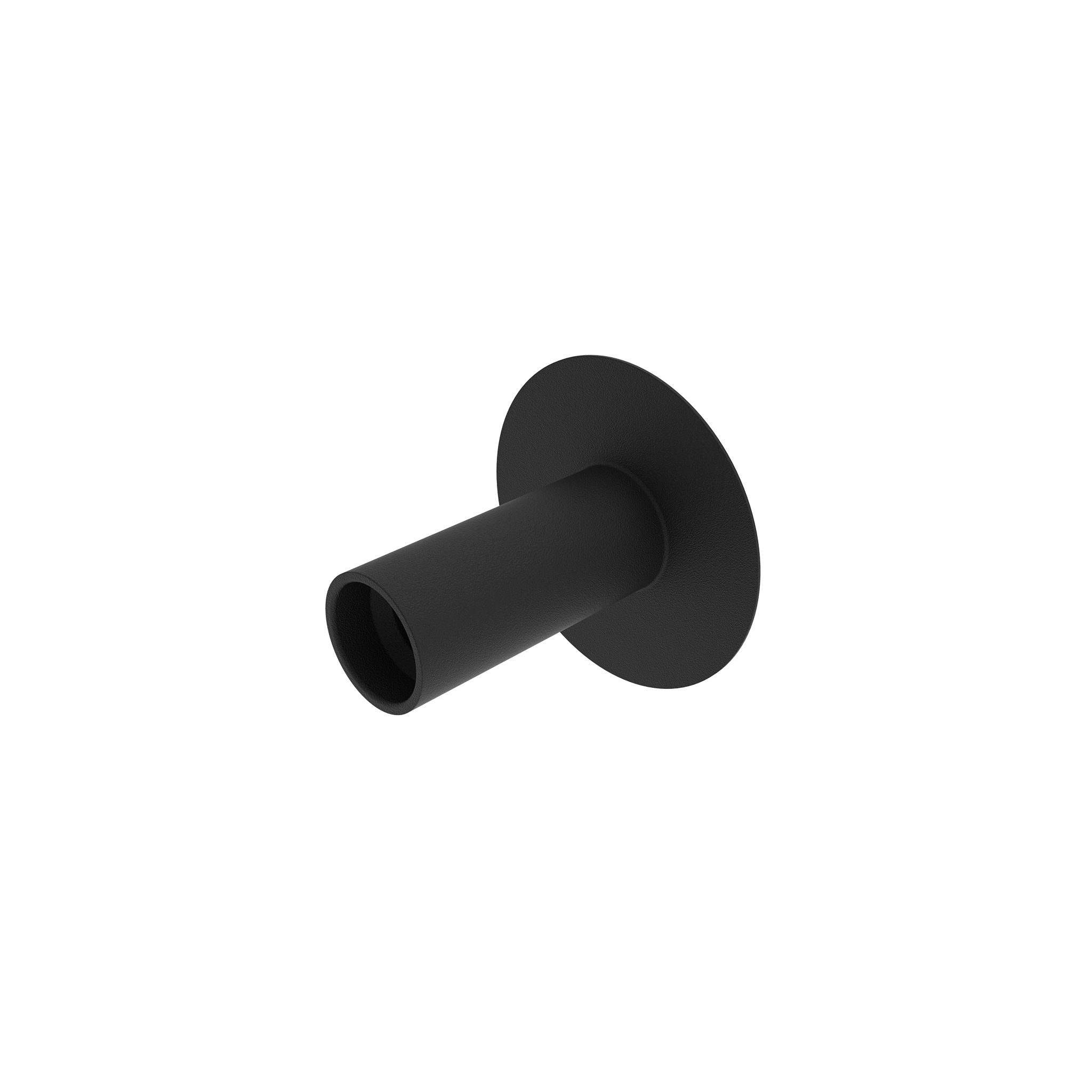

Cover Cap for Central Connector B, Slot 10

Profile: B L (mm): 15.0 Modular Dimension (mm): 45 for Nut: 10

Color:BlackDelivery Countries:WorldwideDescription:To cover the blind or through holeMaterial:Plastic PATip:Compatible Central Connector B 0°, Slot 10 see 099B10171000 Compatible Central Connector B 90°, Slot 10 see 099B10171090 Compatible Central Butt Connector B 180° +/-45°, Slot 10 see 099B1017S01 Compatible Central Connector B 90° +/-45°, Slot 10 see 099B1017S02

€0.00
