Central Connector B, Slot 6

Product information "Central Connector B, Slot 6"

Delivery Countries:
Worldwide

Description:

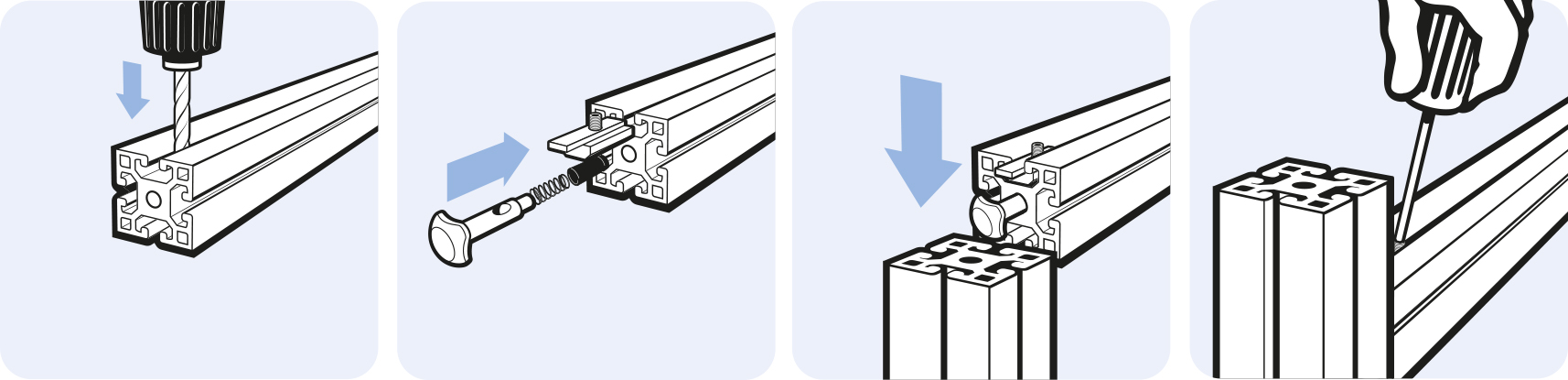

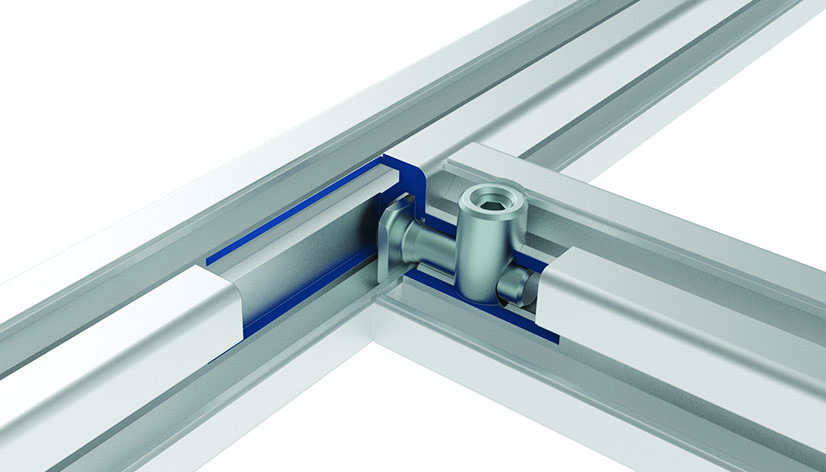

To connect two aluminum profiles at right angles; a hole must be drilled through one of the profiles to provide access to the tightening screw

Material:
Stainless steel

Surface:
Plain
Pack Quantity: 10 pieces
Model: Stainless steel
Weight (g): 9.5
ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 73269098900
Customs Tariff Number Export: 73269098
ERP Number: 126817

Variants

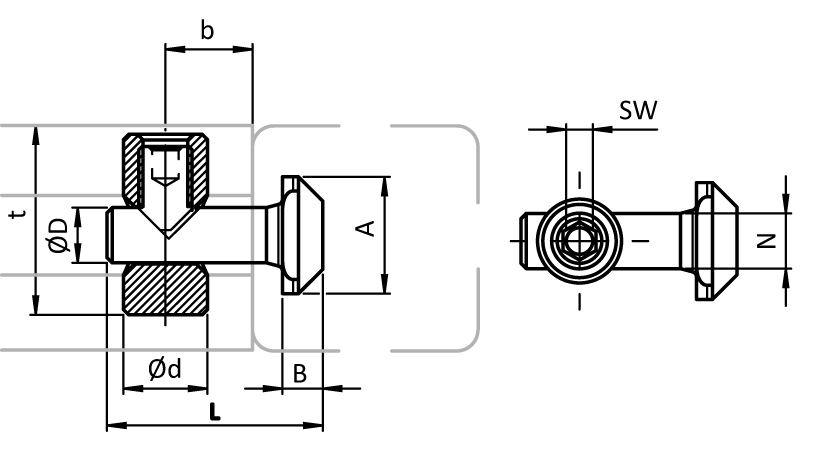

Part # SW (mm) D (mm) Profile A (mm) B (mm) L (mm) d (mm) b (mm) Slot N (mm) Opening Angle t (mm)
099B060805 2.5 5.2 B 11.0 3.6 20.1 7.9 10.0 6 0° / 90° 18.5
