Zinc Connection Angles

FATH zinc connection angles form a force-locked connection for aluminum profiles at a 90-degree angle without the profiles having to be machined and offer an impressively high load capacity. The range includes angles made of zinc die casting brackets that come in various modular dimensions – easy to install and compatible with conventional profile systems. A proven solution for daily use in mechanical engineering.

Filter products

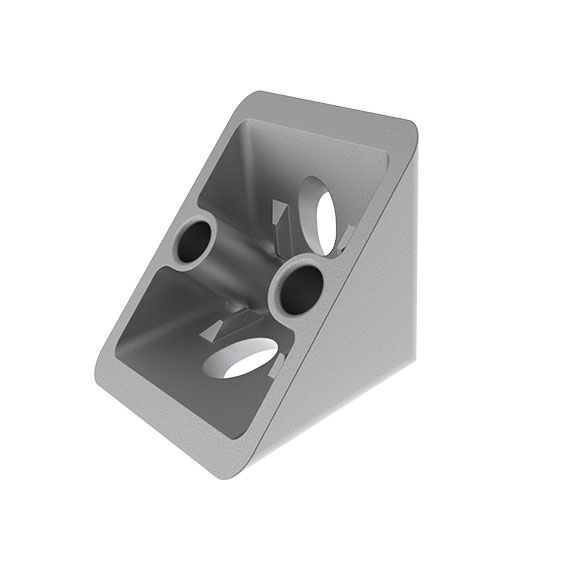

Zinc Connection Angle 20 – product image of all versions

Zinc Connection Angle 20

Version: - Profile: - B (mm): 6.2 Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedColor:Angle: Alu colorAssembly Set:1 cover cap - plastic PA - black, 2 T-slot nuts - slot 5 - M5, 2 screws DIN 6912 - M5 x 8Tip:Compatible Cover Cap see 093WA201Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Cover Cap for Zinc Connection Angle 20 – product image

Cover Cap for Zinc Connection Angle 20

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:BlackTip:Compatible Zinc Connection Angle see 093W201RSpecials:Other colors on requestDelivery Countries:Worldwide

€0.00
Zinc Connection Angle 20 x 28 – product image of all versions

Zinc Connection Angle 20 x 28

Version: - Profile: - Slot N (mm): 8

Description:To connect two profiles and panels at right anglesMaterial:Angle: Zinc die-cast Assembly set: SteelSurface:Angle: Plain Assembly set: Zinc platedAssembly Set:2 hammer nuts - slot 8 - M6, 2 screws DIN 7984 - M6 x 12Tip:Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Zinc Connection Angle 30 – product image of all versions

Zinc Connection Angle 30

Version: - Profile: - Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedColor:Angle: Alu color Cover cap: BlackAssembly Set:1 Cover cap - Plastic PA - black, 2 T-slot nuts - slot 6 - M6, 2 Screws DIN EN ISO 7380 (DIN 34805) - M6 x 12Tip:Compatible Cover Cap see 093WA301Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00

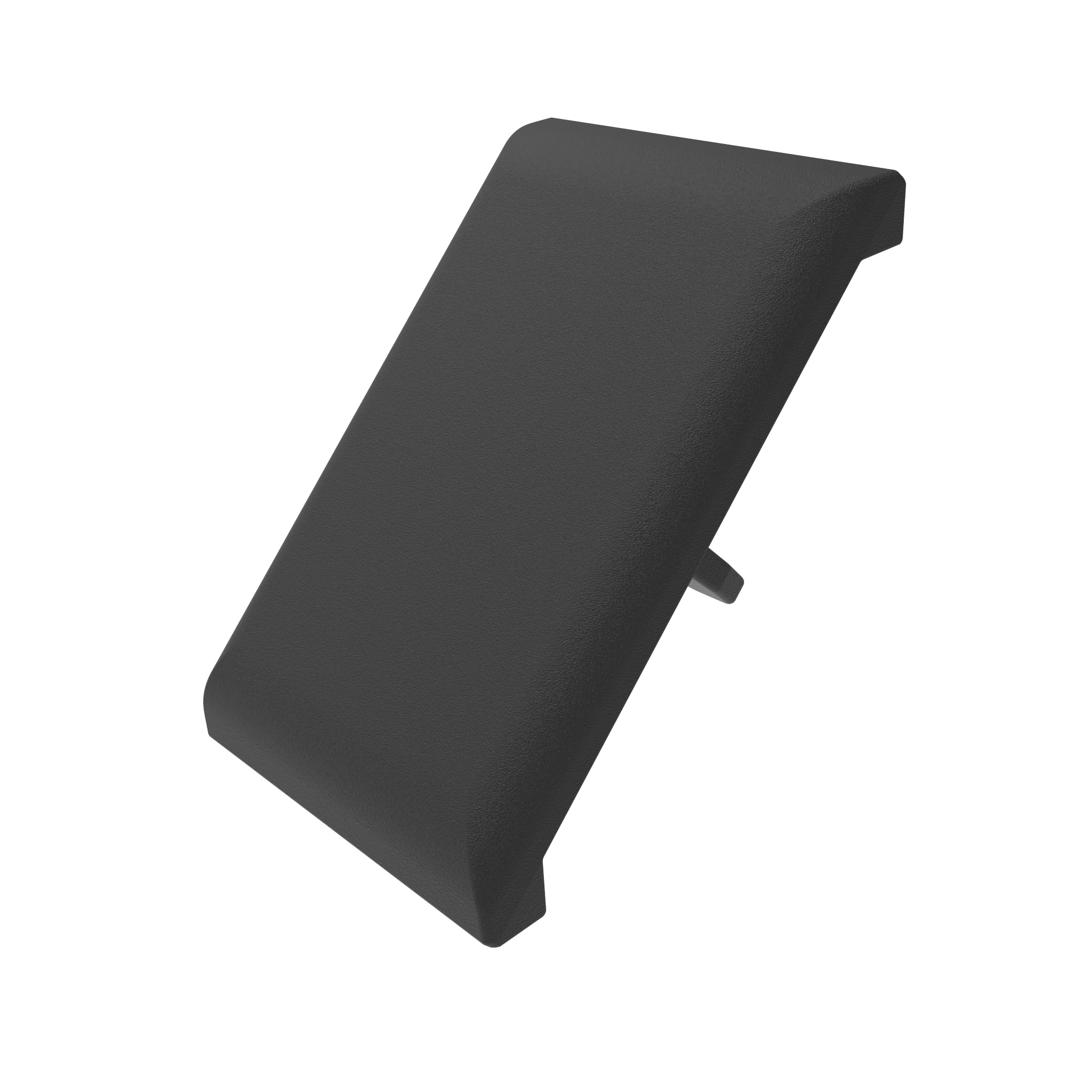

Cover Cap for Zinc Connection Angle 30 – product image

Cover Cap for Zinc Connection Angle 30

Description:To cover the open side of the connection angleMaterial:Plastic PAColor:BlackTip:Compatible Zinc Connection Angle see 093W301RSpecials:Other colors on requestDelivery Countries:Worldwide

€0.00

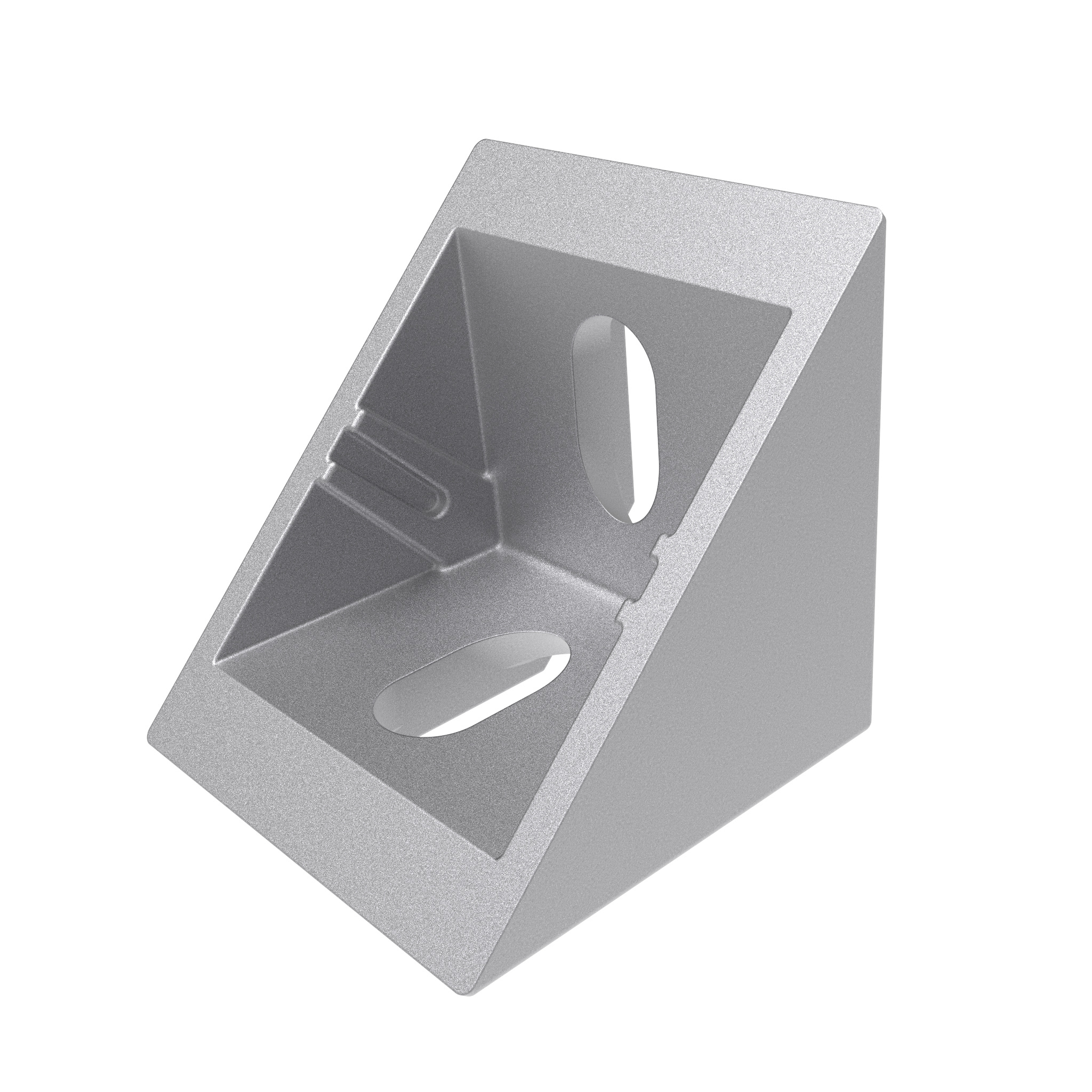

Zinc Connection Angle 40 flat – product image of all versions

Zinc Connection Angle 40 flat

Version: - Profile: - Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedColor:Angle: - / alu color Cover cap: BlackAssembly Set:1 Cover cap - Plastic PA - black, 2 T-slot nuts - slot 8 - M8, 2 Screws DIN EN ISO 7380 (DIN 34805) - M8 x 16Tip:Compatible Cover Cap see 093WA401Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Cover Cap for Zinc Connection Angle 40 flat – product image of all versions

Cover Cap for Zinc Connection Angle 40 flat

Fig.: ① Color: Black

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:Black, grayTip:Compatible Zinc Connection Angle see 093W401RSpecials:Other colors on requestDelivery Countries:Worldwide

€0.00
Zinc Connection Angle 30 – product image of all versions

Zinc Connection Angle 40

Version: - Profile: - Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedColor:Angle: Alu color Cover cap: BlackAssembly Set:1 Cover cap - Plastic PA - black, 2 T-slot nuts - slot 8 - M8, 2 Screws DIN EN ISO 7380 (DIN 34805) - M8 x 16Tip:Compatible Cover Cap see 093WA402Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00

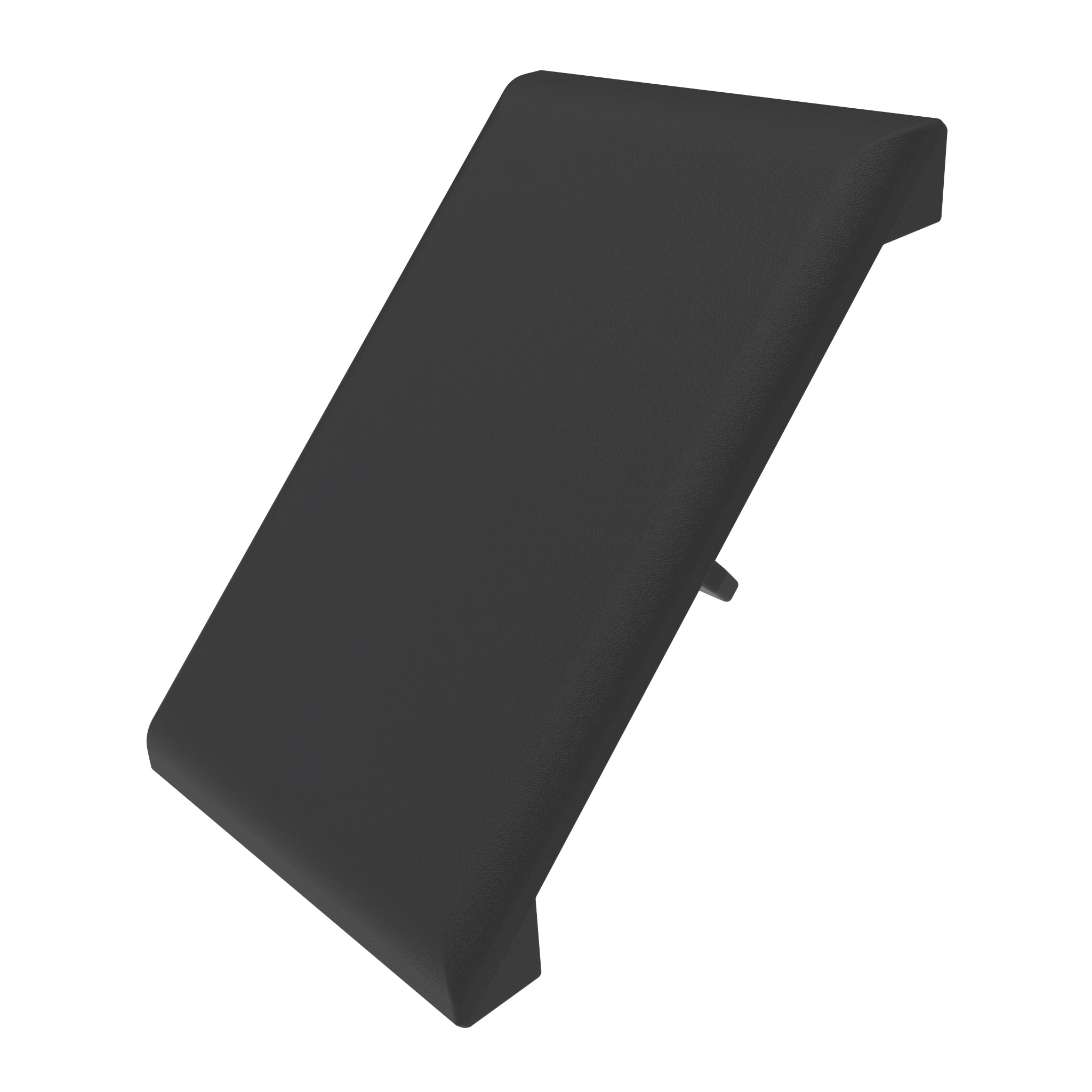

Cover Cap for Zinc Connection Angle 40 – product image

Cover Cap for Zinc Connection Angle 40

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:BlackTip:Compatible Zinc Connection Angle see 093W402RSpecials:Other colors on requestDelivery Countries:Worldwide

€0.00
Zinc Connection Angle I 40 – product image of all versions

Zinc Connection Angle I 40

Version: - Profile: - Surface: Plain Color: - Slot N (mm): 8

Description:To connect two aluminum profiles or panels at right angles, the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedColor:Cover cap: BlackAssembly Set:1 cover cap - plastic PA - black, 2 T-slot nuts - slot 8 - M8, 2 screws DIN EN DIN EN ISO 7380 (DIN 34805) - M8 x 16, 1 washer DIN 988Tip:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
New

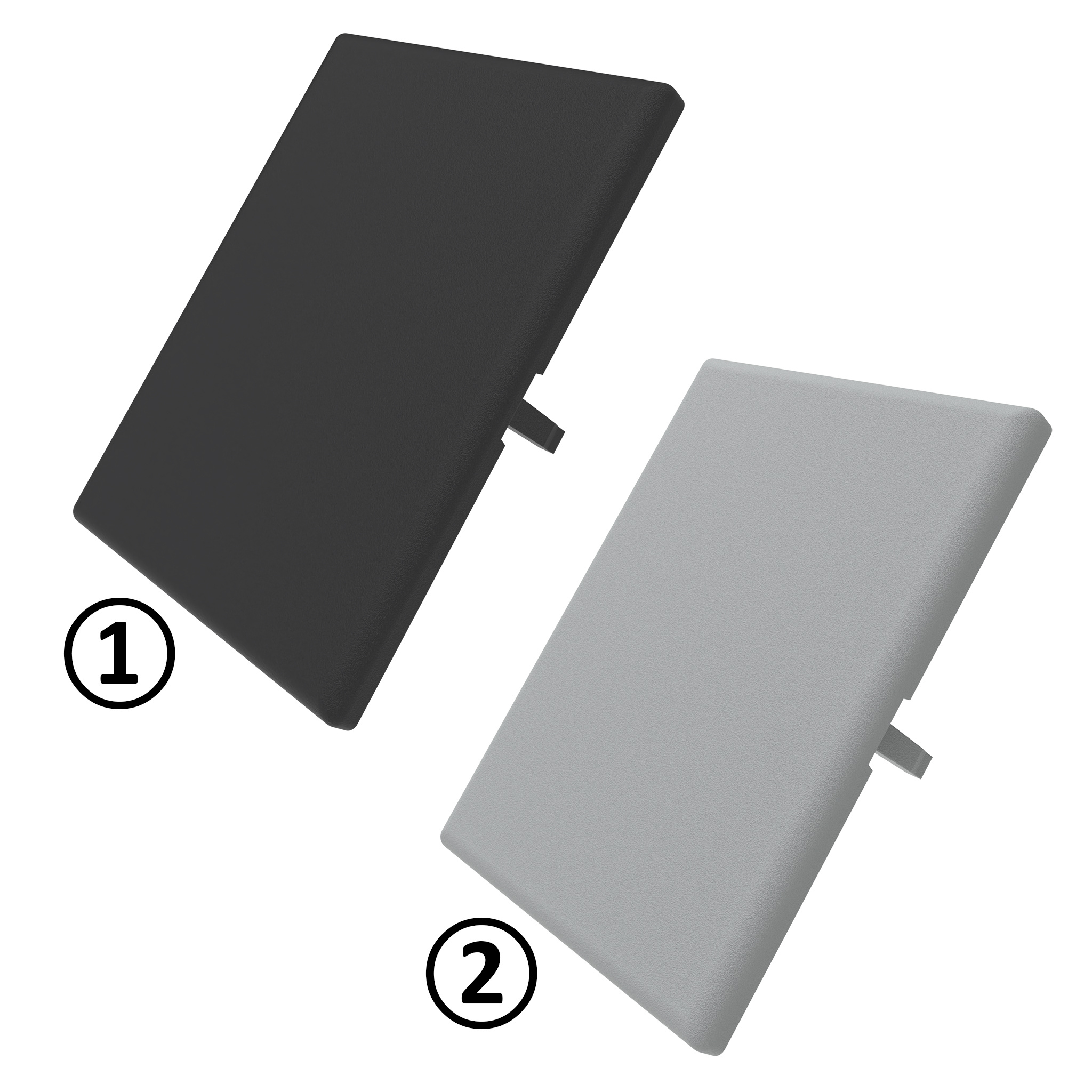

Cover Cap for Zinc Connection Angle I 40 – product image of all versions

Cover Cap for Zinc Connection Angle I 40

Fig.: ② Color: Gray ≈ RAL 7042

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:Black, grayTip:Compatible Zinc Connection Angle I 40 see 093W407N08RDelivery Countries:Worldwide

€0.00

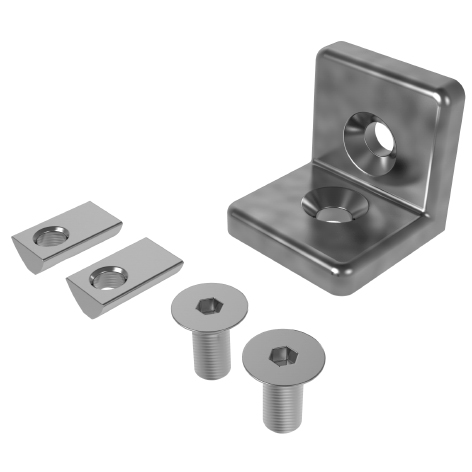

Zinc Connection Angle V 40 (Set) – product image

Zinc Connection Angle V 40 (Set)

D (mm): 9.0 Profile: I Slot N (mm): 8 Dimensions L x B x H (mm): 40 x 40 x 40

Description:To connect two aluminum profiles or panels at right angles; particularly suitable for fixing horizontal profiles between upright profiles or for attaching other components to profiles; with turn-lock slot 8 on one of the rear sidesMaterial:Connection angle: Zinc die-cast Screws and T-slot nuts: SteelSurface:Connection Angle: Powder coated Screws and T-solt nuts: Zinc platedColor:Alu colorSet:1 connection angle V40 - slot 8, 2 screws DIN EN ISO 10642 (DIN 7991) - M8 x 18, 2 T-slot nuts - slot 8 - M8Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00

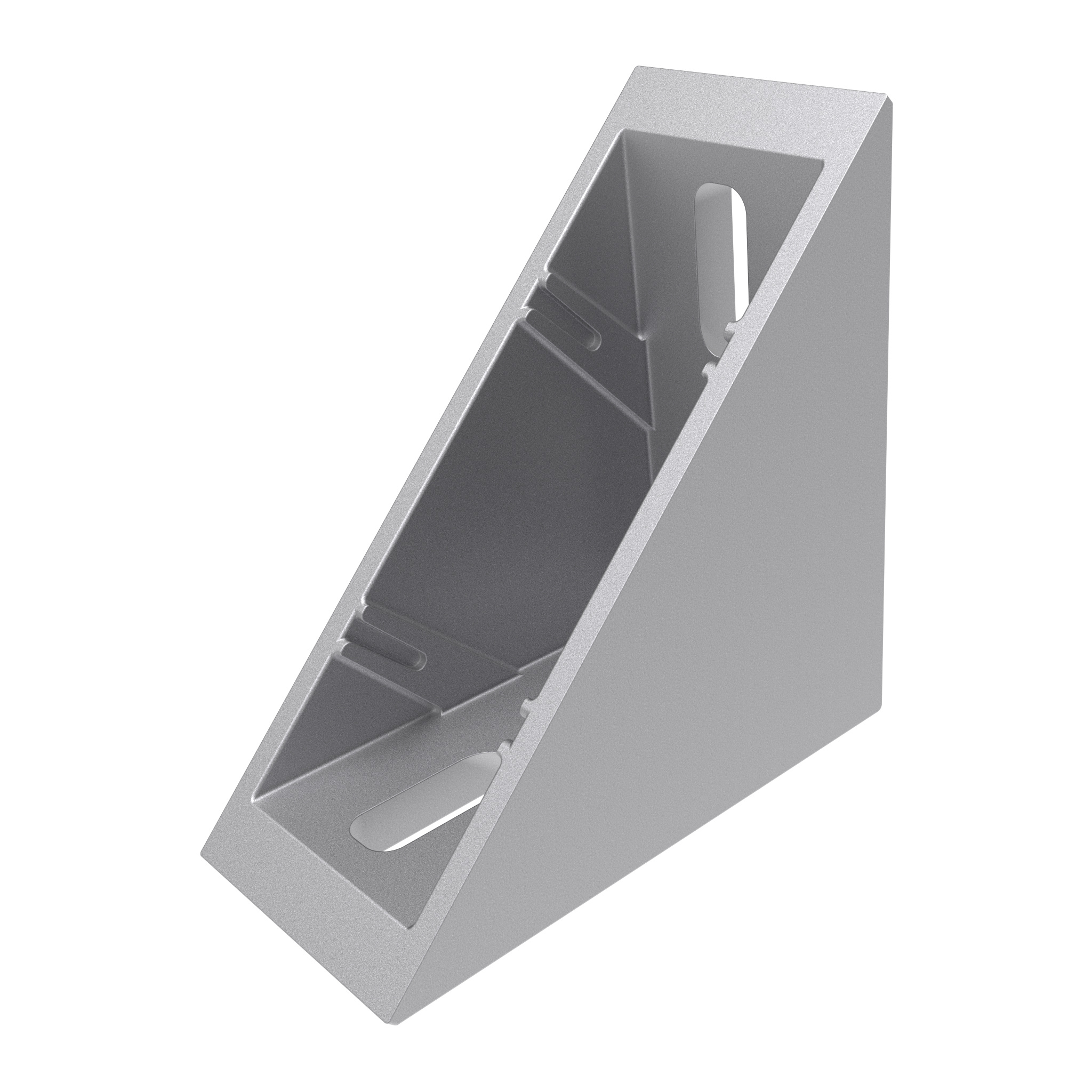

Zinc Connection Angle 40 x 80 flat – product image of all versions

Zinc Connection Angle 40 x 80 flat

Version: - Profile: - Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Angle: Plain / Powder coated Assembly set: Zinc platedColor:Angle: Alu color Cover cap: BlackAssembly Set:1 Cover cap - Plastic PA - black, 4 T-slot nuts - slot 8 - M8, 4 Screws DIN EN DIN EN ISO 7380 (DIN 34805) - M8 x 16Tip:Compatible Cover Cap see 093WA802Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00

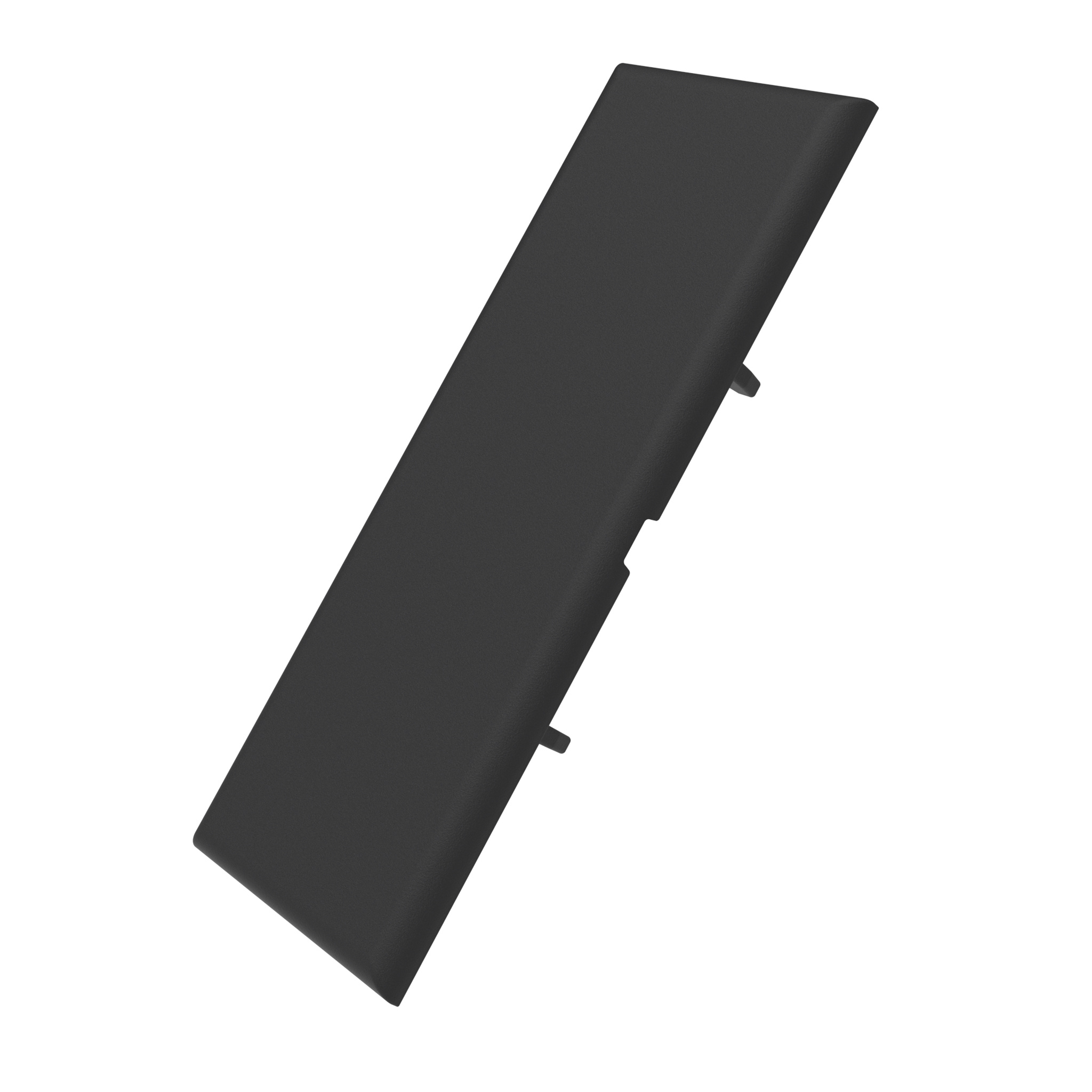

Cover Cap for Zinc Connection Angle 40 x 80 flat – product image

Cover Cap for Zinc Connection Angle 40 x 80 flat

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:BlackTip:Compatible Zinc Connection Angle see 093W802RSpecials:Other colors on requestDelivery Countries:Worldwide

€0.00
Zinc Connection Angle I 40 x 80 flat (Set) – product image

Zinc Connection Angle I 40 x 80 flat (Set)

Profile: I

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Cover cap: Plastic PA, glass fiber reinforced Assembly set: SteelSurface:Angle: Powder coated Screws: Zinc plated T-slot nuts: Zinc platedColor:Angle: Alu color Cover cap: BlackSet:1 connection angle 1 cover cap 4 T-slot nut - slot 8 - M8 4 screws DIN EN ISO 7380 (DIN 34805) - M8 x 18 4 washerSpecials:Other sizes, other surfaces on requestDelivery Countries:Worldwide

€0.00
Zinc Connection Angle 60 – product image of all versions

Zinc Connection Angle 60

Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Assembly set: SteelSurface:Angle: Plain / Powder coatedColor:Angle: Alu colorTip:Compatible Cover Cap see 093WA601Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00

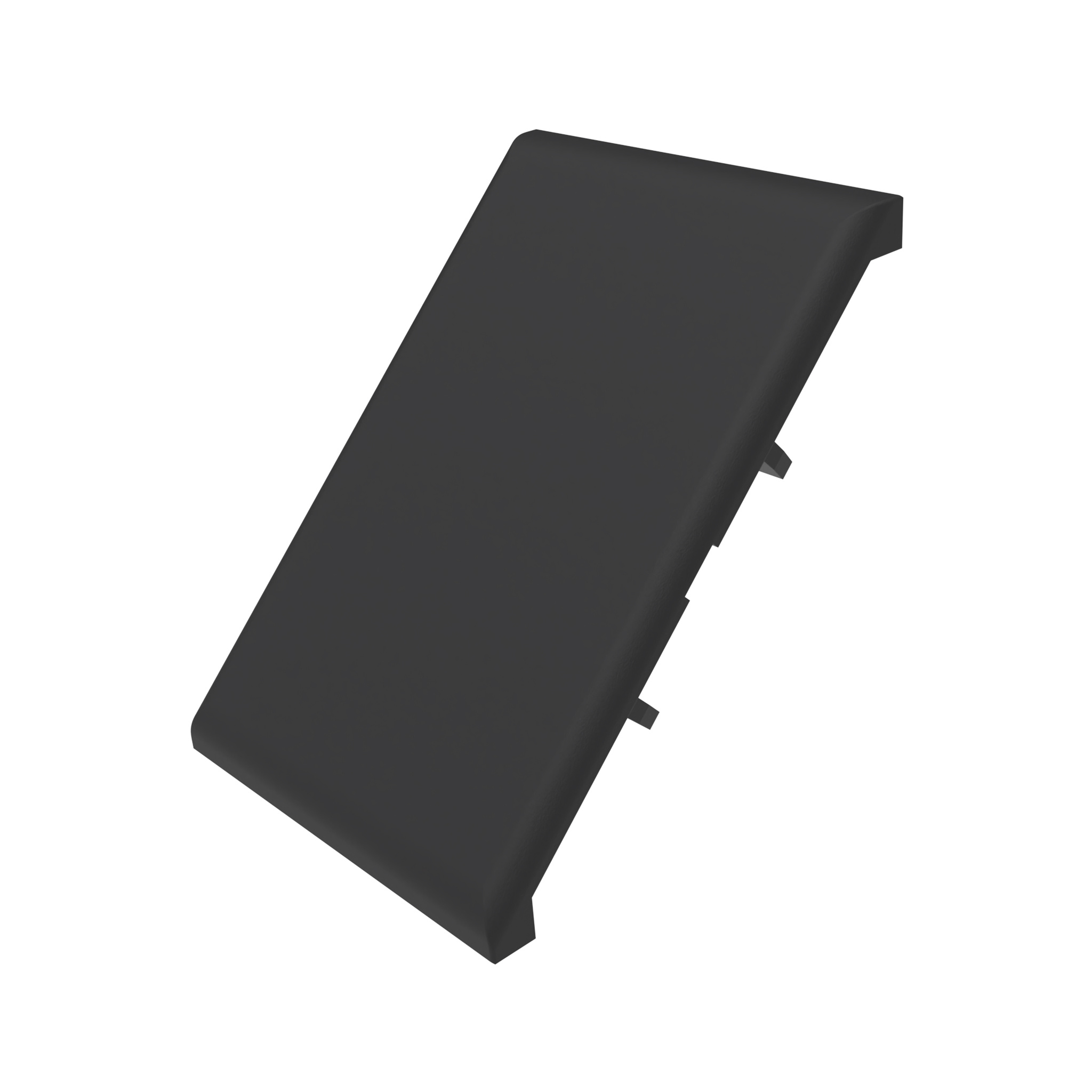

Cover Cap for Zinc Connection Angle 60 – product image

Cover Cap for Zinc Connection Angle 60

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:BlackTip:Compatible Zinc Connection Angle see 093W601RSpecials:Other colors on requestDelivery Countries:Worldwide

€0.00

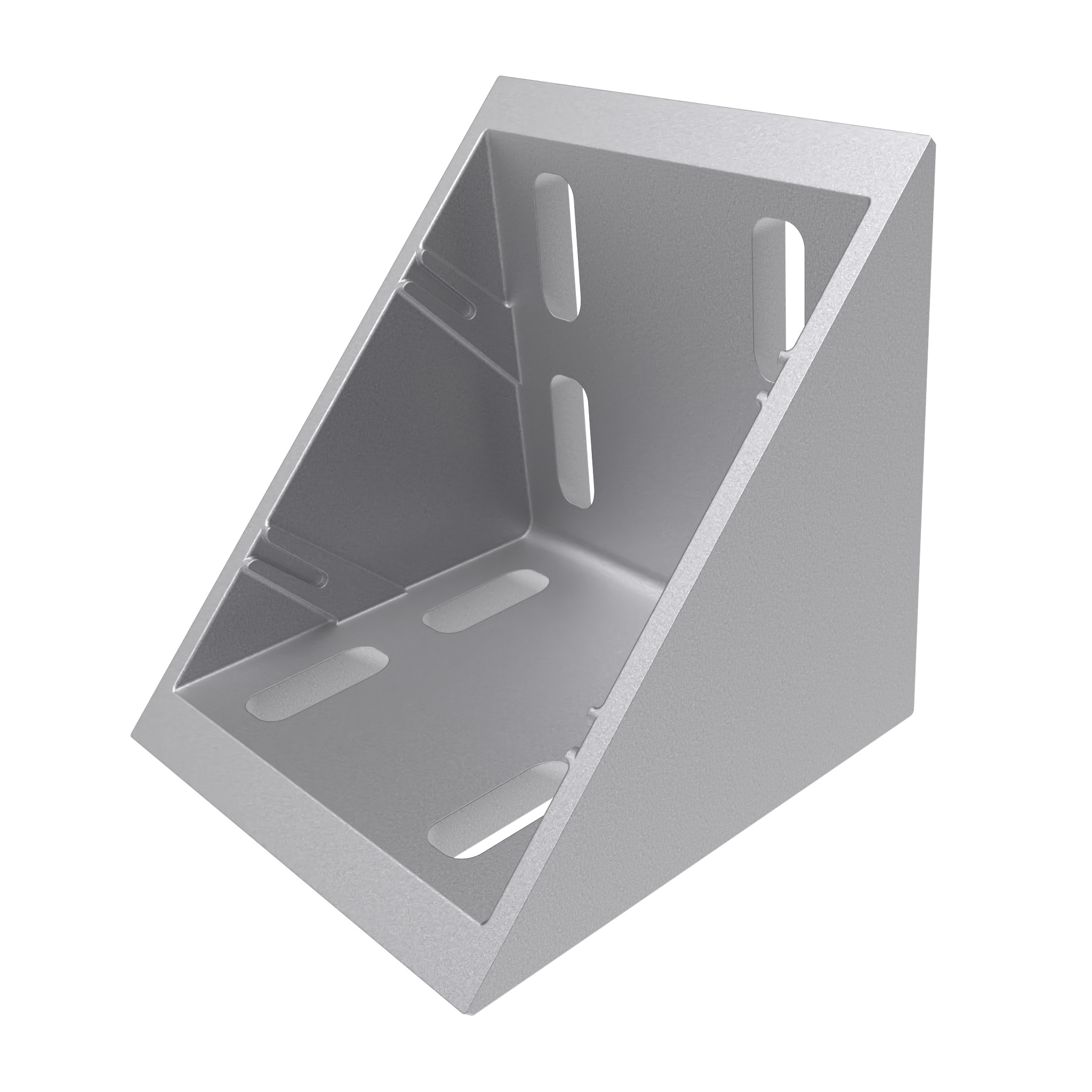

Zinc Connection Angle 80 flat – product image of all versions

Zinc Connection Angle 80 flat

Surface: Plain Color: - Slot N (mm): -

Description:To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover capMaterial:Angle: Zinc die-cast Assembly set: SteelSurface:Angle: Plain / Powder coatedColor:Angle: Alu colorTip:Compatible Cover Cap see 093WA803Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide

€0.00
Cover Cap for Zinc Connection Angle 80 flat – product image

Cover Cap for Zinc Connection Angle 80 flat

Description:To cover the open side of the connection angleMaterial:Plastic PA, glass fiber reinforcedColor:BlackTip:Compatible Zinc Connection Angle see 093W803RSpecials:Other colors on requestDelivery Countries:Worldwide

€0.00
