Zinc Connection Angle I 40 x 80 flat (Set)

Product information "Zinc Connection Angle I 40 x 80 flat (Set)"

Color:
Angle: Alu color
Cover cap: Black

Delivery Countries:
Worldwide

Description:

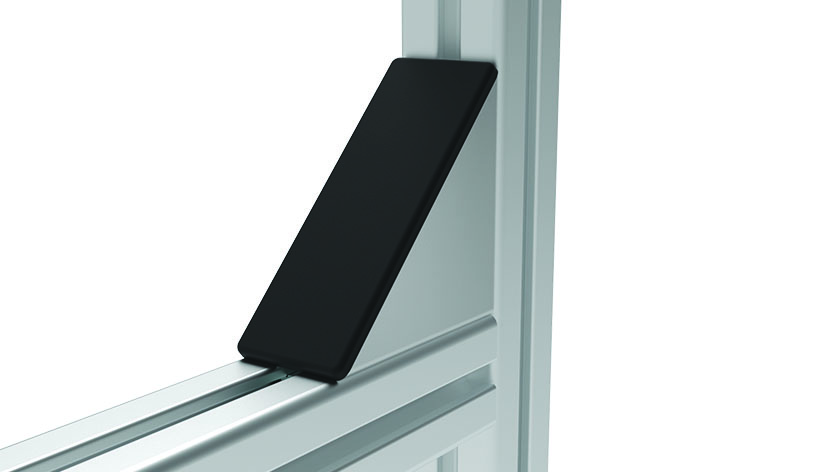

To connect two aluminum profiles or panels at right angles; the connection angle can be closed with the cover cap

Material:
Angle: Zinc die-cast
Cover cap: Plastic PA, glass fiber reinforced
Assembly set: Steel

Set:
1 connection angle
1 cover cap
4 T-slot nut - slot 8 - M8
4 screws ISO 7380 - M8 x 18
4 washer

Specials:
Other sizes, other surfaces on request

Surface:
Angle: Powder coated
Screws: Zinc plated
T-slot nuts: Zinc plated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Zinc die-cast
Pack Quantity: 10 sets
Weight (g): 399.2

Variants

Product ID Profile
093W8010N08S01 I
