Zinc Connection Angle V 40 (Set)

Product information "Zinc Connection Angle V 40 (Set)"

Color:
Alu color

Delivery Countries:
Worldwide

Description:

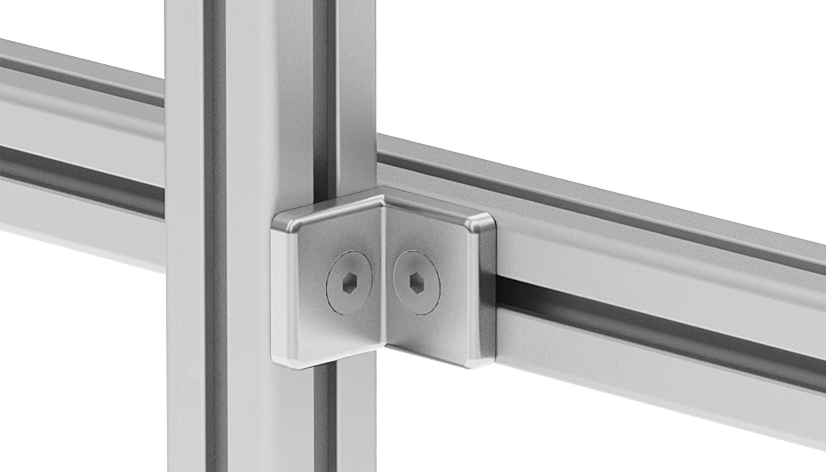

To connect two aluminum profiles or panels at right angles; particularly suitable for fixing horizontal profiles between upright profiles or for attaching other components to profiles; with turn-lock slot 8 on one of the rear sides

Material:
Connection angle: Zinc die-cast
Screws and T-slot nuts: Steel

Set:
1 connection angle V40 - slot 8,
2 screws DIN 7991 - M8 x 18,
2 T-slot nuts - slot 8 - M8

Specials:
Other surfaces, other colors on request

Surface:
Connection Angle: Powder coated
Screws and T-solt nuts: Zinc plated

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Zinc die-cast, slot 8
Pack Quantity: 10 sets
Weight (g): 164.7

Variants

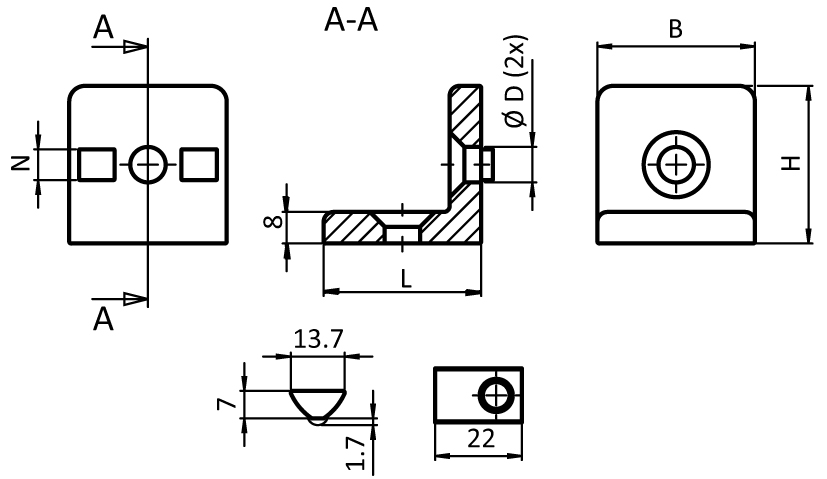

Product ID Profile Dimensions L x B x H (mm) Slot N (mm) D (mm)
093WI40N08S01 I 40 x 40 x 40 8 9.0
