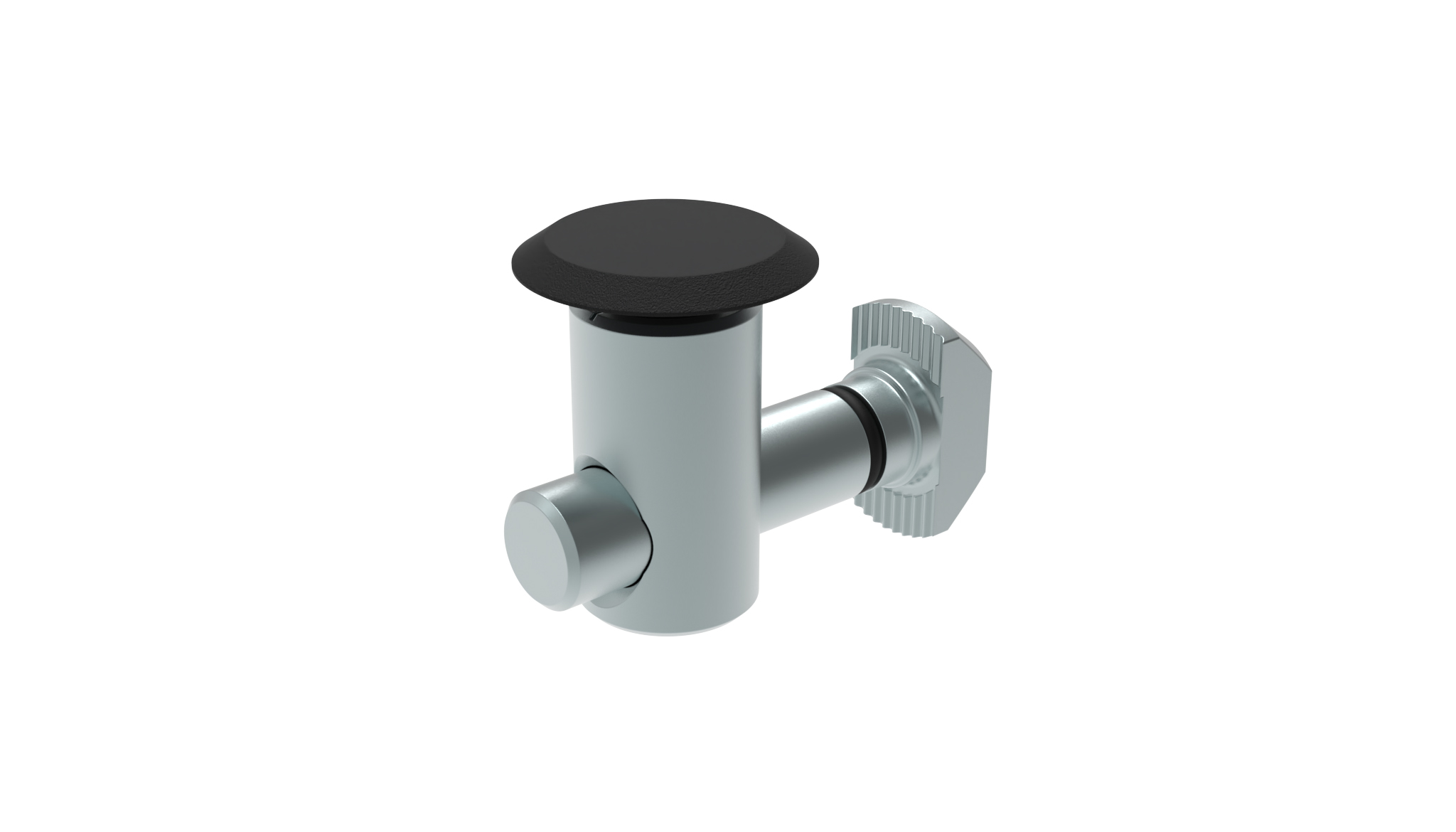

Cover Cap for Central Connector B, Slot 10

€0.00

Profile

B

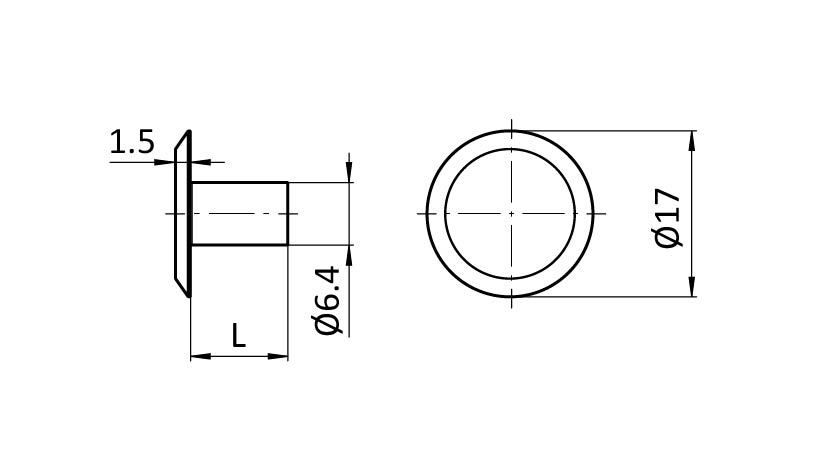

L (mm)

10.0

15.0

Modular Dimension (mm)

40

45

for Nut

10

Part #: 091107

Pack Quantity: 100 pieces

Description:
To cover the blind or through hole

Material:
Plastic PA

Color:
Black

Tip:
Compatible Central Connector B 0°, Slot 10 see 099B10171000
Compatible Central Connector B 90°, Slot 10 see 099B10171090
Compatible Central Butt Connector B 180° +/-45°, Slot 10 see 099B1017S01
Compatible Central Connector B 90° +/-45°, Slot 10 see 099B1017S02

Delivery Countries:
Worldwide

Pack Quantity:	100 pieces
Weight (g):	0.6
ERP Number:	100086

Variants

Part #	Profile	L (mm)	Modular Dimension (mm)	for Nut	Pack Quantity
091107	B	15.0	45	10	100 pieces
091108	B	10.0	40	10	100 pieces

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360192
ECLASS 12.0: 23360192
ECLASS 13.0: 23360192
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097

Tags

Profile Type	Profile Type B
Slot Size	Slot size 10
Modular Dimension	Modular Dimension 45
Profile Form	T-slot Profiles
