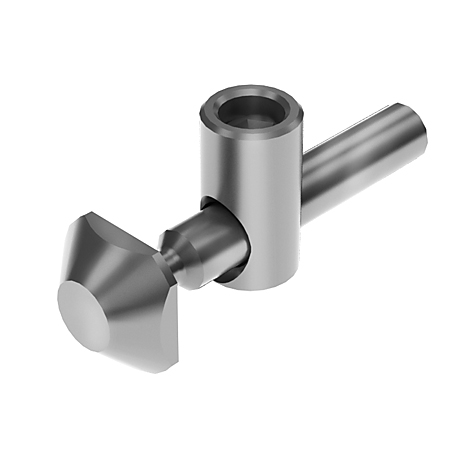

Central Connector B 90° +/-45°

Description:

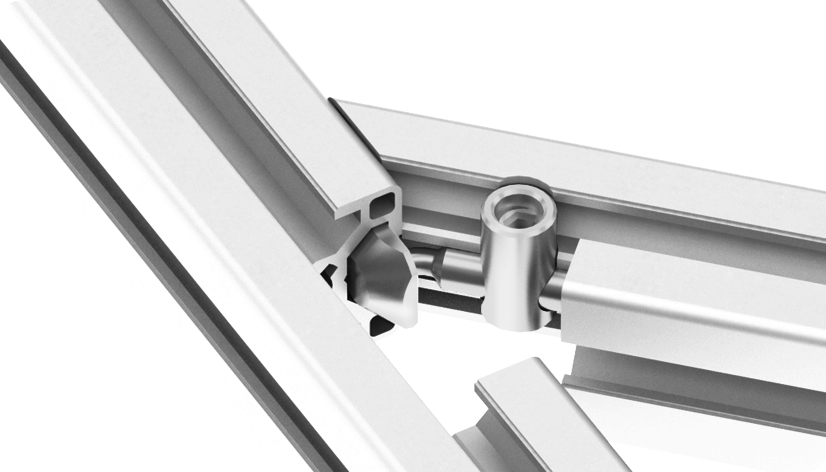

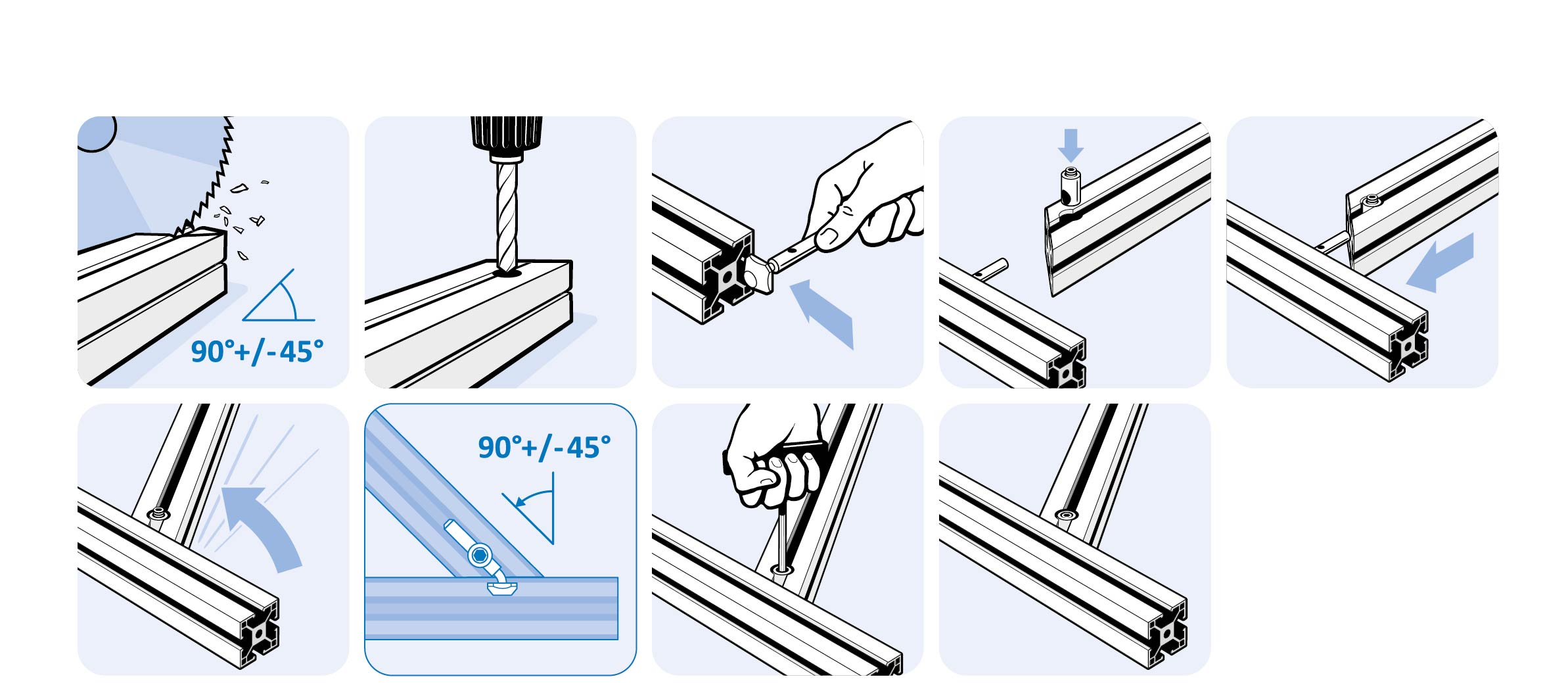

End-to-end connection of two aluminum profiles of the same type; a blind or through hole must be drilled before the assembly; bendable from 45° to 135°

Material:
Tie-rod: Stainless steel
Bushes: Steel

Surface:
Tie-rod: Plain
Bushes: Zinc plated

Tip:
Cover Cap* (1) = profile 40; (2) profile 45; (3) profile 50

Tip 2:
Compatible Cover Cap for Central Connector B, Slot 10 see 091107

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces
Model:	Steel / stainless steel
Weight (g):	76.0
ERP Number:	119722

Variants

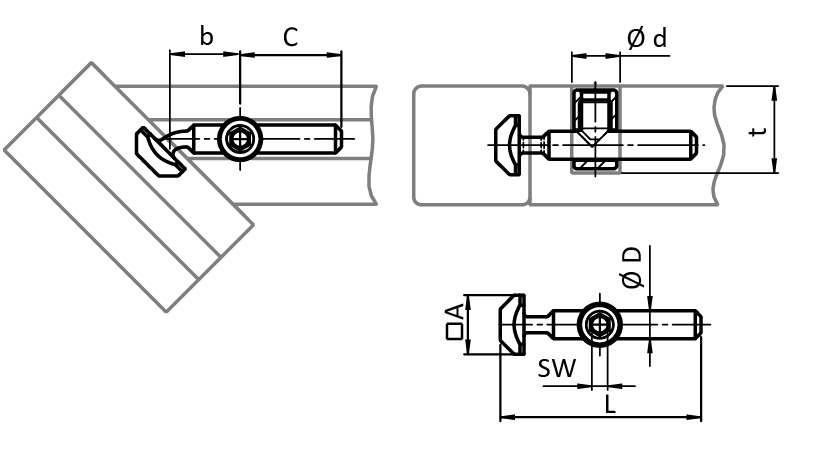

Part #	SW (mm)	D (mm)	Profile	L (mm)	d (mm)	b (mm)	Slot N (mm)	t (mm)	CAD
099B0811S02	4	7.1	B	51.0	Ø11	18.0	8	22.0
099B1017S02	6	9.8	B	75.0	Ø17	22.5	10	31.0 (1) 34.0 (2) 36.0 *(3)

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 73269098900
Customs Tariff Number Export: 73269098

Certificates

Tags

Profile Type	Profile Type B
Slot Size	Slot size 10
Profile Form	T-slot Profiles

Matching accessories

Cover Cap for Central Connector B, Slot 10

Profile: B L (mm): 15.0 Modular Dimension (mm): 45 for Nut: 10

Description:To cover the blind or through holeMaterial:Plastic PAColor:BlackTip:Compatible Central Connector B 0°, Slot 10 see 099B10171000 Compatible Central Connector B 90°, Slot 10 see 099B10171090 Compatible Central Butt Connector B 180° +/-45°, Slot 10 see 099B1017S01 Compatible Central Connector B 90° +/-45°, Slot 10 see 099B1017S02Delivery Countries:Worldwide
