Central Connector B Universal, Slot 10

Product information "Central Connector B Universal, Slot 10"

Delivery Countries:
Worldwide

Description:

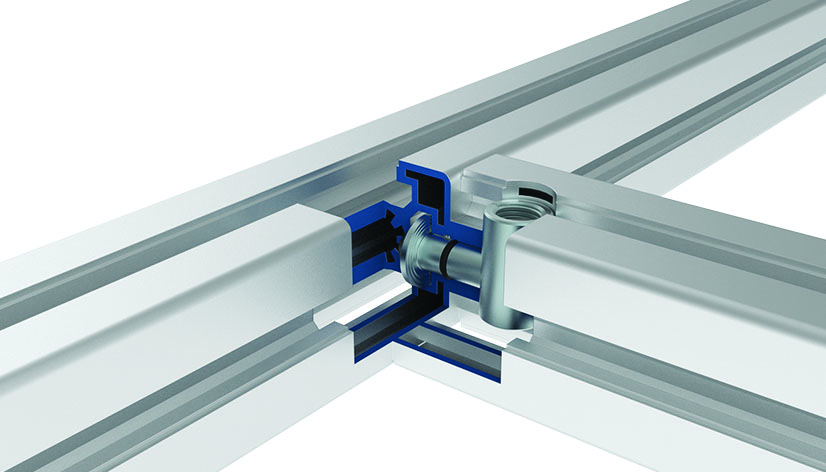

To connect two aluminum profiles at right angles; a blind or through hole must be drilled through one of the profiles to provide access to the tightening screw

Material:
Steel

Surface:
Zinc plated

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Steel
Pack Quantity: 10 pieces
Weight (g): 63.0

Variants

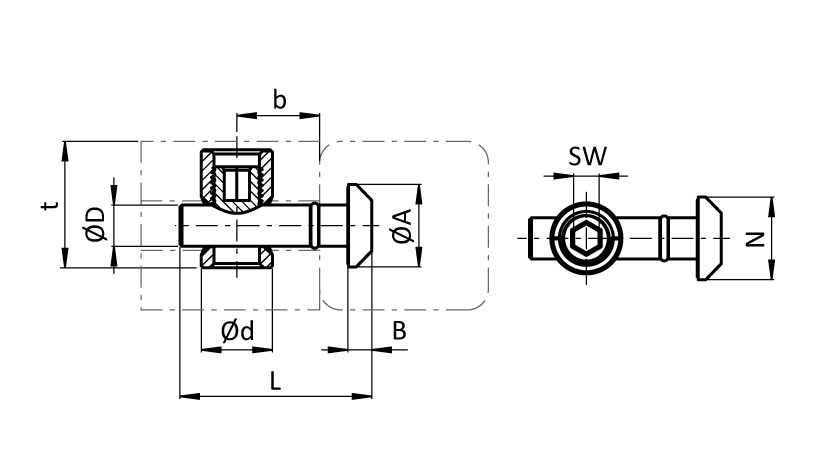

Product ID Profile L (mm) Slot N (mm) d (mm) A (mm) B (mm) D (mm) SW (mm)
099B101710 B 46.0 10 16.85 19.6 5.5 9.8 6
