Alu Connection Angle I40 M Length/Cross (Set)

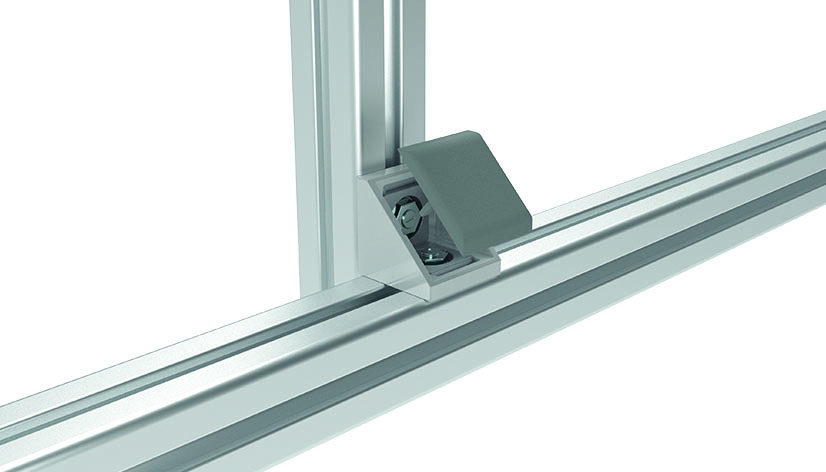

Alu Connection Angle I40 M Length/Cross (Set) – application example

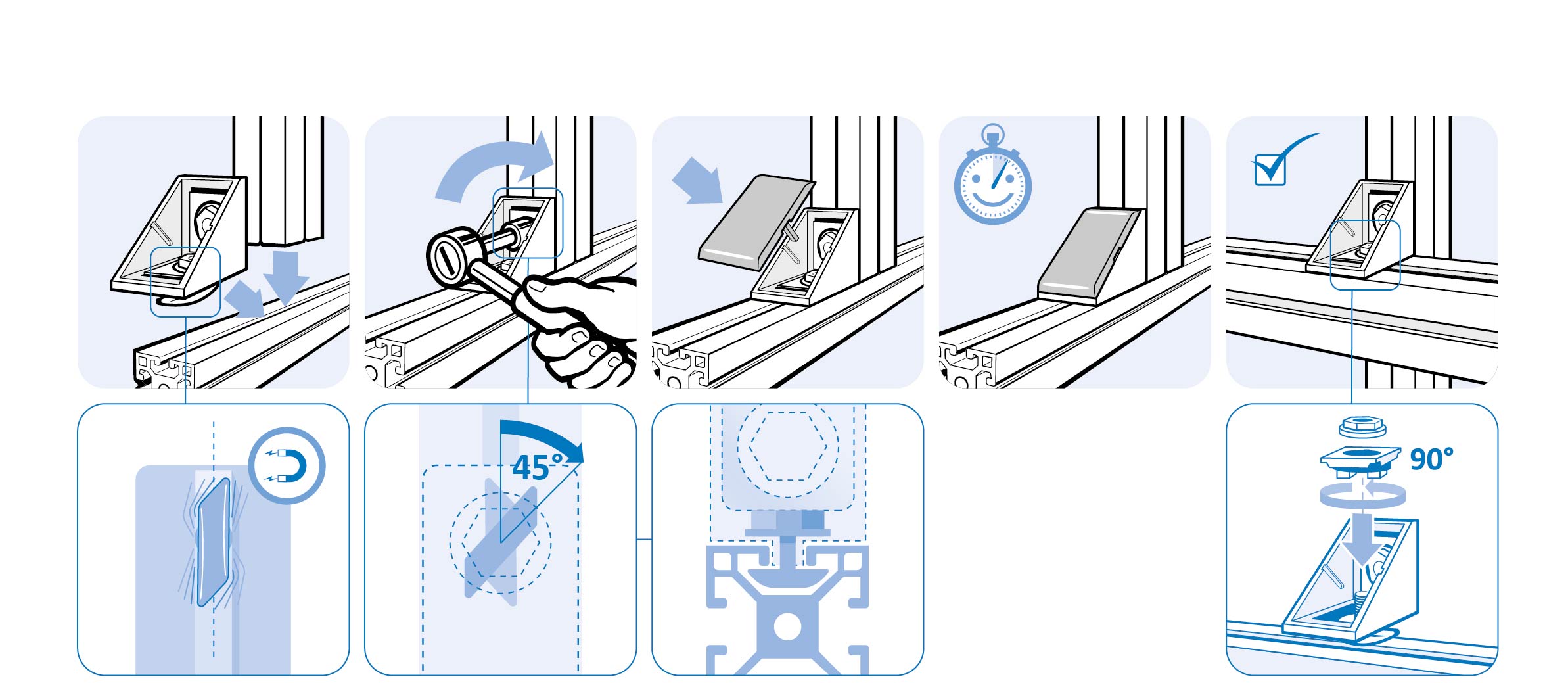

Alu Connection Angle I40 M Length/Cross (Set) – assembly graphic

€0.00

Profile

I

Slot N (mm)

8

Part #: 093W4010N08S01

Pack Quantity: 10 pieces

Product information "Alu Connection Angle I40 M Length/Cross (Set)"

Color:
Angle: Alu color
Cover cap: Gray≈ RAL 7042
Ring: Black

Delivery Countries:
Worldwide

Description:
To connect two aluminum profiles quickly at right angles lengthwise or crosswise, direct inserting into the profile slot thanks to correct positioning of the pre-assembled magnet rhombus screws and countersunk nuts; the connection angle can be closed with the cover cap

Material:
Angle: Aluminum die-cast
Cover cap: Plastic PA, glass fiber reinforced,
Magnet rhombus screws: Steel
Countersunk nuts: Steel
Insert: Zinc die-cast # Ring: Plastic PE

Set:
1 angle
2 magnet rhombus screws
2 countersunk nuts M8
1 cover cap

Surface:
Angle: Powder coated
Magnet rhombus screws: Zinc plated
Countersunk nuts: Zinc plated

Profile Type:	Profile Type I
Slot Size:	Slot 8
Application Area:	Industrial Work Stations, Shopfloor
Pack Quantity:	10 pieces
Model:	Aluminum die-cast
Weight (g):	114.0
ERP Number:	149513
