Alu Connection Angle 45 T

Product information "Alu Connection Angle 45 T"

Assembly Set:
2 hammer screws - slot 10 - M8 x 25,
2 flange nuts M8

Color:
Alu color

Delivery Countries:
Worldwide

Description:

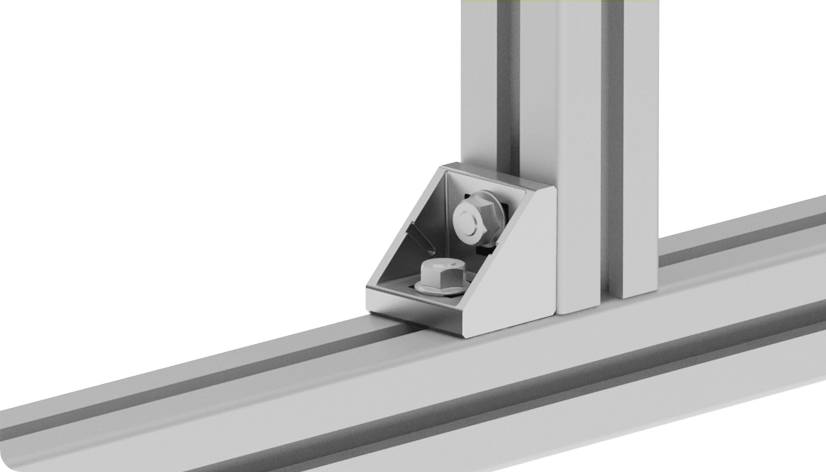

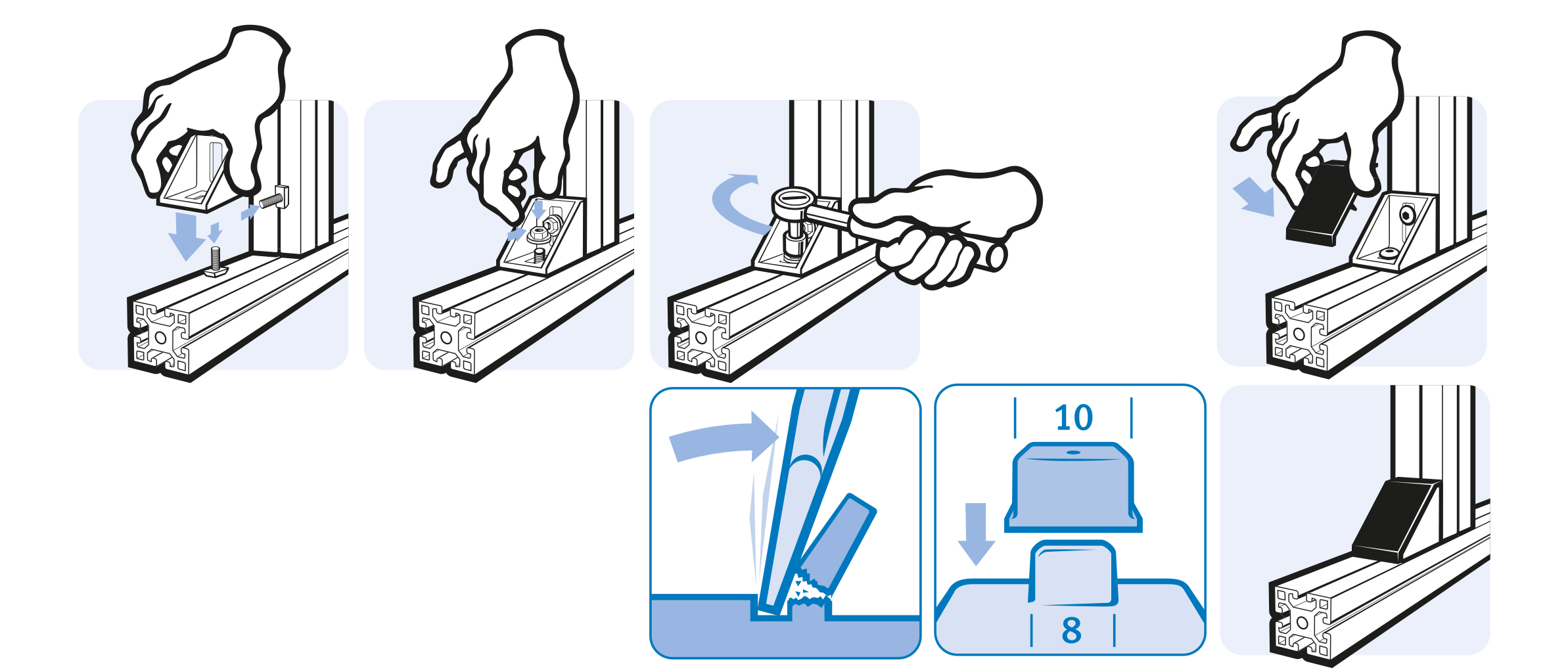

To connect two aluminum profiles or panels at right angles, the connection angle can be closed with the cover cap

Material:
Angle: Aluminum die-cast
Assembly set: Steel

Specials:
Other surfaces, other colors on request

Surface:
Angle: Plain
Assembly set: Zinc plated

Tip:
Compatible Flat Cover Cap see 093WA421S02

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum die-cast, profile 45 and up
Pack Quantity: 10 pieces / 10 set
Weight (g): 54.3

Variants

Product ID Slot N (mm) Version Profile
093W423N10 10
093W423N10S02 10 incl. assembly set B
